TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-43

Code No.26: Driver's pre-tensioner (squib) system (short-circuited between terminals of the squib
circuit) <R.H. drive vehicles>

OPERATION
The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU outputs an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

DIAGNOSIS CODE SET CONDITIONS
This diagnosis code is set if one driver’s
pre-tensioner squib wire shorted to the other.

PROBABLE CAUSES

•

Improper engaged connector or defective short
spring*

•

Short circuit between the driver's seat belt
pre-tensioner (squib) circuit terminals

•

Damaged connector(s)

•

Malfunction of the SRS-ECU

NOTE: *: The squib circuit connectors integrate a
"short" spring (which prevents the air bag from
deploying unintentionally due to static electricity by
shorting the positive wire to the earth wire in the
squib circuit when the connectors are disconnected).
Therefore, if connector C-114 or D-43 is damaged or
improperly engaged, the short spring may not be
released when the connector is connected.

CONNECTOR
LOCK
SWITCH

NOTE

CONNECTOR
COUPLED: ON
CONNECTOR
UNCOUPLED: OFF

CONNECTOR
LOCK
SWITCH

MICROCOMPUTER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SRS-ECU

SEAT BELT
PRE-TENSIONER
(RH)

AIR BAG
DRIVE CIRCUIT

Driver's Seat Belt Pre-Tensioner (Squib)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-44

DIAGNOSIS PROCEDURE

STEP 1. MUT-II/III diagnosis code

CAUTION

To prevent damage to MUT-II, always turn the
ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting MUT-II.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the diagnosis code is set.
(3) Turn the ignition switch to the "LOOK" (OFF)

position.

Q: Is diagnosis code 34 set?

YES :

Go to Step 2.

NO :

Go to Step 3.

STEP 2. Connector check: SRS-ECU connector
C-114

Q: Is the connector correctly engaged?

YES :

Go to Step 3.

NO :

Engage the connector correctly. Then go to
Step 7.

STEP 3. Connector check: SRS-ECU connector
C-114 and driver’s seat belt pre-tensioner
connector D-43. (Check whether the diagnosis
code is reset.)
(1) Disconnect the negative battery terminal.

(2) Disconnect connectors C-114 and D-43, and then

reconnect them. For connector D-43, use a
flat-tipped screwdriver to pull out the locking
button at the harness side connector, and then
disconnect the connector.

(3) Connector the negative battery terminal.
(4) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is diagnosis code 26 set?

YES :

Go to Step 4.

NO :

The procedure is complete. It is assumed
that diagnosis code 26 set as connector
C-114 or D-43 was engaged improperly.

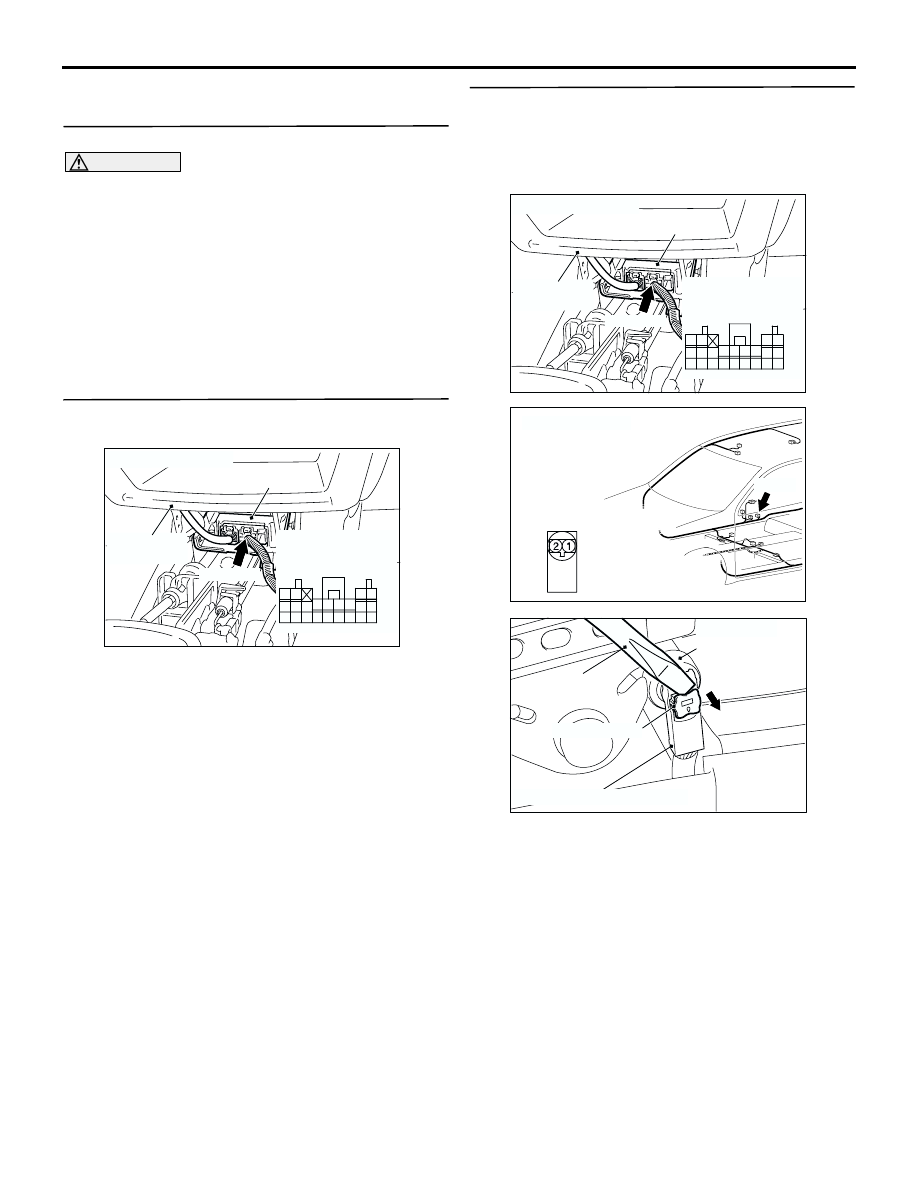

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC308785

Connector: D-43

AG

Harness side

D-43 (B)

AC300147AF

Flat-tip screw
driver

Locking button

D-43 Passenger's

seat belt

pre-tensioner

connector

D-43 Harness side connector

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-45

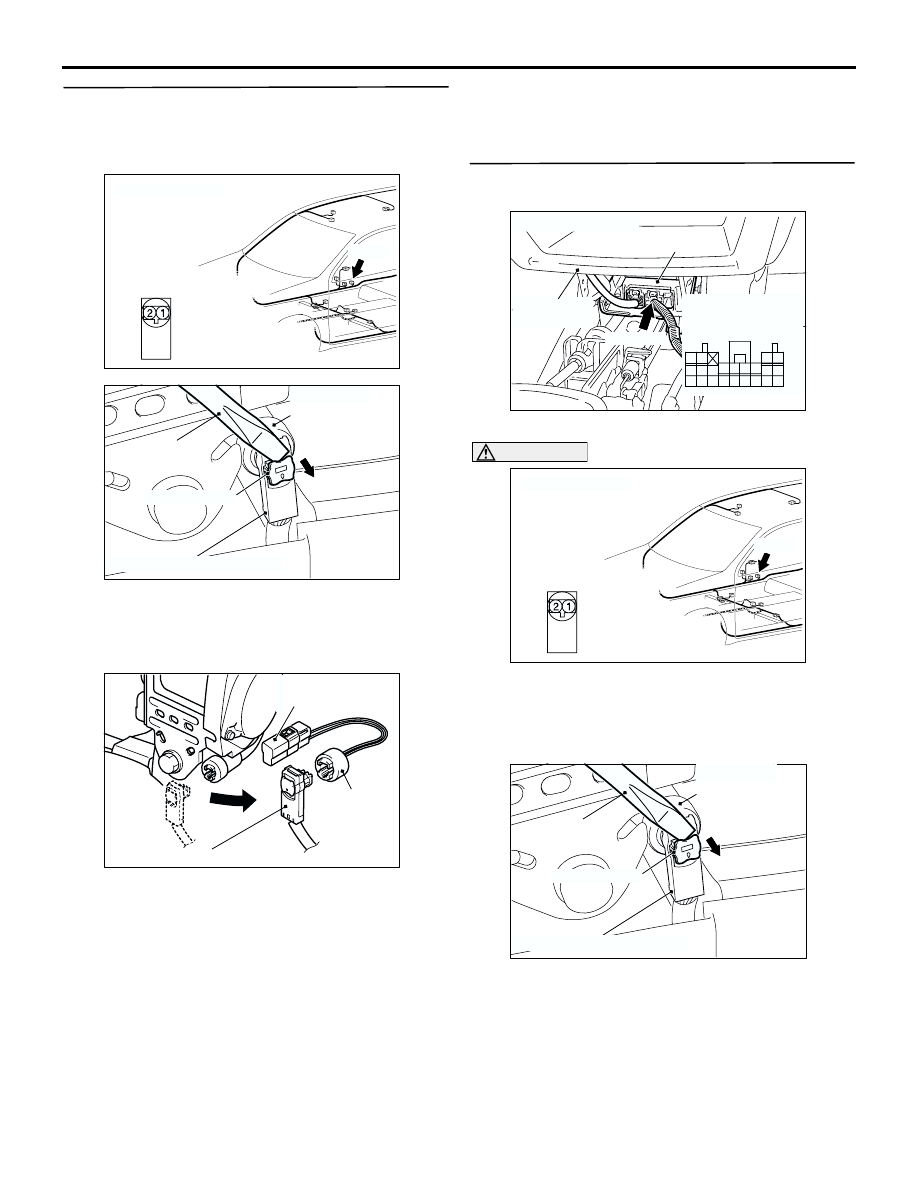

STEP 4. Check the driver's seat belt
pre-tensioner. (Check whether the diagnosis
code is reset.)
(1) Disconnect the negative battery terminal.

(2) Disconnect driver's seat belt pre-tensioner

connector D-43. Use a flat-tipped screwdriver to
pull out the locking button at the harness side
connector, and then disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool (MB991884) to the D-43

harness side connector.

(5) Connect the negative battery terminal.
(6) Erase diagnosis code memory, and then check

the diagnosis code.

Q: Is diagnosis code 26 set?

YES :

Go to Step 5.

NO :

Replace the driver's seat belt pre-tensioner
(Refer to

P.52B-188

). Then go to Step 7.

STEP 5. Measure the resistance at the SRS-ECU
connector C-114.

(1) Disconnect SRS-ECU connector C-114.

DANGER

To prevents the air bag from deploying
unintentionally, disconnect the driver’s seat
belt pre-tensioner connector D-43 to short
the squib circuit.

(2) Disconnect driver's seat belt pre-tensioner

connector D-43. Use a flat-tipped screwdriver to
pull out the locking button at the harness side

AC308785

Connector: D-43

AG

Harness side

D-43 (B)

AC300147AF

Flat-tip screw
driver

Locking button

D-43 Passenger's

seat belt

pre-tensioner

connector

D-43 Harness side connector

MB991884
MB991885

AC300975AE

MB991865
(Dummy resistor : 3

Ω)

MB991884
(Resistor
harness)

D-43 Harness side connector

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC308785

Connector: D-43

AG

Harness side

D-43 (B)

AC300147AF

Flat-tip screw
driver

Locking button

D-43 Passenger's

seat belt

pre-tensioner

connector

D-43 Harness side connector

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-46

connector, and then disconnect the connector.

CAUTION

Insert an insulator such as a cable tie to a depth
of 4mm or more, otherwise the short bar will not
be released.

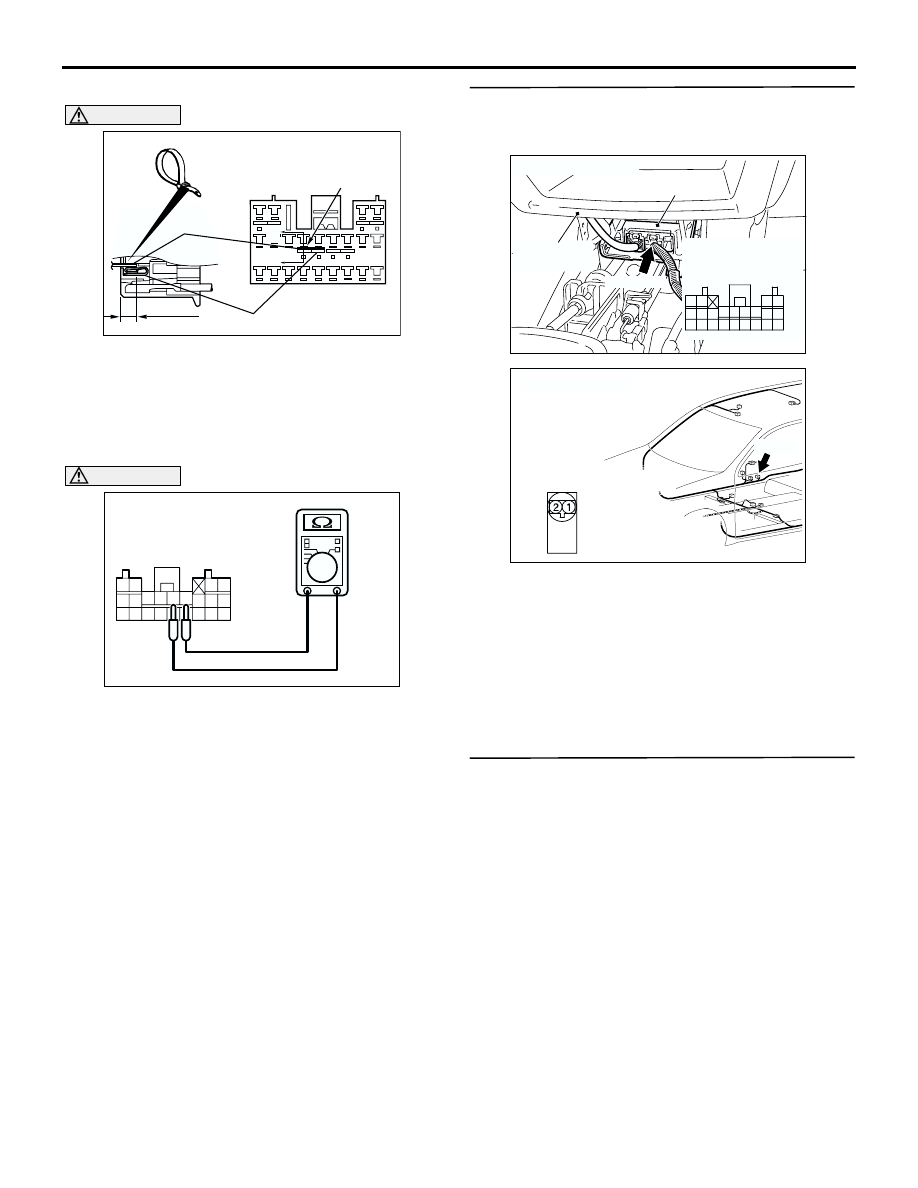

(3) Insert a cable tie [3 mm wide, 0.5 mm thick]

between terminals 29, 30 and the short bar to
release the short spring.

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(4) Measure the resistance between C-114 harness

side connector terminals 29 and 30.

OK: Open circuit

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
26 sets, replace the SRS-ECU (Refer to

P.52B-178

). Then go to Step 7      .

NO :

Go to Step 6.

STEP 6. Connector check: SRS-ECU connector
C-114 and driver’s seat belt pre-tensioner
connector D-43

Q: Is the check result normal?

YES :

Check the harness wires for short circuit

between SRS-ECU connector C-114
(terminal No.29 and 30) and driver’s seat
belt pre-tensioner connector D-43 (terminal
No.2 and 1), and repair if necessary. Then
go to Step 7.

NO :

Repair or replace it. Then go to Step 7.

STEP 7. Check whether the diagnosis code is
reset.

Q: Is diagnosis code 26 set?

YES :

Return to Step 1.

NO :

The procedure is complete (If no
malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00

−

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

).

AC300977

Section
A - A

C-114 Harness side connector
(front view)

Cable tie

Short spring

4 mm or more

Terminal

A

A

AB

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AC300985AB

C-114 Connector
harness side (rear view)

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC308785

Connector: D-43

AG

Harness side

D-43 (B)
