FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-15

<R.H. DRIVE VEHICLES>

AC212288

1

2

3

4

11 ± 2 N·m

11 ± 2 N·m

5 ± 1 N·m

AB

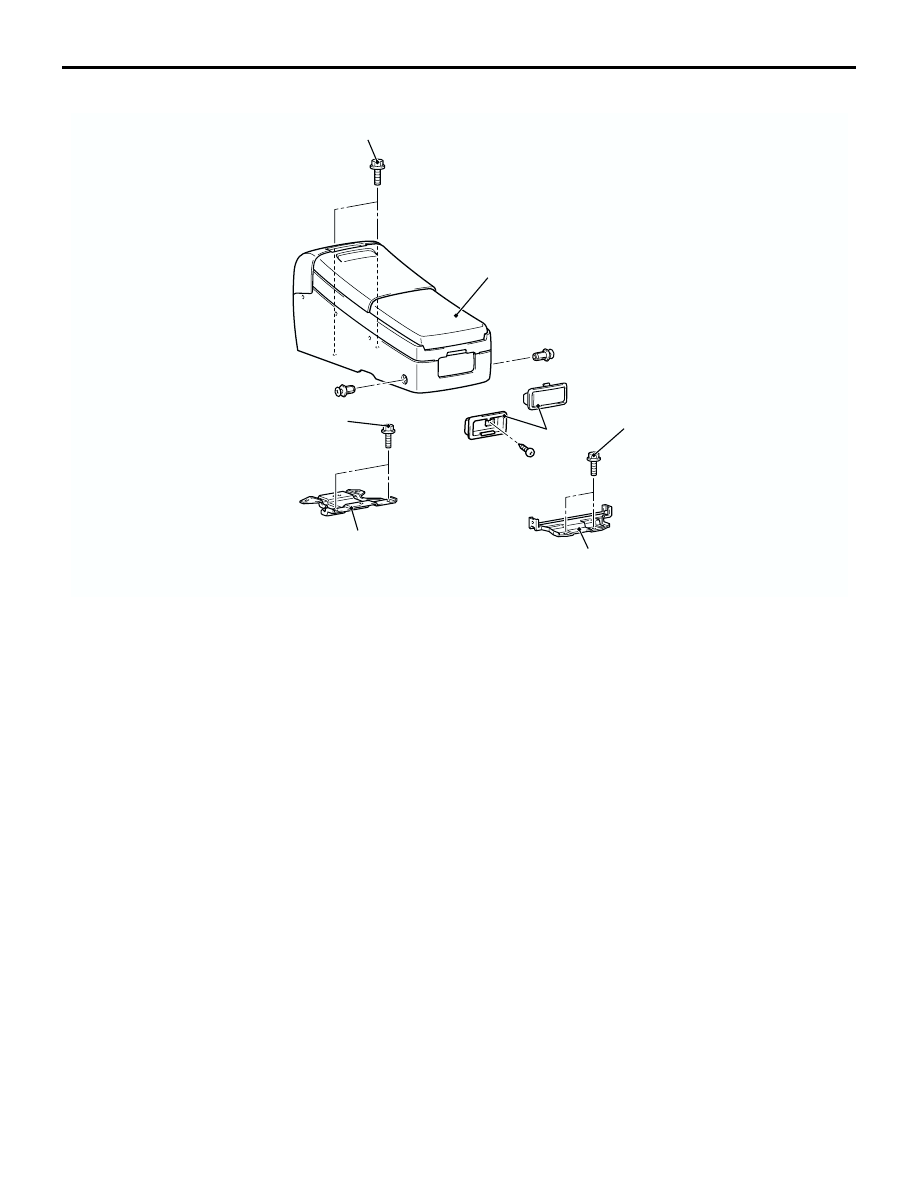

Removal steps

1.

Floor console ashtray

2.

Floor console assembly

3.

Floor console centre bracket

4.

Floor console rear bracket

Removal steps (Continued)

FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-16

DISASSEMBLY AND REASSEMBLY

M1521002400136

<L.H. DRIVE VEHICLES>

AC106397AH

1

2

3

4

5

6

7

8

9

10

11

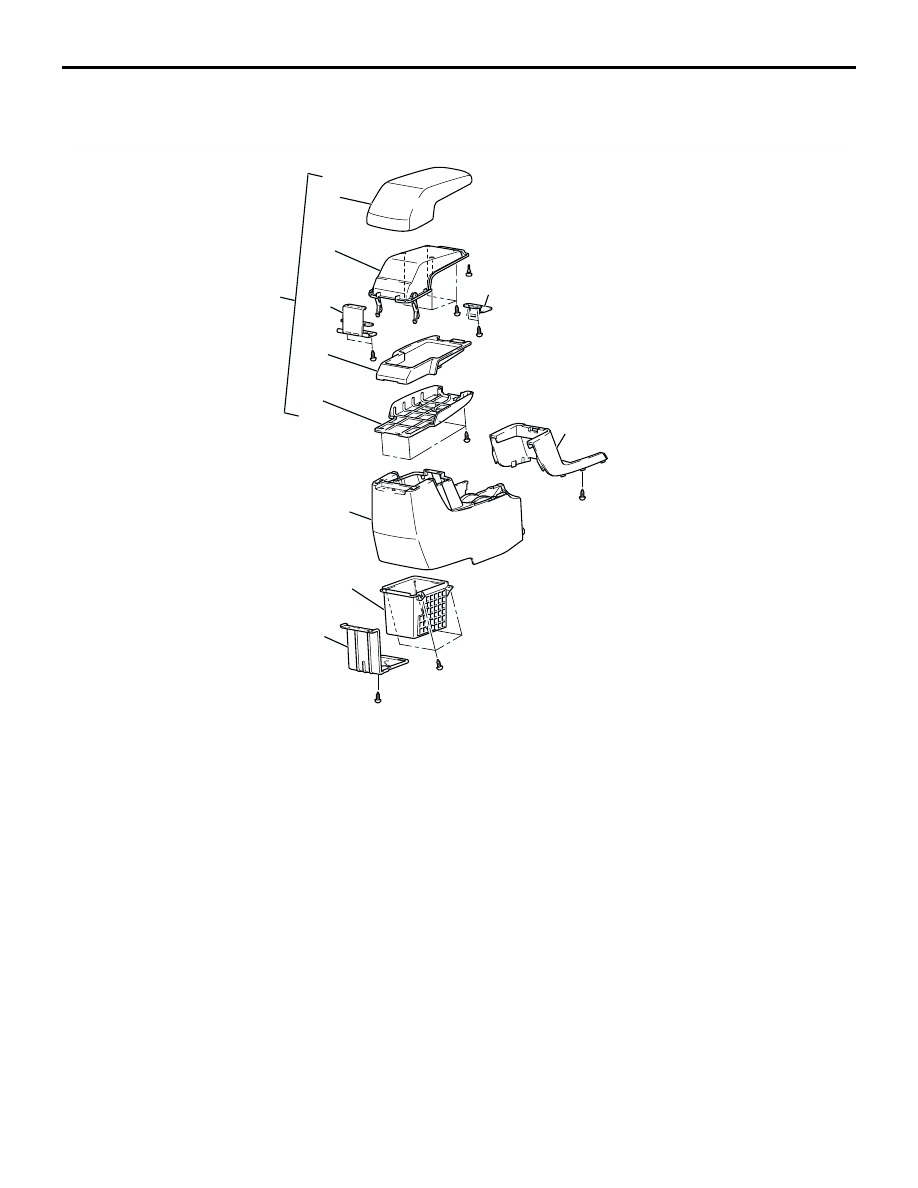

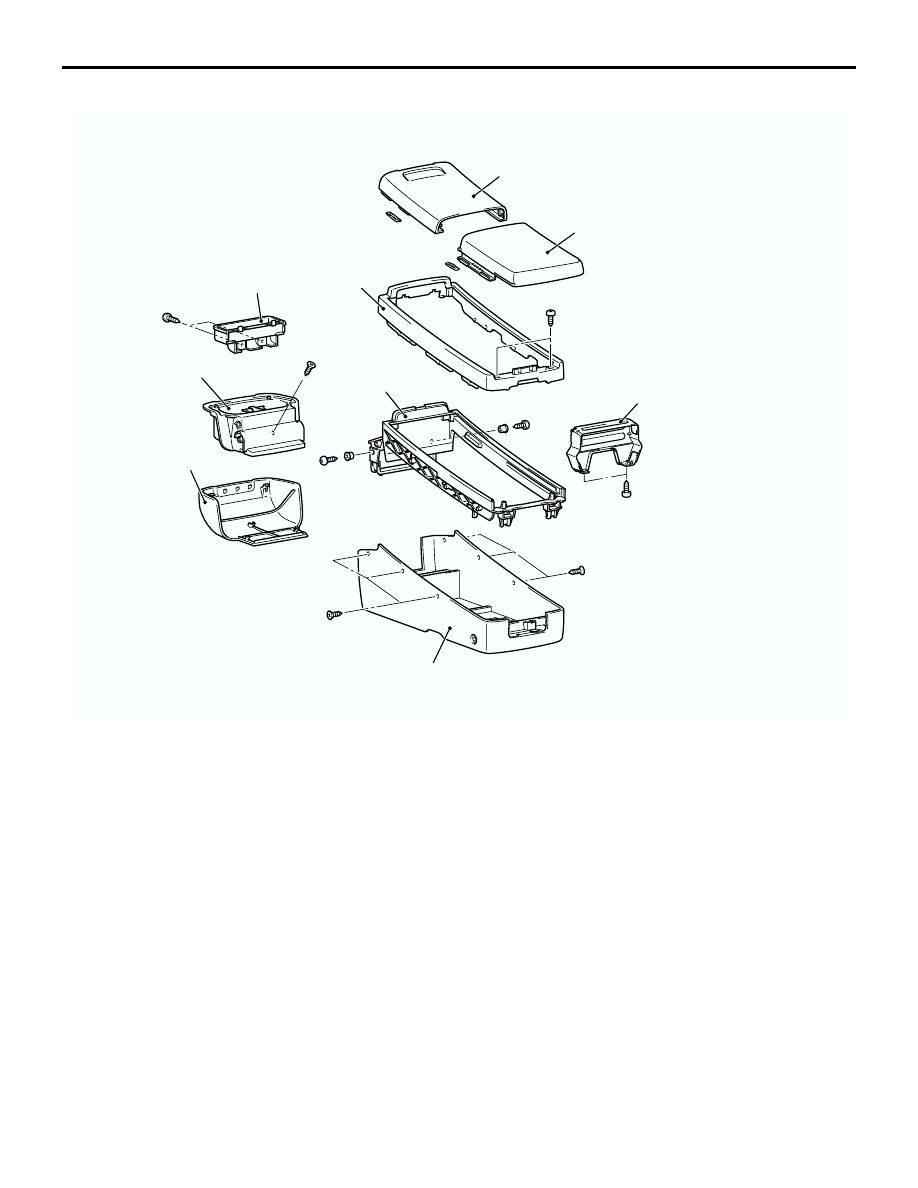

Disassembly steps

1.

Lid assembly

2.

Tray outer

3.

Tray inner

4.

Lock knob

5.

Lid inner

6.

Hinge assembly

7.

Lid cover

8.

Hinge support bracket

9.

Rear console box

10. Rear console
11. Rear console panel

Disassembly steps (Continued)

FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-17

<R.H. DRIVE VEHICLES>

AC212290 AB

1

2

3

4

5

6

7

8

9

Disassembly steps

1.

Lower floor console

2.

Console bracket

3.

Floor console holder

4.

Floor console cover

5.

Floor console box

6.

Console front lid

7.

Console rear lid

8.

Floor console upper

9.

Console centre

Disassembly steps (Continued)

TRIMS

INTERIOR

52A-18

TRIMS

REMOVAL AND INSTALLATION

M1521001100488

AC301338

6

2

1

7

3

4

9

5

8

14

16

15

10

12

11

13

17

19

20

18

44 ± 10 N·m

44 ± 10 N·m

AB

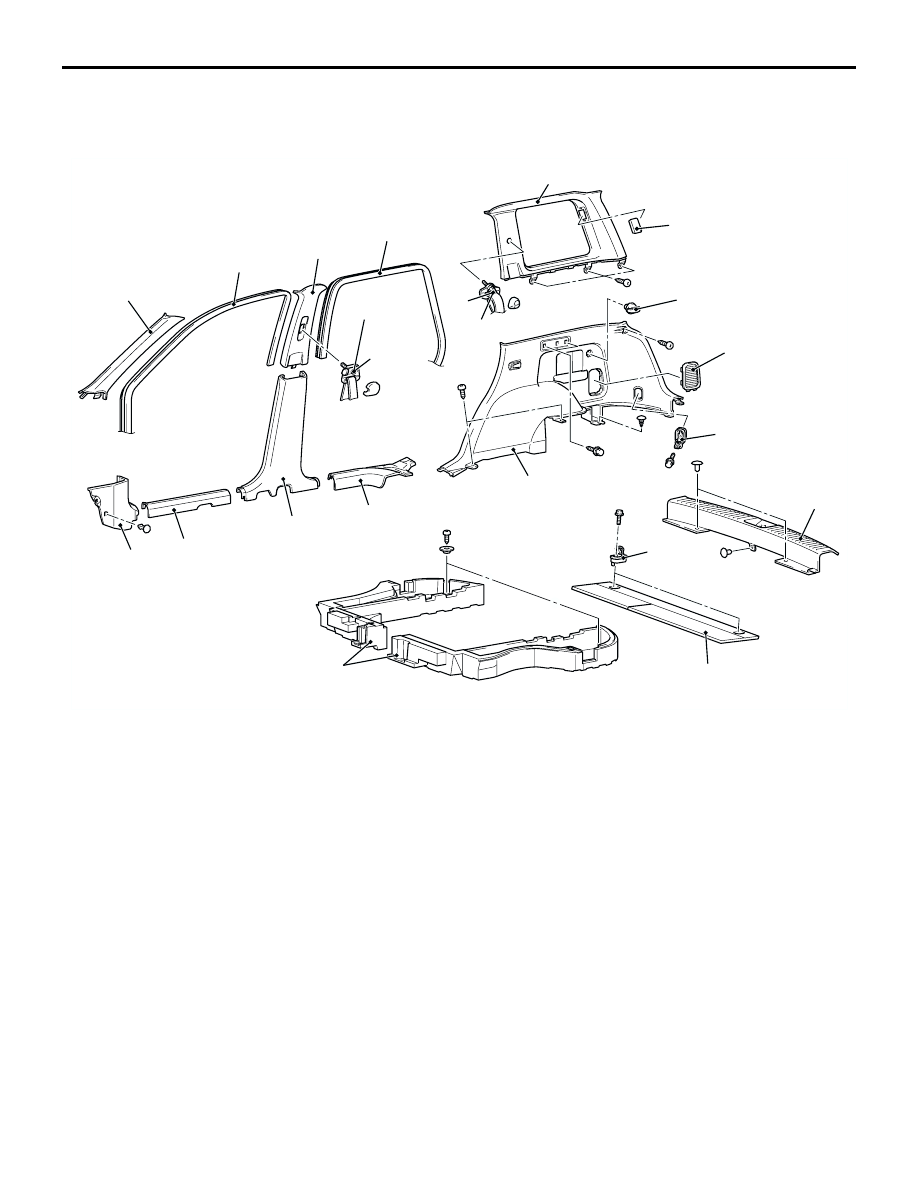

1.

Front scuff plate

2.

Cowl side trim

•

Rear seat cushion assembly (Refer
to

P.52A-36

.)

3.

Rear scuff plate

4.

Front door opening trim

5.

Rear door opening trim

<<A>>

6.

Front pillar trim

7.

Centre pillar trim lower

8.

Front seat belt shoulder anchor bolt

9.

Centre pillar trim upper

10. Convenience hook
11. Parcel strap hook A
12. Ventilation cap
13. Quarter trim lower
14. Rear seat belt shoulder anchor bolt
15. Quarter trim upper cap
16. Quarter trim upper
17. Rear end trim
18. Luggage floor box
19. Parcel strap hook B
20. Rear seat board
