ON-VEHICLE SERVICE

ANTI-SKID BRAKING SYSTEM (ABS)

35B-63

IN THE EVENT OF A DISCHARGED
BATTERY

M1352003500495

WARNING

If the ABS is not operating, the vehicle
posture will be unstable during braking, Do
not drive the vehicle with the ABS-ECU
connector disconnected or with the ABS not
operating for any other reason.

If the engine is started using a booster cable when
the battery is completely flat, and the vehicle is then
driven without waiting for the battery to be recharged,
the engine may misfire and it may not be possible to
drive the vehicle. This is because the ABS consumes
a large amount of current when carrying out its initial
checks. If this happens, recharge the battery fully.

HYDRAULIC UNIT

ANTI-SKID BRAKING SYSTEM (ABS)

35B-64

HYDRAULIC UNIT

REMOVAL AND INSTALLATION

M1352008600516

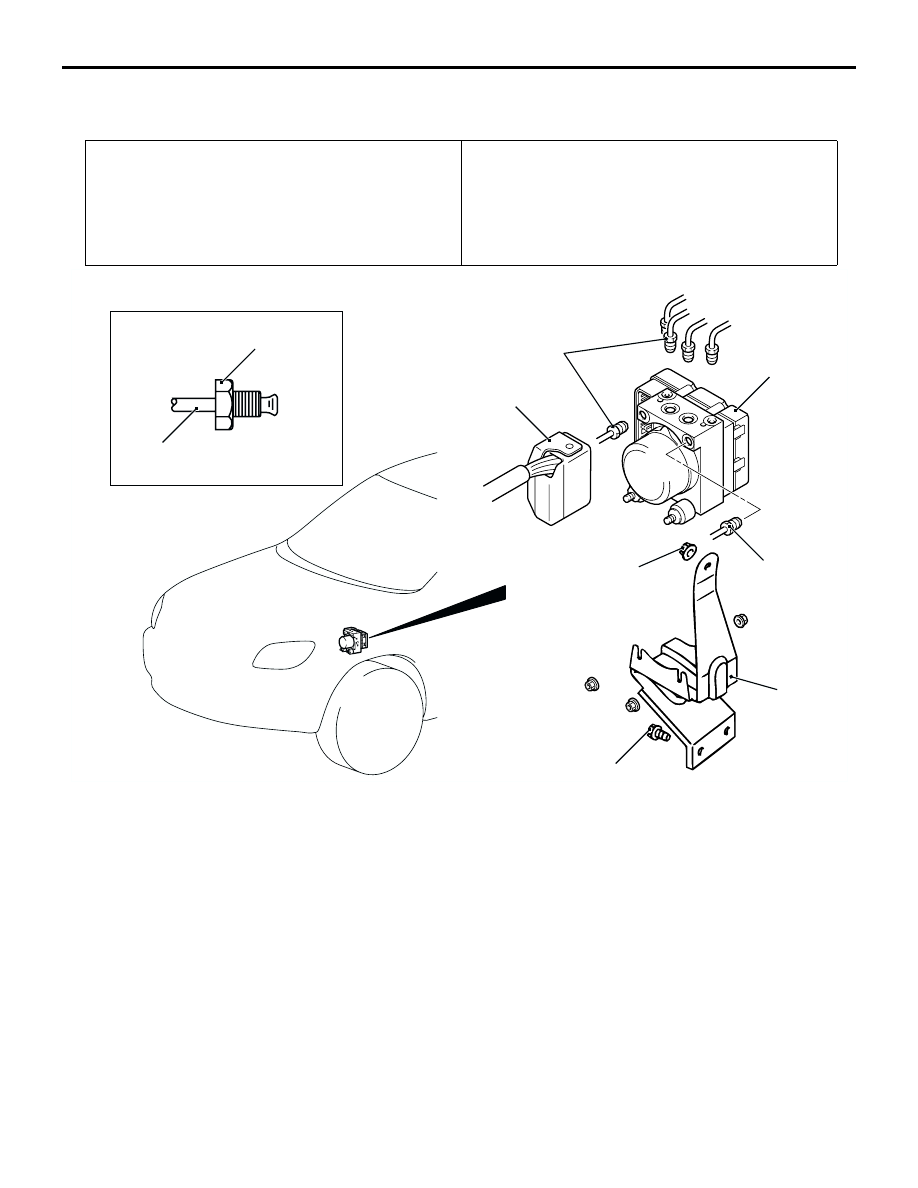

<L.H. drive vehicles>

NOTE: The ABS-ECU is integrated in the hydraulic unit.

Pre-removal Operation

•

Brake Fluid Draining

Post-installation Operation

•

Brake Fluid Filling

•

Bake Line Bleeding (Refer to GROUP 35A, On-vehicle

Service

−

 Bleeding

P.35A-7

.)

•

Hydraulic Unit Check (Refer to

P.35B-61

.)

AC300471 AB

15 ± 2 N·m

25 ± 6 N·m

25 ± 6 N·m

4

2

2

3

1

2

25 ± 6 N·m

Removal steps

<<A>>

1. Harness connector

>>A<<

2. Brake pipe connection

<<B>>

3. Hydraulic unit and ABS-ECU
4. Hydraulic unit bracket assembly

Removal steps (Continued)

HYDRAULIC UNIT

ANTI-SKID BRAKING SYSTEM (ABS)

35B-65

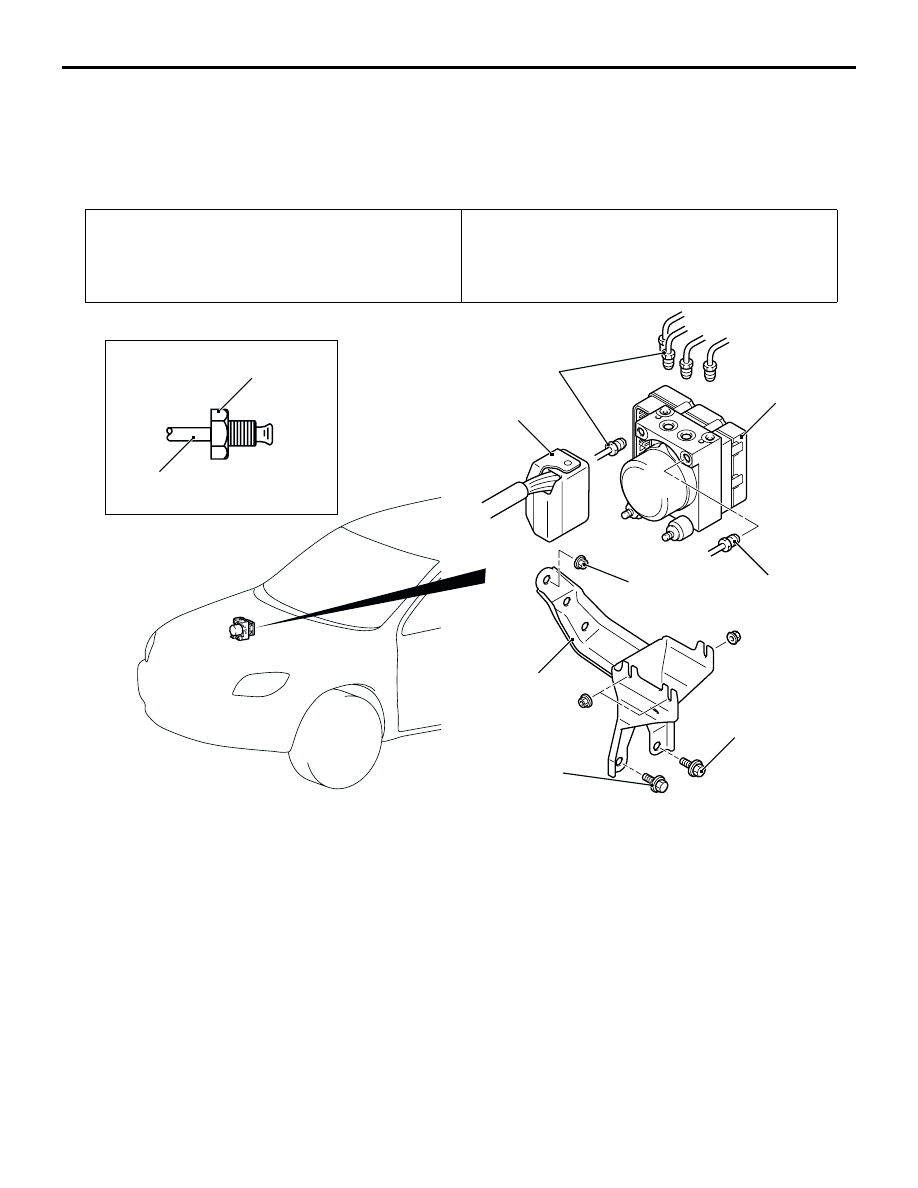

<R.H. drive vehicles>

NOTE: The ABS-ECU is integrated in the hydraulic unit.

Pre-removal Operation

•

Brake Fluid Draining

•

Air Cleaner Removal <2400> (Refer to GROUP 15, Air

Cleaner

P.15-3

.)

Post-installation Operation

•

Brake Fluid Filling

•

Brake Line Bleeding (Refer to GROUP 35A, On-vehicle

Service

−

 Bleeding

P.35A-7

.)

•

Air Cleaner Installation <2400> (Refer to GROUP 15, Air

Cleaner

P.15-3

.)

•

Hydraulic Unit Check (Refer to

P.35B-61

.)

AC309655AB

15 ± 2 N·m

25 ± 6 N·m

4

2

2

3

1

2

25 ± 6 N·m

Removal steps

<<A>>

1. Harness connector

>>A<<

2. Brake pipe connection

<<B>>

3. Hydraulic unit and ABS-ECU
4. Hydraulic unit bracket assembly

Removal steps (Continued)

HYDRAULIC UNIT

ANTI-SKID BRAKING SYSTEM (ABS)

35B-66

REMOVAL SERVICE POINTS

<<A>> HARNESS CONNECTOR
DISCONNECTION

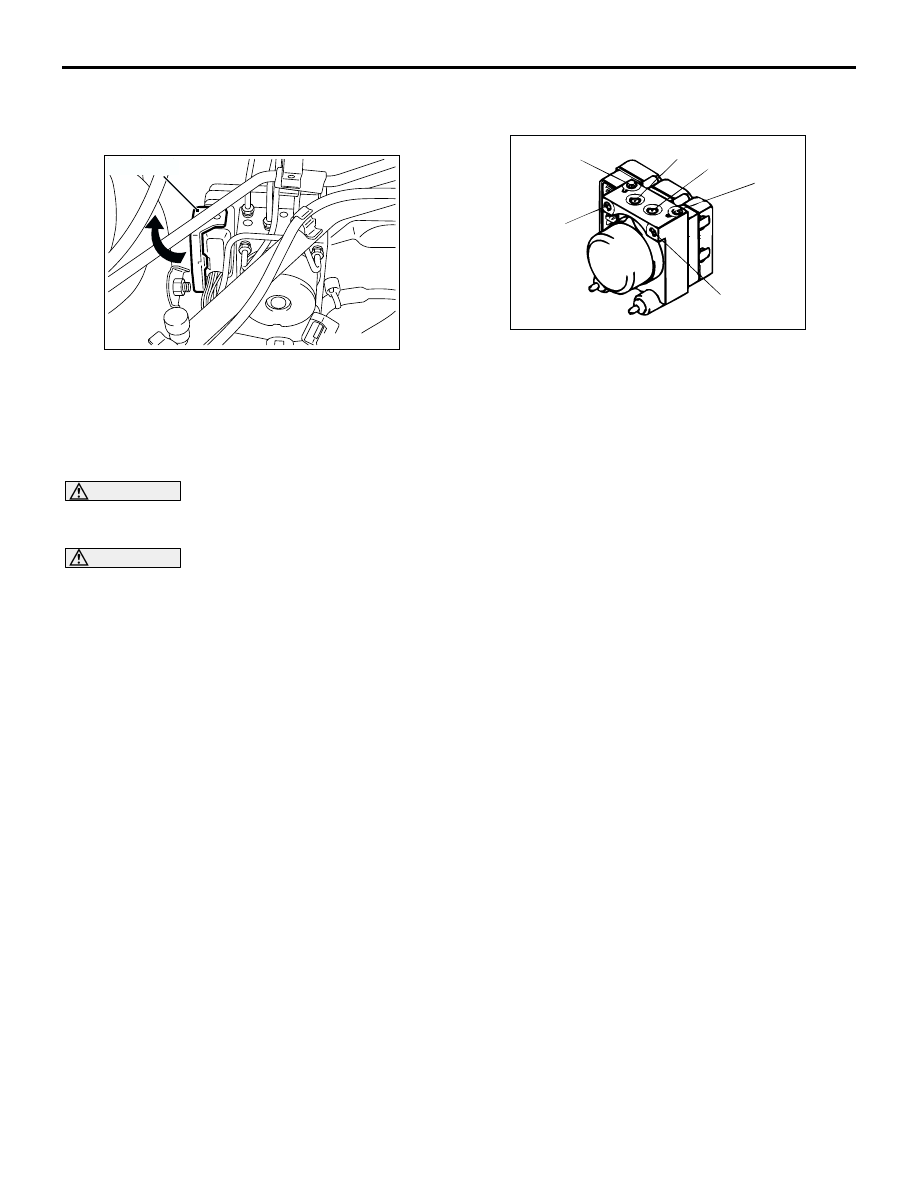

Move the lock lever of the ABS-ECU connector as
shown in the illustration, and then disconnect the
harness connector.

<<B>> HYDRAULIC UNIT AND ABS-ECU
REMOVAL

WARNING

The hydraulic unit is heavy. Use care when
removing it.

CAUTION

•

The hydraulic unit cannot be disassembled.
Never loosen its nuts or bolts.

•

Do not drop or shock the hydraulic unit.

•

Do not turn the hydraulic unit upside down or
lay it on its side.

INSTALLATION SERVICE POINT

>>A<< BRAKE PIPE CONNECTION

Connect the pipes to the hydraulic unit assembly as
shown in the illustration.
1. From the master cylinder (secondary)
2. To the front brake (LH)
3. To the rear brake (RH)
4. To the rear brake (LH)
5. To the front brake (RH)
6. From the master cylinder (primary)

AC200022

AE

Lock lever

AC100240AD

6

5

4

3

2

1
