Mitsubishi Outlander (2003+). Manual - part 46

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-47

STEP 16. Connector check: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

Check harness between B-108 (terminal

No. 2) engine coolant temperature sensor
connector and C-137 (terminal No. 92)
engine-ECU connector.

œ

Check earthing line for damage.

NO :

Repair.

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

AK300261

1

2

Harness side
connector

B-108 (B)

AB

Connector: B-108

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-48

Code No. P0120: Throttle Position Sensor System

OPERATION

œ

A power voltage of 5 V is applied to the throttle
position sensor (terminal No. 1) from the engine-
ECU (terminal No. 81).

œ

The power voltage is earthed to the engine-ECU
(terminal No. 92) from the throttle position sensor
(terminal No. 4).

œ

The sensor signal is inputted to the engine-ECU
(terminal No. 84) from the throttle position sensor
output terminal (terminal No. 2).

FUNCTION

œ

The throttle position sensor converts the opening
of the throttle valve into a voltage and inputs the
voltage signal to the engine-ECU.

œ

In response to the signal, the engine-ECU checks
the opening of the throttle valve.

TROUBLE JUDGMENT

Check Condition

œ

Ignition switch: ON

Or

œ

Excluding 2 seconds after the ignition switch has
been in "ON" position or just after the engine has
started up.

Judgment Criteria

œ

The sensor output voltage is 0.2 V or less for 2
seconds.

Or

œ

When the engine speed is 1,000 r/min or less and
the charging efficiency is 40% or less, the throttle
position sensor output voltage is 4.4 V or more for
2 seconds.

AK300262

2 3 4

1

82

78

81

80

89 90 9192

79

87

71

74

73

72

76

75

77

85

88

83 84

86

5V

AB

Engine-ECU

92

84

81

Y-B

O

BR

      B-06
(MU802724)

Throttle position sensor

1

2

4

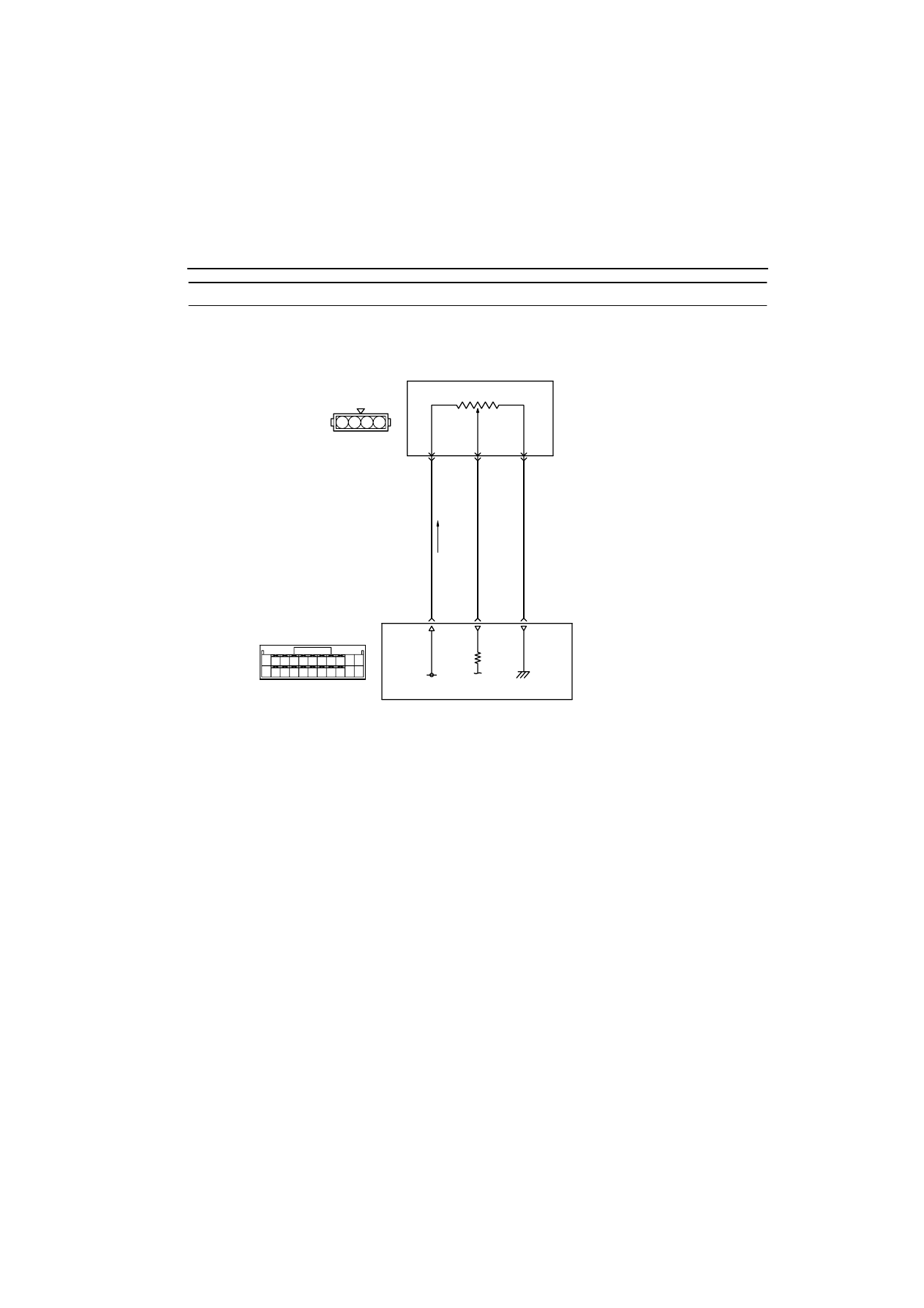

Throttle position sensor circuit

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V:Violet

C-137

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-49

PROBABLE CAUSE

œ

Failed throttle position sensor

œ

Open/short circuit in throttle position sensor cir-
cuit or loose connector contact

œ

Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. MUT-II data list

œ

Refer to Data list reference table

3

13A



.

a. Item 14: Throttle position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

-

 How to Use

Troubleshooting/Inspection Service Points

3

00



).

NO :

Go to Step 2 .

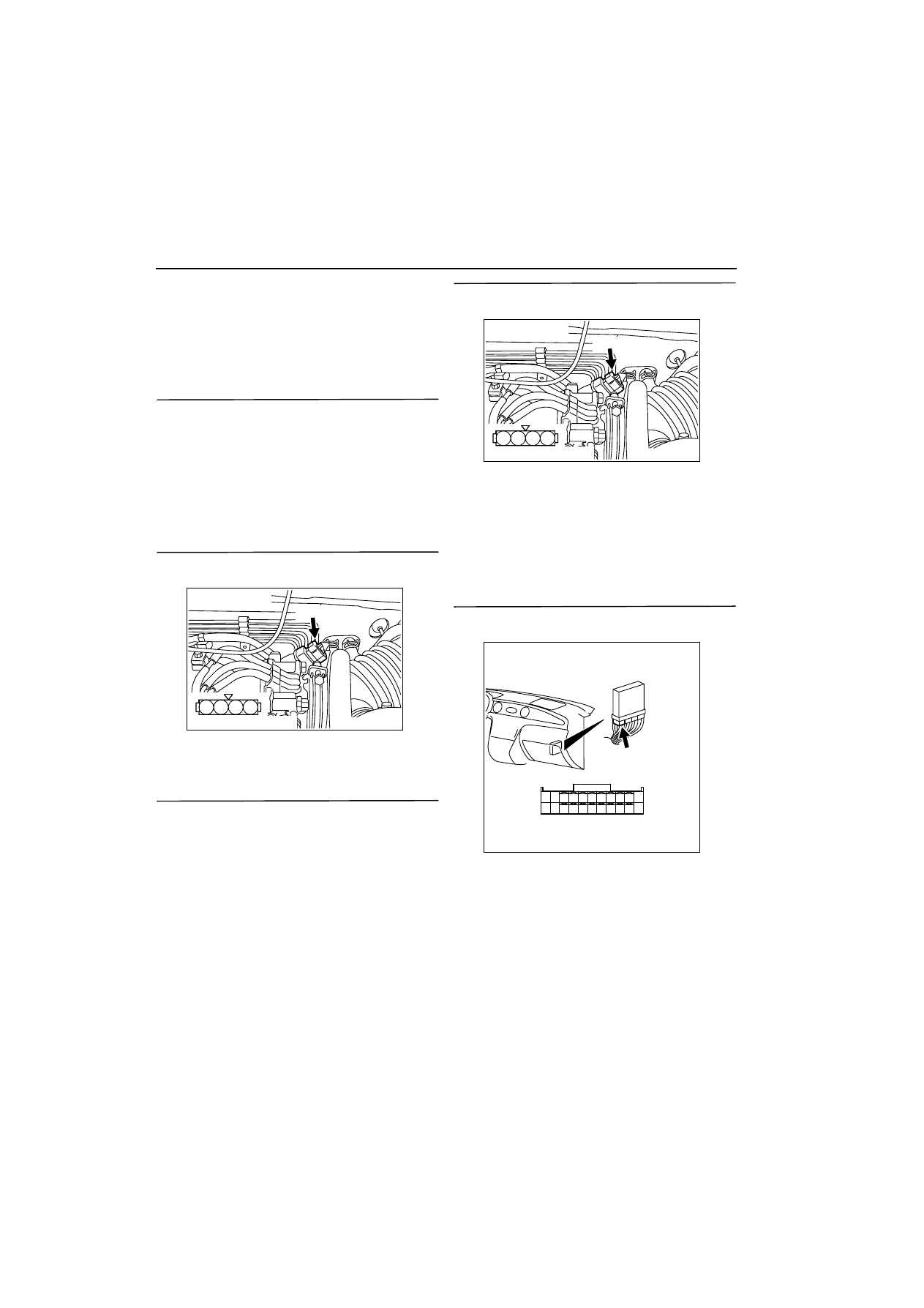

STEP 2. Connector check: B-06 throttle position
sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair.

STEP 3. Check throttle position sensor itself.

œ

Check throttle position sensor itself (Refer to

3

13A



).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace throttle position sensor.

STEP 4. Measure voltage at B-06 throttle position
sensor connector.

œ

Disconnect connector, and measure at harness
side.

œ

Ignition switch: ON

œ

Voltage between terminal No. 1 and earth.

OK: 4.9

-

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 5 .

STEP 5. Measure voltage at C-137 engine-ECU
connector.

œ

Measure engine-ECU terminal voltage.

œ

Ignition switch: ON

œ

Voltage between terminal No. 81 and earth.

OK: 4.9

-

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 7 .

AK300263

2 1

3

4

AB

B-06 (B)

Harness side connector

Connector: B-06

AK300263

2 1

3

4

AB

B-06 (B)

Harness side connector

Connector: B-06

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-50

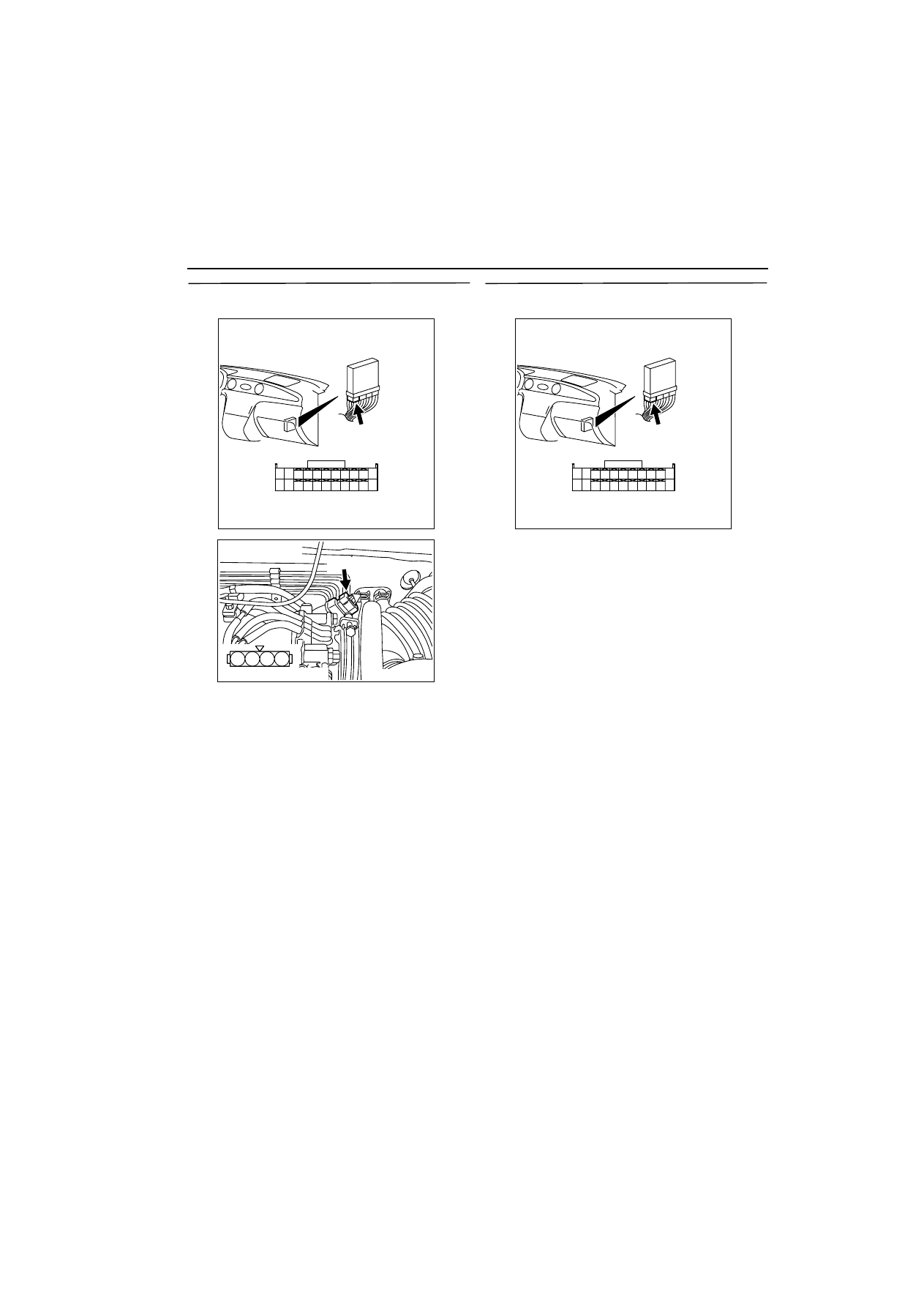

STEP 6. Connector check: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-06

(terminal No. 1) throttle position sensor
connector and C-137 (terminal No. 81)
engine-ECU connector.

œ

Check power supply line for open
circuit.

NO :

Repair.

STEP 7. Connector check: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

AK300263

2 1

3

4

AB

B-06 (B)

Harness side connector

Connector: B-06

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector
