Mitsubishi Outlander (2003+). Manual - part 26





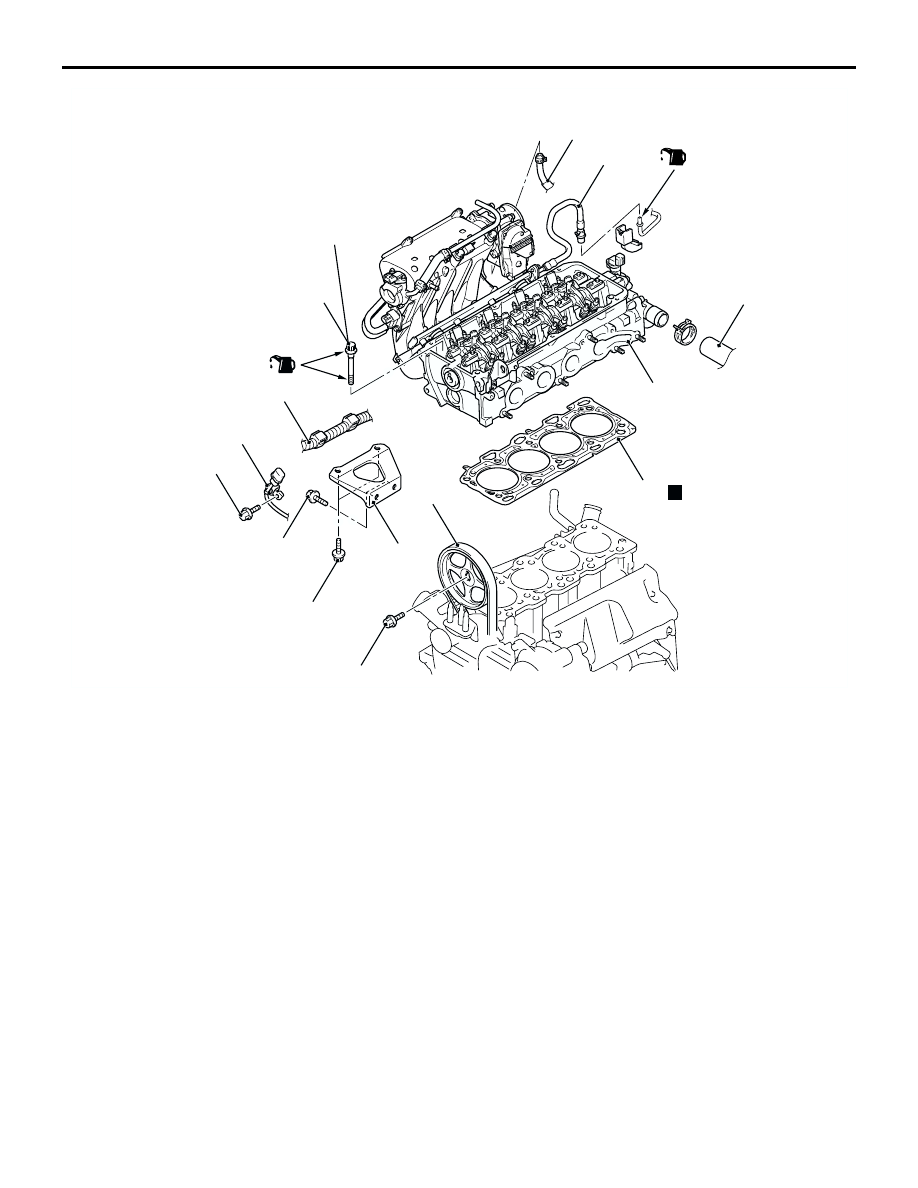

CYLINDER HEAD GASKET

ENGINE MECHANICAL <4G69>

11C-31

AC308980AB

<Cold engine>
78 ± 2 N·m

 0 N·m

 20 ± 2 N·m

 +90˚

 +90˚

17

16

15

14

13

12

10

9

8

11

N

89 ± 9 N·m

11 ± 1 N·m

31 ± 3 N·m

31 ± 3 N·m

(Engine oil)

(Engine oil)

Removal steps

8.

Detonation sensor connection

9.

Battery wiring harness connection

10. Inlet manifold stay

Exhaust manifold (Refer to GROUP
15, Exhaust Manifold

P.15-11

).

Timing belt upper cover (Refer to

P.11C-36

).

<<A>>

>>E<<

11. Camshaft sprocket

<<B>>

>>D<<

12. Radiator upper hose connection
13. Water hose connection

Water inlet fitting and thermostat
case assembly (Refer to GROUP
14, Water Hose and Water Pipe

P.14-27

).

<<C>>

>>C<<

14. Fuel high-pressure hose

connection

Rocker cover assembly (Refer to

P.11C-18

).

<<D>>

>>B<<

15. Cylinder head bolts
16. Cylinder head assembly

>>A<<

17. Cylinder head gasket

Removal steps (Continued)

CYLINDER HEAD GASKET

ENGINE MECHANICAL <4G69>

11C-32

REMOVAL SERVICE POINTS

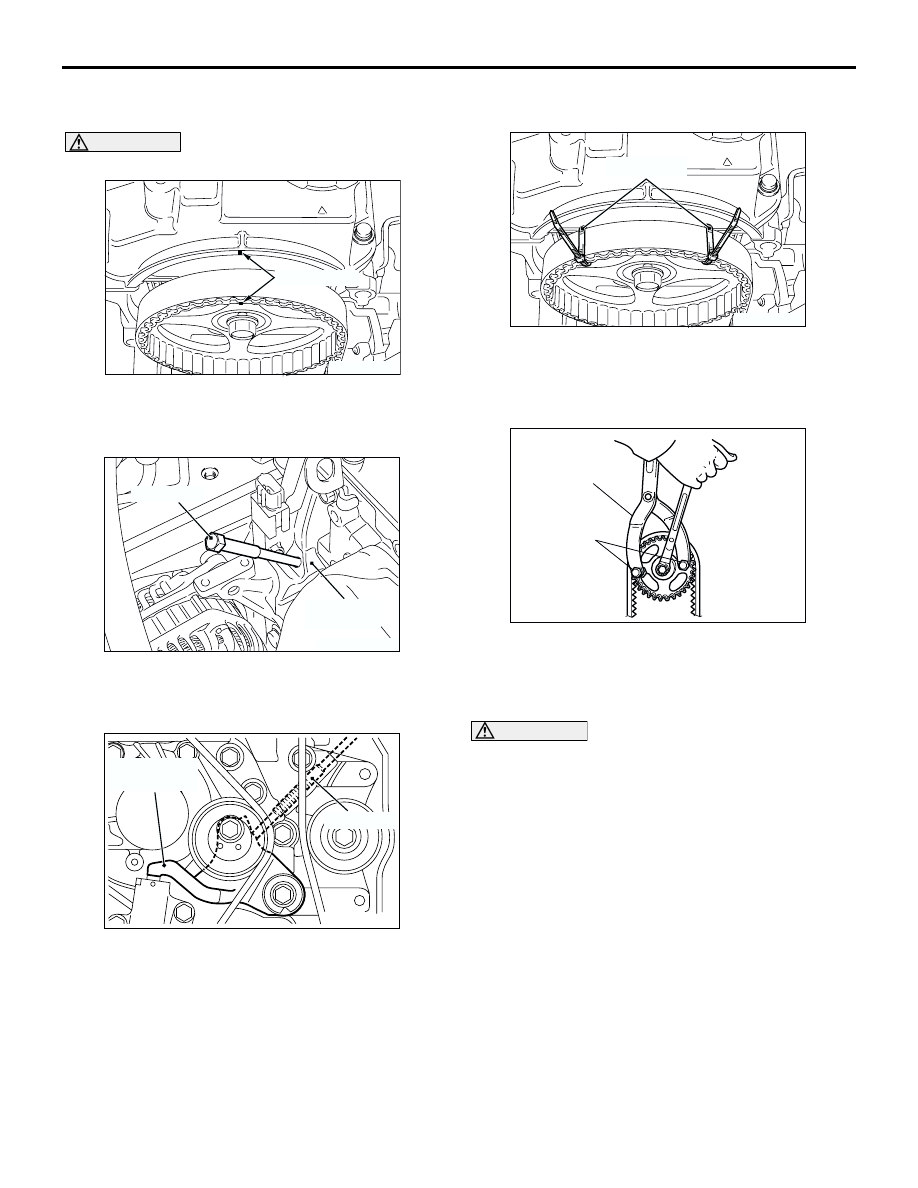

<<A>> CAMSHAFT SPROCKET REMOVAL

CAUTION

Never turn the crankshaft anti-clockwise.

1. Turn the crankshaft clockwise, align the timing

marks on the camshaft sprocket to set No.1
cylinder to TDC of its compression stroke.

2. Remove the timing belt under cover rubber plug

and then set special tool adjusting bolt
(MD998738).

3. Screw in the special tool until it comes in contact

with the timing belt tensioner arm.

4. Secure the camshaft sprocket and valve timing

belt with wiring bands and so on to prevent
slippage between the camshaft sprocket and
valve timing belt.

5. Use the following special tools to hold the

camshaft sprocket.

Front hub and flange yoke holder (MB990767)

Pin (MD998719)

CAUTION

Do not rotate the crankshaft after camshaft
sprocket removal.
6. Remove the camshaft sprocket with the valve

timing belt and place it on the timing belt lower
cover.

AC301450AB

Timing mark

AC301452AB

MD998738

Timing belt
under cover

AC301373

AB

MD998738

Timing belt
tensioner arm

AC107621

AC301451AC

Wiring band

AC100302

MD998719

MB990767

AB

CYLINDER HEAD GASKET

ENGINE MECHANICAL <4G69>

11C-33

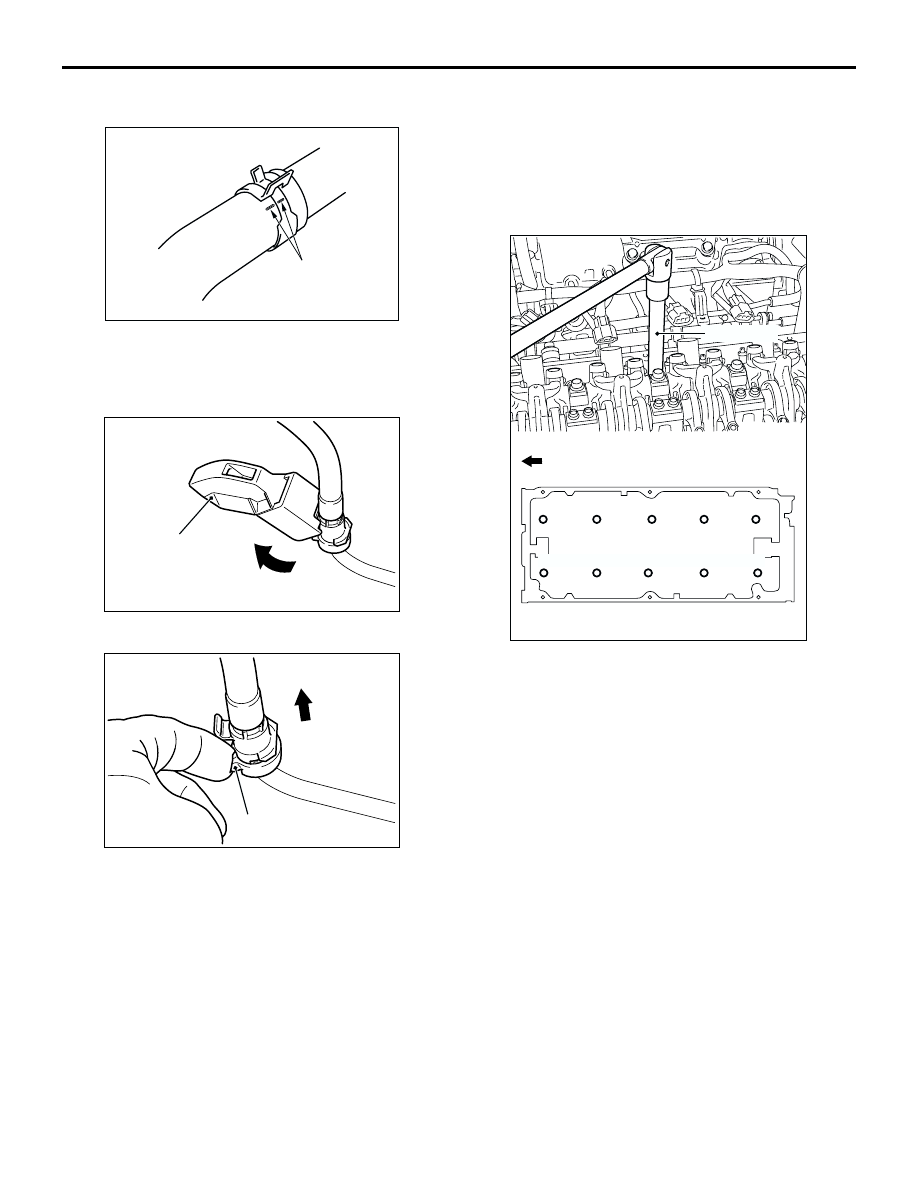

<<B>> RADIATOR UPPER HOSE
DISCONNECTION

Make mating marks on the radiator upper hose and
the hose clamp. Disconnect the radiator upper hose.

<<C>> FUEL HIGH-PRESSURE HOSE REMOVAL

1. Remove the fuel high-pressure hose stopper.

2. Remove the fuel high-pressure hose in the

direction shown in the figure while the retainer is
pulled up.
NOTE: If the retainer is released, install it after
removing the fuel high-pressure hose.

<<D>> CYLINDER HEAD BOLTS REMOVAL

Use special tool cylinder head bolt wrench
(MB991654) to loosen the cylinder head bolts in two
or three steps in the order of the numbers shown in
the illustration. If the cylinder head bolts cannot be
pulled out due to the washer being trapped in the
valve spring, raise the bolt slightly, then remove it
while holding it by using a magnet.

AC200641AB

Mating marks

AC304581

AB

Stopper

AC304582

AB

Retainer

AC301454AB

MB991654

10

5

2

8

3

9

7

4

6

1

Engine front

CYLINDER HEAD GASKET

ENGINE MECHANICAL <4G69>

11C-34

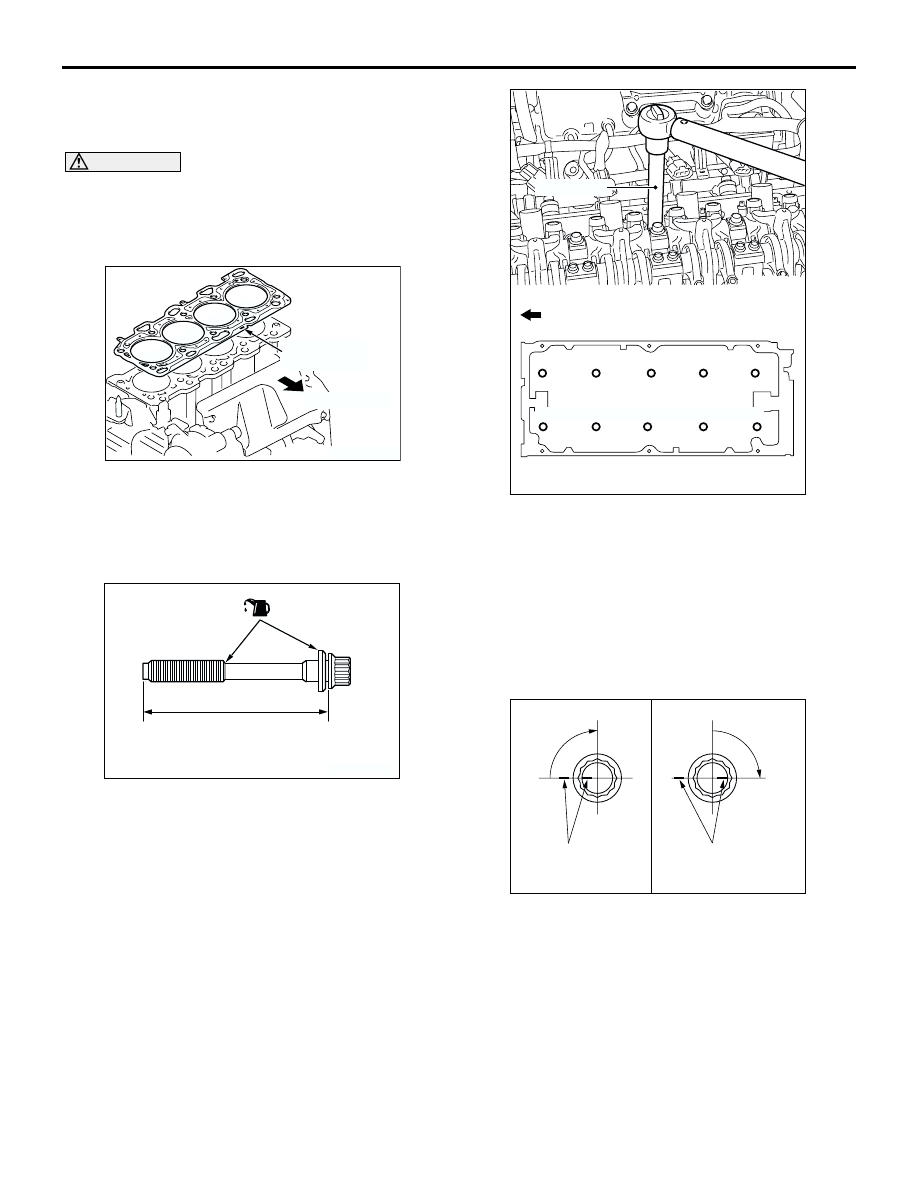

INSTALLATION SERVICE POINTS

>>A<< CYLINDER HEAD GASKET
INSTALLATION

CAUTION

Do not allow any foreign materials get into the
coolant passages, oil passages and cylinder.
1. Degrease the cylinder head gasket mounting

surface.

2. Assemble to the cylinder block so the cylinder

head gasket identification mark of "381" is at the
top surface and on the exhaust side.

>>B<< CYLINDER HEAD BOLTS INSTALLATION

1. Check that the nominal length of each cylinder

head bolt meets the limit. If it exceeds the limit,
replace the bolts with a new one.

Limit (A): 99.4 mm

2. Apply a small amount of engine oil to the thread of

the bolts and to the washers.

3. Use special tool cylinder head bolt wrench

(MB991654) to tighten the cylinder head bolts in
the following procedures.
(1) Tighten the bolts to 78

±

 2 N

m in the order

shown.

(2) Loosen the bolts fully in the reverse sequence

to that shown.

(3) Tighten the bolts to 20

±

 2 N

m in the order

shown.

(4) Apply a paint mark to the heads of the cylinder

head bolts and cylinder head, then tighten 90
degree angle as shown.

AC302180AB

Identification
mark "381"

Exhaust side

AC102537

A

AC

(Engine oil)

AC301456AB

MB991654

10

9

7

5

2

4

8

6

1

3

Engine front

AC102331AB

Paint marking

90˚

90˚

Step (4)

Step (5)

Paint marking
