Mitsubishi Outlander (2003+). Manual - part 14

CYLINDER HEAD GASKET

ENGINE MECHANICAL

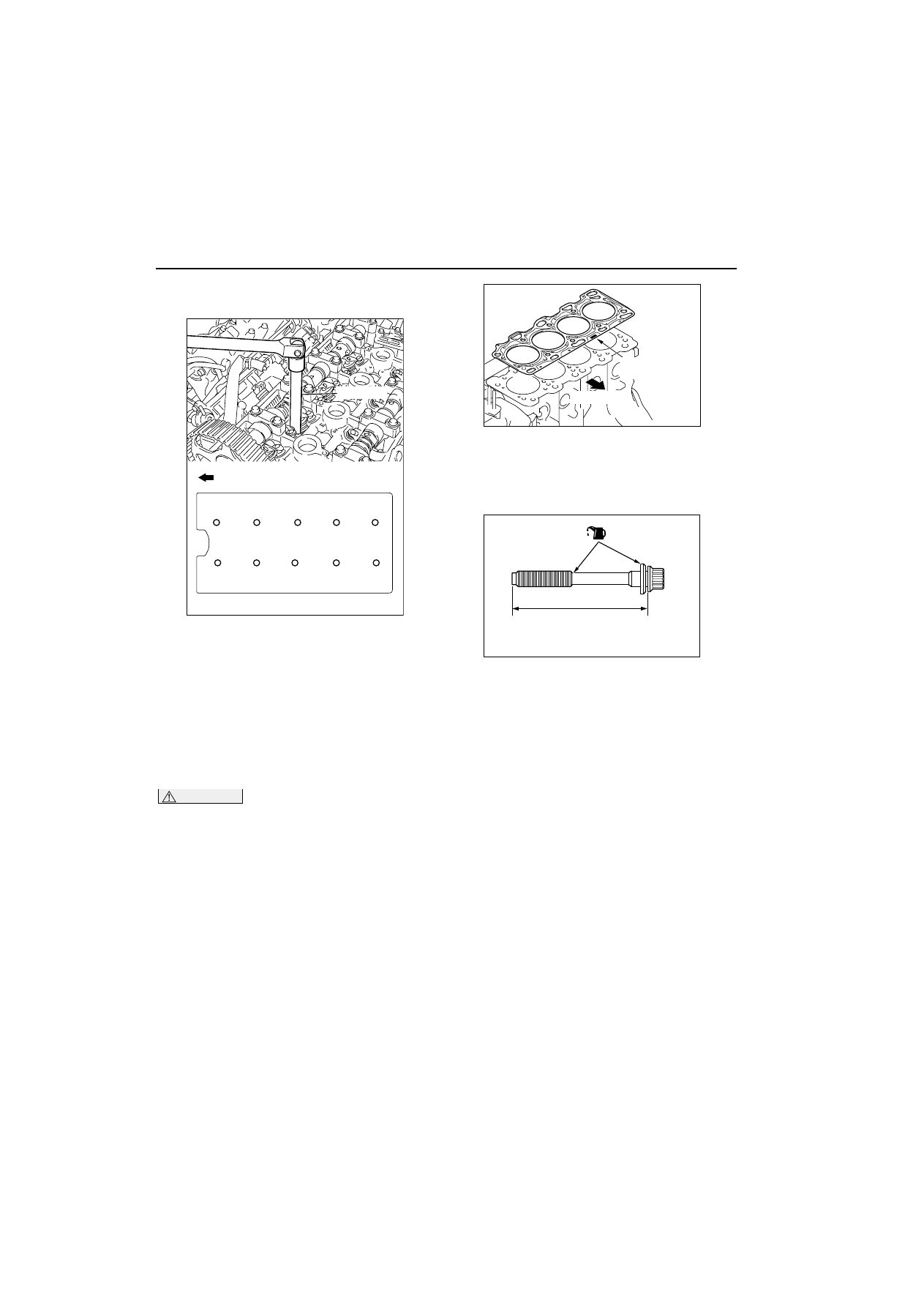

11A-33

REMOVAL SERVICE POINT

<<A>> CYLINDER HEAD BOLTS REMOVAL

Using special tool cylinder head bolt wrench
(MB991654), loosen the cylinder head bolts in two or
three steps in the order of the numbers shown in the
illustration.

NOTE: If the cylinder head bolts cannot be pulled out
due to the washer being trapped in the valve spring,
raise the bolt slightly, then remove it while holding it
by using a magnet.

INSTALLATION SERVICE POINTS

>>A<< CYLINDER HEAD GASKET INSTALLATION

CAUTION

Do not allow any foreign materials to get into the
coolant passages, oil passages and cylinder.

1. Remove the gasket from the cylinder head and

cylinder block.

2. Assemble to the cylinder block so the cylinder

head gasket identification mark "63" is at the top
surface and on the exhaust side.

>>B<< CYLINDER HEAD BOLTS INSTALLATION

1. Check that the nominal length of each cylinder

head bolt meets the limit. If it exceeds the limit,
replace the bolt with a new one.

Limit (A): 99.4 mm

2. Apply a small amount of engine oil to the thread of

the bolts and to the washers.

AC201623

MB991654

Engine front

1

2

4

6

9

7

3

5

10

8

AB

AC107217AC

Identification
mark "63"

Exhaust side

AC102537

A

AB

(Engine oil)

CYLINDER HEAD GASKET

ENGINE MECHANICAL

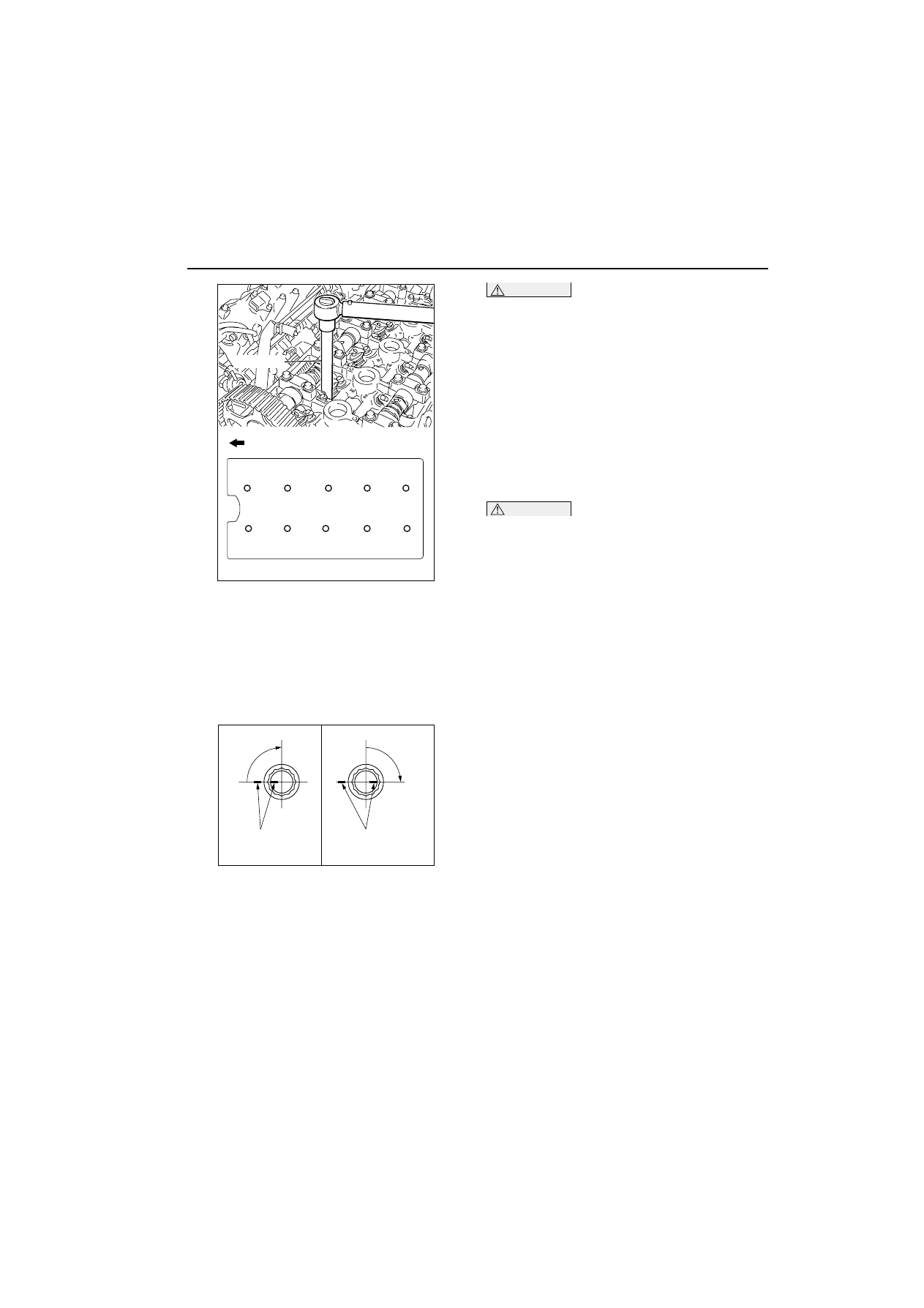

11A-34

3. Use special tool cylinder head bolt wrench

(MB991654) to tighten the cylinder head bolts as
follows:
(1) Tighten the cylinder head bolts to 78

–

 2 N

¼

m

in the order shown.

(2) Loosen the bolts fully in the reverse order of

that shown.

(3) Tighten the cylinder head bolts to 20

–

 2 N

¼

m

in the order shown.

(4) Apply a paint mark to the heads of the cylinder

head bolts and cylinder head, then tighten 90
degree angle as shown.

CAUTION

The bolt is not tightened sufficiently if the bolt is
tightened less than 90 degree angle.

(5) Tighten the bolt an additional 90 degree angle

as shown. Then check to see that the paint
mark on the head of the cylinder head bolts
and the paint mark on the cylinder head are
aligned.

(6) If tightening the bolt 90 degree angle results in

moving the paint mark on the bolt past the
paint mark on the cylinder head, remove the
bolt and start over from step 1.

>>C<< O-RING/FUEL HIGH-PRESSURE HOSE
INSTALLATION

CAUTION

Do not let any engine oil get into the delivery
pipe.

1. Apply a small amount of new engine oil to the O-

ring.

2. Turning the fuel high-pressure hose to the right

and left, install it to the delivery pipe, while being
careful not to damage the O-ring. After installing,
check that the hose turns smoothly.

3. If the hose does not turn smoothly, the O-ring is

probably being clamped. Disconnect the fuel high-
pressure hose and check the O-ring for damage.
After this, re-insert it to the delivery pipe and
check that the hose turns smoothly.

4. Tighten the fuel high-pressure hose mounting

bolts to the specified torque.

Tightening torque: 5.0

–

 1.0 N

¼

m

AC201625

MB991654

10

9

7

5

2

4

8

6

1

3

Engine front

AB

AC102331AB

Paint marking

90˚

90˚

Step (4)

Step (5)

Paint marking

TIMING BELT

ENGINE MECHANICAL

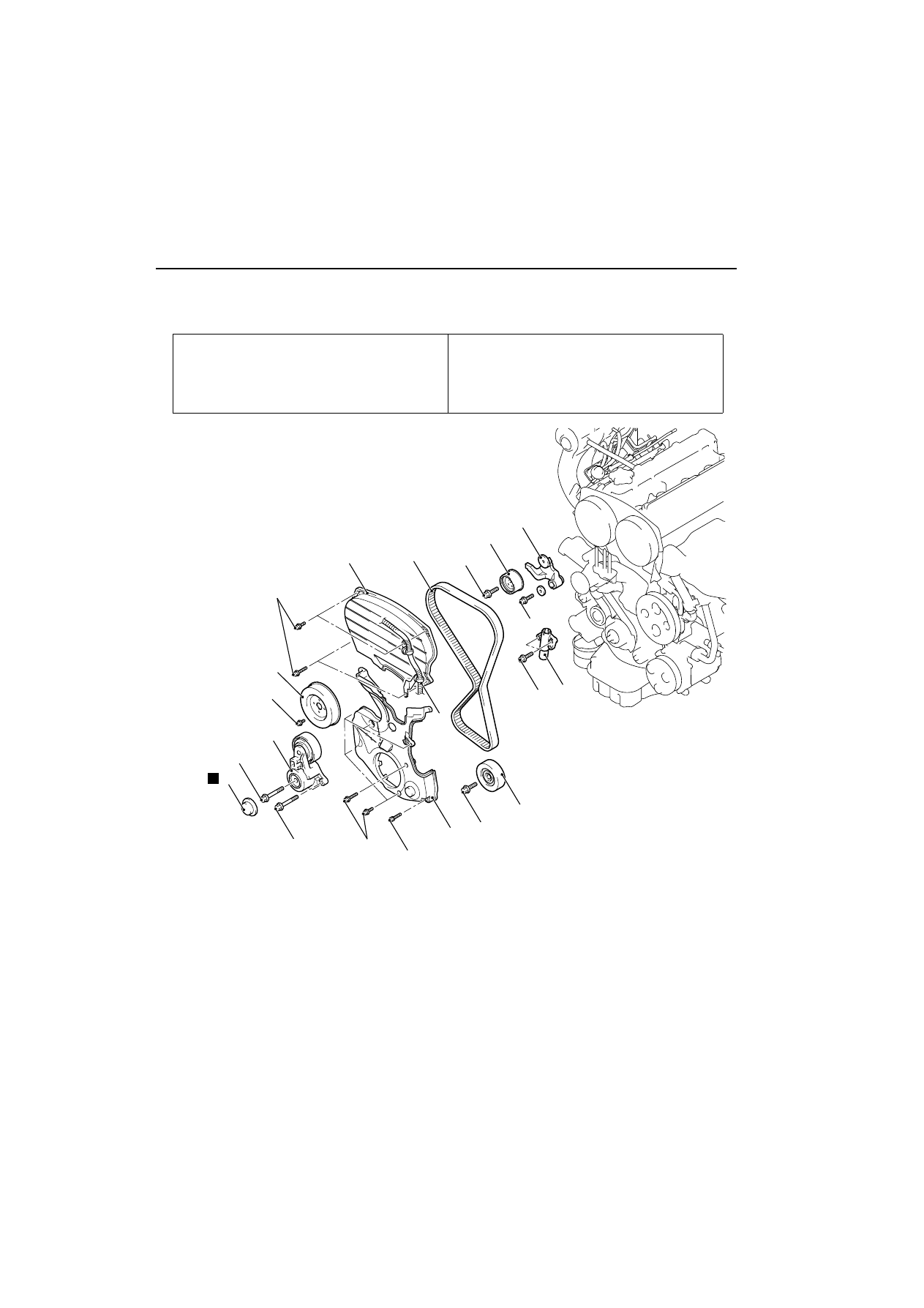

11A-35

TIMING BELT

REMOVAL AND INSTALLATION

M1112004300656

Pre-removal Operation

œ

Under Cover Removal (Refer to GROUP 51, Under Cover

3

51



).

œ

Crankshaft Shaft Damper Pulley Removal (Refer to

3

11A



).

Post-installation Operation

œ

Crankshaft Shaft Damper Pulley Installation (Refer to

3

11A



).

œ

Drive Belt Tension Check (Refer to

3

11A



).

œ

Under Cover Installation (Refer to GROUP 51, Under
Cover

3

51



).

AC300547

10

9

8

7

6

5

3

2

11 ± 1 N·m

8.8 ± 1.0 N·m

11 ± 1 N·m

23 ± 3 N·m

48 ± 5 N·m

79 ± 5 N·m

21 ± 4 N·m

9.0 ± 1.0 N·m

22 ± 4 N·m

44 ± 10 N·m

N

4

11

AB

1

Removal steps

1.

Control wiring harness connection

2.

Timing belt upper cover

3.

Water pump pulley

4.

Idler pulley

>>H<<

5.

End cap

6.

Auto-tensioner

7.

Timing belt lower cover

œ

Engine front mounting bracket
(Refer to GROUP 32, Engine
Mount

3

32



).

>>G<<

œ

Valve timing belt tension
adjustment

<<A>>

>>F<<

8.

Valve timing belt

>>E<<

9.

Timing belt tensioner pulley

10. Timing belt tensioner arm

>>D<<

11. Timing belt tensioner adjuster

Removal steps

&RQWLQXHG

TIMING BELT

ENGINE MECHANICAL

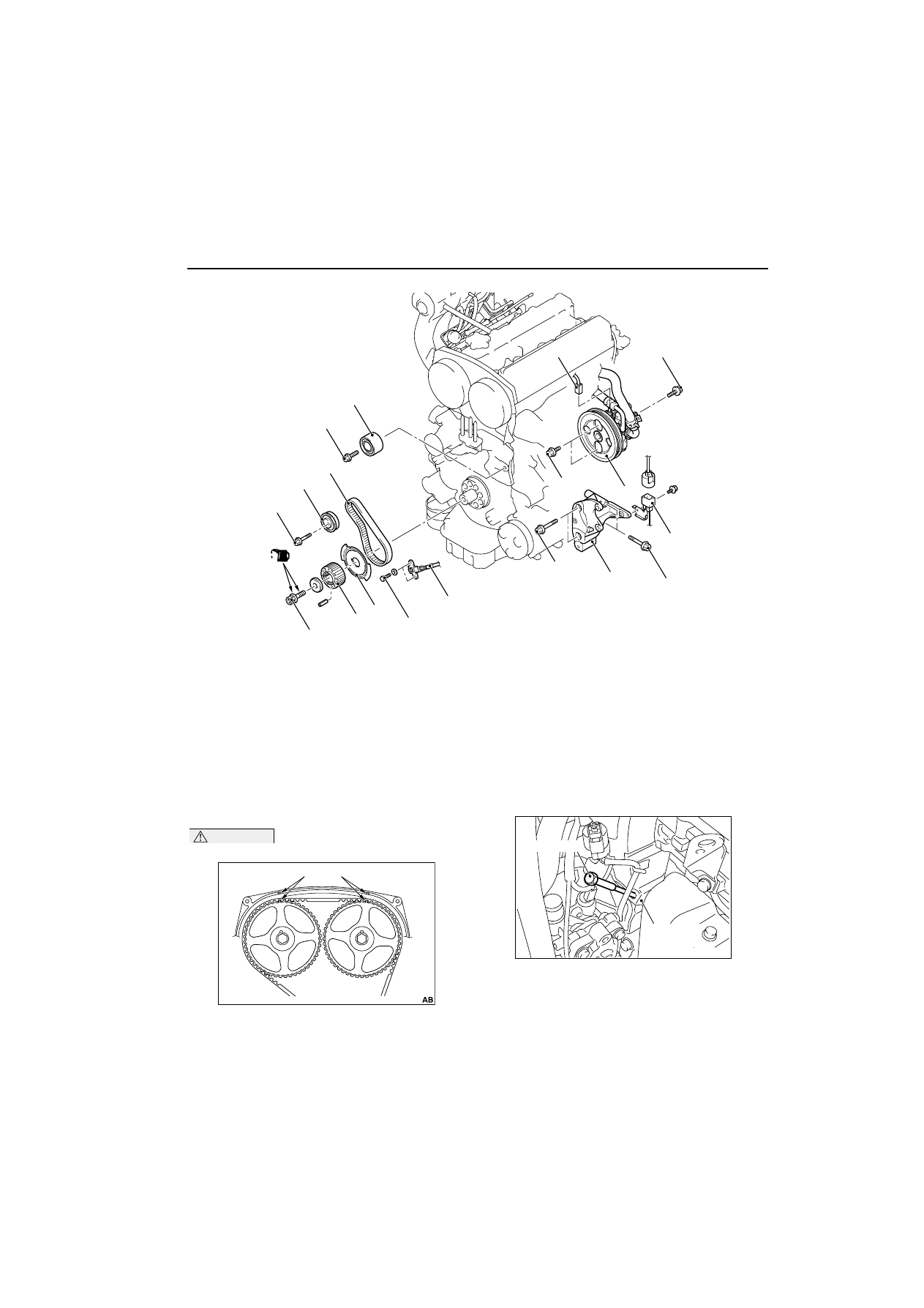

11A-36

REMOVAL SERVICE POINTS

<<A>> VALVE TIMING BELT REMOVAL

CAUTION

Never turn the crankshaft anti-clockwise.

1. Turn the crankshaft clockwise, align each timing

mark to set No.1 cylinder to TDC of its
compression stroke.

2. Remove the timing belt under cover rubber plug

and then set the special tool adjusting bolt
(MD998738).

AC300548

21

20

19

18

17

16

15

13

14

35 ± 6 N·m

49 ± 9 N·m

22 ± 4 N·m

8.8 ± 1.0 N·m

167 N·m

19 ± 3 N·m

49 ± 9 N·m

22 ± 4 N·m

AB

(Engine oil)

12

Removal steps

12. Power steering fluid pressure

switch connector

<<B>>

13. Power steering oil pump assembly
14. A/C compressor connector
15. Power steering oil pump bracket
16. Timing belt idler pulley
17. Crank angle sensor

<<C>>

>>C<<

18. Crankshaft camshaft drive sprocket

>>C<<

19. Crankshaft angle sensing blade

>>B<<

œ

Balancer timing belt tension
adjustment

>>A<<

20. Balancer timing belt tensioner

<<D>>

>>A<<

21. Balancer timing belt

Removal steps

&RQWLQXHG

AC102487

Timing mark

AC102492 AB

Timing belt
under cover

MD998738
