Mitsubishi Outlander (2003+). Manual - part 2

VEHICLE IDENTIFICATION

GENERAL

00-19

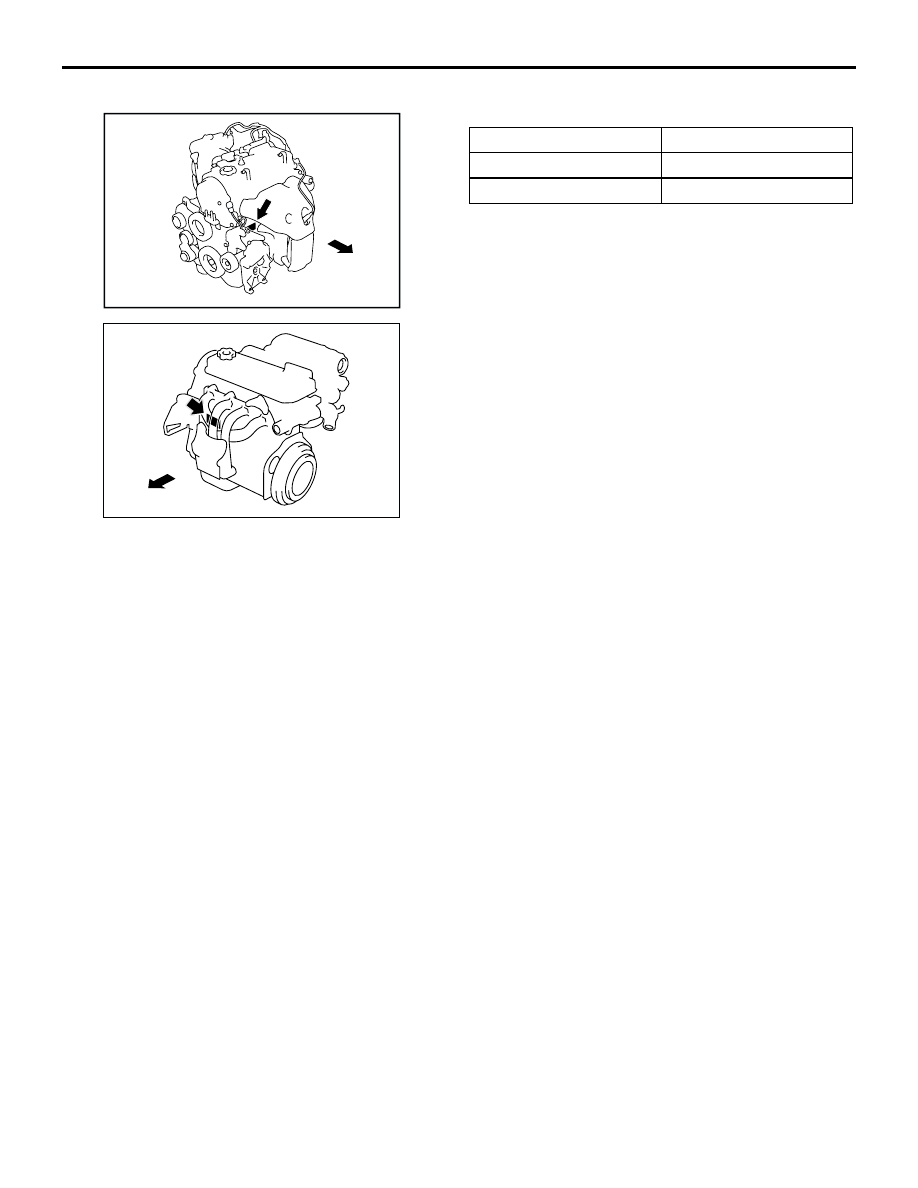

ENGINE MODEL STAMPING

The engine model is stamped on the cylinder block.
This engine model numbers are shown as follows.

The engine serial number is stamped near the
engine model number.

AC300905

<4G63>

AD

Front of the
vehicle

AC309481AB

<4G69>

Front of the vehicle

Engine model

Engine displacement

4G63

1,997 mL

4G69

2,378 mL

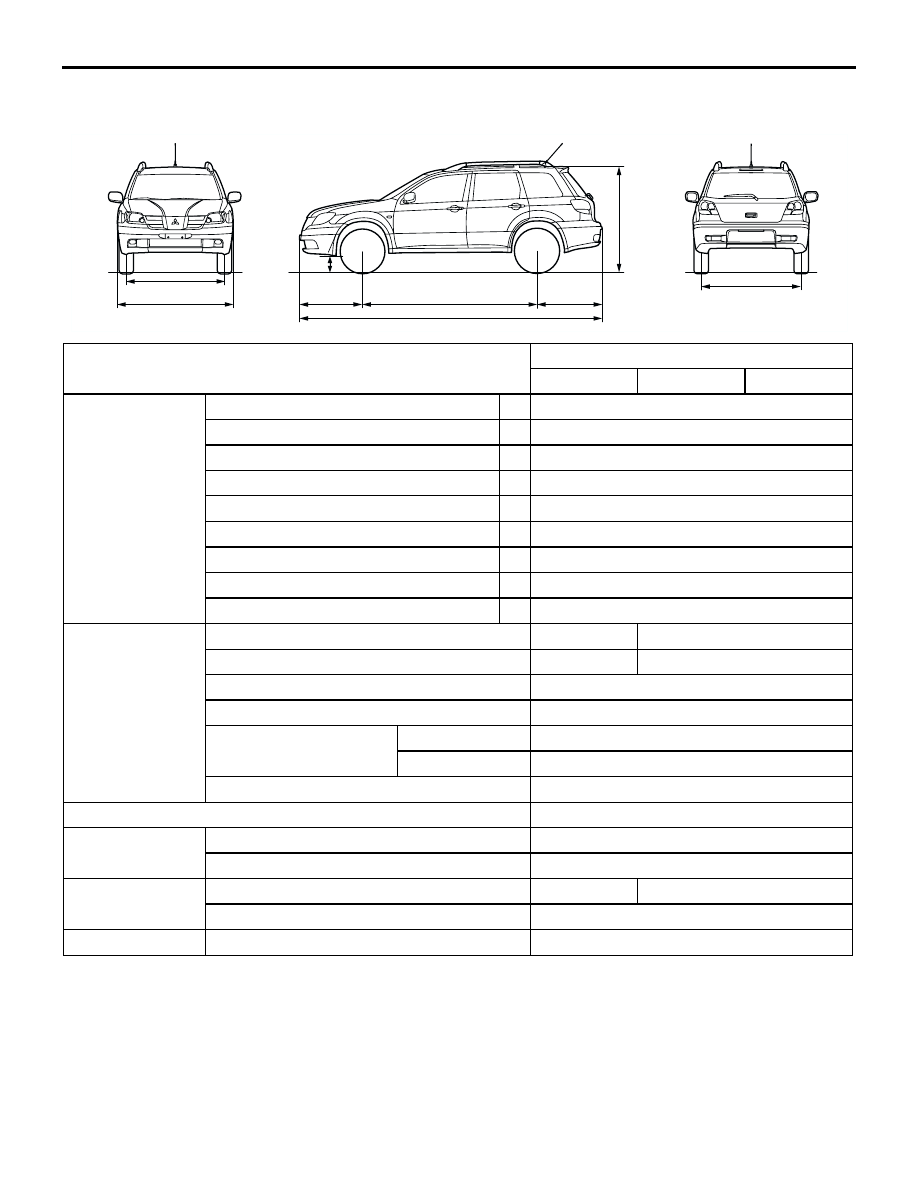

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-20

GENERAL DATA AND SPECIFICATIONS

M1001000900558

NOTE: *: Vehicles with roof rails

AC300072AB

1

2

7

3

4
6

5

8

9

Items

CU2W
XNMML6

XNMMZL6

XNHMZL6

Vehicle
dimensions mm

Front track

1

1,495

Overall width

2

1,750

Front overhang

3

945

Wheel base

4

2,625

Rear overhang

5

975

Overall length

6

4,545

Ground clearance (unladen)

7

195

Overall height (unladen)

8

1,620/1,670*

Rear track

9

1,505

Vehicle weight kg Kerb weight

1,435

1,540

Max. gross vehicle weight

1,970

2,070

Max. axle weight rating-front

1,050

Max. axle weight rating-rear

1,065

Max. trailer weight

With brake

1,500

Without brake

570

Max. trailer-nose weight

75

Seating capacity

5

Engine

Model code

4G63

Total displacement mL

1,997

Transmission

Model code

F5M42

W5M42

Type

5-speed manual

Fuel system

Fuel supply system

MPI

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-21

NOTE: *: Vehicles with roof rails

Items

CU5W
XNMYZL6

XRMYZL6/R
6

XNHYZL6

XRHYZL6/R
6

Vehicle
dimensions
mm

Front track

1 1,495

Overall width

2 1,750

Front overhang

3 945

Wheel base

4 2,625

Rear overhang

5 975

Overall length

6 4,545

Ground clearance (unladen) 7 195
Overall height (unladen)

8 1,620/1,670*

Rear track

9 1,505

Vehicle
weight kg

Kerb weight

1,540

LHD: 1,560,
RHD: 1,565

1,540

LHD: 1,560,
RHD: 1,565

Max. gross vehicle weight

2,070

Max. axle weight rating-front

1,050

Max. axle weight rating-rear

1,065

Max. trailer weight With brake

1,500

Without
brake

570

Max. trailer-nose weight

75

Seating capacity

5

Engine

Model code

4G69

Total displacement mL

2,378

Transmission Model code

W5M42

W4A42

W5M42

W4A42

Type

5-speed
manual

4-speed
automatic

5-speed
manual

4-speed
automatic

Fuel system

Fuel supply system

MPI

PRECAUTIONS BEFORE SERVICE

GENERAL

00-22

PRECAUTIONS BEFORE SERVICE

M1001000500538

SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)

CAUTION

Items to review when servicing SRS:

1. Be sure to read GROUP 52B

−

 Supplemental

Restraint System (SRS). For safe operation,
please follow the directions and heed all
warnings.

2. Wait at least 60 seconds after disconnecting

the battery cable before doing any further
work. The SRS system is designed to retain
enough voltage to deploy the air bag even
after the battery has been disconnected.
Serious injury may result from unintended air
bag deployment if work is done on the SRS
system immediately after the battery cable is
disconnected.

3. Warning labels must be heeded when

servicing or handling SRS components.
Warning labels can be found in the following
locations.

•

 Front impact sensor

•

Hood

•

Sun visor

•

Glove box

•

SRS-ECU

•

Steering wheel

•

Clock spring

•

Steering joint cover

•

Air bag module (Driver's or front
passenger's)

•

Side air bag module (Driver's side or front
passenger's side)

•

Side impact sensor

•

Seat belt pre-tensioner

•

Instrument panel

4. Always use the designated special tools and

test equipment.

5. Store components removed from the SRS in a

clean and dry place. The air bag module
should be stored on a flat surface and placed
so that the pad surface is facing upward. Do
not place anything on top of it.

6. Never attempt to disassemble or repair the

SRS components (SRS-ECU, air bag module
and clock spring).

7. Whenever you finish servicing the SRS, check

the SRS warning lamp operation to make sure
that the system functions properly.

8. Be sure to deploy the air bag before

disposing of the air bag module or disposing
of a vehicle equipped with an air bag (Refer to
GROUP 52B

−

 Air Bag Module Disposal

Procedures).

Observe the following when carrying out
operations on places where SRS components are
installed, including operations not directly
related to the SRS air bag.

1. When removing or installing parts, do not

allow any impact or shock to the SRS
components.

2. If heat damage may occur during paint work,

remove the SRS-ECU, the air bag module,
clock spring, the front impact sensor, the side
impact sensor, and the seat belt
pre-tensioner.

•

SRS-ECU, air bag module, clock spring,
front impact sensor, the side impact
sensor: 93

°

C or more

•

Seat belt pre-tensioner: 90

°

C or more
