ON-VEHICLE SERVICE

TSB Revision

STEERING

37A-19

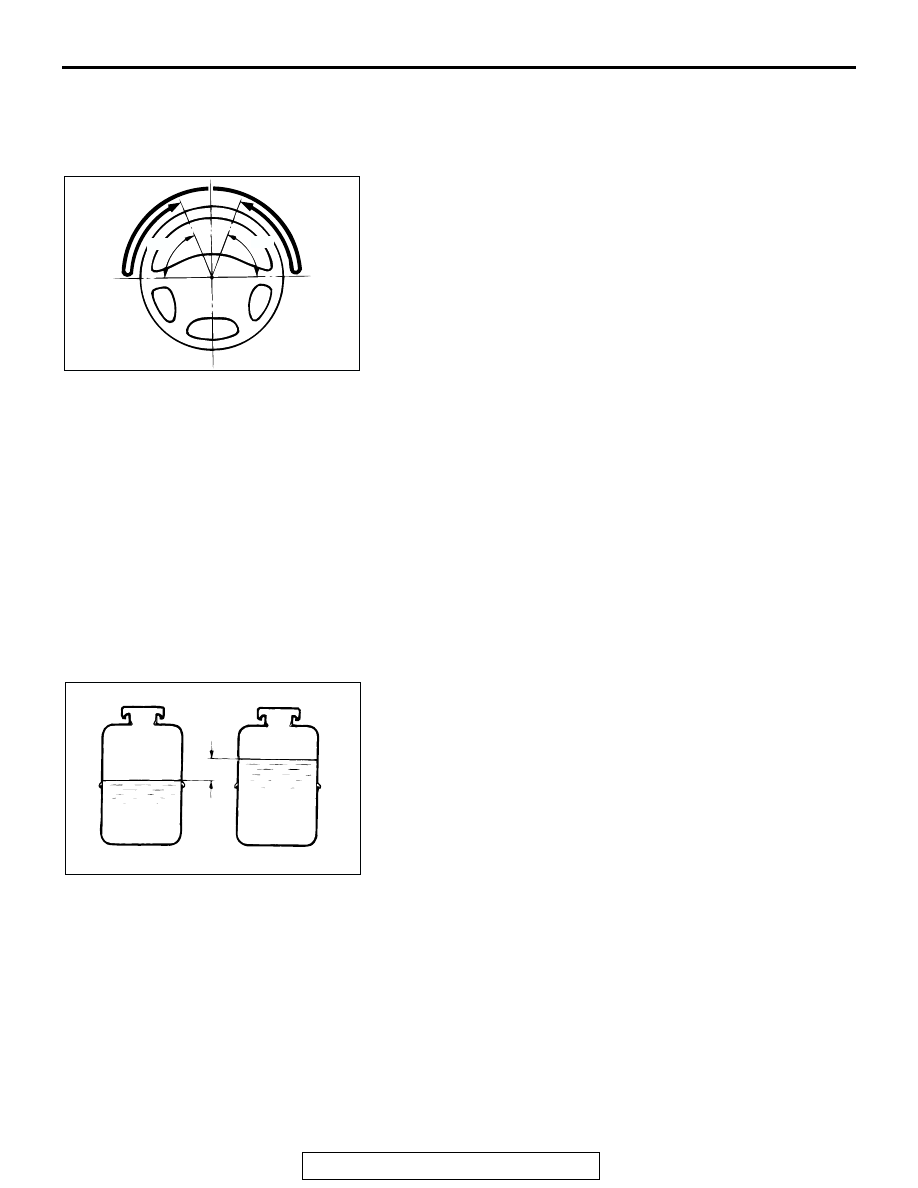

STEERING WHEEL RETURN TO CENTER CHECK

M1372001800362

Conduct a road test:
1. Make both gradual and sudden turns and check the steering

wheel return.

2. At a vehicle speed of approximately 35 km/h (22 mph), turn

the steering wheel 90 degrees, hold a few seconds, then
release. If the steering wheel then returns 70 degrees or
more, the return can be judged satisfactory.
NOTE: There will be a momentary feeling or "heaviness"
when the wheel is turned quickly, but this is not abnormal.
(Oil pump discharge amount is especially apt to be insuffi-
cient during idling.)

DRIVE BELT TENSION CHECK

M1372001900314

Refer to GROUP 00, Maintenance Service

− Drive Belt

P.00-46

.

FLUID LEVEL CHECK

M1372002000336

1. Park the vehicle on a flat, level surface, start the engine, and

then turn the steering wheel in both directions several times
to raise the temperature of the fluid to approximately 50

−

60

°C (122 − 140°F).

2. With the engine running, turn the wheel all the way to the left

and right several times.

3. Check the fluid in the oil reservoir for foaming or milkiness.
4. Check the difference of the fluid level when the engine is

stopped, and while it is running. If the change of the fluid
level is 5 mm (0.2 inch) or more, air bleeding should be
done.

ACX01130AB

70˚

70˚

ACX01131

WHILE ENGINE
RUNNING

WHILE ENGINE
STOPPED

AB

FLUID FLUCTUATION

ON-VEHICLE SERVICE

TSB Revision

STEERING

37A-20

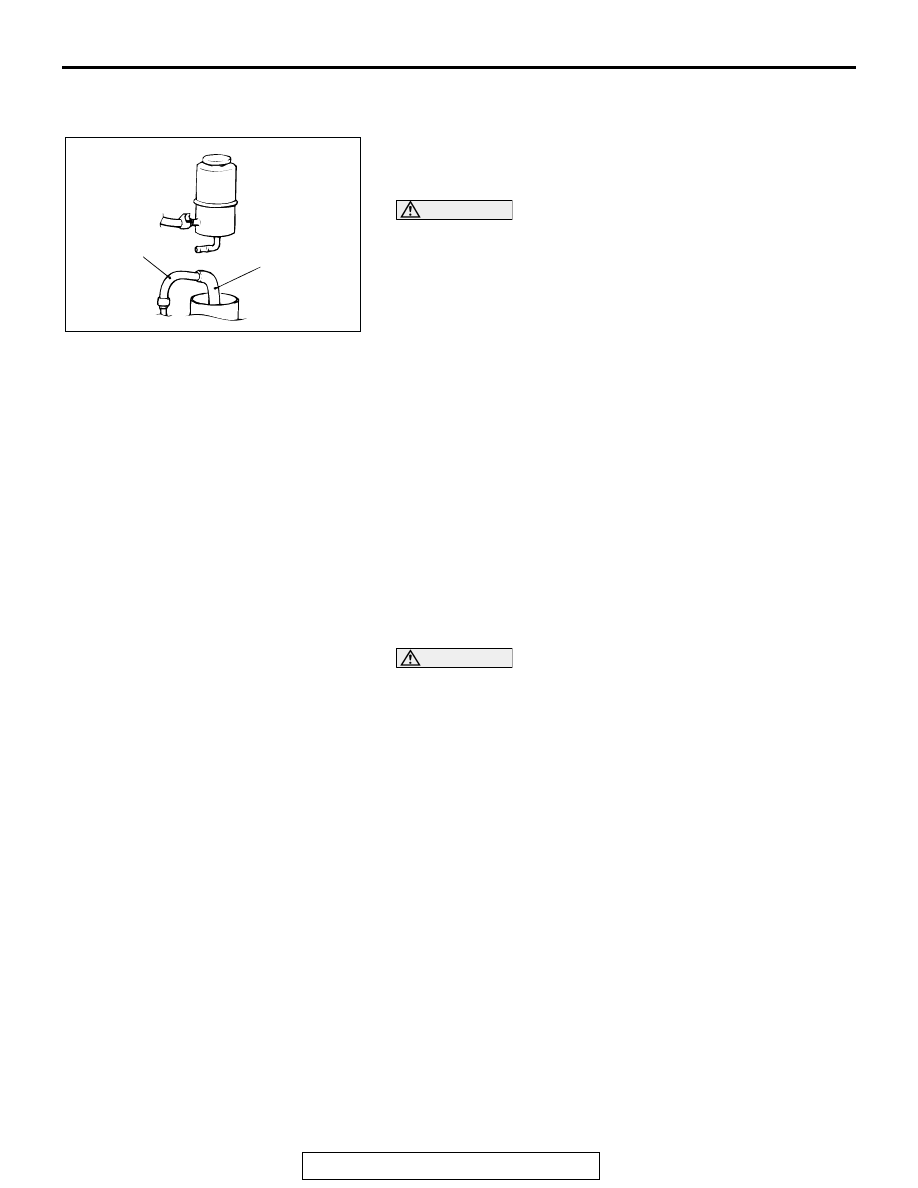

POWER STEERING FLUID REPLACEMENT

M1372002100399

1. Jack up the front wheels and support them.
2. Disconnect the return hose connection. (Refer to

P.37A-45

.)

3. Connect a vinyl hose to the return hose, and drain the fluid

into a container.

CAUTION

Be careful not to position the high-tension cable near the
fuel rail.
4. Disconnect the high-tension cable.
5. While operating the starting motor intermittently, turn the

steering wheel all the way to the left and right several times
to drain all of the fluid.

6. Connect the return hose securely, and then secure with the

clip.

7. Fill the oil reservoir with GENUINE MITSUBISHI POWER

STEERING FLUID up to the lower position of the filler, and
then bleed the air.

POWER STEERING SYSTEM AIR BLEEDING

M1372002200385

Perform air bleeding procedure as necessary after replacing
the steering gear box or the steering fluid lines.
1. Raise and support the front wheels.
2. Disconnect the high-tension cable. Turn the steering wheel

all the way to the left and right five or six times while using
the starter motor to crank the engine intermittently several
times (for 15 to 20 seconds).

CAUTION

• Be careful not to place the high-tension cable near the

fuel rail.

• Perform air bleeding only while cranking the engine. If

air bleeding is performed while the engine is running,
air could enter the fluid.
During air bleeding, refill the steering fluid supply so
that the level never falls below the lower mark on the
dipstick.

3. Connect the high-tension cable. Start the engine (idling).
4. Turn the steering wheel to the left and right until there are no

air bubbles in the oil reservoir.

5. Confirm that the fluid is not milky, and that the level is

between the high and low dipstick marks.

6. Confirm that there is very little change in the fluid level when

the steering wheel is turned left and right.

ACX01132 AC

RETURN HOSE

PLASTIC HOSE

ON-VEHICLE SERVICE

TSB Revision

STEERING

37A-21

7. Confirm that the change in the fluid level is no more than 5

mm (0.2 inch) when the engine is stopped and when it is
running.

CAUTION

• If the fluid level rises suddenly after the engine is

stopped, the air has not been completely bled.

• If air bleeding is not complete, there will be abnormal

noises from the pump and the flow-control valve, and
this condition could cause reduce the life of the power
steering components.

8. If the change of the fluid level is 5 mm (0.2 inch) or more, the

air has not been completely bled from the system. The air
bleeding procedure must be repeated.

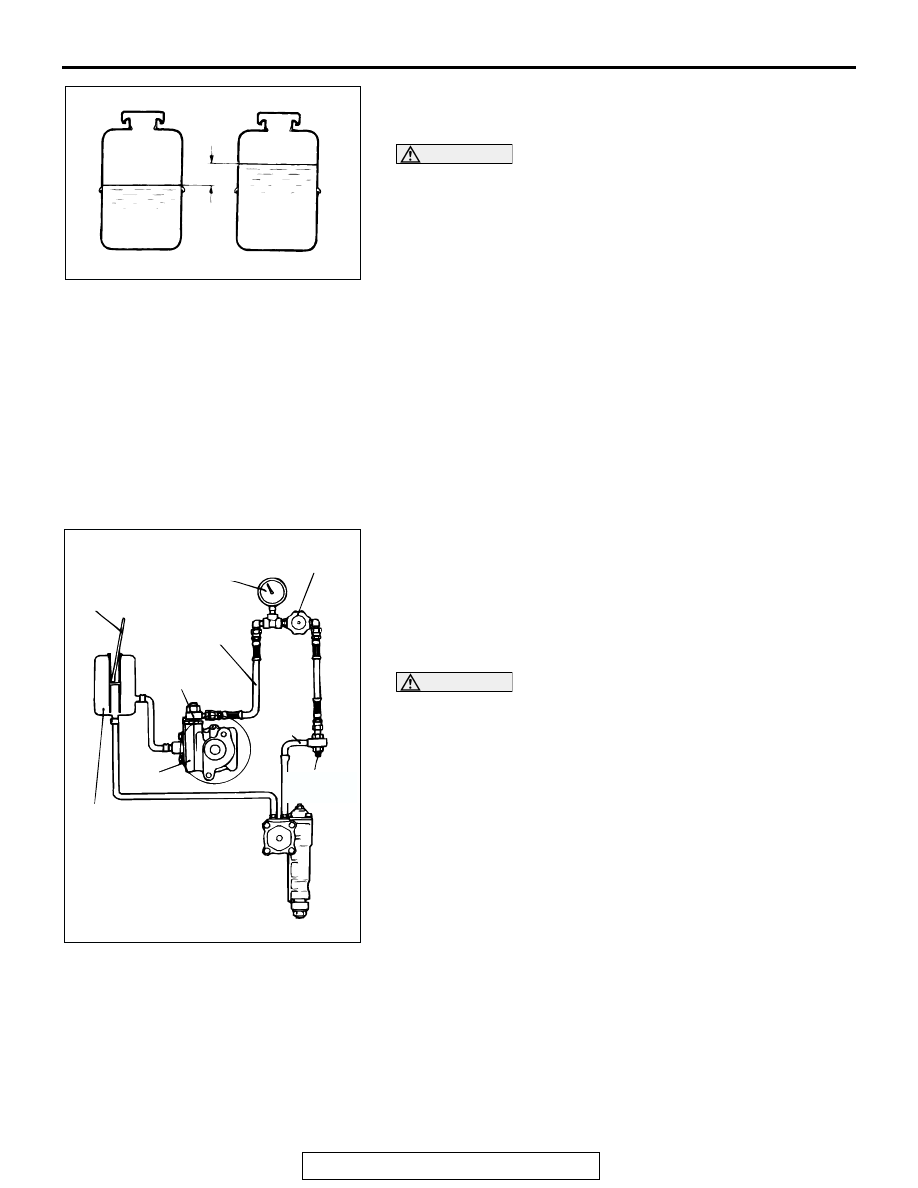

OIL PUMP PRESSURE TEST

M1372002300360

Required Special Tools:

• MB990662: Pressure Gauge

• MB990993 or MB991217: Power Steering Oil Pressure

Gauge Adapter (Pump Side)

• MB990994: Power Steering Oil Pressure Gauge Adapter

(Hose Side)

1. Disconnect the pressure hose from the oil pump, and then

connect special tools MB990662, MB990993 or MB991217
and MB990994.

2. Bleed air, then turn the steering wheel several times while

the vehicle is not moving so that the temperature of the fluid
rises to approximately 50

− 60°C (122 − 140°F).

3. Start the engine and idle it at 1,000

± 100 r/min.

CAUTION

The pressure gauge shut-off valve must not remain closed
for more than 10 seconds.
4. Fully close the shut-off valve of the pressure gauge and

measure the oil pump relief pressure to confirm that it is
within the standard value range. Open it again immediately
after checking the pressure.

Standard value: 8.3

− 9.0 MPa (1,204 − 1,305 psi)

5. If it is not within the standard value, replace the oil pump.
6. Check whether or not the hydraulic pressure is the standard

value when no-load conditions are created by fully opening
the shut-off valve of the pressure gauge.

Standard value: 0.8

− 1.0 MPa (116 − 145 psi)

7. If it is not within the standard value, the probable cause is a

malfunction of the oil line or steering gear box, so check
these parts and repair as necessary.

8. Turn the steering wheel all the way to the left or right; then

check whether or not the retention hydraulic pressure is the
standard value.

Standard value: 8.3

− 9.0 MPa (1,204 − 1,305 psi)

ACX01131

WHILE ENGINE
RUNNING

WHILE ENGINE
STOPPED

AB

FLUID FLUCTUATION

AC004562AB

PRES-
SURE
HOSE

ADAPTER
(MB990994)

RESERVOIR

OIL
PUMP

THER-
MOMETER

ADAPTER
(MB990993
OR MB991217)

OIL PUMP
RELIEF
PRESSURE

SHUT-OFF VALVE
(FULLY CLOSED)

PRESSURE
GAUGE
(MB990662)

ON-VEHICLE SERVICE

TSB Revision

STEERING

37A-22

9. If the measured value is smaller than the standard value,

disassemble and assemble the steering gear, and if it is
larger than the standard value, disassemble and assemble
the oil pump flow control valve, and then measure oil
pressure again.

10.Remove special tools MB990662, MB990993 or MB991217

and MB990994, and then tighten the pressure hose to the
specified torque.

Tightening torque: 49

− 64 N⋅m (36 − 47 ft-lb)

11.Bleed the system.

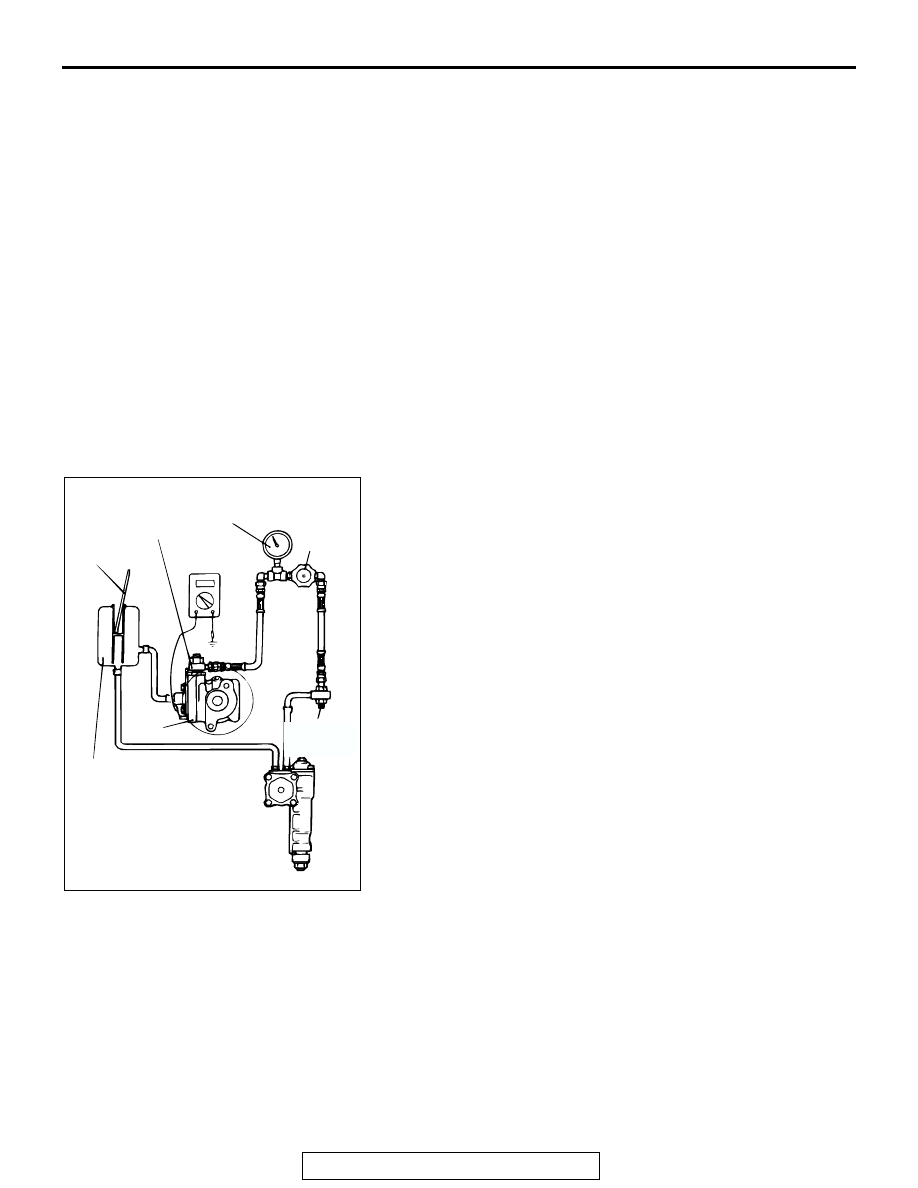

POWER STEERING PRESSURE SWITCH CHECK

M1372007200379

Required Special Tools:

• MB990662: Pressure Gauge

• MB990993 or MB991217: Power Steering Oil Pressure

Gauge Adapter (Pump Side)

• MB990994: Power Steering Oil Pressure Gauge Adapter

(Hose Side)

1. Disconnect the pressure hose from the oil pump, and then

connect special tools MB990662, MB990993 or MB991217
and MB990994.

2. Bleed air, and then turn the steering wheel several times

while the vehicle is not moving so that the temperature of
the fluid rises to approximately 50

− 60°C (122 − 140°F).

3. The engine should be idling.
4. Disconnect the connector for the oil pressure switch, and

place an ohmmeter at the switch.

5. Gradually close the shut-off valve of the pressure gauge and

increase the hydraulic pressure, then check whether or not
the hydraulic pressure that activates the switch is the
standard value.

Standard value: 1.5

− 2.0 MPa (218 − 290 psi)

6. Gradually open the shut-off valve and reduce the hydraulic

pressure; then check whether or not the hydraulic pressure
that deactivates the switch is the standard value.

Standard value: 0.7

− 1.2 MPa (102 − 174 psi)

7. Remove special tools MB990662, MB990993 or MB991217

and MB991549, and then tighten the pressure hose to the
specified torque.

Tightening torque: 49

− 64 N⋅m (36 − 47 ft-lb)

8. Bleed the system.

AC004737

RESERVOIR

OIL
PUMP

ADAPTER
(MB990994)

SHUT-
OFF
VALVE

PRESSURE
GAUGE
(MB990662)

THER-
MOMENT

ADAPTER
(MB990993
OR MB991217)

AB
