SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-69

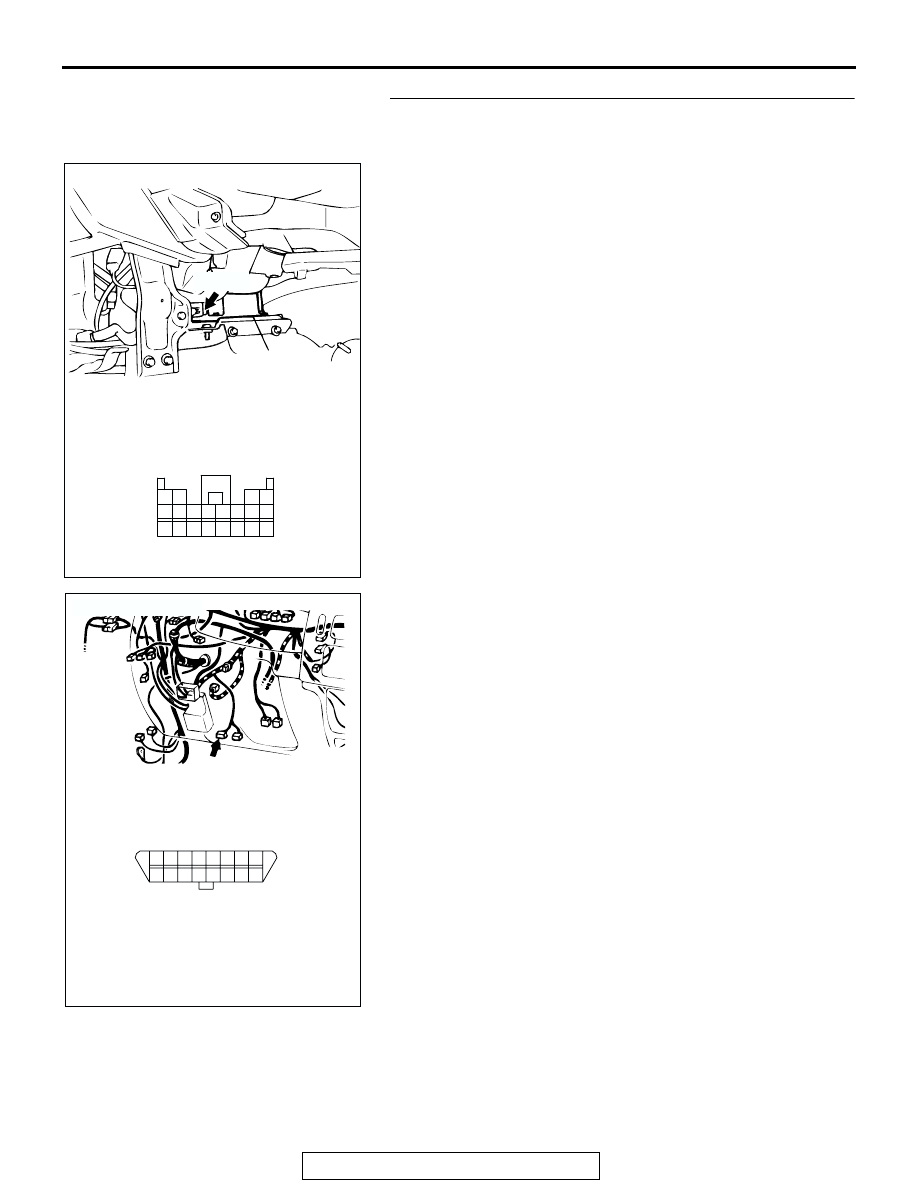

STEP 5. Check the harness wires between SRS-ECU
connector C-24 (terminal No.20) and data link connector
C-69 (terminal No.7).

Q: Are the harness wires between SRS-ECU connector

C-24 (terminal No.20) and data link connector C-69
(terminal No.7) in good condition?
YES : Replace the SRS-ECU. Refer to

P.52B-82

. Then go

to Step 6.

NO :  Repair or replace the harness wire. Then go to Step 6.

AC202743

20

19

18

17

7

15

8

16

6

5

4

12

13 14

3

2

1

9 10 11

CONNECTOR: C-24

C-24 (Y)

C-24 HARNESS CONNECTOR:
HARNESS SIDE
(REAR VIEW)

AD

SRS-ECU

AC200763

8

16

6

1415

7

5

13

3

1112

4

2

10

9

1

CONNECTOR: C-69

C-69 HARNESS CONNECTOR:
COMPONENT SIDE

AB

C-69 (B)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-70

STEP 6. Retest the system.
Q: Does the scan tool communicate normally with the SRS

system?
YES : The procedure is complete.(If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.)

NO :  There is no action to be taken.

SPECIAL TOOLS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-71

SPECIAL TOOLS

M1524000700527

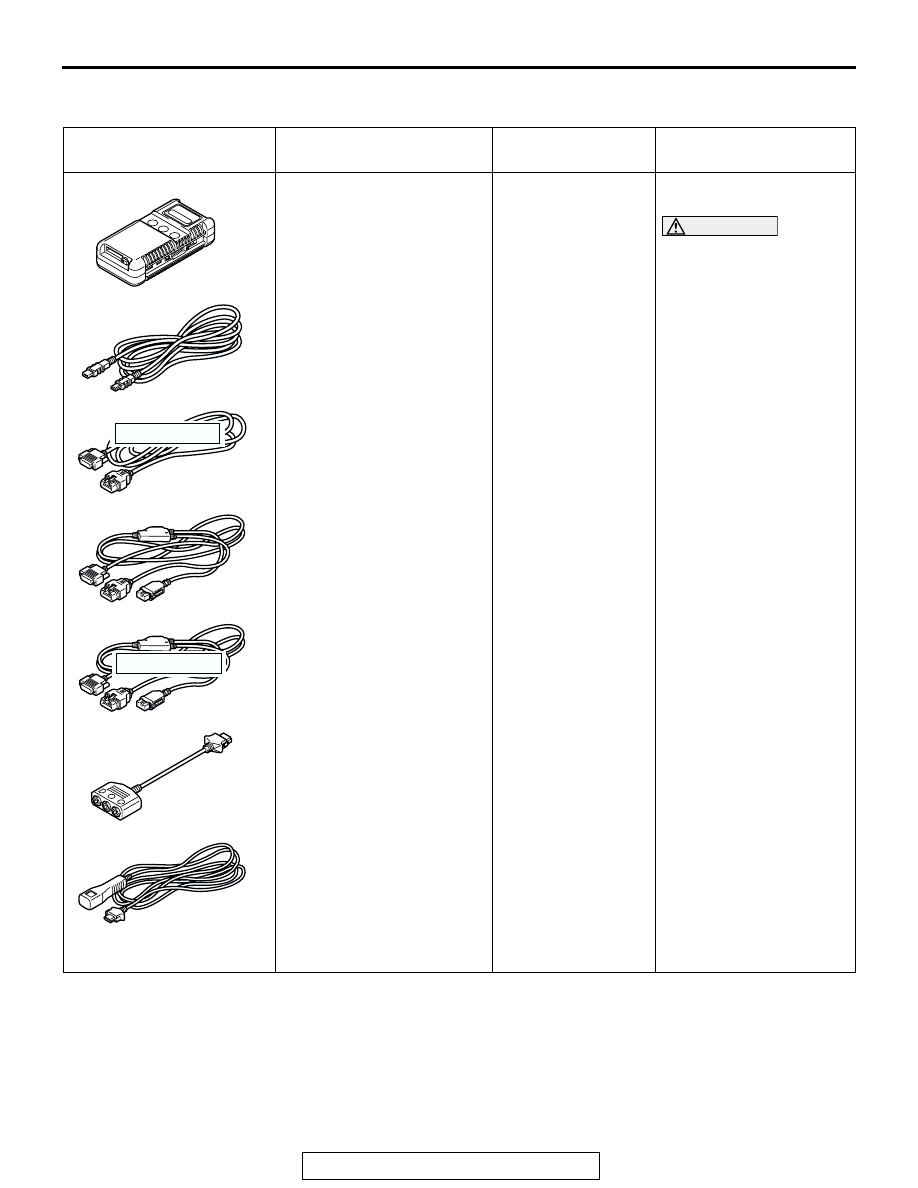

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III main harness C

(for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger harness

MB991824-KIT
NOTE: G:
MB991826 MUT-III
trigger harness is not
necessary when
pushing V.C.I.
ENTER key.

Checking diagnostic
trouble code

CAUTION

MUT-III main harness B
(MB991911) should be
used. MUT-III main
harness A and C should
not be used for this
vehicle.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

SPECIAL TOOLS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-72

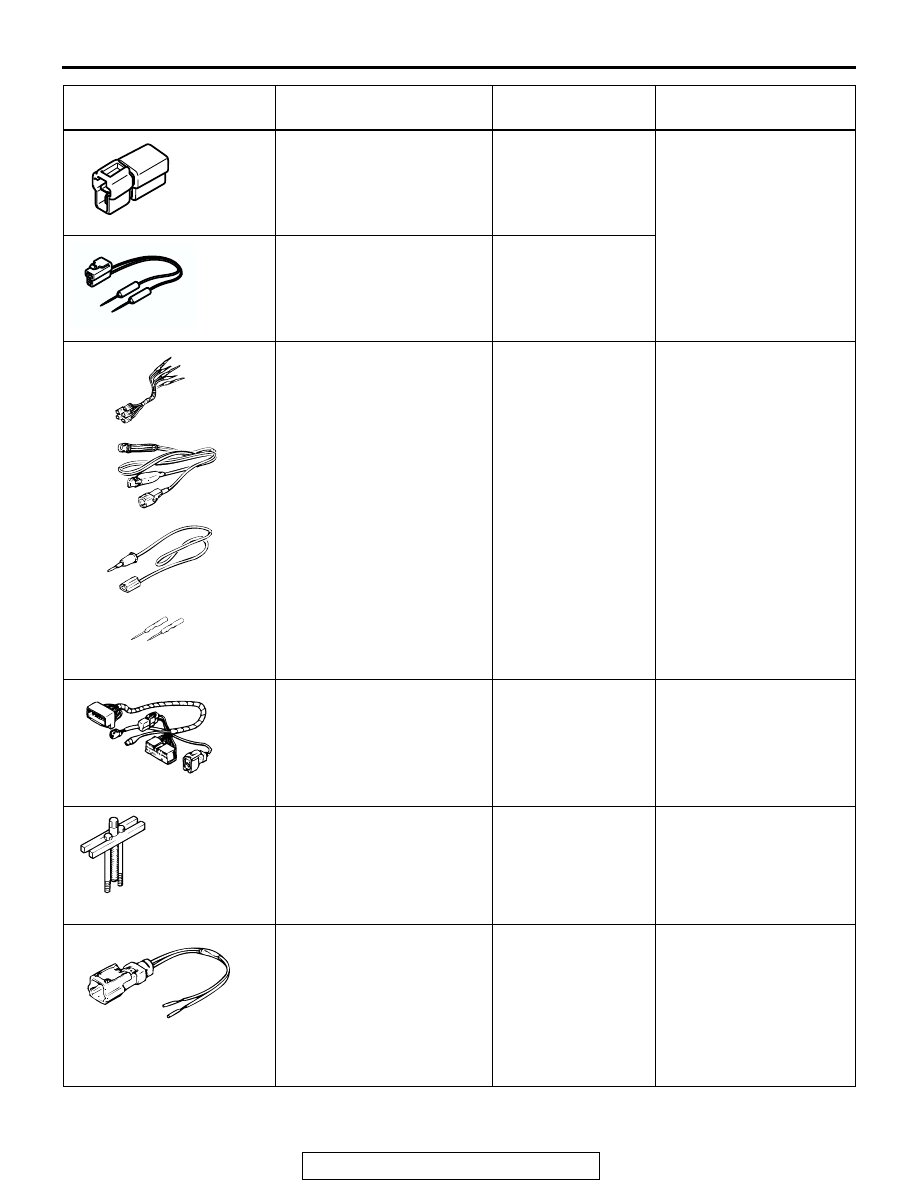

MB991865
