AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-333

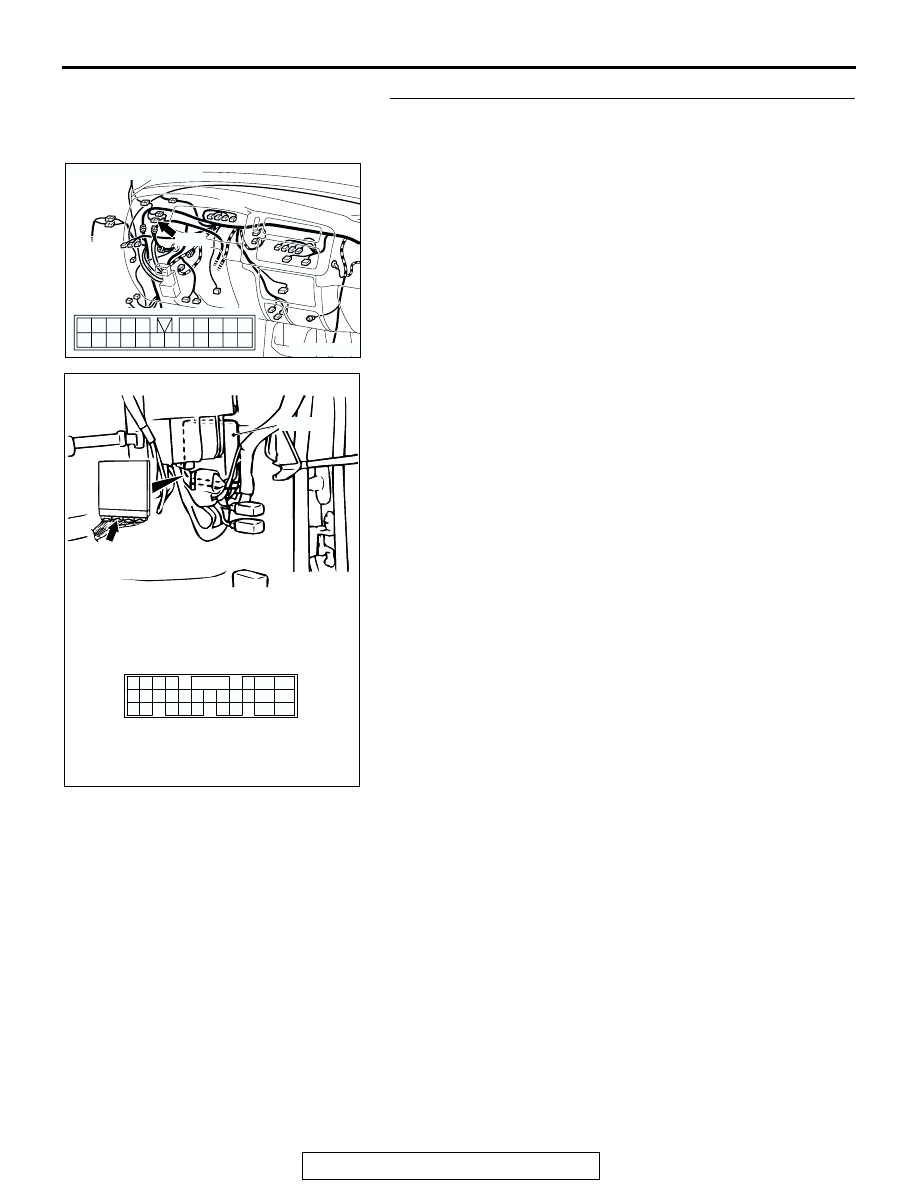

STEP 15. Check intermediate connector C-41 and PCM
connector C-91 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 16.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202442

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

CONNECTOR: C-41

C-41

AB

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-334

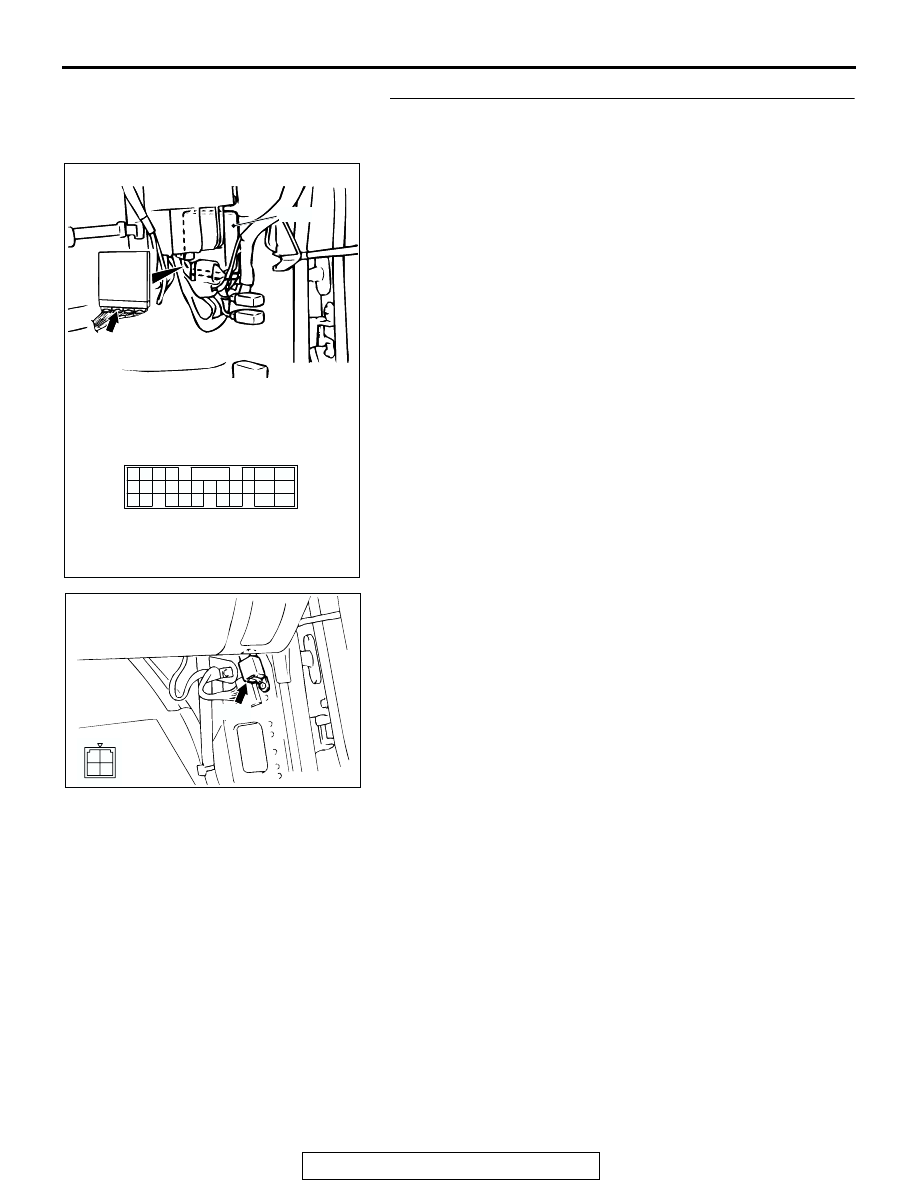

STEP 16. Check harness for open circuit or short circuit to
ground between PCM connector C-91 terminals 77, 89 and
A/T control relay connector C-97 terminal 3.

Q: Is the harness wire in good condition?

YES : Go to Step 17.
NO :  Repair or replace the harness wire.

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89

AC202440

1
3 4

2

CONNECTOR: C-97

AB

C-97

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-335

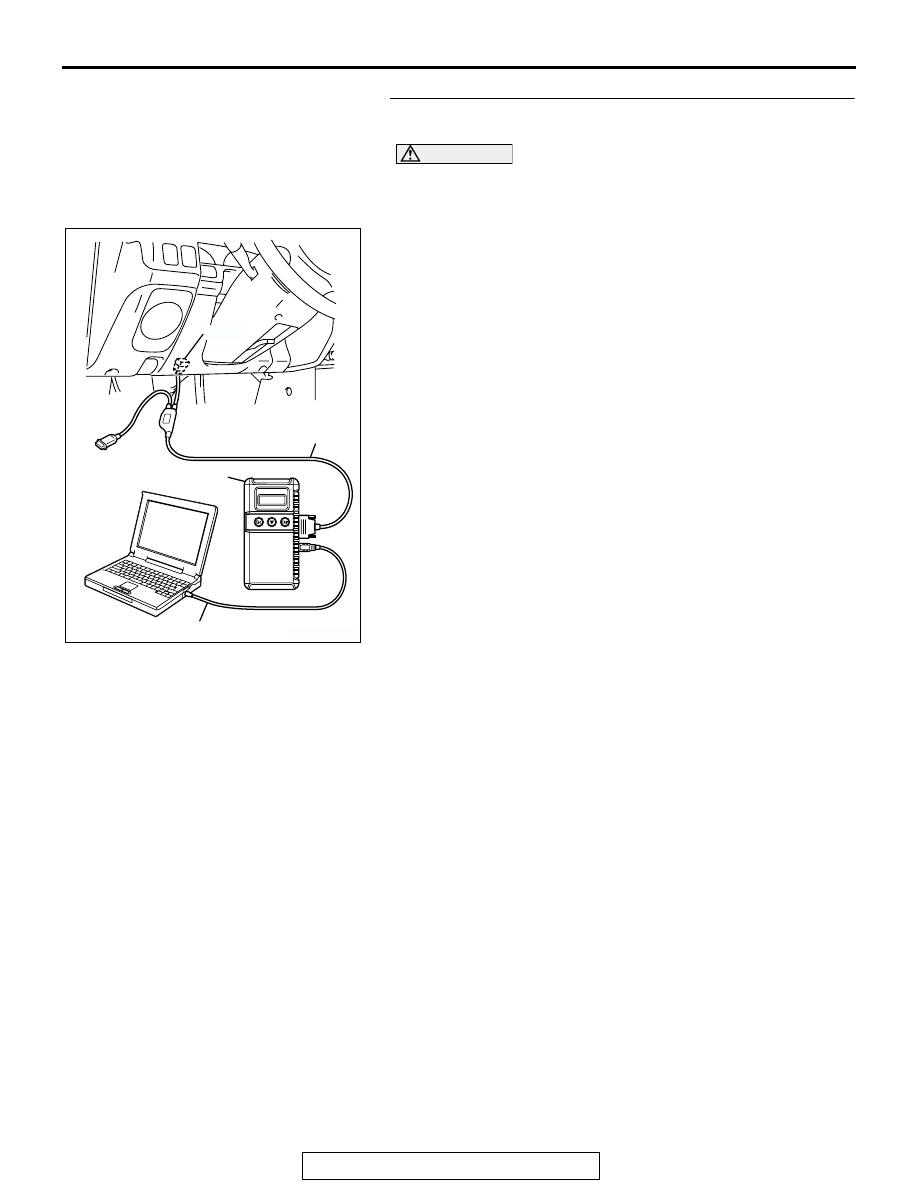

STEP 17. Using scan tool MB991958, check data list item
54: A/T control relay output Voltage.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data-reading mode.

• Item 54: A/T Control Relay Output Voltage.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage equal to battery positive

voltage?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Replace the PCM.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-336

DTC 56: "N" Range Light System

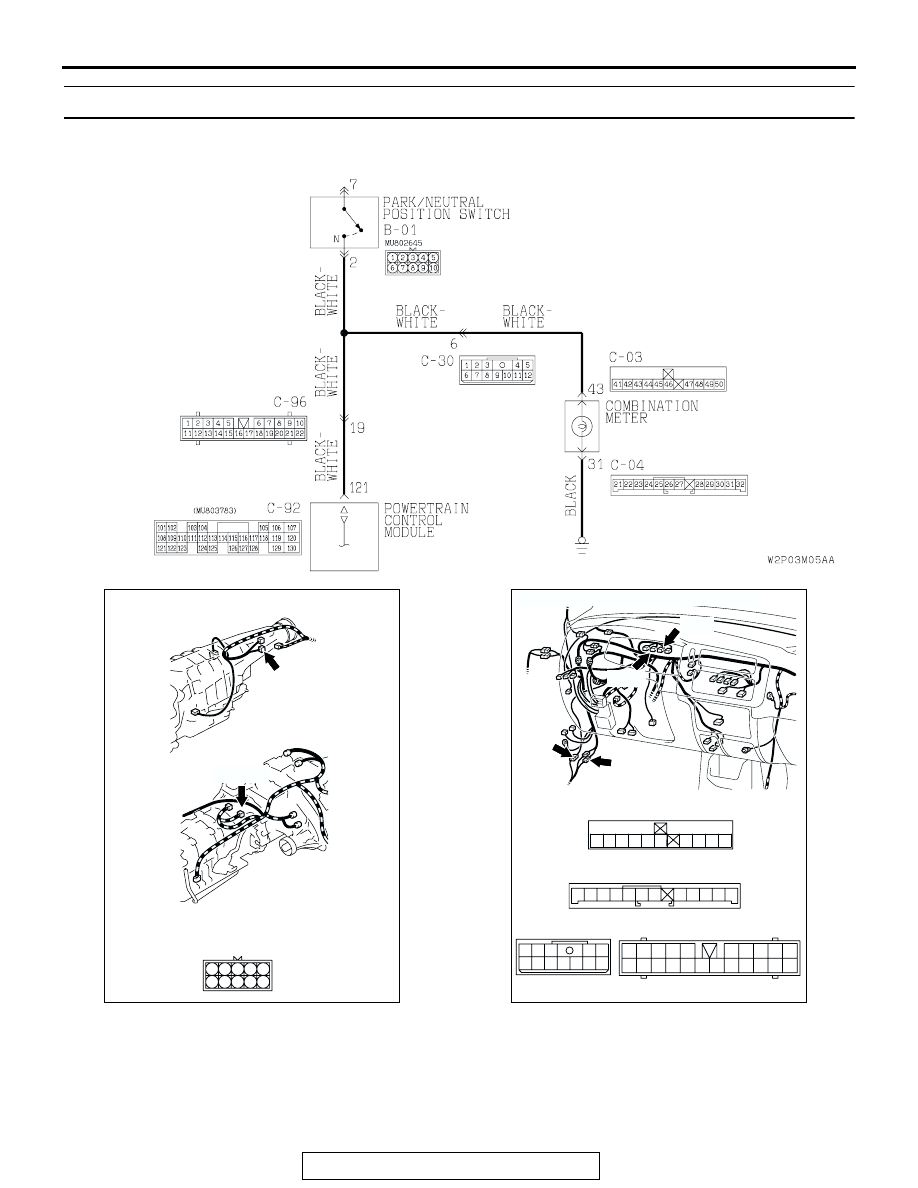

AC103527

"N" Range Light System Circuit

AB

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202443

4

3

10 11

9

8

5

12

1
6

2
7

22

9 10

20

19

6 7 8

21

17

1516

5

14

12 13

3

2

4

18

11

1

49

48

50

46

45

44

41 42 43

47

31 32

30

29

27

28

26

25

23

22

24

21

AB

CONNECTORS:C-03, C-04, C-30, C-96

C-03

C-04

C-30

C-96

C-03

C-04

C-30

C-96
