AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-289

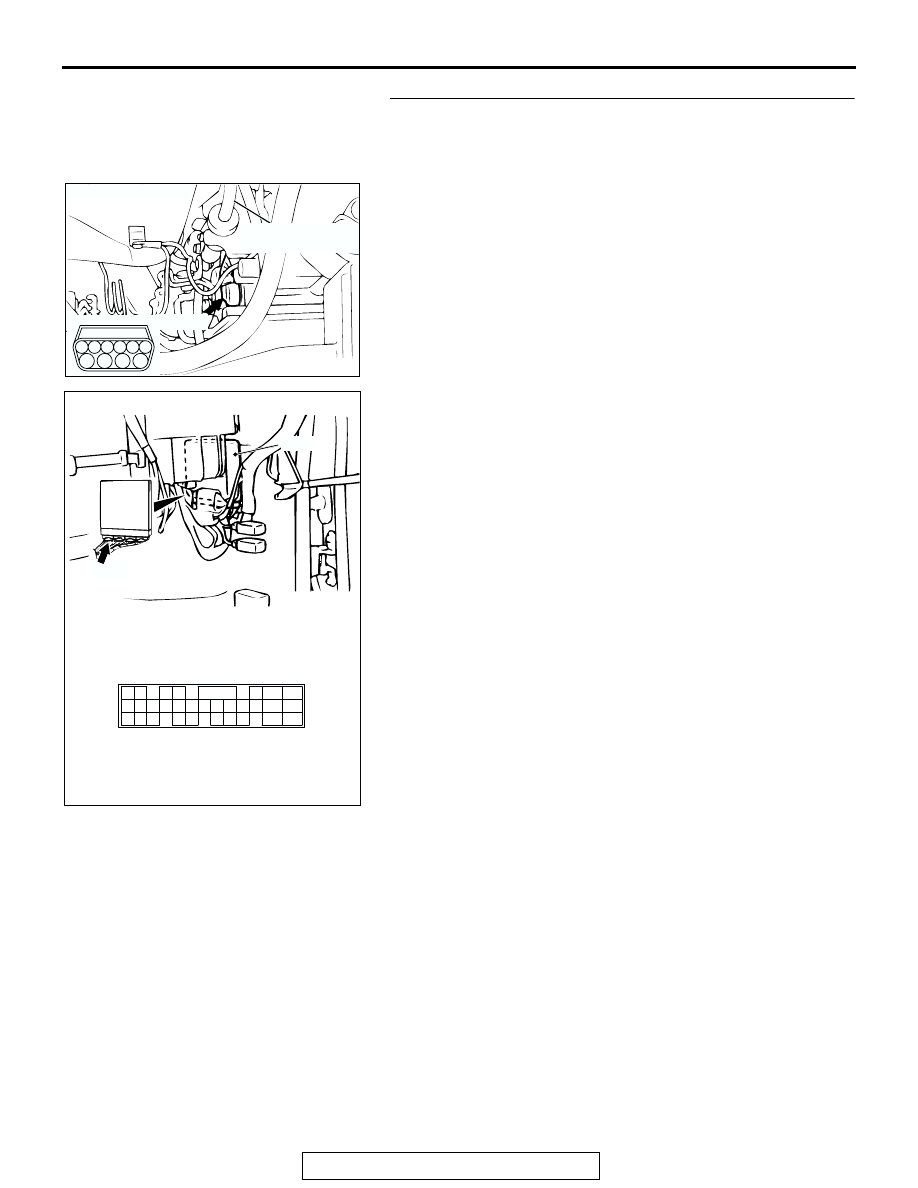

STEP 7. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector B-02 terminal 7 and PCM connector C-92
terminal 107.

Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair or replace the harness wire.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-290

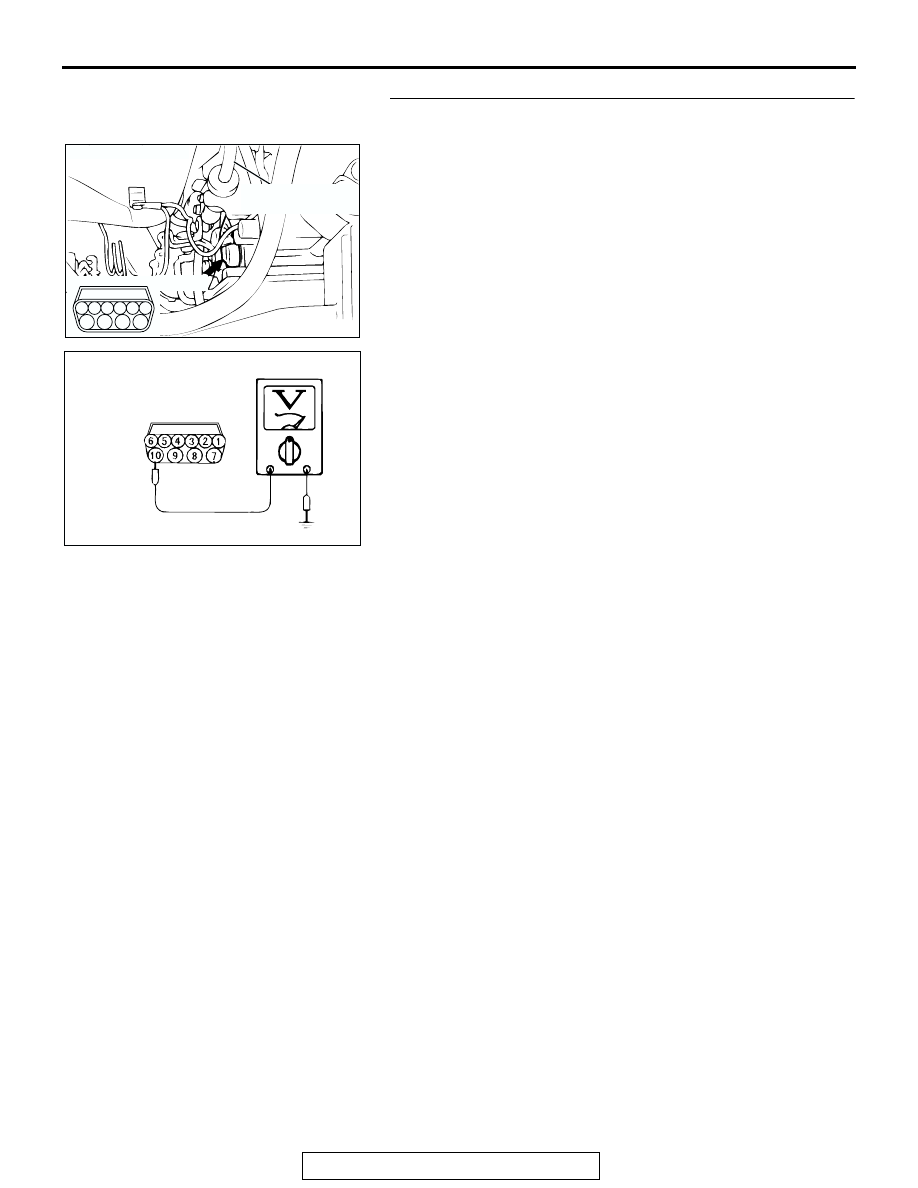

STEP 8. Measure the supply voltage at A/T control
solenoid valve assembly connector B-02.

(1)  Disconnect solenoid valve assembly harness connector

B-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between harness connector B-02

terminal 10 and ground.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 9.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC001966AJ

B-02 HARNESS CONNECTOR:
COMPONENT SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-291

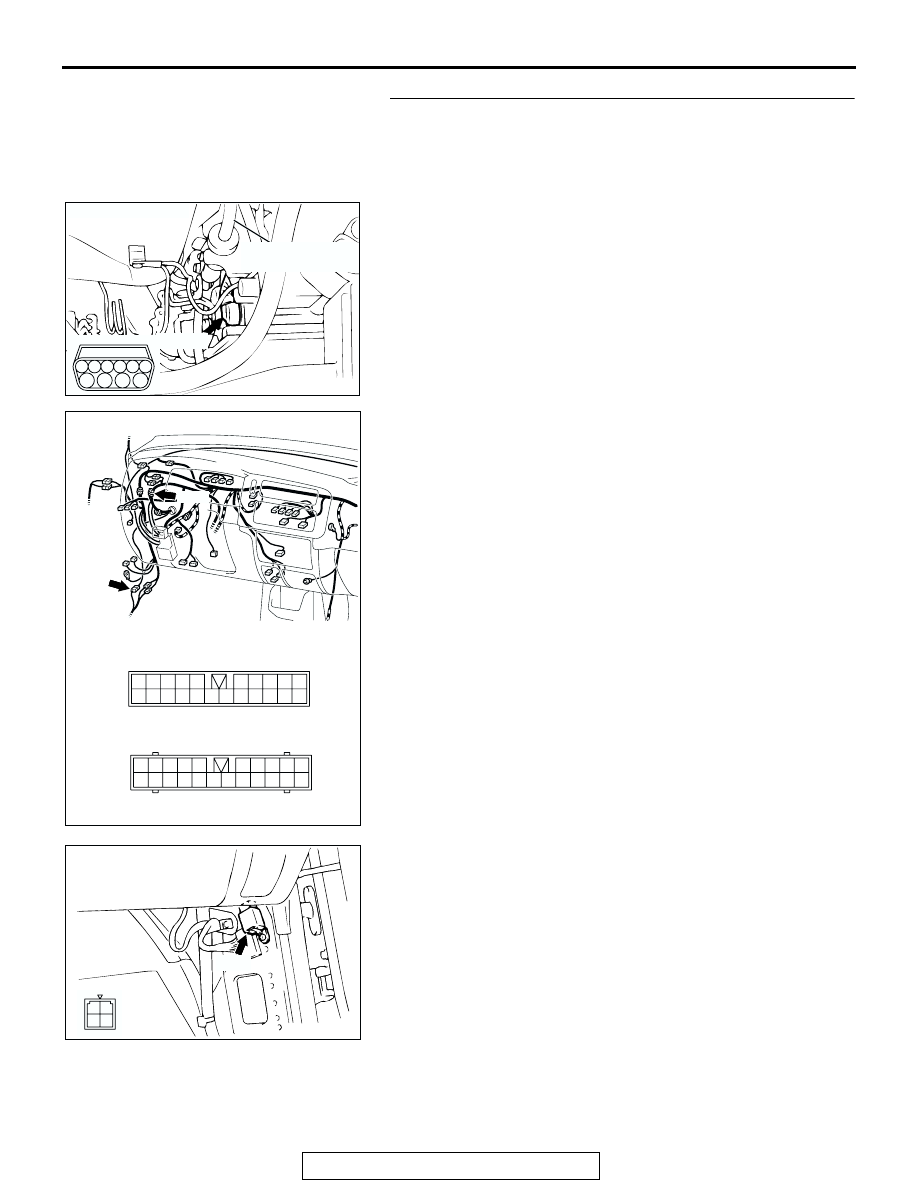

STEP 9. Check A/T control solenoid valve assembly
connector B-02, intermediate connector C-41 and C-96 and
A/T control relay connector C-97 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 10.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC202439

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

22

9 10

20

19

6 7 8

21

17

1516

5

14

12 13

3

2

4

18

11

1

CONNECTORS: C-41, C-96

AB

C-41

C-96

C-41

C-96

AC202440

1
3 4

2

CONNECTOR: C-97

AB

C-97

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-292

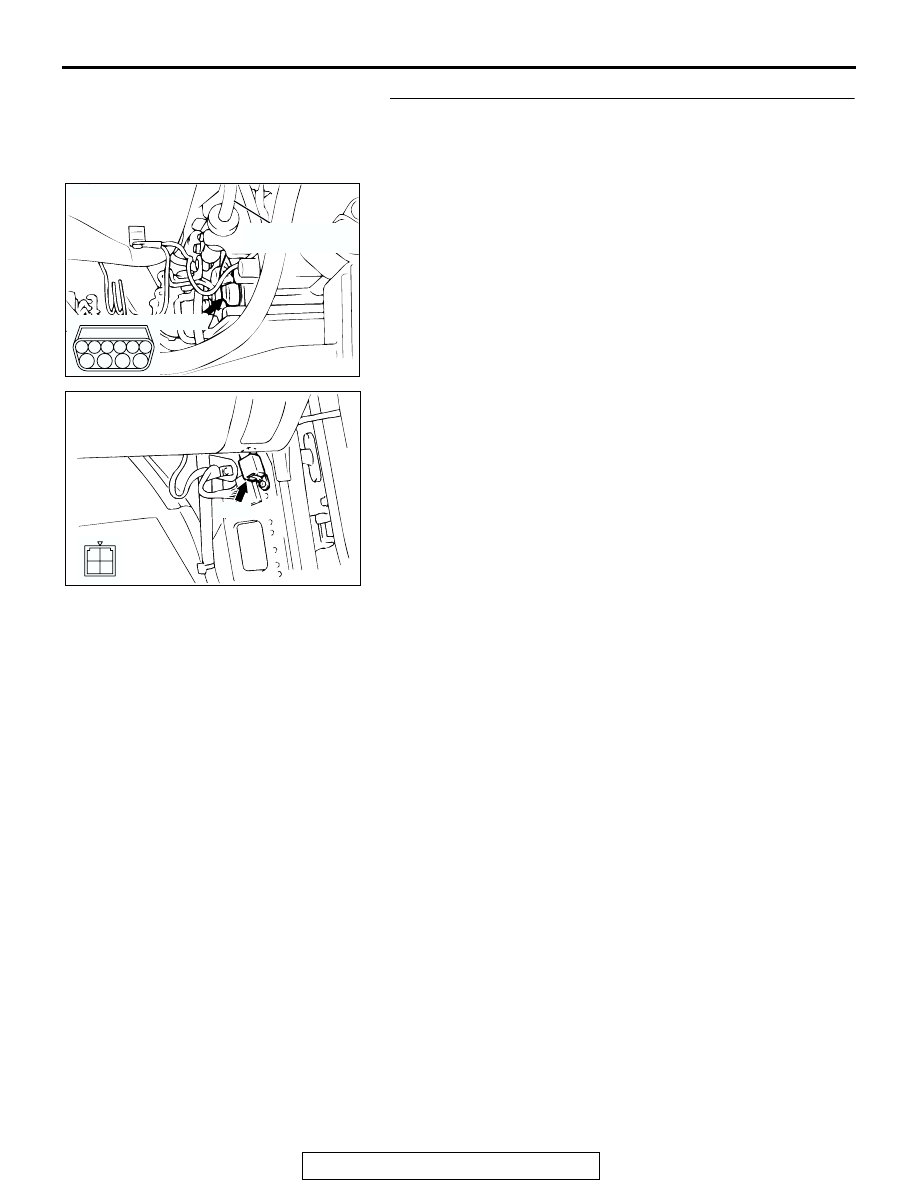

STEP 10. Check the harness for an open circuit or short
circuit to ground between A/T control solenoid valve
assembly connector B-02 terminal 10 and A/T control relay
connector C-97 terminal 3.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair or replace the harness wire.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC202440

1
3 4

2

CONNECTOR: C-97

AB

C-97
