AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-269

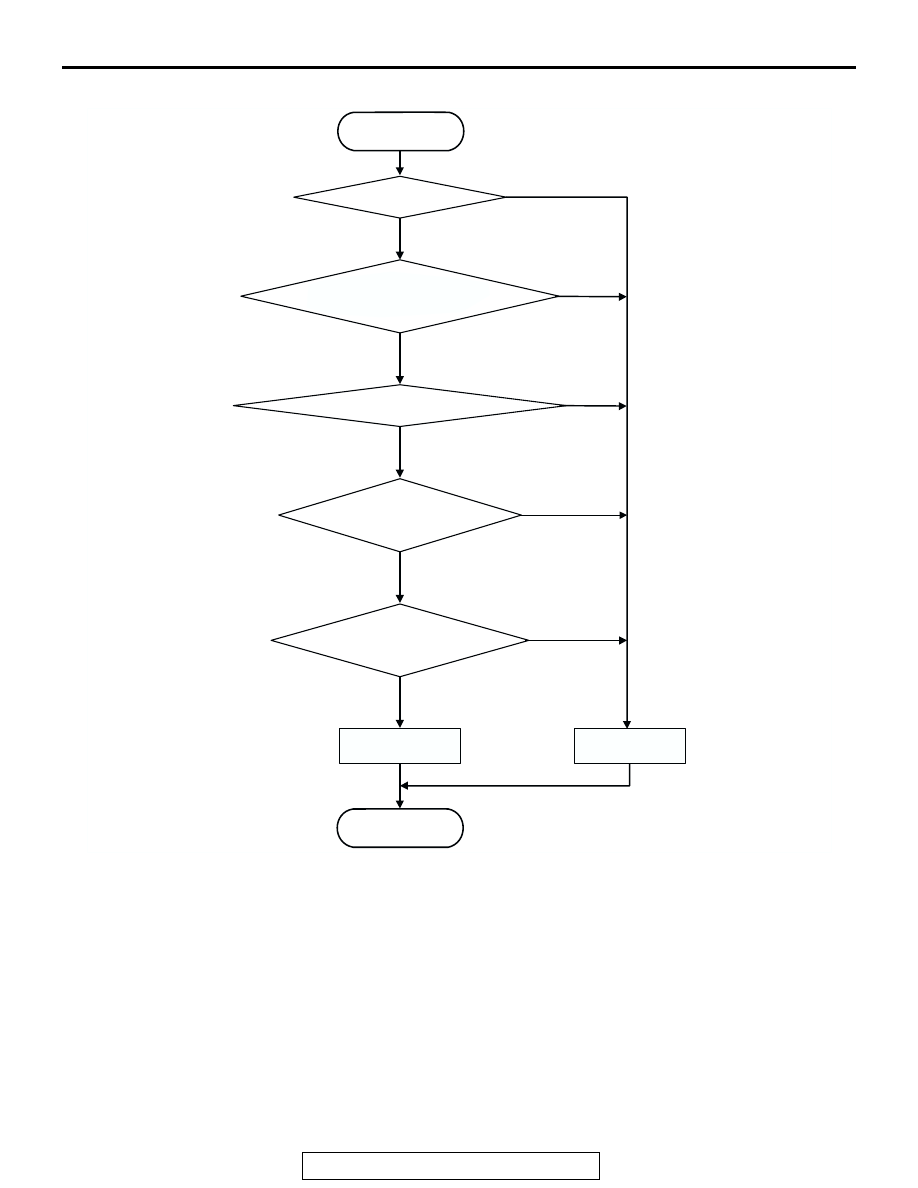

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Solenoid status: either solid ON or OFF.

• Shift status: in-gear.

• Voltage of battery: 10 volts or more.

Judgement Criteria

• Solenoid voltage: 3 volts or less. (0.3 second)

• If DTC 34 (P0768) is set consecutively four times,

the transmission is locked into 3rd gear as a
fail-safe measure, and the "N" range light flashes
once per second.

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in P
range for 5 seconds.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of overdrive solenoid valve

• Damaged harness, connector

• Malfunction of the PCM

AC205284

Good

Malfunction

END

START

In-gear?

Shift solenoid-D is in ON
or OFF steady state

Voltage of battery > 10 V

Solenoid circuit
voltage < 3 V

Continuous failure
for 0.3 sec.

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Overdrive solenoid valve is in
    ON or OFF steady state

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-270

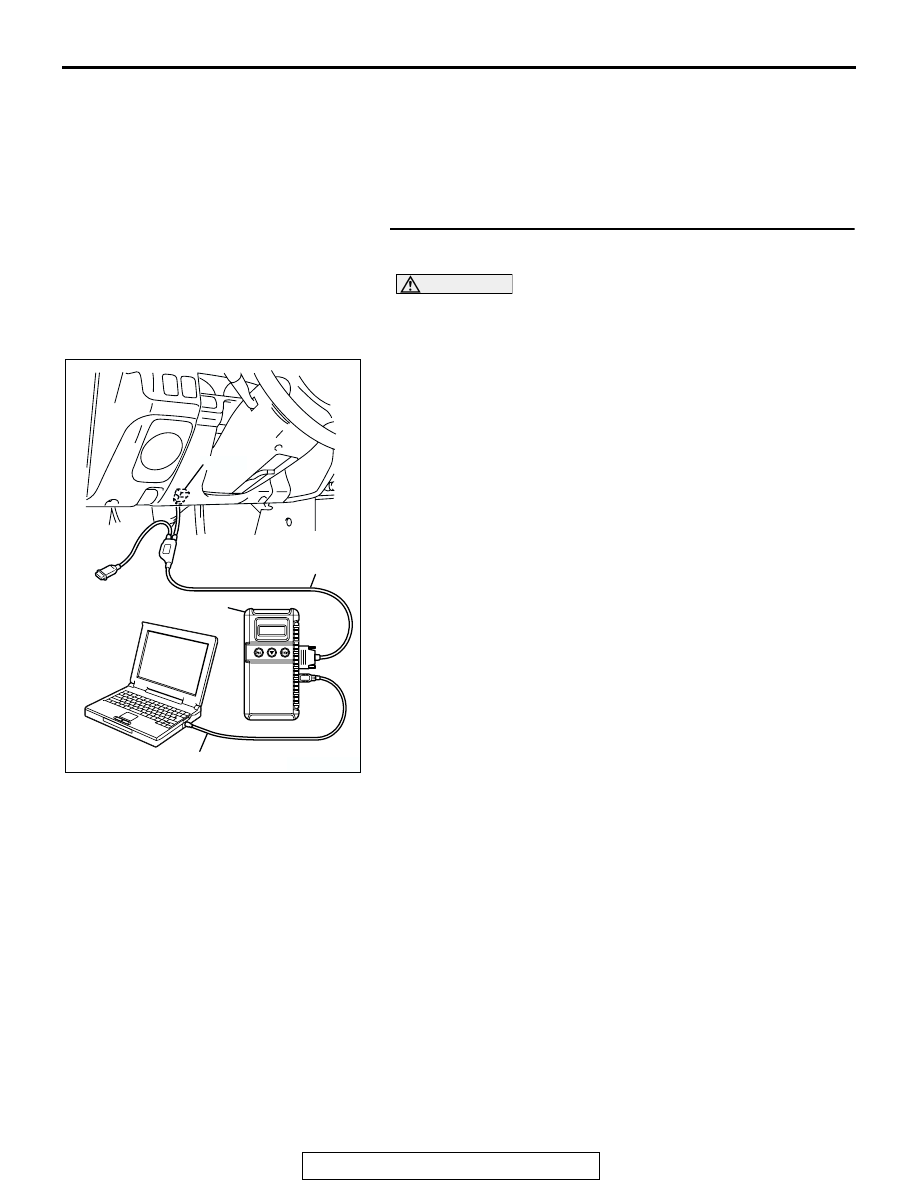

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Using scan tool MB991958, check actuator test
item 04: Overdrive Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to actuator test mode.

• Item 04: Overdrive Solenoid Valve.

• An audible clicking or buzzing should be heard when

the overdrive solenoid valve is energized.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid valve operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-7

.

NO :  Go to Step 2.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-271

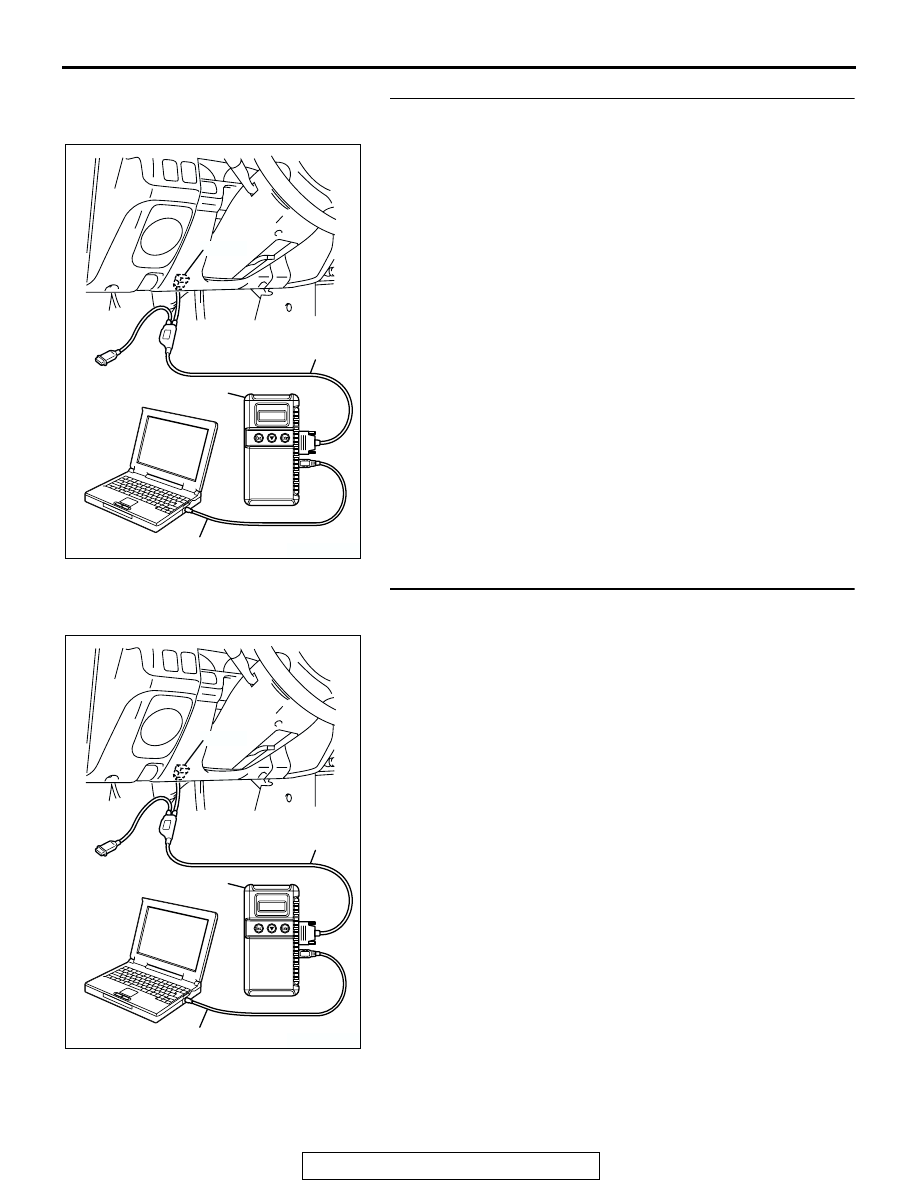

STEP 2. Using scan tool MB991958, read the A/T
diagnostic trouble code.

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check for A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC 54 set? (DTC 54 may be set along with multiple

DTCs).
YES : Refer to

P.23A-319

 DTC 54: A/T Control Relay

System.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/T
diagnostic trouble code.

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) Check for A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are DTC 32 and DTC 33 set? (Multiple DTCs may be set).

YES : Go to Step 8.
NO :  Go to Step 4.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-272

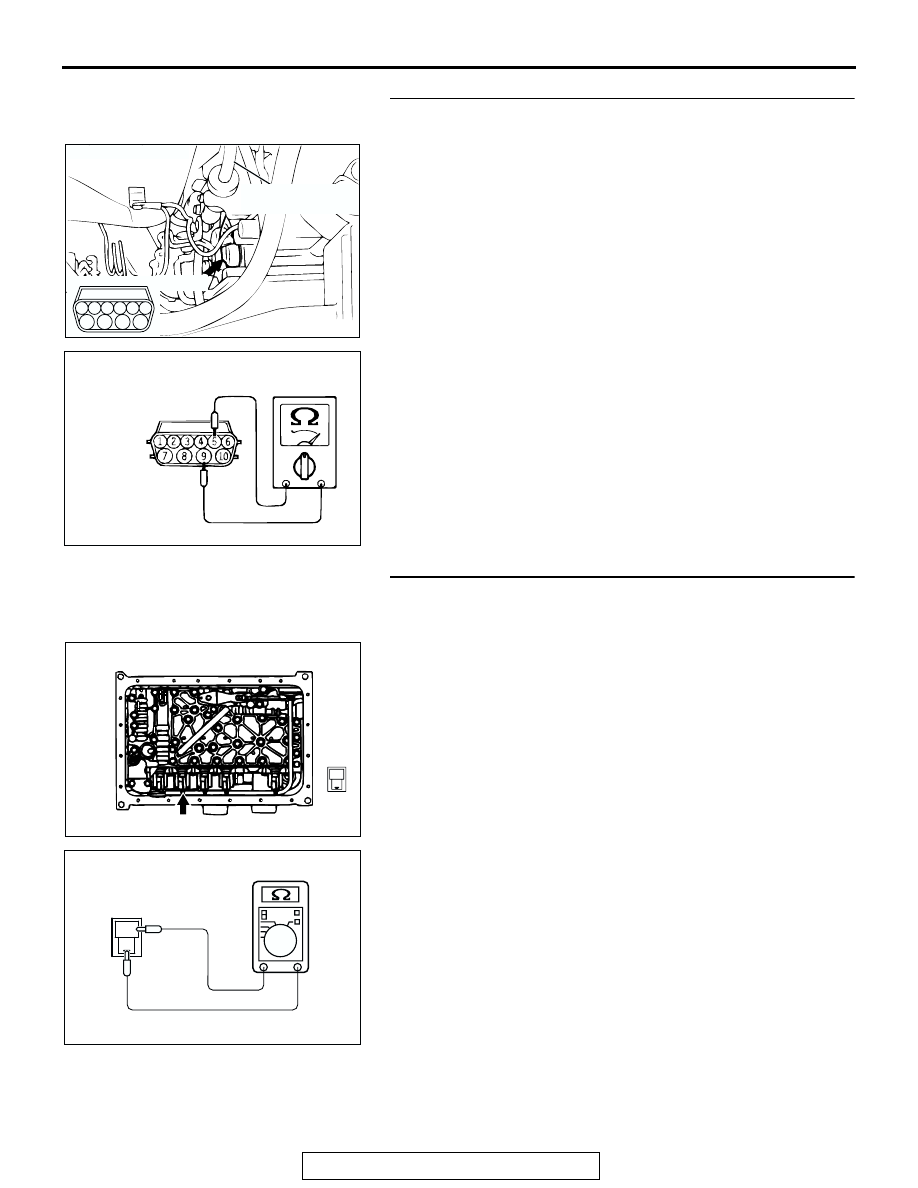

STEP 4. Measure the overdrive solenoid valve resistance
at A/T control solenoid valve assembly connector B-02.

(1) Disconnect connector B-02 and measure at the solenoid

valve side.

(2) Measure the resistance between solenoid valve assembly

connector B-02 terminals 5 and 9.

Resistance value: 2.7

− 3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

− 3.4 Ω [at 20°C (68°F)]?

YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Measure the solenoid valve resistance at the
overdrive solenoid valve connector B-02-3 inside the
transmission.

(1) Disconnect solenoid valve connector B-02-3 and measure

at the solenoid valve side.

(2) Measure the resistance between overdrive solenoid valve

terminals 1 and 2.

Resistance value: 2.7

− 3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

− 3.4 Ω [at 20°C (68°F)?

YES : Replace the harness wire between A/T control

solenoid valve assembly connector B-02 and the
solenoid valves.

NO :  Replace the overdrive solenoid valve. Refer to

GROUP 23B, Valve Body

P.23B-67

.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC001968AJ

B-02 HARNESS CONNECTOR:
A/T CONTROL SOLENOID SIDE

AC004272AS

2

1

CONNECTOR : B-02-3

2

1

AC201141BM

B-02-3 HARNESS CONNECTOR :
OVERDRIVE SOLENOID
VALVE SIDE
