AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-209

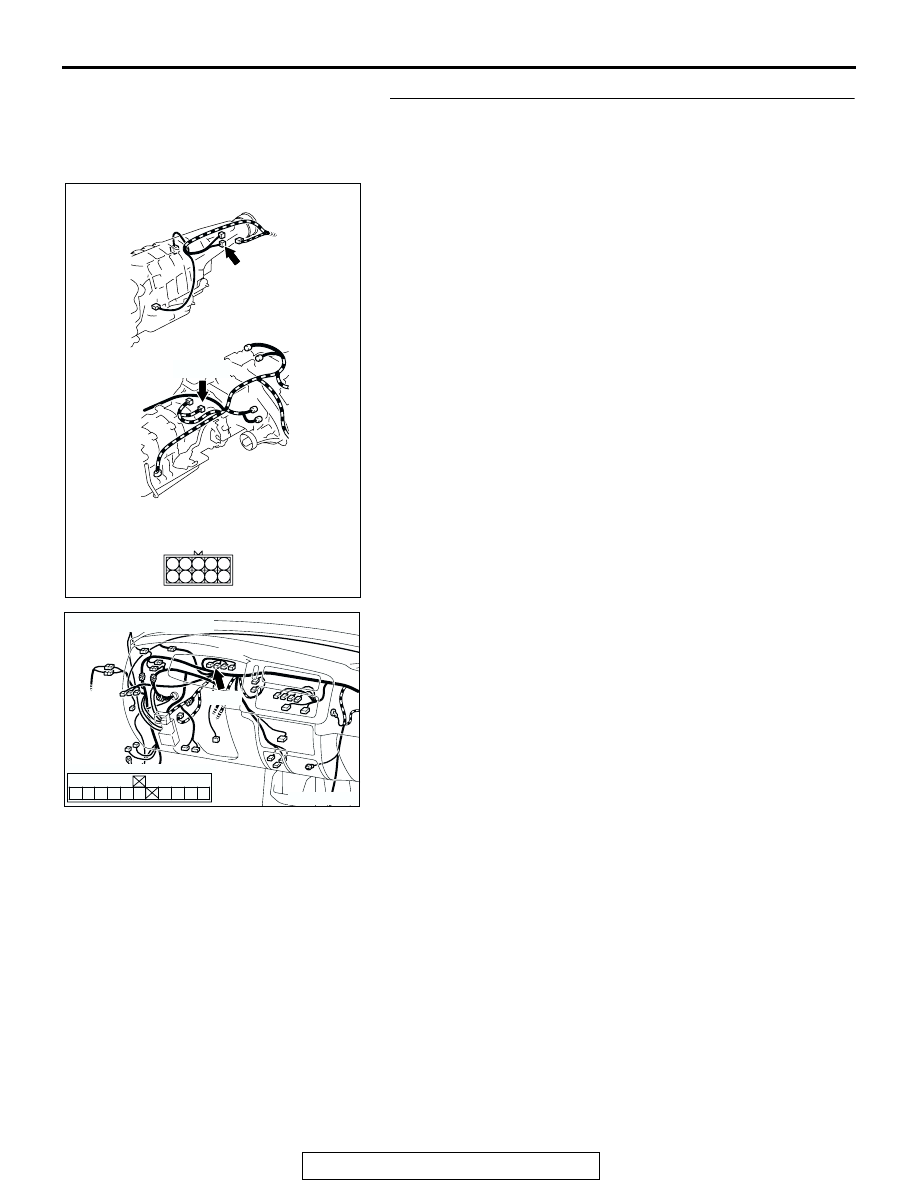

STEP 33. Check harness for damage or short circuit to
ground between transmission range switch connector
B-01 terminal 5 and combination meter connector C-03
terminal 46.

Q: Is the harness wire in good condition?

YES : Go to Step 39.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202395

49

48

50

46

45

44

41 42 43

47

CONNECTOR: C-03

C-03

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-210

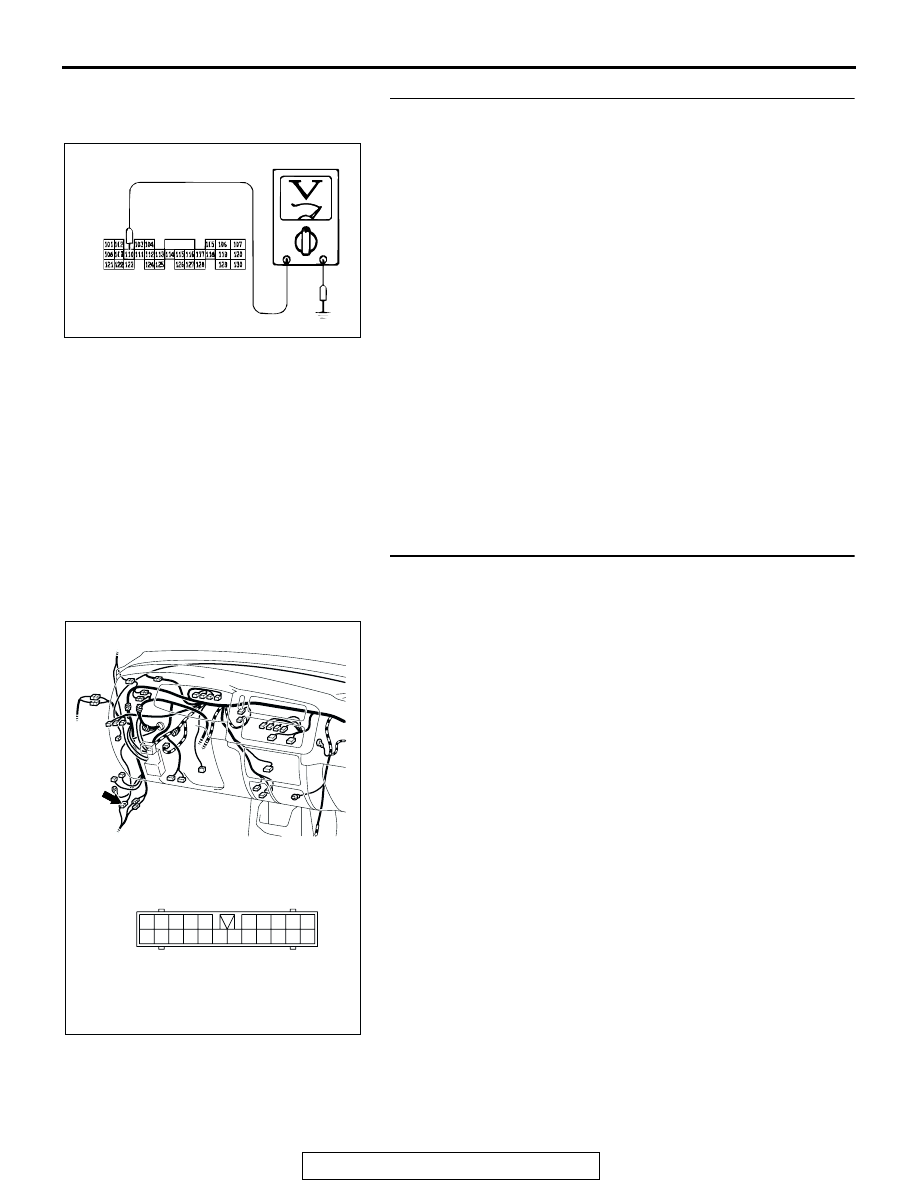

STEP 34. Measure the switch output voltage at PCM
connector C-92 by backprobing. ("L" position)

Measure the voltage between terminal 110 and ground by
backprobing.

• When transmission range is "P", voltage should measure

0.5 volt or less.

• When transmission range is "R", voltage should measure

0.5 volt or less.

• When transmission range is "N", voltage should measure

0.5 volt or less.

• When transmission range is "D", voltage should measure

0.5 volt or less.

• When transmission range is "3", voltage should measure

0.5 volt or less.

• When transmission range is "2", voltage should measure

voltage should measure 0.5 volt or less.

• When transmission range is "L", voltage should measure

battery positive voltage.

Q: Is the measured voltage within the specified range?

YES : Go to Step 39.
NO :  Turn the ignition switch to the "LOCK" (OFF) position.

Go to Step 35.

STEP 35. Check intermediate connector C-96 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 36.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001946AJ

C-92 HARNESS CONNECTOR:
HARNESS SIDE

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-211

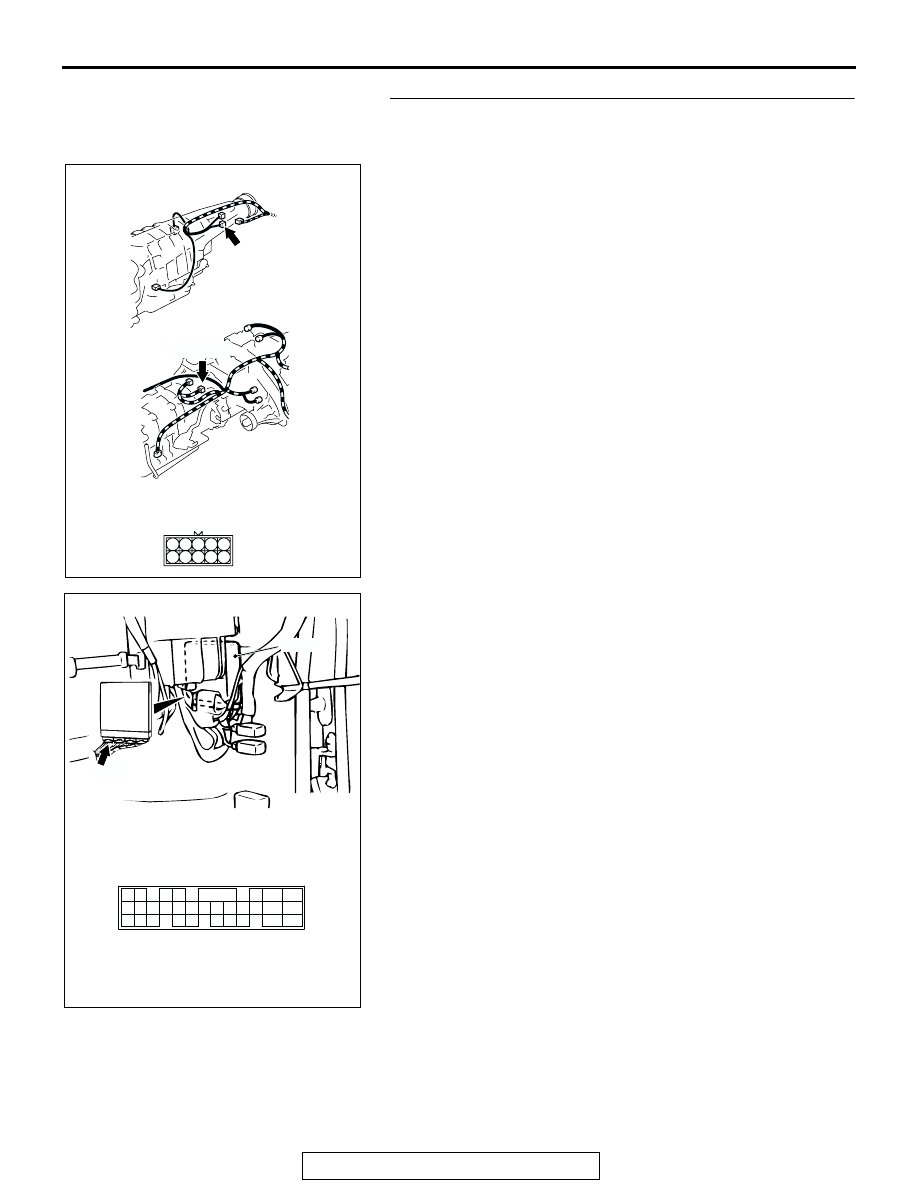

STEP 36. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-01 terminal 6 and PCM connector C-92 terminal 110.

Q: Is the harness wire in good condition?

YES : Go to Step 37.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-212

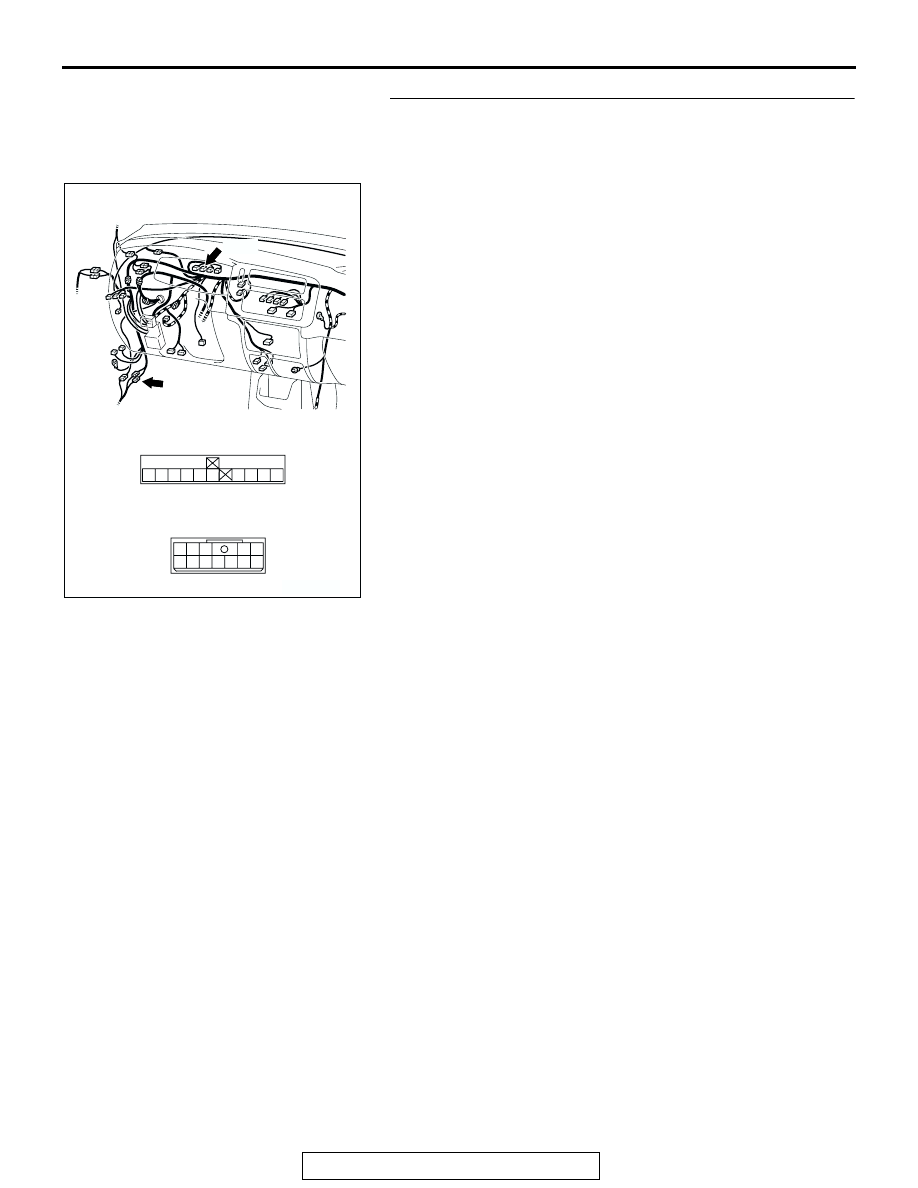

STEP 37. Check intermediate connector C-30 and
combination meter connector C-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 38.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC103770

4

3

10 11

9

8

5

12

1
6

2
7

49

48

50

46

45

44

41 42 43

47

CONNECTORS: C-03, C-30

C-30

C-03

C-30

C-03

AB

AC202394
