AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-101

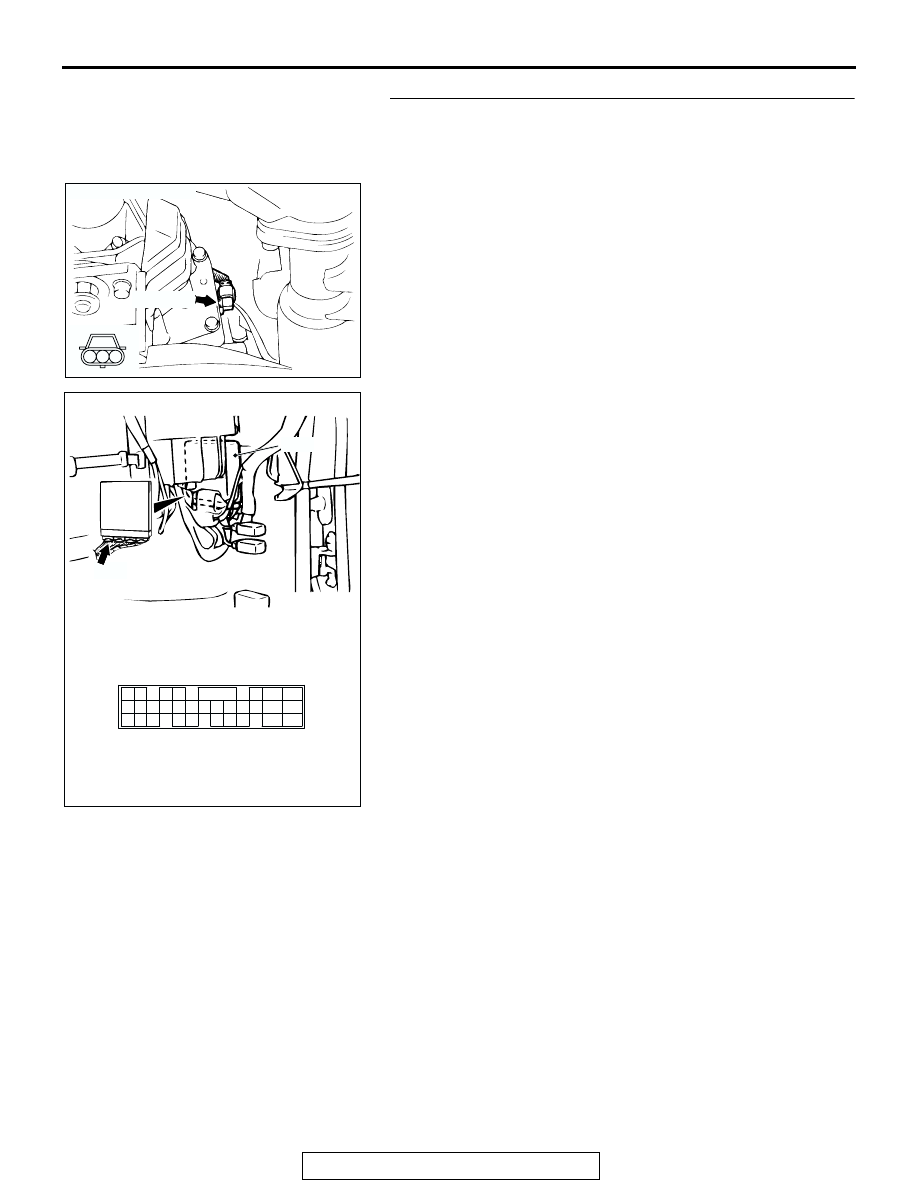

STEP 9. Check output shaft speed sensor connector B-15,
PCM connector C-92 and intermediate connector C-96 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-102

Q: Are the connectors and terminals in good condition?

YES : Go to Step 10.
NO :  Repair or replace the damages components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

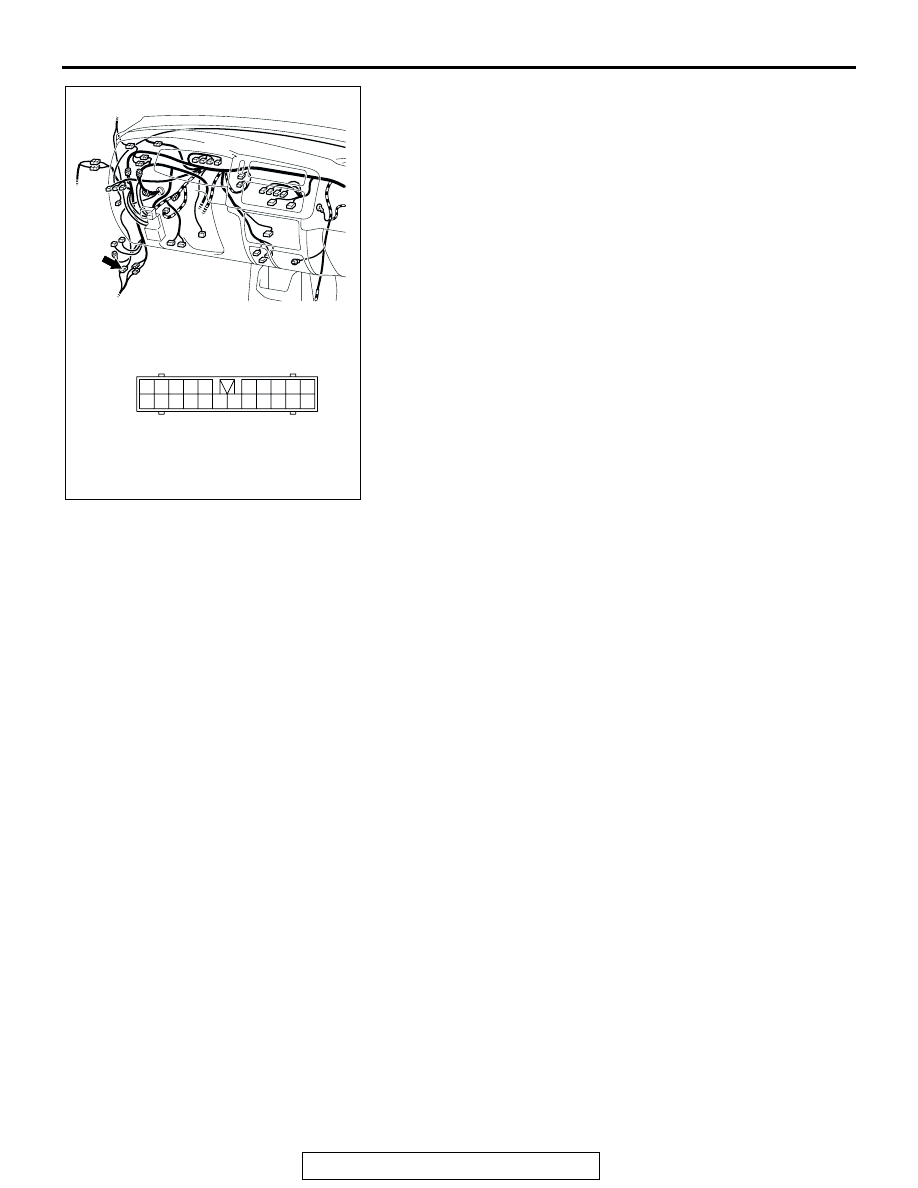

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-103

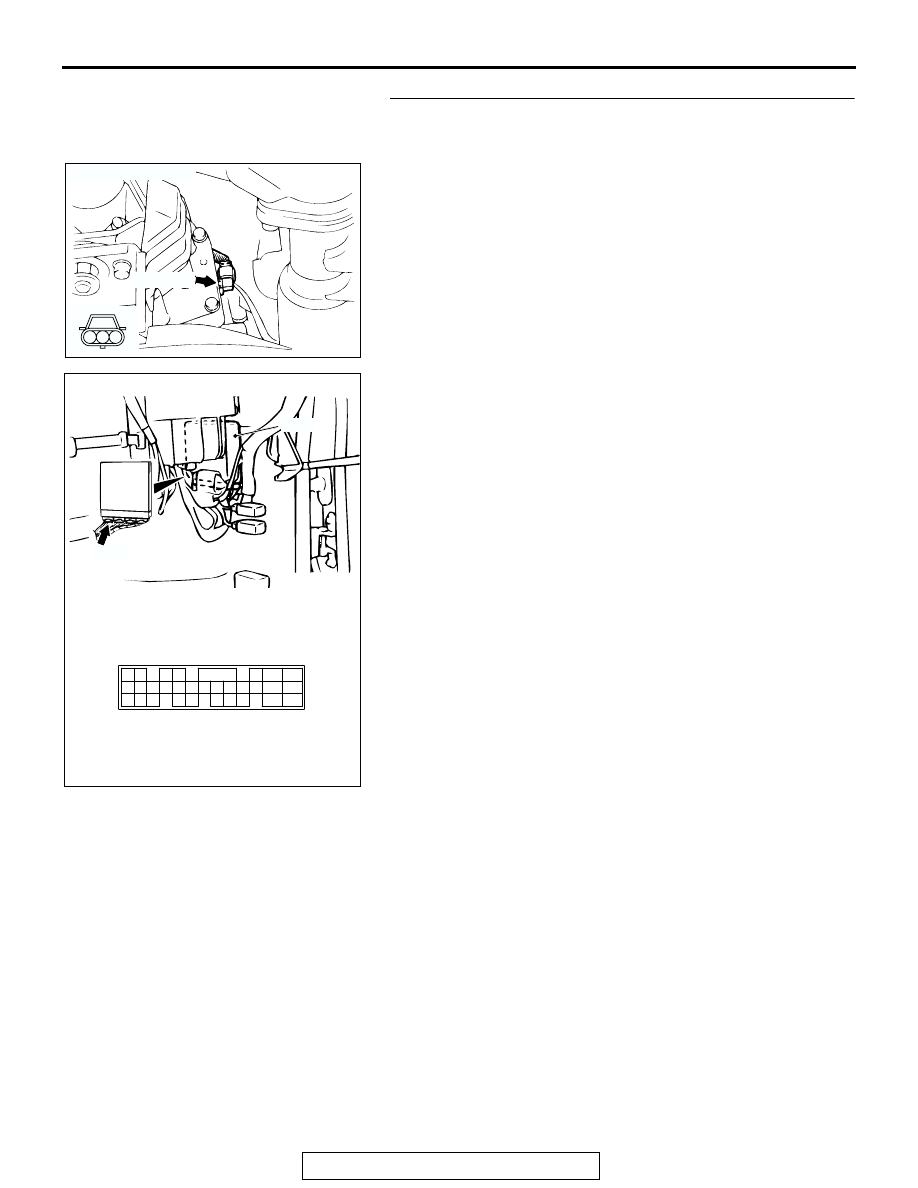

STEP 10. Check the harness for short circuit to ground
between output shaft speed sensor connector B-15
terminal 2 and PCM connector C-92 terminal 104.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair or replace the harness wire.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-104

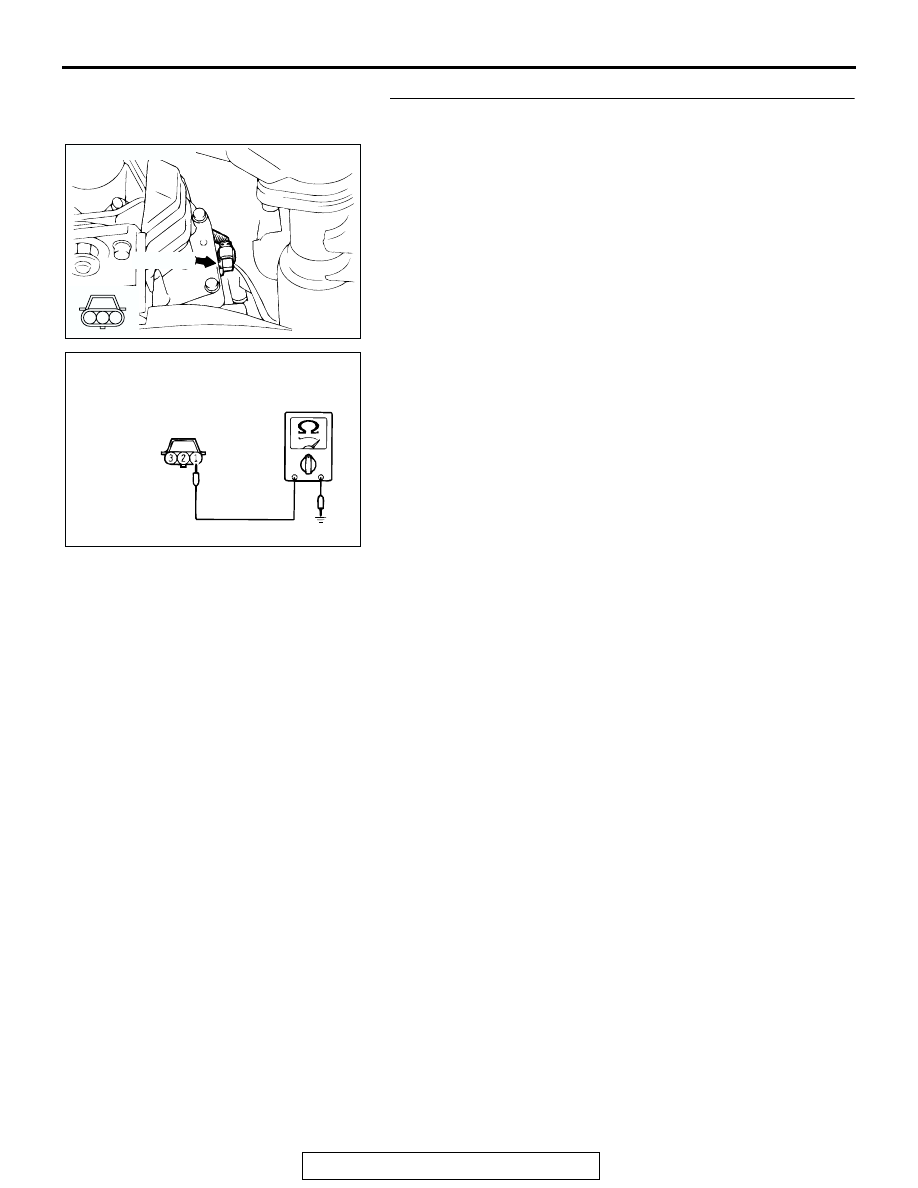

STEP 11. Measure the ground circuit for resistance at
output shaft speed sensor connector B-15.

(1) Disconnect connector B-15 from the speed sensor and

measure at the harness side.

(2) Measure the resistance between terminal 1 and ground.

• The resistance should measure less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 16.
NO :  Go to Step 12.

AC202387

1 2 3

CONNECTOR: B-15

B-15 (GR)

AB

ACX02136

B-15 HARNESS CONNECTOR:
COMPONENT SIDE

AK
