AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-81

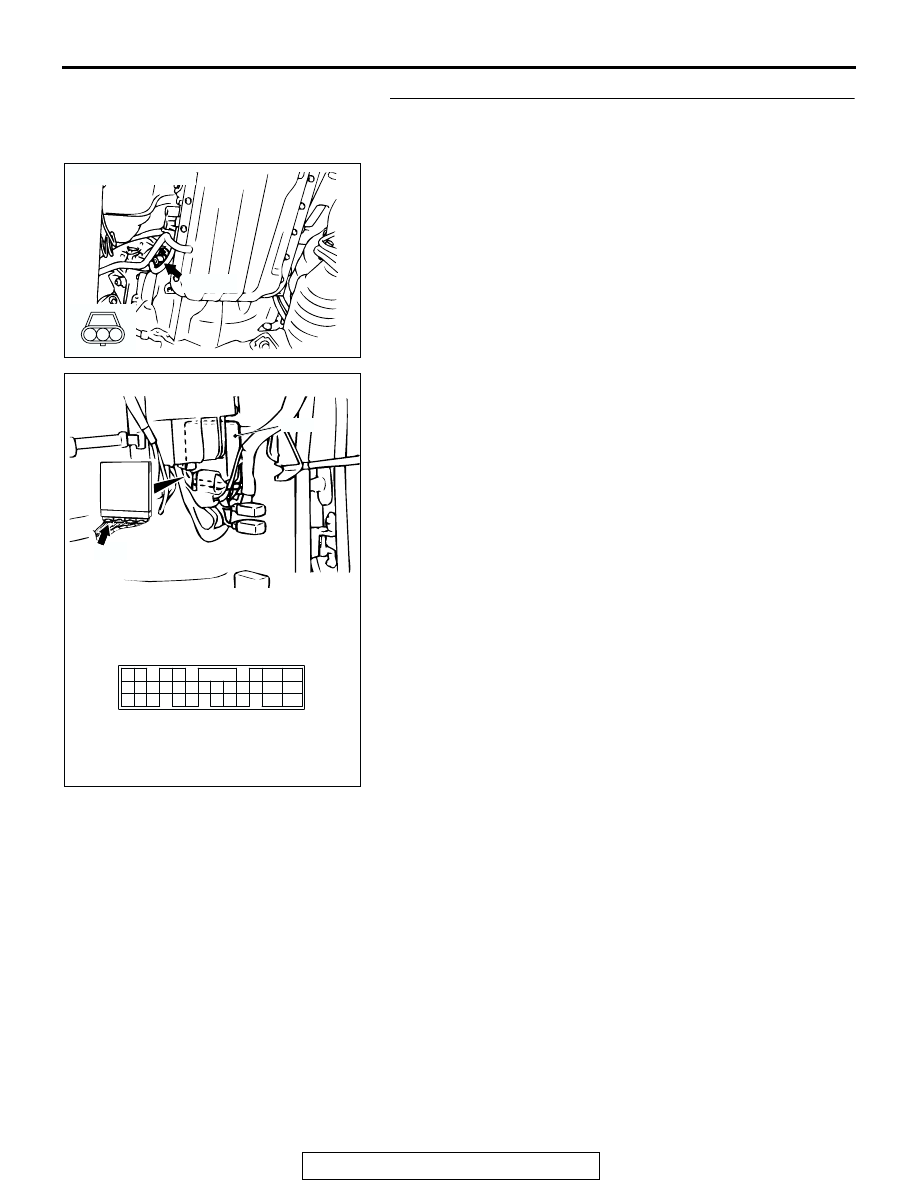

STEP 10. Check the harness for short circuit to ground
between input shaft speed sensor connector B-16 terminal
2 and PCM connector C-92 terminal 103.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair or replace the harness wire.

AC202362

2 3

1

CONNECTOR: B-16

AB

B-16 (B)

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-82

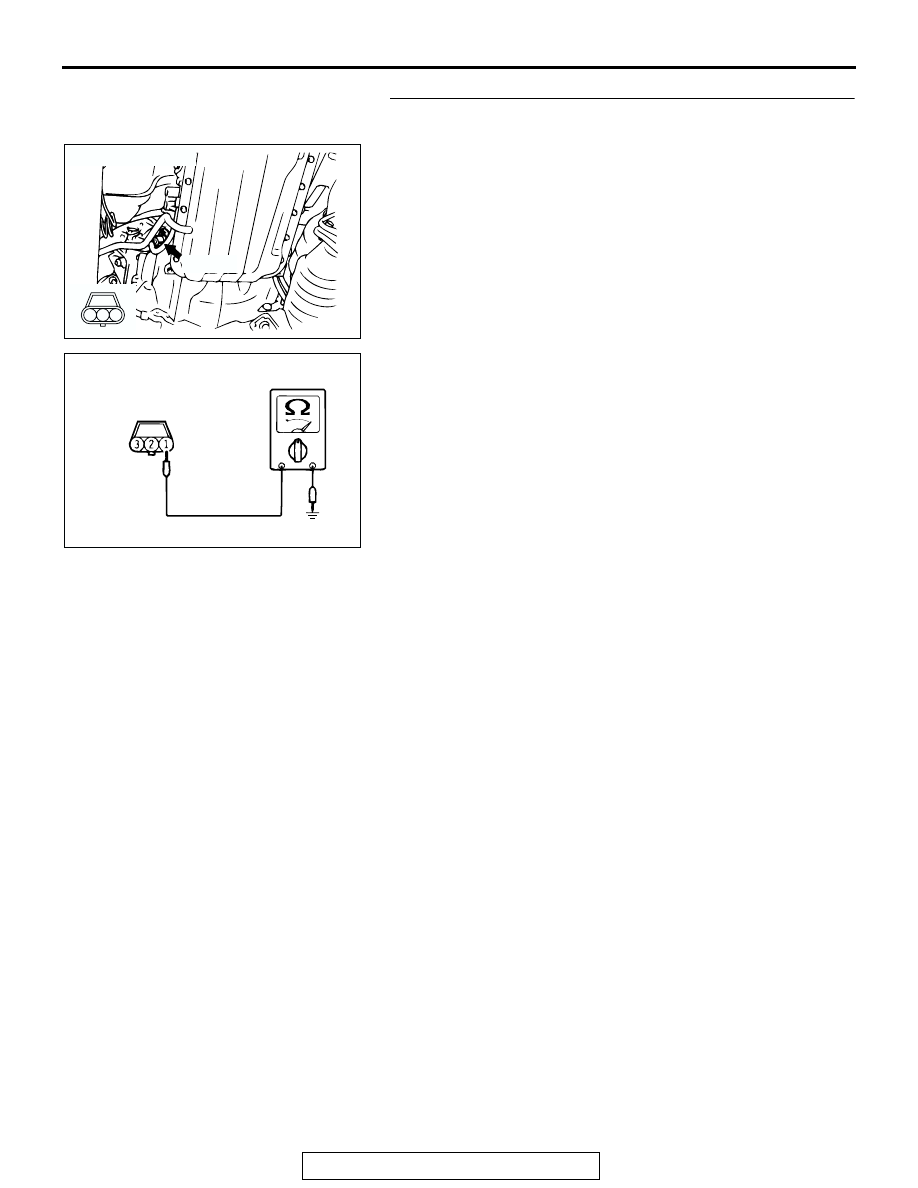

STEP 11. Measure the ground circuit for resistance at the
input shaft speed sensor connector B-16.

(1) Disconnect connector B-16 from the speed sensor and

measure at the harness side.

(2) Measure the resistance between terminal 1 and ground.

• The resistance should measure less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 16.
NO :  Go to Step 12.

AC202362

2 3

1

CONNECTOR: B-16

AB

B-16 (B)

ACX02128 AK

B-16 HARNESS CONNECTOR:
COMPONENT SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-83

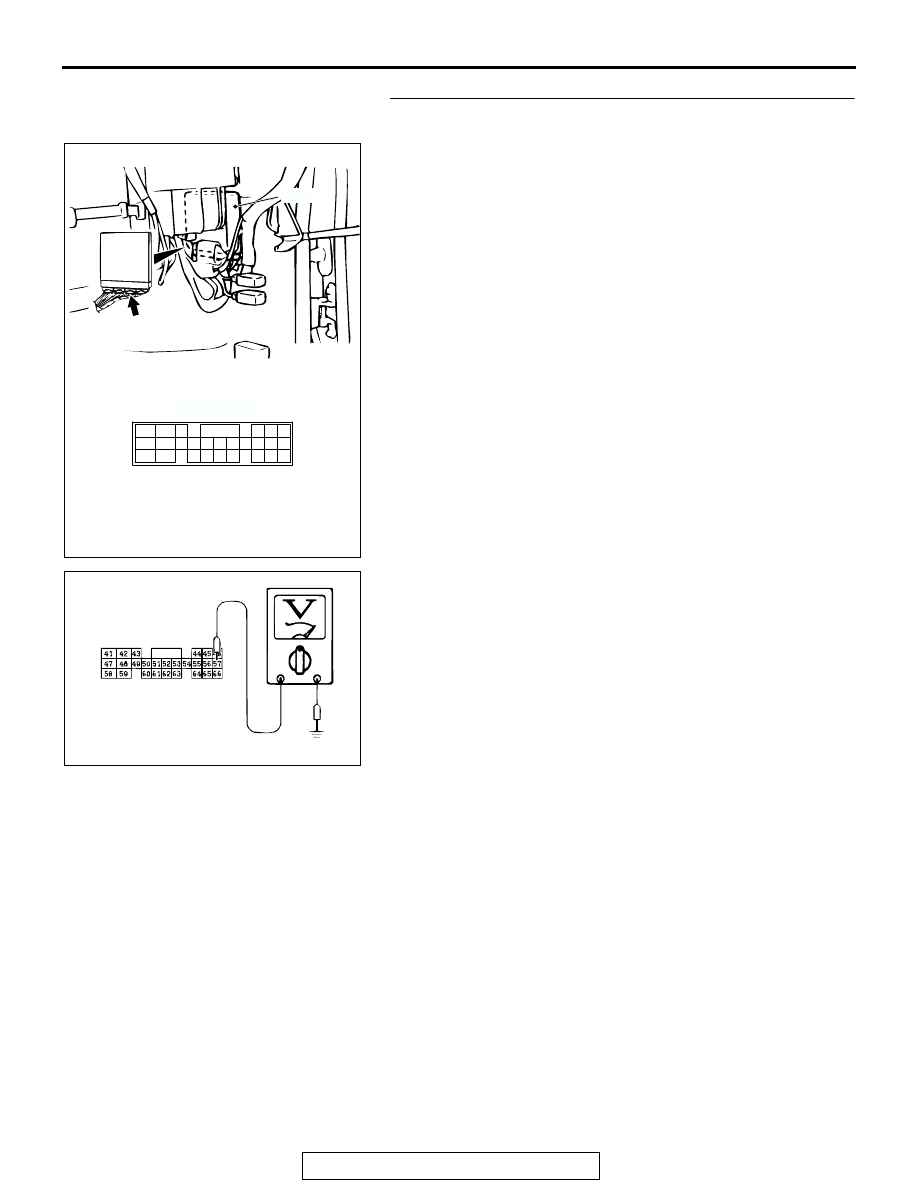

STEP 12. Measure the resistance at PCM connector C-90
by backprobing.

(1) Do not disconnect connector C-90.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the resistance between terminal 57 and ground by

backprobing.

• The resistance should measure less than 2 ohms.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 13.
NO :  Go to Step 15.

PCM

60

46

66

57

45

44

64

55 56

65

62 63

52 53

5051

61

42

59

48

41
47
58

43
49

54

AC202313

C-90 (GR)

AB

CONNECTOR: C-90

C-90 (GR)

AC001791

C-90 HARNESS  CONNECTOR:
HARNESS SIDE

AP

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-84

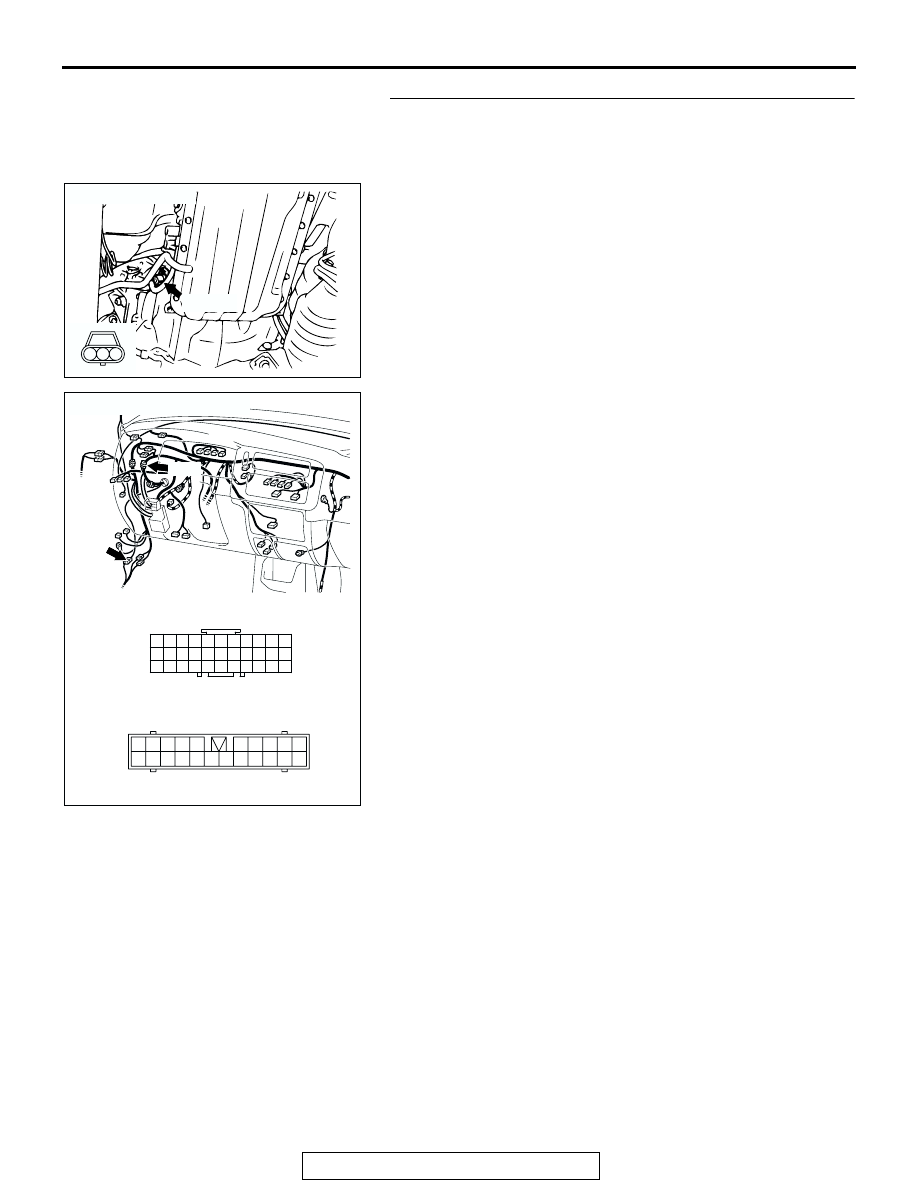

STEP 13. Check input shaft speed sensor connector B-16,
joint connector C-71, intermediate connector C-96 and
PCM connector C-90 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

AC202362

2 3

1

CONNECTOR: B-16

AB

B-16 (B)

AC202364

9 10

8

6 7

31 32

30

29

21

20

19

18

5

4

2

1

3

27

26

24

23

25

16

15

14

13

12

28

17

33

22

11

22

9 10

20

19

6 7 8

21

17

1516

5

14

12 13

3

2

4

18

11

1

CONNECTORS: C-71, C-96

C-96

C-71

C-96

C-71

AB
