AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-65

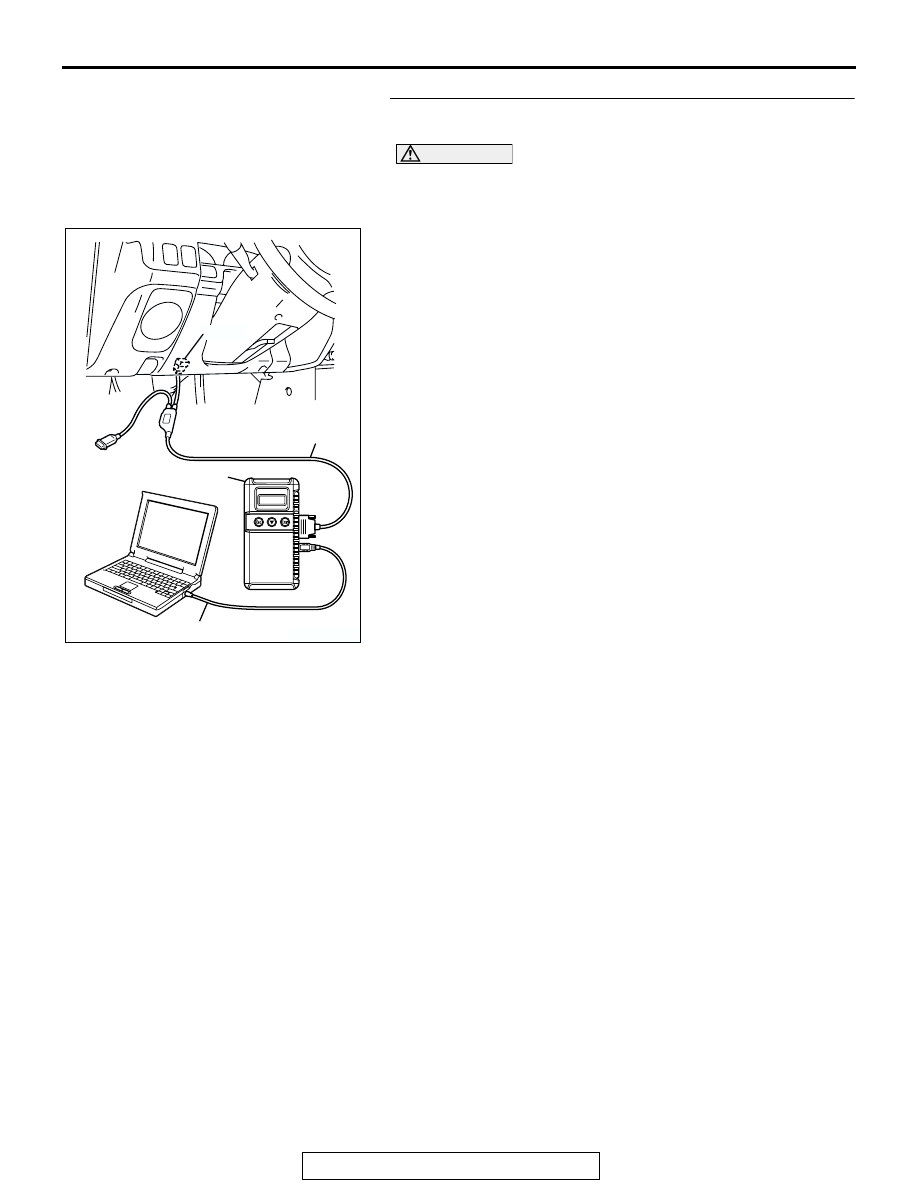

STEP 6. Using scan tool MB991958, check data list item 15:
Transmission Fluid Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to data reading mode.

• Item 15: Transmission Fluid Temperature Sensor.

• When the engine is cool: Almost equal to the ambi-

ent temperature (atmospheric temperature)
NOTE: Set scan tool MB991958 to data reading
mode for item number 13, Intake Air Temperature
(IAT) Sensor and note the temperature measure-
ment. When the engine is cool, the temperature
should be almost equal to the ambient temperature
(atmospheric temperature), and the IAT sensor mea-
surement should be approximately the same as the
Transmission Fluid Temperature Sensor.

• When the engine is warm: 70 to 80°C (158 to 176°F)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Replace the PCM.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-66

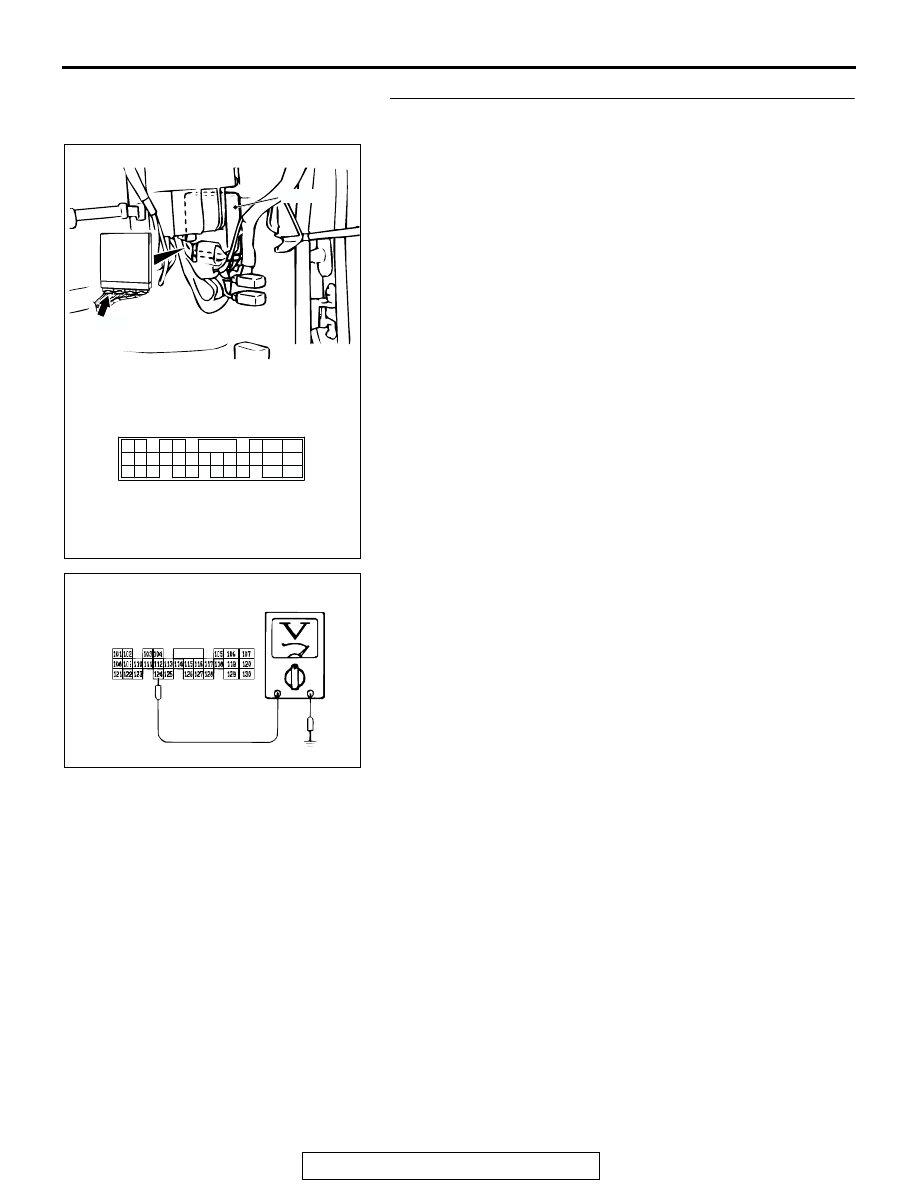

STEP 7. Measure the sensor output voltage at PCM
connector C-92 by backprobing.

(1) Do not disconnect connector C-92.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 124 and ground by

backprobing.

• When transmission fluid temperature is 20°C (68°F),

voltage should measure between 3.8 and 4.0 volts.

• When transmission fluid temperature is 40°C (104°F),

voltage should measure between 3.2 and 3.4 volts.

• When transmission fluid temperature is 80°C (176°F),

voltage should measure between 1.7 and 1.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 6.
NO :  Go to Step 8.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AC001792AJ

C-92 HARNESS CONNECTOR:
HARNESS SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-67

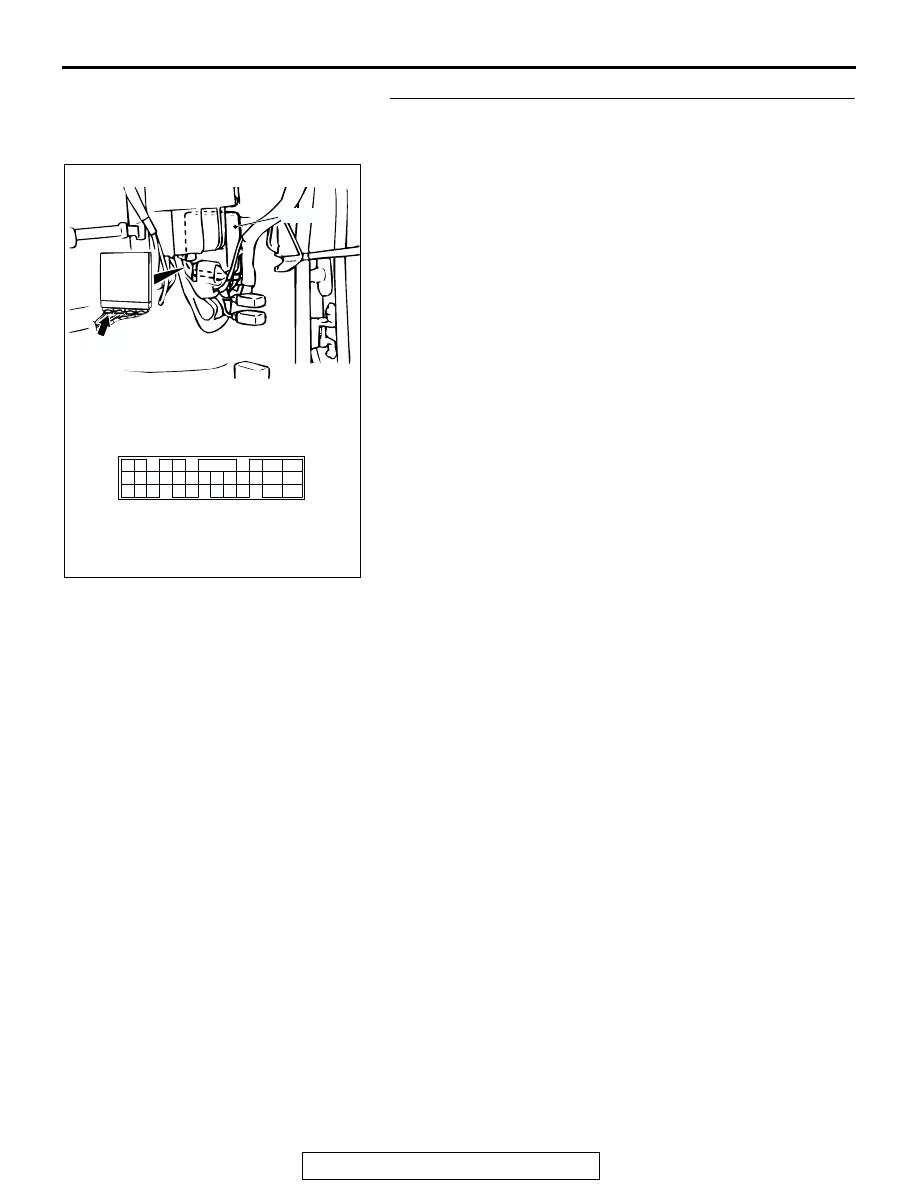

STEP 8. Check PCM connector C-92 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-68

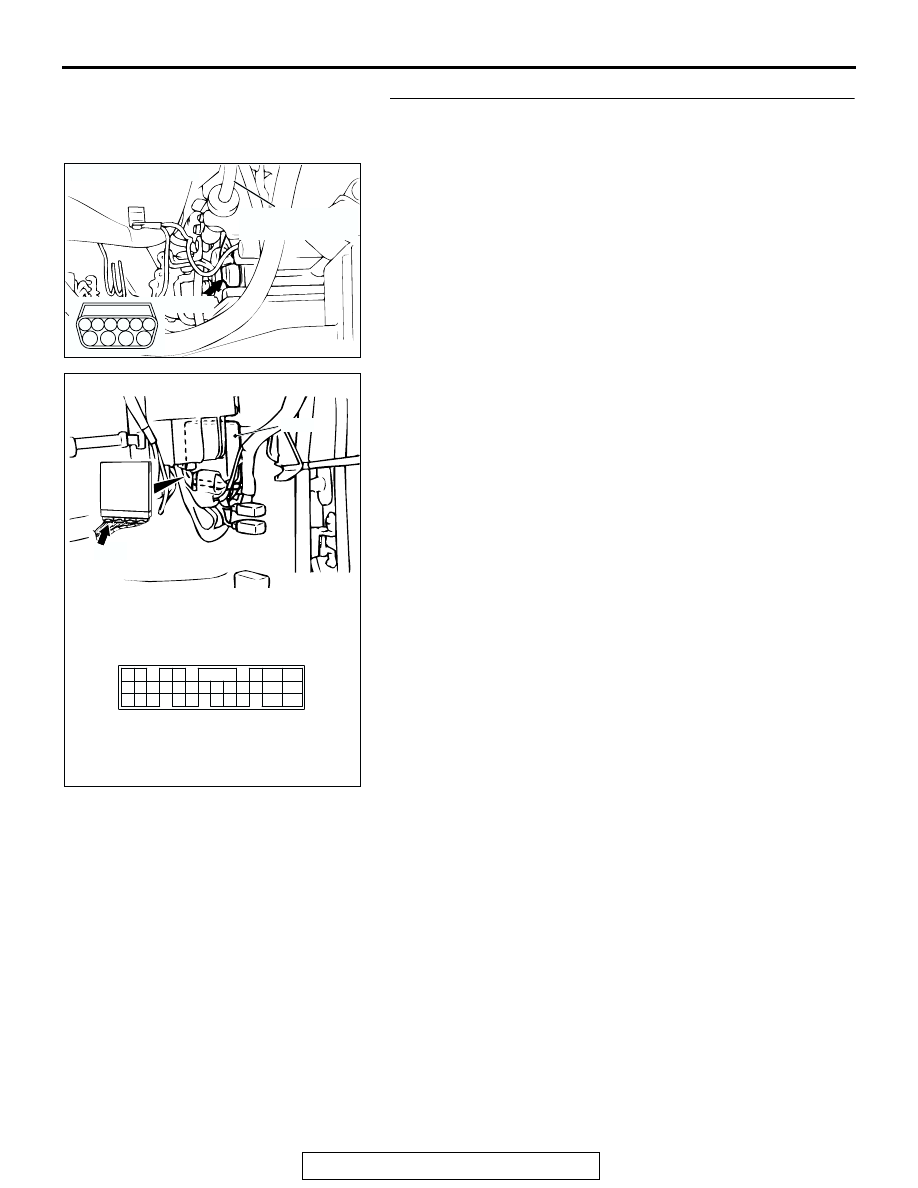

STEP 9. Check the harness for a short circuit to ground
between A/T control solenoid valve connector B-02
terminal 1 and PCM connector C-92 terminal 124.

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC202314

6

10

4

9

5

3

8

2

7

1

CONNECTOR: B-02

TRANSMISSION
CONTROL CABLE

B-02 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB
