Mitsubishi Montero Sport (2004+). Manual - part 572





THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54-275

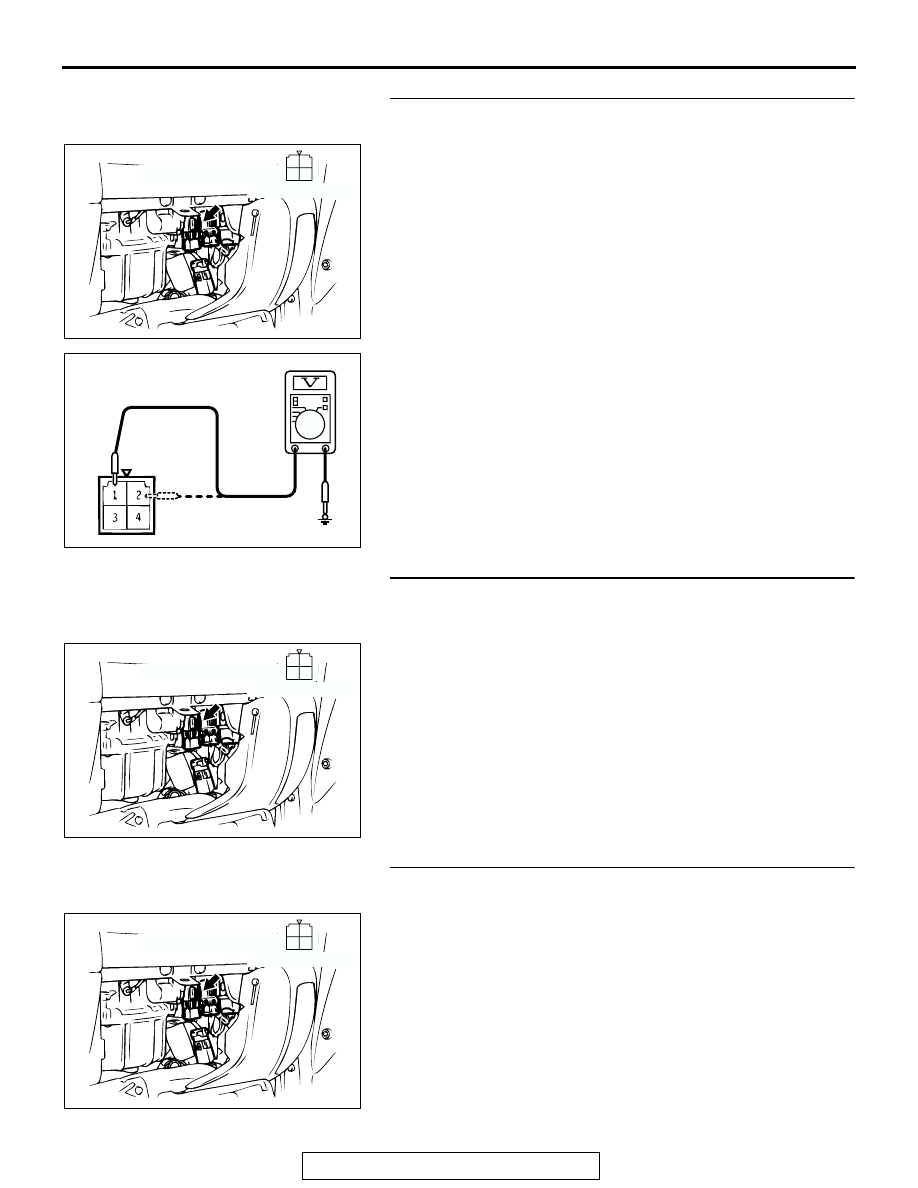

STEP 4. Measure the theft-alarm horn relay power supply
voltage at the theft-alarm horn relay connector C-100.

(1) Disconnect the theft-alarm horn relay connector C-100 and

measure at the relay box side.

(2) Measure the voltages between terminals 1, 2 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check theft-alarm horn relay connector C-100 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is theft-alarm horn relay connector C-100 in good

condition?
YES :
Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The theft-alarm horn

should sound when the theft-alarm system is
triggered.

STEP 6. Check the harness wires between theft-alarm horn
relay connector C-100 (terminal No.2) and fusible link (8).

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC003823

CONNECTOR C-100
(RELAY BOX SIDE)

AB

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54-276

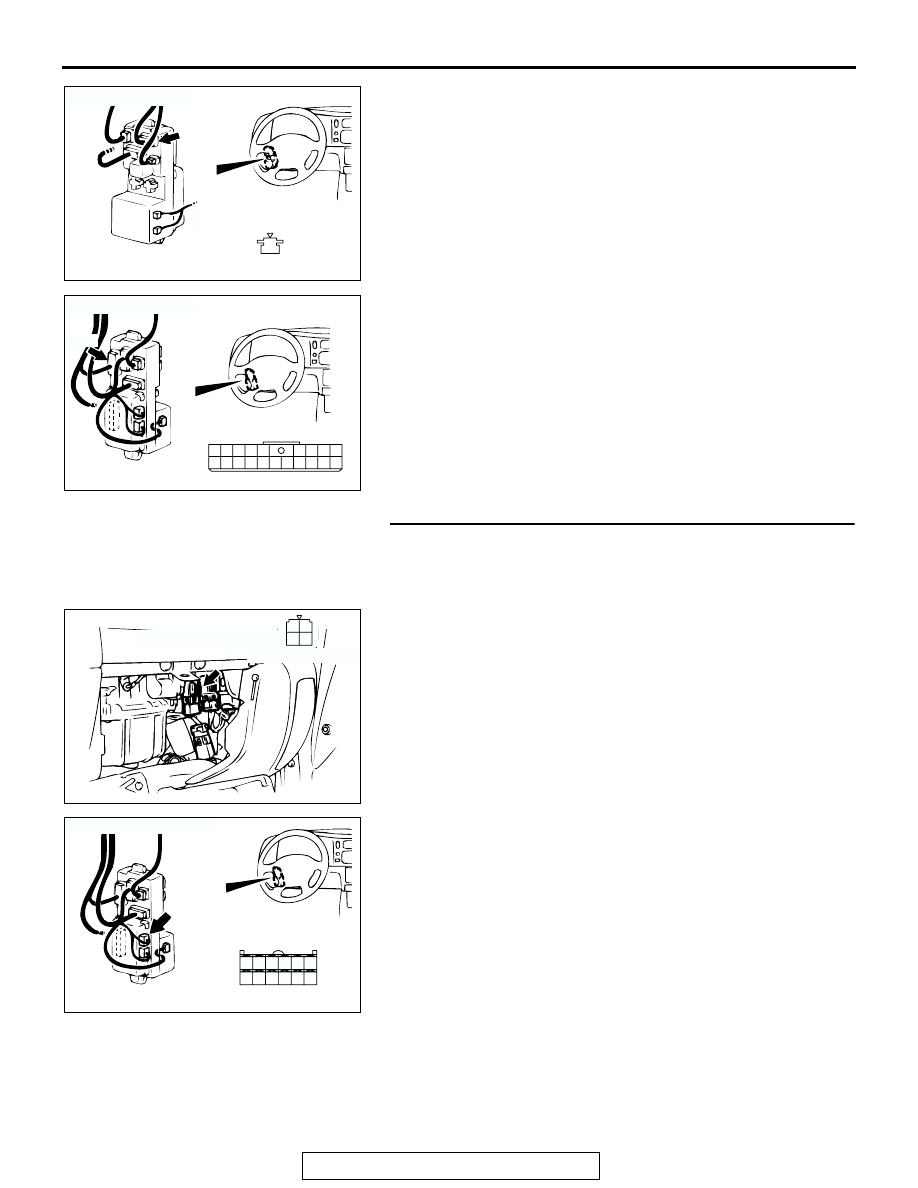

NOTE: After checking junction block connector D-02 and D-13,
check the wires. If junction block connector D-02 and D-13 are
damaged, repair or replace them. Refer to GROUP 00E, Har-
ness Connector Inspection

P.00E-2

.

Q: Are the harness wires between theft-alarm horn relay

connector C-100 (terminal No.2) and fusible link (8) in
good condition?
YES :
There is no action to be taken.
NO :  Repair them. The theft-alarm horn should sound when

the theft-alarm system is triggered.

STEP 7. Check theft-alarm horn relay connector C-100 and
ETACS-ECU connector D-26 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are theft-alarm horn relay connector C-100 and

ETACS-ECU connector D-26 in good condition?
YES :
Go to Step 8.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. The

theft-alarm horn should sound when the theft-alarm
system is triggered.

AC201905

1

CONNECTOR: D-02

AB

COMPONENT SIDE

JUNCTION BLOCK (FRONT)

D-02 (GR)

AC200758

1

10

2

11

3

12

4

13

14

15

5

16

6

17

7

18

8

19

9

20

CONNECTOR: D-13

AC

COMPONENT SIDE

JUNCTION BLOCK
(REAR SIDE)

D-13

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC201902

1

2

8 7

4

10

5

11

12

6

9

3

CONNECTOR: D-26

AB

COMPONENT SIDE

JUNCTION BLOCK (REAR)

21

22

23

24

25

26

27

28

29

30

31

32

D-26 (B)

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54-277

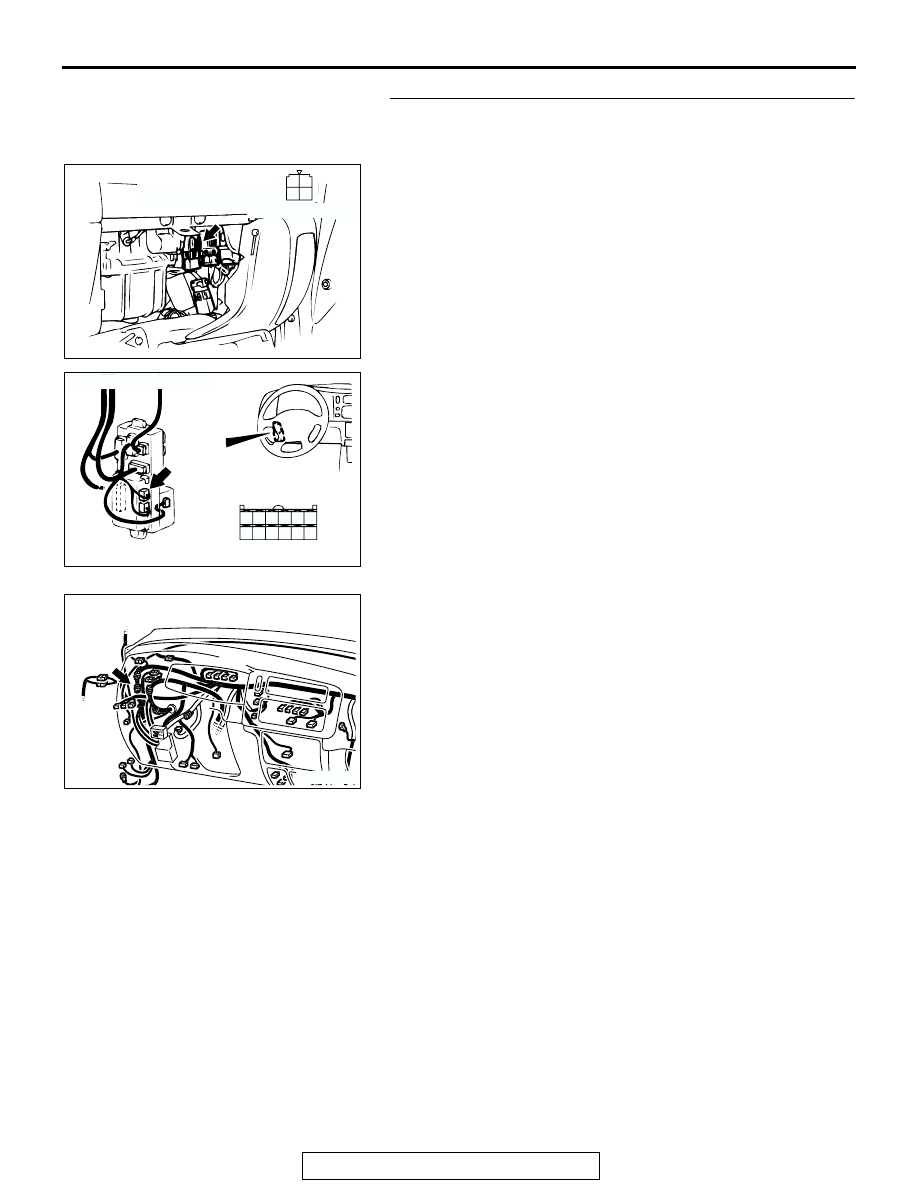

STEP 8. Check the harness wires between theft-alarm horn
relay connector C-100 (terminal No.4) and ETACS-ECU
connector D-26 (terminal No.25).

NOTE: After checking diode C-111 (for theft-alarm system),
check the wires. If diode C-111 (for theft-alarm system) is dam-
aged, repair or replace it. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

.

Q: Are the harness wires between theft-alarm horn relay

connector C-100 (terminal No.4) and ETACS-ECU
connector D-26 (terminal No.25) in good condition?
YES :
Go to Step 9.
NO :  Repair them. The theft-alarm horn should sound

when the theft-alarm system is triggered.

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC201902

1

2

8 7

4

10

5

11

12

6

9

3

CONNECTOR: D-26

AB

COMPONENT SIDE

JUNCTION BLOCK (REAR)

21

22

23

24

25

26

27

28

29

30

31

32

D-26 (B)

AC003830 AD

DIODE: C-111(FOR THEFT-ALARM SYSTEM)

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54-278

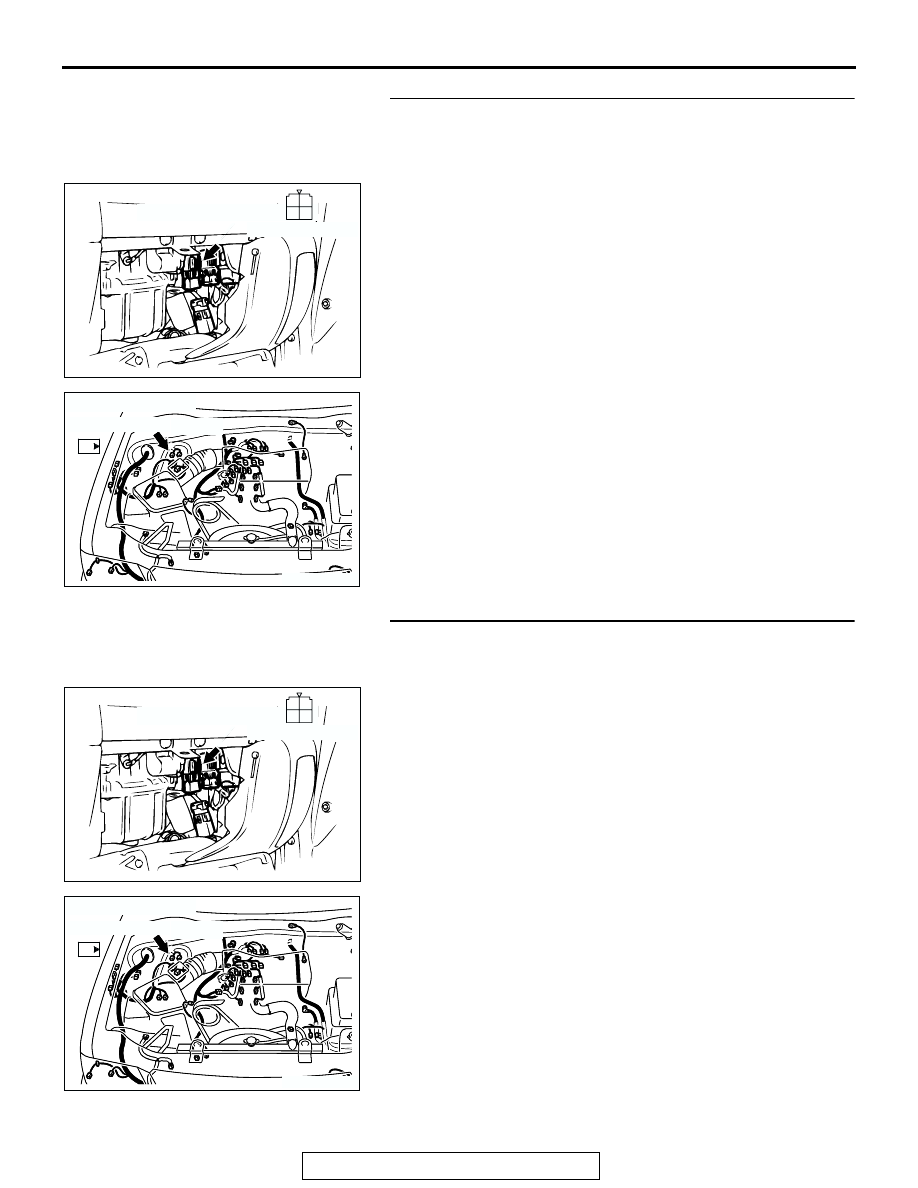

STEP 9. Check theft-alarm horn relay connector C-100 and
theft-alarm horn connector A-91 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are theft-alarm horn relay connector C-100 and

theft-alarm horn connector A-91 in good condition?
YES :
Go to Step 10.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. The

theft-alarm horn should sound when the theft-alarm
system is triggered.

STEP 10. Check the harness wire between theft-alarm horn
relay connector C-100 (terminal No.3) and theft-alarm horn

connector A-91 (terminal No.1).

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC003828AB

AC201906

;

;

;

;

;

;

;

;

;

;;

;;

1

CONNECTOR: A-91

AB

HARNESS SIDE A-91(B)

AC201904

CONNECTOR: C-100

AB

COMPONENT SIDE

1
3

4

2

AC003828AB

AC201906

;

;

;

;

;

;

;

;

;

;;

;;

1

CONNECTOR: A-91

AB

HARNESS SIDE A-91(B)
