COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-119

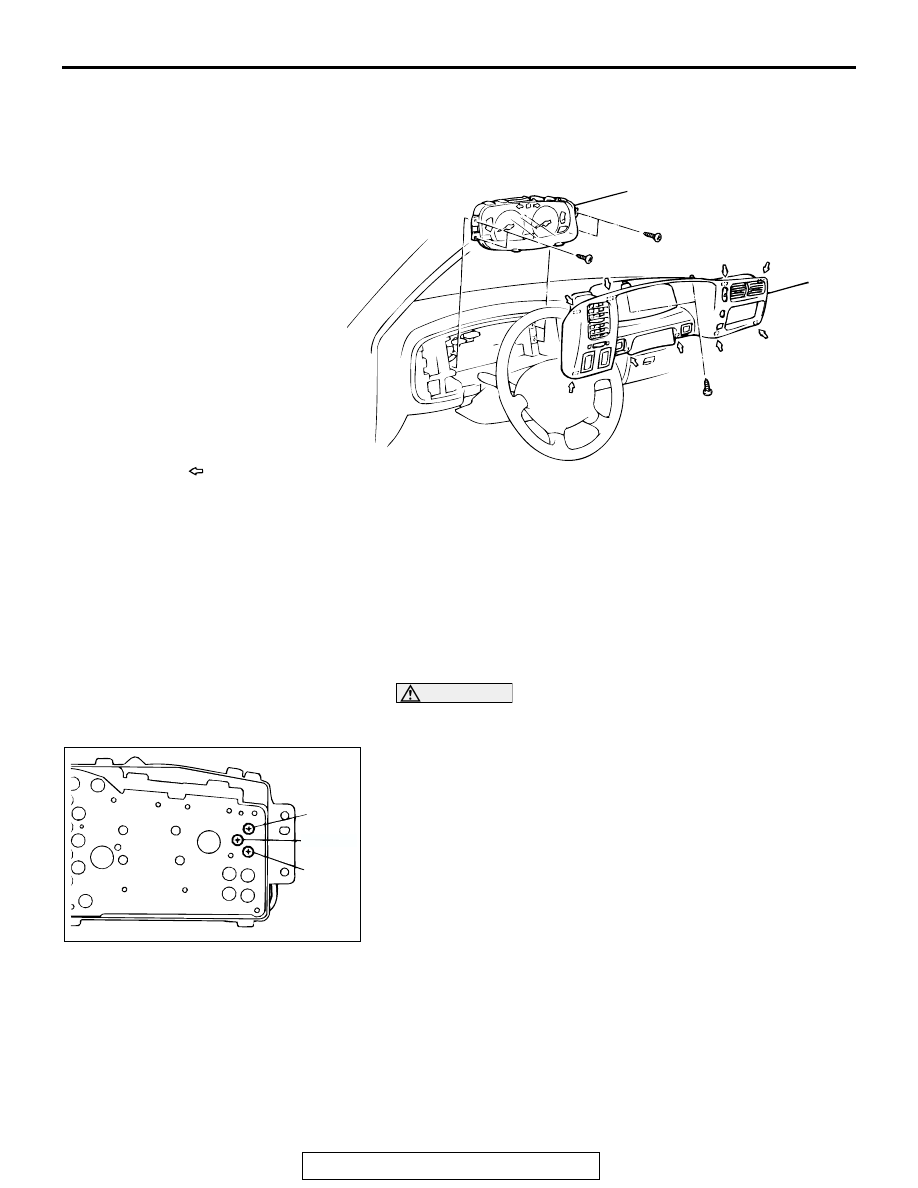

COMBINATION METER ASSEMBLY

REMOVAL AND INSTALLATION

M1543021300039

INSPECTION

M1543019501556

FUEL GAUGE RESISTANCE CHECK

CAUTION

When inserting the test probe into the power supply termi-
nal, be careful not to touch the printer board.
1. Remove the power supply tightening screw.
2. Use an ohmmeter to measure the resistance between the

terminals.

Standard value:
Power supply

− Ground: 192 Ω

Power supply

− Fuel gauge: 107 Ω

Fuel gauge

− Ground: 85 Ω

3. If within the standard value, the fuel gauge is OK.

If not within the standard value, replace the fuel gauge.

AC002767AB

1

2

: Metal clip position

NOTE

COMBINATION METER REMOVAL
STEPS

1. METER BEZEL
2. COMBINATION METER

AC002768AB

FUEL
GAUGE

POWER
SUPPLY

GROUND

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-120

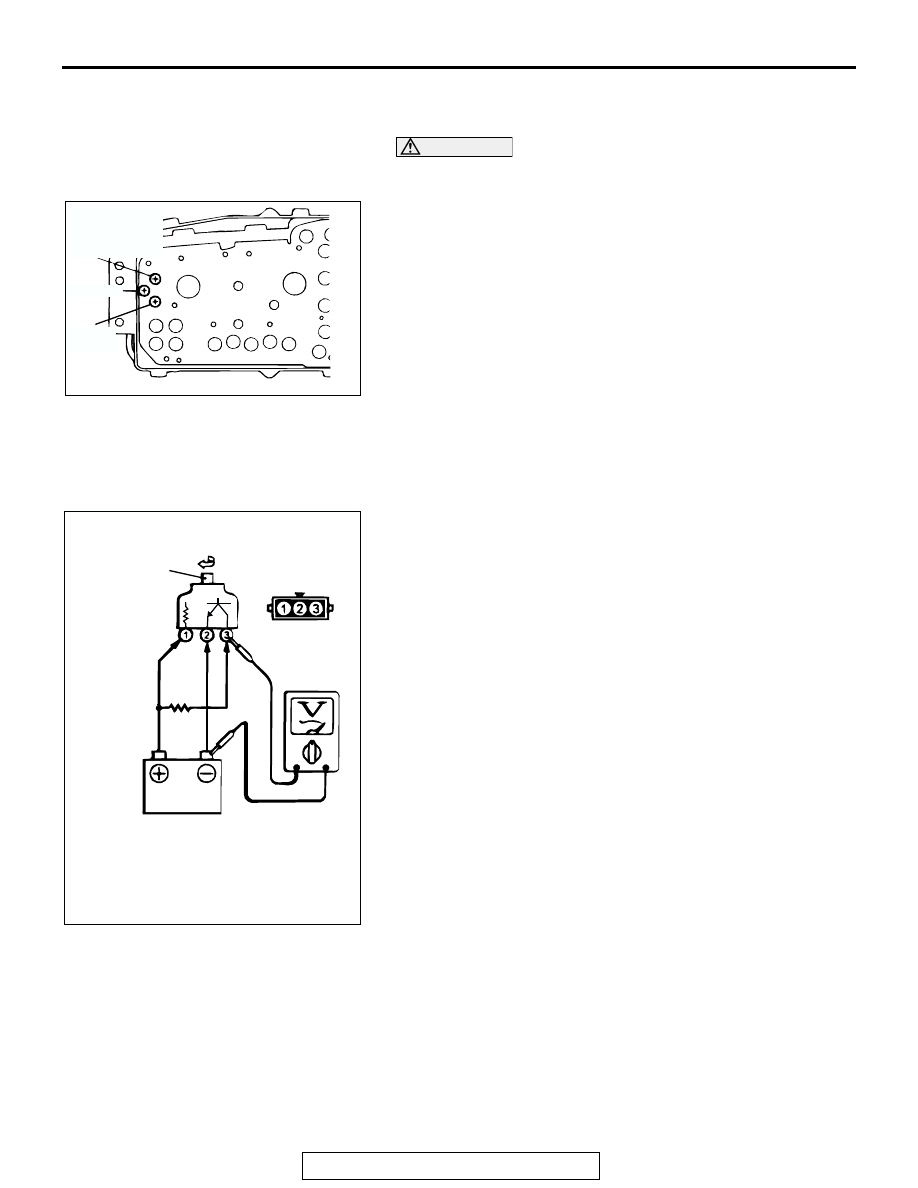

ENGINE COOLANT TEMPERATURE GAUGE
RESISTANCE CHECK

CAUTION

When inserting the test probe into the power supply termi-
nal, be careful not to touch the printer board.
1. Remove the power supply tightening screw.
2. Use an ohmmeter to measure the resistance between the

terminals.

Standard value:
Power supply

− Ground: 191 Ω

Power supply

− Engine coolant temperature gauge:

103

Ω

Engine coolant temperature gauge

− Ground: 88 Ω

3. If within the standard value, the engine coolant temperature

gauge is OK.
If not within the standard value, replace the engine coolant
temperature gauge.

VEHICLE SPEED SENSOR CHECK

1. Remove the vehicle speed sensor and connect a 3

− 10

ohms resistor as shown in the illustration.

2. Turn the shaft of the vehicle speed sensor and check that

there is voltage between terminals 2

− 3. (1 turn = 4 pulses)

3. If within the standard value, the vehicle speed sensor is OK.

If not within the standard value, replace the vehicle speed
sensor.

AC002769 AB

ENGINE
COOLANT
TEMPERATURE
GAUGE

GROUND

POWER
SUPPLY

AC102349AB

TURN

SHAFT

RESISTOR
3 - 10

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-121

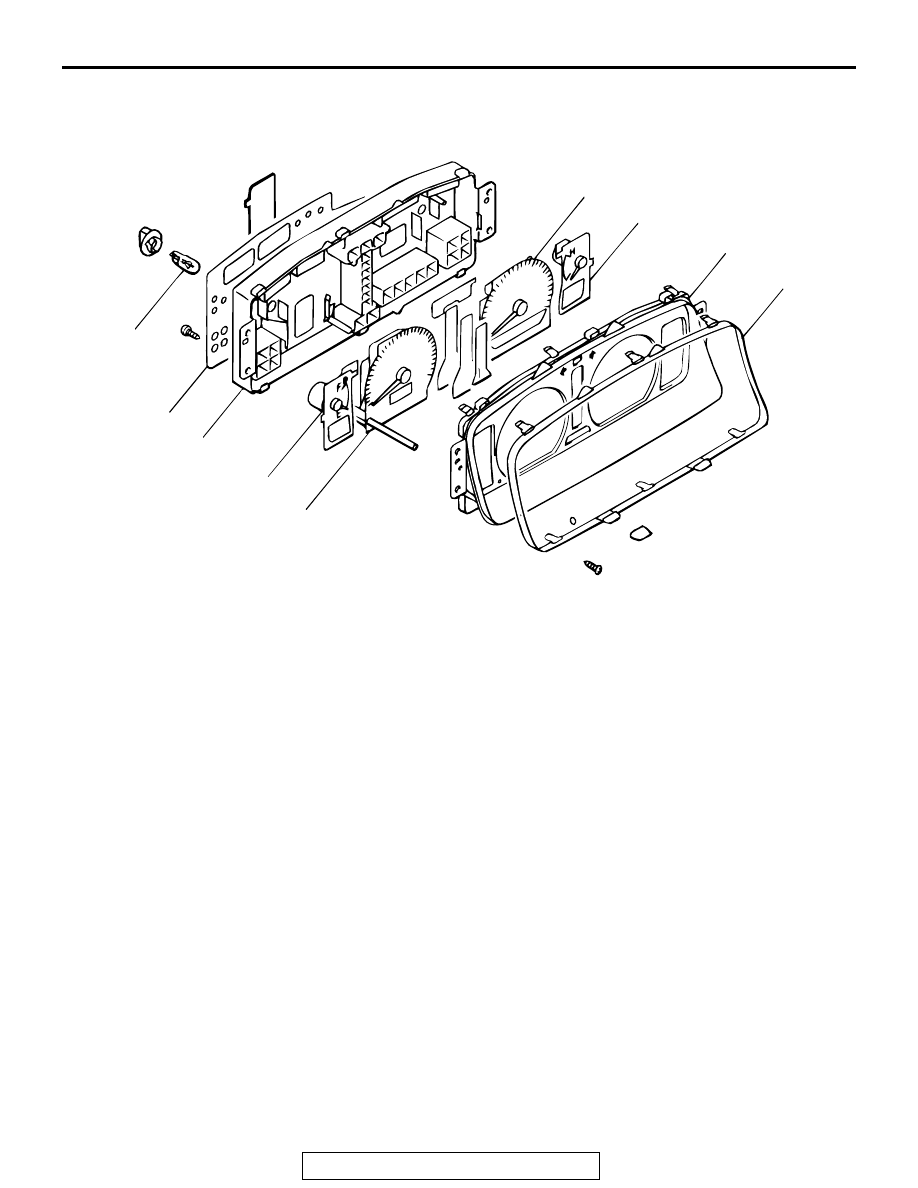

 DISASSEMBLY AND ASSEMBLY

M1543003100233

AC002770 AB

1

2

3

4

5

6

7

8

9

DISASSEMBLY STEPS

1. BULB
2. METER GLASS
3. WINDOW PLATE
4. ENGINE COOLANT TEMPERATURE

GAUGE

5. TACHOMETER

6. SPEEDOMETER
7. FUEL GAUGE
8. PRINTED CIRCUIT BOARD
9. METER CASE

DISASSEMBLY STEPS (Continued)

AMBIENT TEMPERATURE SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-122

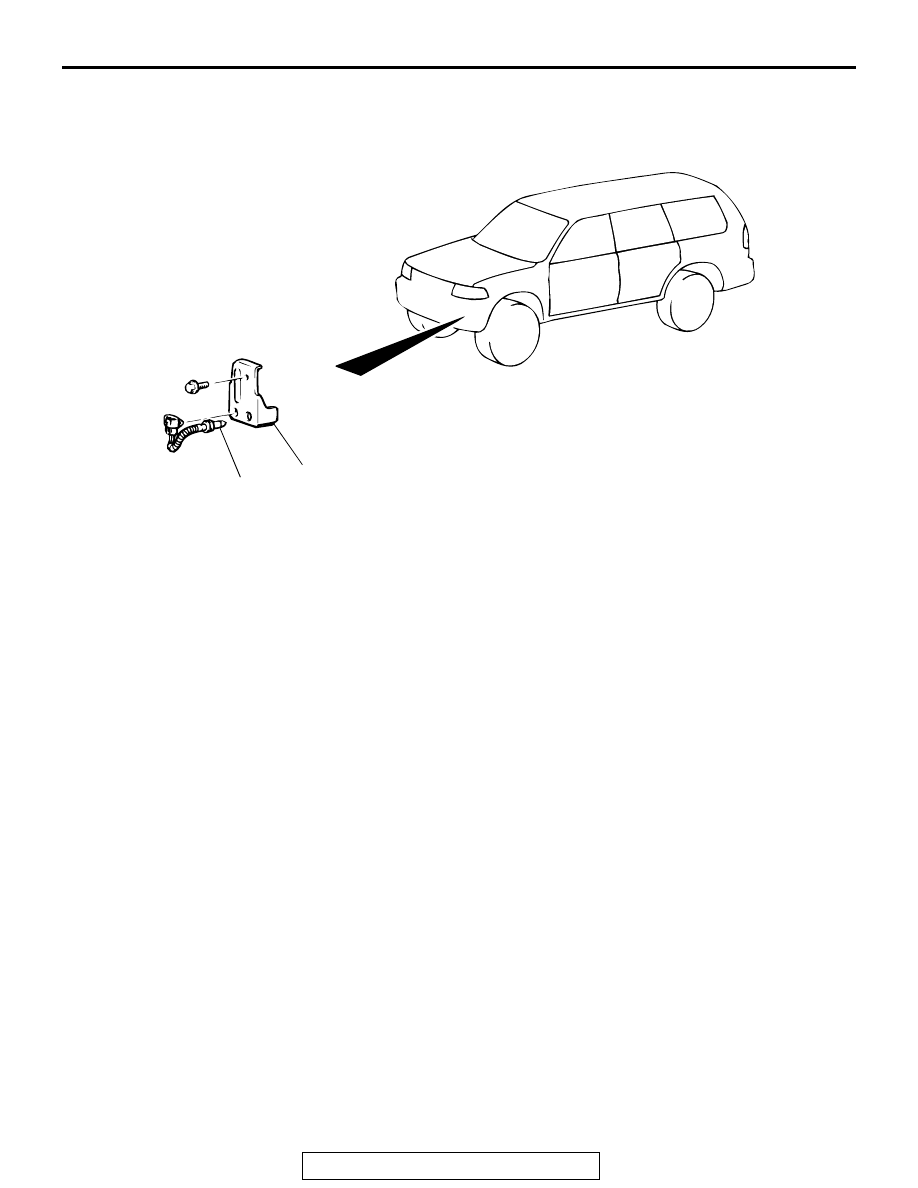

AMBIENT TEMPERATURE SENSOR

 REMOVAL AND INSTALLATION

M1543009500046

AC002771

1

2

AB

REMOVAL STEPS

• INTERCOOLER GRILL (REFER TO

P.54-158

.)

• FOG LIGHT (REFER TO

P.54-158

.)

1. BRACKET
2. AMBIENT TEMPERATURE SENSOR

REMOVAL STEPS (Continued)
