SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-873

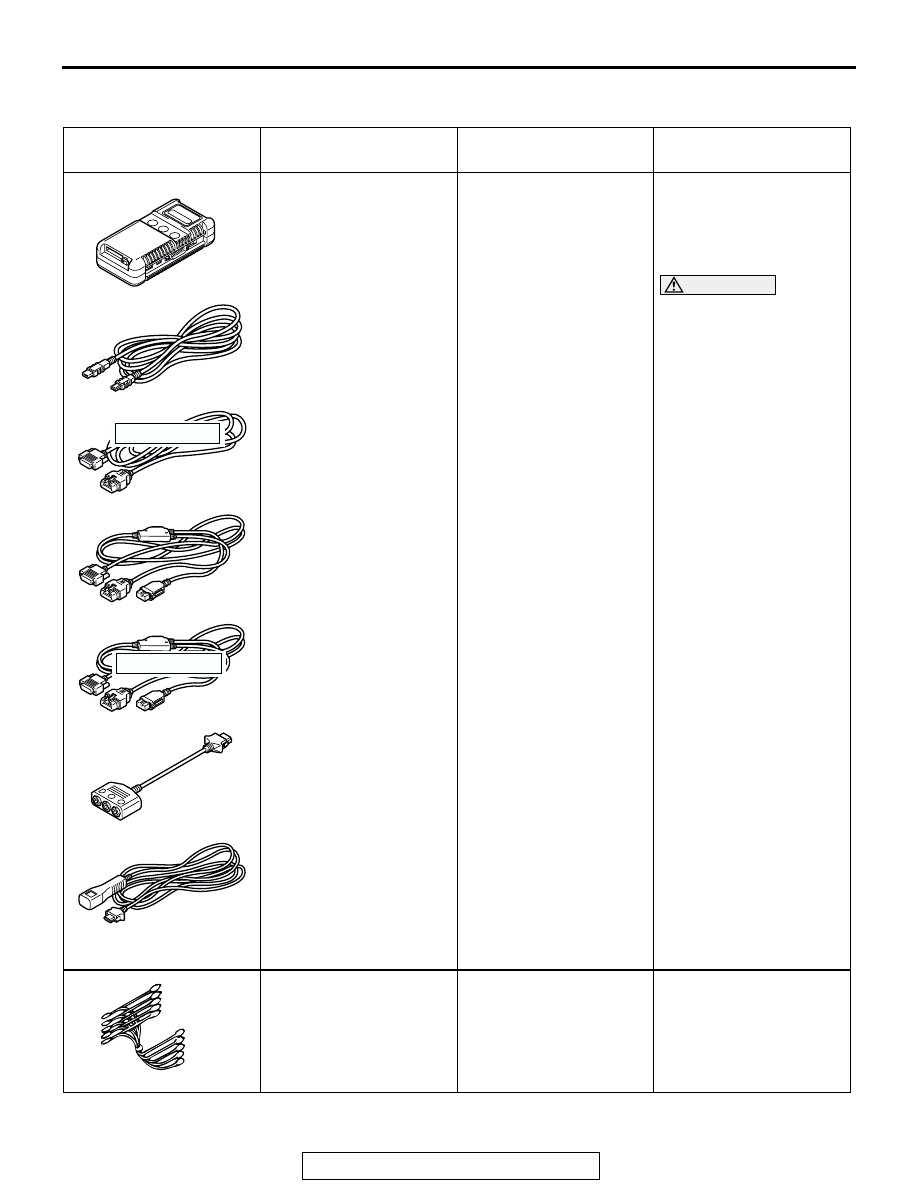

SPECIAL TOOLS

M1131000600579

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826
MUT-III sub assembly
A: Vehicle
Communication Interface
(V.C.I.)
B: MUT-III USB Cable
C: MUT-III Main Harness
A (Vehicles with CAN
communication system)
D: MUT-III Main Harness
B (Vehicles without CAN
communication system)
E: MUT-III Main Harness
C (for Daimler Chrysler
models only)
F: MUT-III Adapter
Harness
G: MUT-III Trigger
Harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

• Reading diagnostic

trouble code

• MFl system inspection

• Measurement of fuel

pressure

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991348
Test harness set

MB991348-01

• Adjustment of throttle

position sensor

• Inspection using an

oscilloscope

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MB991348

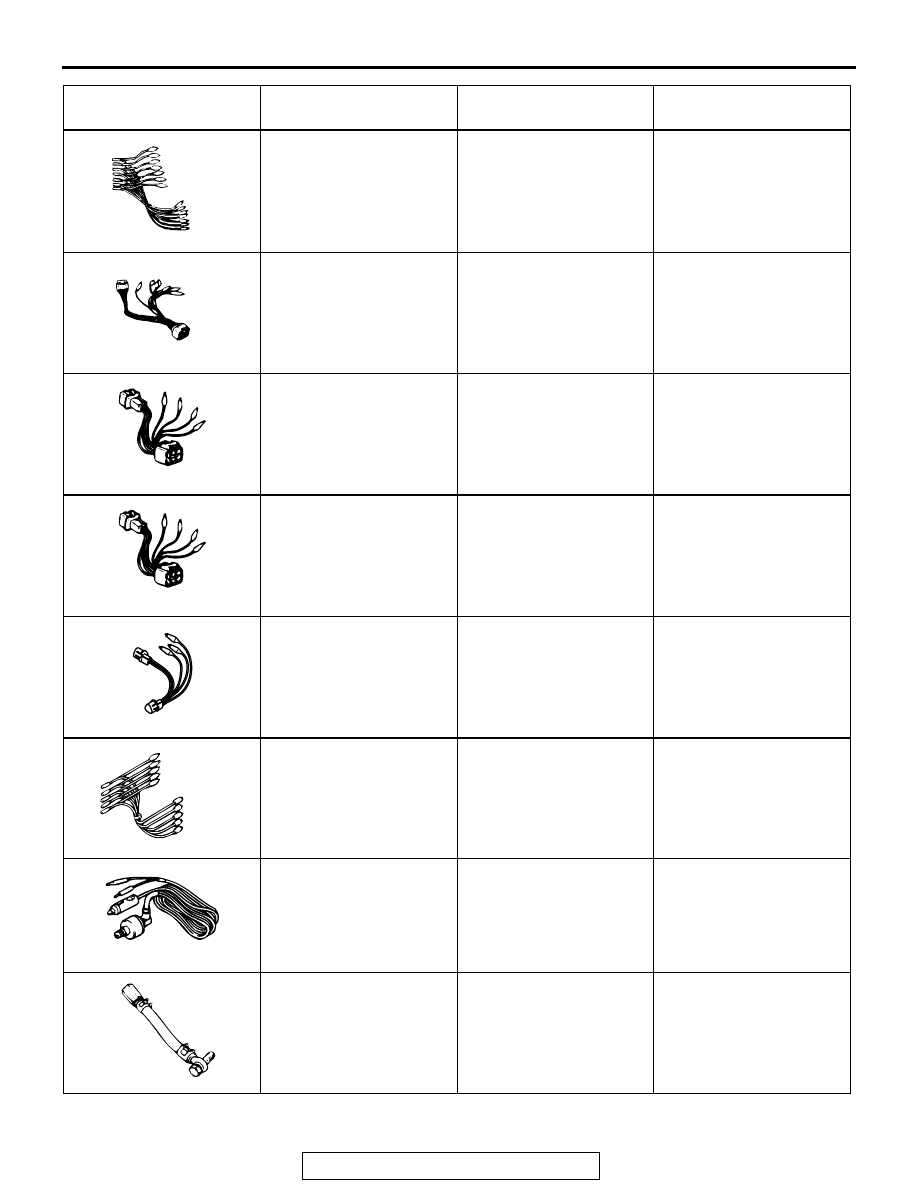

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-874

MB991709
Test harness set

MB991709-01

• Inspection using an

oscilloscope

• Inspection of idle air

control motor

MD998474
Test harness (8 pin,
square)

MD998474-01

Inspection using an
oscilloscope

MD998464
Test harness (4 pin,
square)

MD998464-01

Inspection of heated
oxygen sensor

MB991316
Test harness (4 pin,
square)

Tool not available

Inspection of heated
oxygen sensor

MD998478
Test harness (3 pin,
triangle)

MD998478-01

Inspection using an
oscilloscope

MB991658
Test harness SET

Tool not available

Inspection using an
oscilloscope

MB991637
Fuel pressure gauge set

Tool not available

Measurement of fuel
pressure

MD998709
Adaptor hose

MIT210196

Measurement of fuel
pressure

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991658

MB991637

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-875

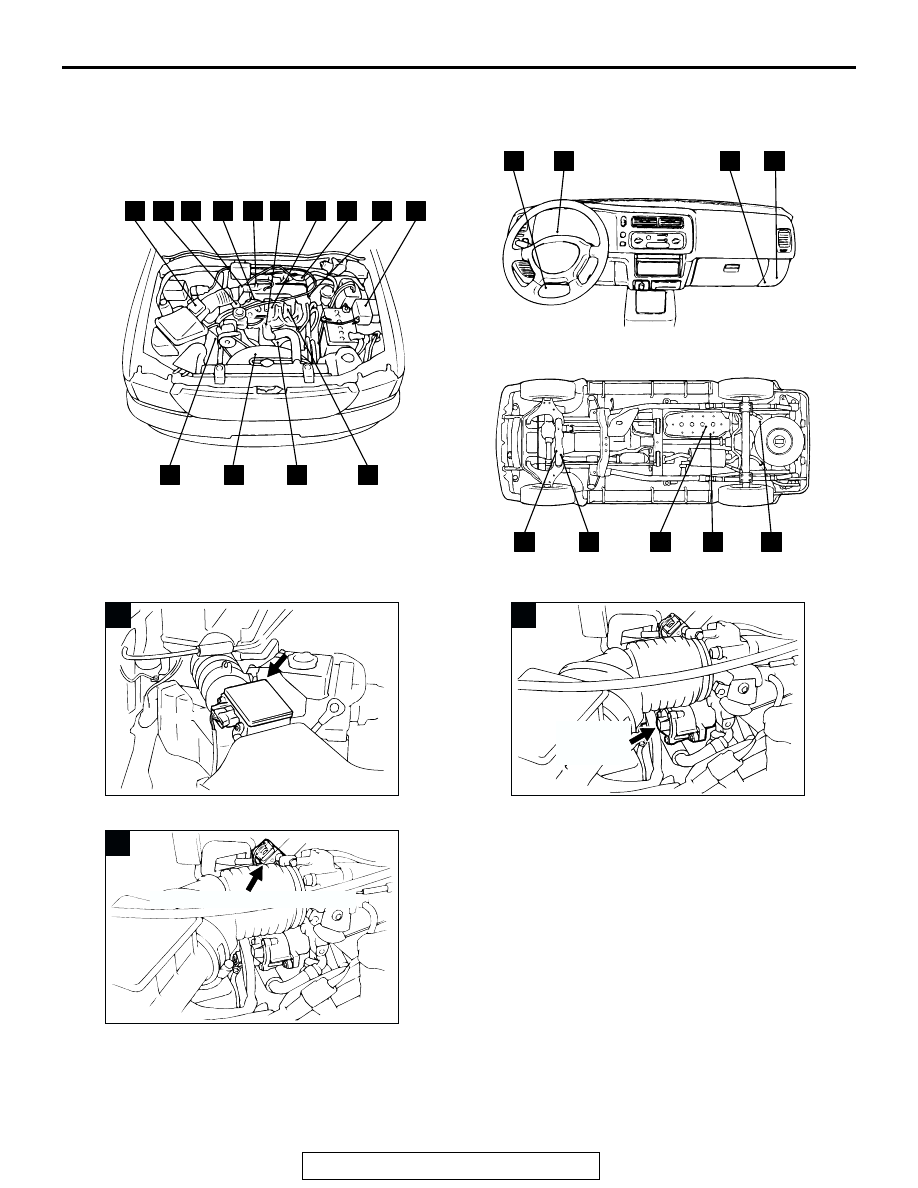

ON-VEHICLE SERVICE

COMPONENT LOCATION

M1131002100804

MD998742
Hose adaptor

MD998742-01

Measurement of fuel
pressure

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

NAME

SYMBOL

NAME

SYMBOL

A/C compressor clutch relay

J

Injector

G

Camshaft position sensor

M

Left bank heated oxygen sensor
(front)

I

Crankshaft position sensor

L

Left bank heated oxygen sensor
(rear)

T

Data link connector

O

Manifold absolute pressure sensor

H

EGR vacuum regulator solenoid
valve

E

Multiport fuel injection (MFI)
relay/fuel pump relay

Q

Engine coolant temperature sensor

F

Power steering pressure switch

K

Evaporative emission purge
solenoid

E

Powertrain control module

R

Evaporative emission ventilation
solenoid

W

Right bank heated oxygen sensor
(front)

D

Fuel tank differential pressure
sensor

U

Right bank heated oxygen sensor
(rear)

S

Fuel tank temperature sensor

V

Malfunction Indicator Lamp
(SERVICE ENGINE SOON or Check
Engine Lamp)

P

Idle air control motor

B

Throttle position sensor

C

Ignition coil/ignition power transistor N

Volume airflow sensor (with built-in
intake air temperature sensor and
barometric pressure sensor)

A

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-876

AK000727

A

B

C

D

E

F

G

H

I

J

K

L

M

N

S

T

U

V

W

O

P

Q

R

AB

AK302274

VOLUME
AIRFLOW
SENSOR

AB

A

AC002637

IDLE AIR
CONTROL
MOTOR

AD

B

AC002593

THROTTLE POSITION SENSOR

AD

C
