Mitsubishi Montero Sport (2004+). Manual - part 349





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-809

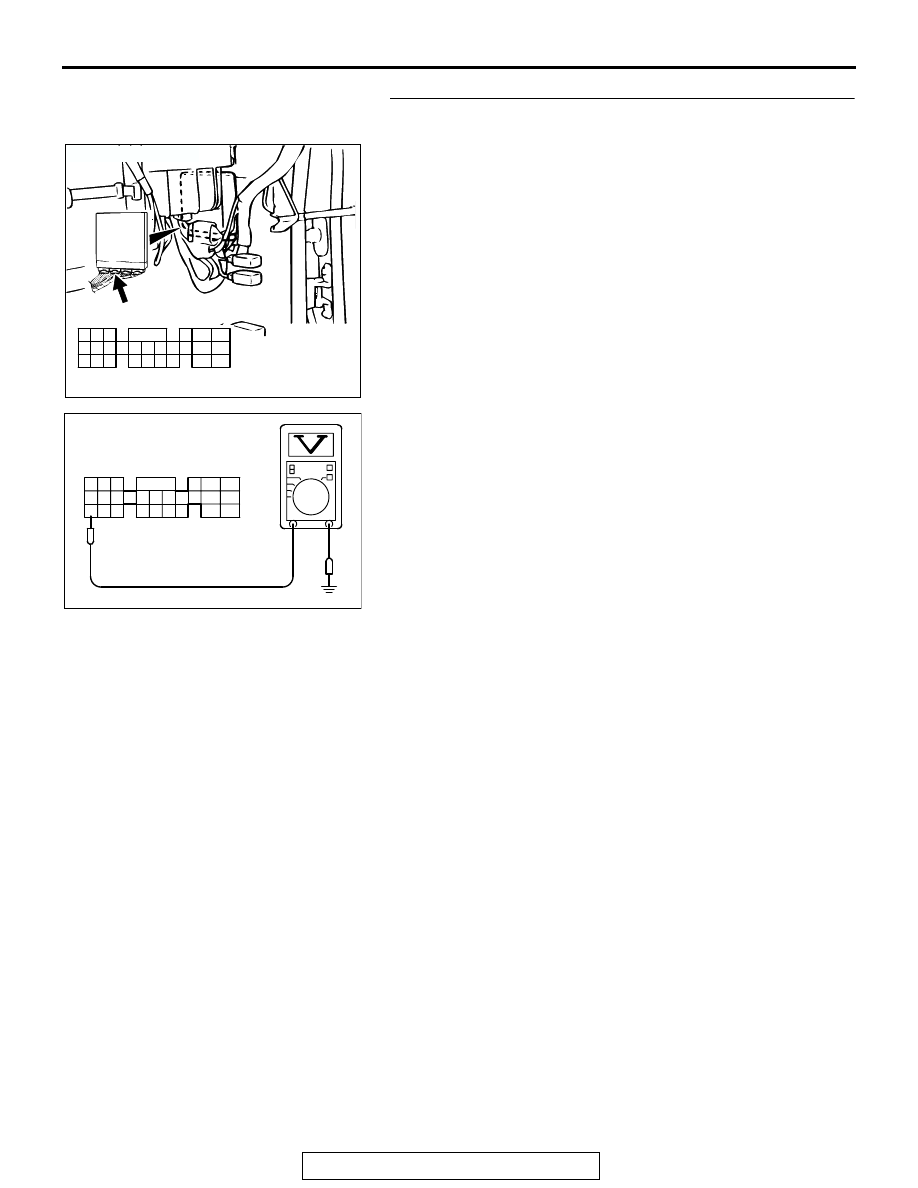

STEP 6. Measure the backup power supply voltage at PCM
harness side connector C-90.
(1) Disconnect the connector C-90 and measure at the harness

side.

(2) Measure the voltage between terminal No. 66 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 7.
NO :  Repair harness wire between fusible link (12) and

PCM connector C-90 (terminal No. 66). Then confirm
that the malfunction symptom is eliminated.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AKX01436

41

42

43

47

48

49

58

59

50

51

60

61

52
62

53

54

63

64

55

56

57

44

45

46

65

66

C-90 HARNESS
CONNECTOR:
COMPONENT SIDE

BA

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-810

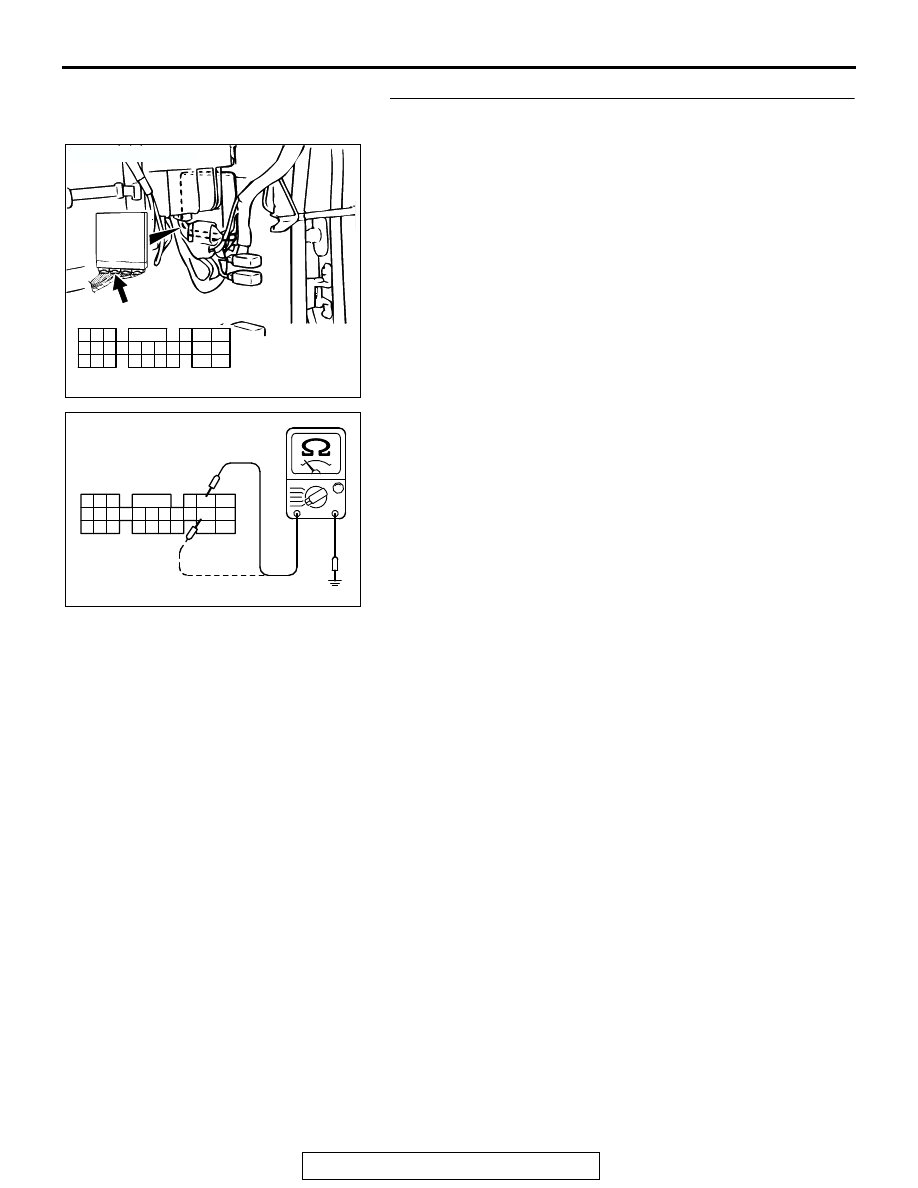

STEP 7. Check for continuity at PCM harness side
connector C-90.
(1) Disconnect the connector C-90 and measure at the harness

side.

(2) Check for the continuity between terminals No. 42, No. 48

and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 8.
NO :  Repair harness wire between PCM connector C-90

(terminals No. 42, No. 48) and ground. Then confirm
that the malfunction symptom is eliminated.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AKX01437

41

42

43

47

48

49

58

59

50

51

60

61

52
62

53

54

63

64

55

56

57

44

45

46

65

66

C-90 HARNESS
CONNECTOR:
COMPONENT SIDE

AT

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-811

STEP 8. Measure the power supply voltage at PCM harness
side connector C-90.
(1) Disconnect the connector C-90 and measure at the harness

side.

(2) Measure the voltage between terminal No. 49 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 9.
NO :  Repair harness wire between MFI relay connector

C-59 (terminal No. 2) and PCM connector C-90
(terminal No. 49). Then confirm that the malfunction
symptom is eliminated.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000379AH

C-90 HARNESS
CONNECTOR:
COMPONENT SIDE

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-812

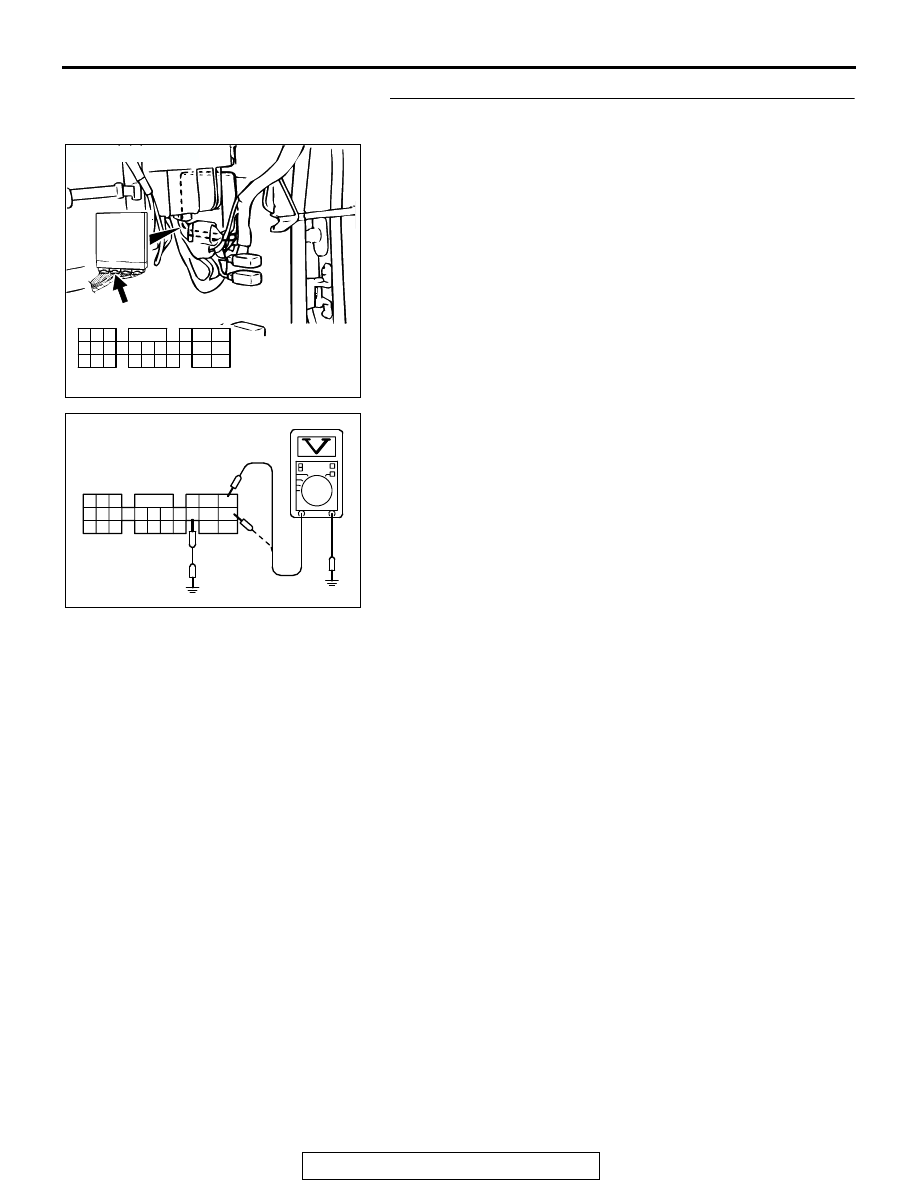

STEP 9. Measure the power supply voltage at PCM harness
side connector C-90.
(1) Disconnect the connector C-90 and measure at the harness

side.

(2) Using a jumper wire, connect terminal No. 49 to ground.
(3) Measure the voltage between terminals No. 41, No. 47 and

ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Replace the PCM. Then confirm that the malfunction

symptom is eliminated.

NO :  Check harness connector C-14 at intermediate

connector for damage, and repair or replace as
required. Refer to, GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector C-14 is

in good condition, repair harness wire between MFI
relay connector C-59 (terminal No. 1) and PCM
connector C-90 (terminals No. 41, No. 47). Then
confirm that the malfunction symptom is eliminated.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AKX01438

41

42

43

47

48

49

58

59

50

51

60

61

52
62

53

54

63

64

55

56

57

44

45

46

65

66

C-90 HARNESS
CONNECTOR:
COMPONENT SIDE

AT
