MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-749

STEP 3. Check the engine idling state.
Q: Is it hunting remarkably?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Check the following items.
(1) Carry out the following cleaning or adjustment.

a. Refer to On-vehicle Service

− Clean the throttle valve

area

P.13A-881

.

(2) After cleaning or adjusting, confirm that the malfunction

symptom is eliminated.

Q: Is the malfunction symptom resolved?

YES : The check is completed.
NO :  Check the following items, and repair or replace the

defective items.

a. Broken intake manifold gasket.
b. Broken air intake hose.

c. Broken vacuum hose.

d. Positive crankcase ventilation valve does not

operate.

Then confirm that the malfunction symptom is

eliminated.

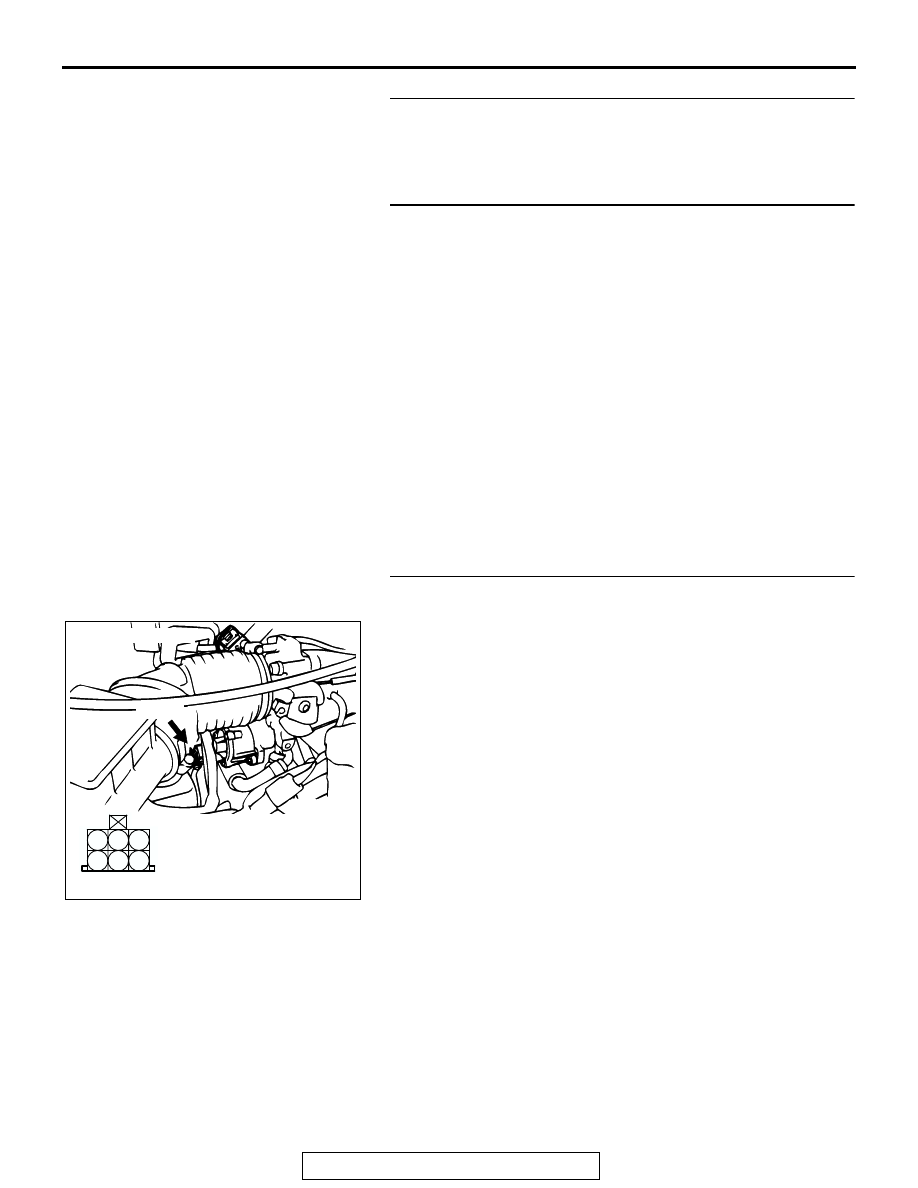

STEP 5. Check the idle air control (IAC) motor operation
sound.
(1) Check that the engine coolant temperature is 20

°C (68°F)

or below.
NOTE: Disconnecting the engine coolant temperature sen-
sor connector and connecting the harness side of the con-
nector to another engine coolant temperature sensor that is
at 20

°

C (68

°

F) or below is also okay.

(2) Check the operation sound of the IAC motor can be heard

after the ignition is switched to the "ON" position (but
without starting the engine).

• An operation sound is heard.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Did you hear the operation sound?

YES : Go to Step 6.
NO :  Refer to DTC P0506

− Idle Control System RPM

Lower Than Expected

P.13A-640

 , DTC P0507

− Idle

Control System RPM Higher Than
Expected

P.13A-651

 .

AK302271

1

2

3

4

5

6

HARNESS CONNECTOR:
COMPONENT SIDE

AB

CONNECTOR: A-40

A-40(B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-750

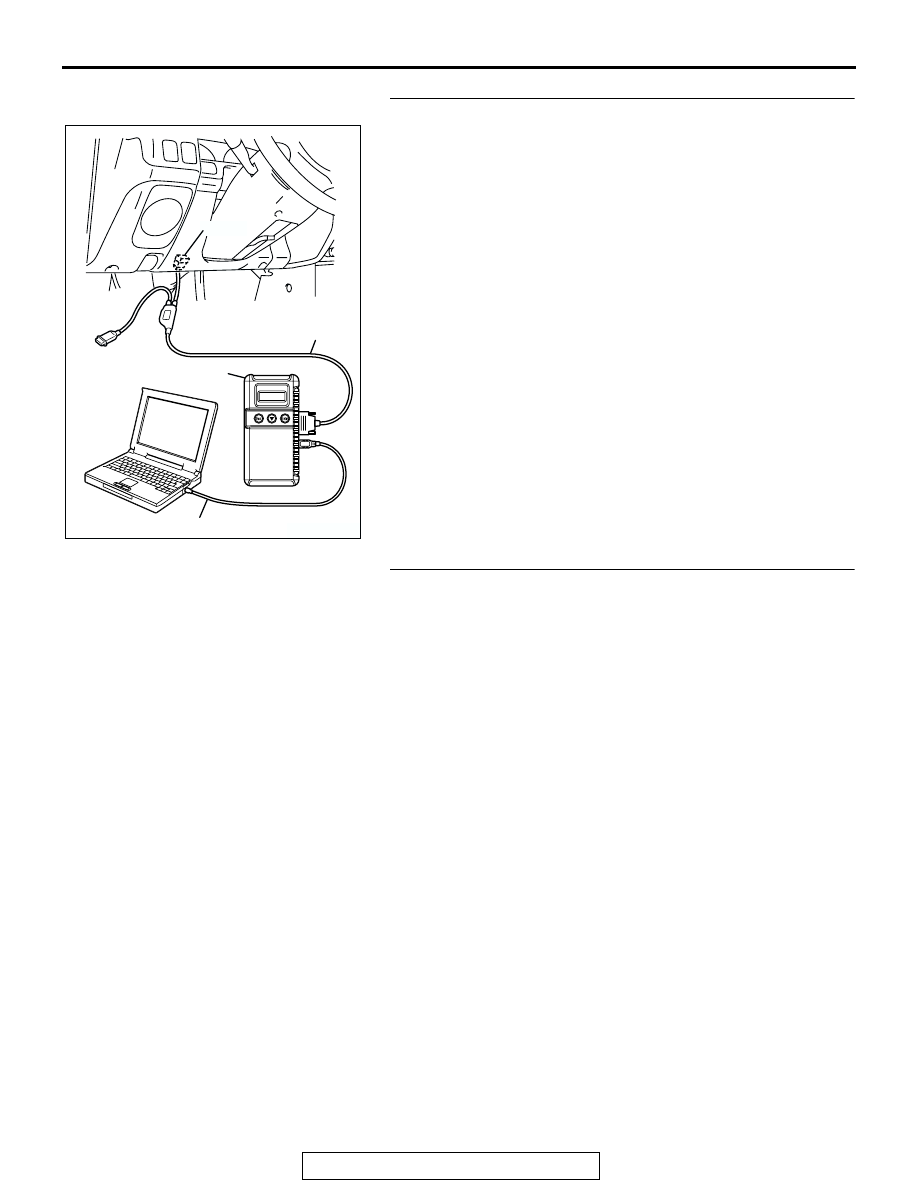

STEP 6. Using scan tool MB991958, check actuator test
items 01, 02, 03, 04, 05, 06: Injector.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check following items in the actuator test. Refer to Actuator

Test Reference Table

P.13A-854

.

a. Items 01, 02, 03, 04, 05, 06: Injector.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 7.
NO :  Refer to DTC P0201, P0202, P0203, P0204, P0205,

P0206

− Injector Circuit

P.13A-428

.

STEP 7. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13A-839

.

a. Item 13: Intake Air Temperature Sensor.
b. Item 25: Barometric Pressure Sensor.

c. Item 21: Engine Coolant Temperature Sensor.

d. Item 69: Right Bank Heated Oxygen Sensor (rear)
e. Item 39: Right Bank Heated Oxygen Sensor (front)

f. Item 59: Left Bank Heated Oxygen Sensor (rear)

g. Item 11: Left Bank Heated Oxygen Sensor (front)
h. Item 27: Power Steering Pressure Switch.

i. Item 28: A/C Switch

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 8.
NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AK303629AB

MB991911

MB991827

MB991824

16-PIN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-751

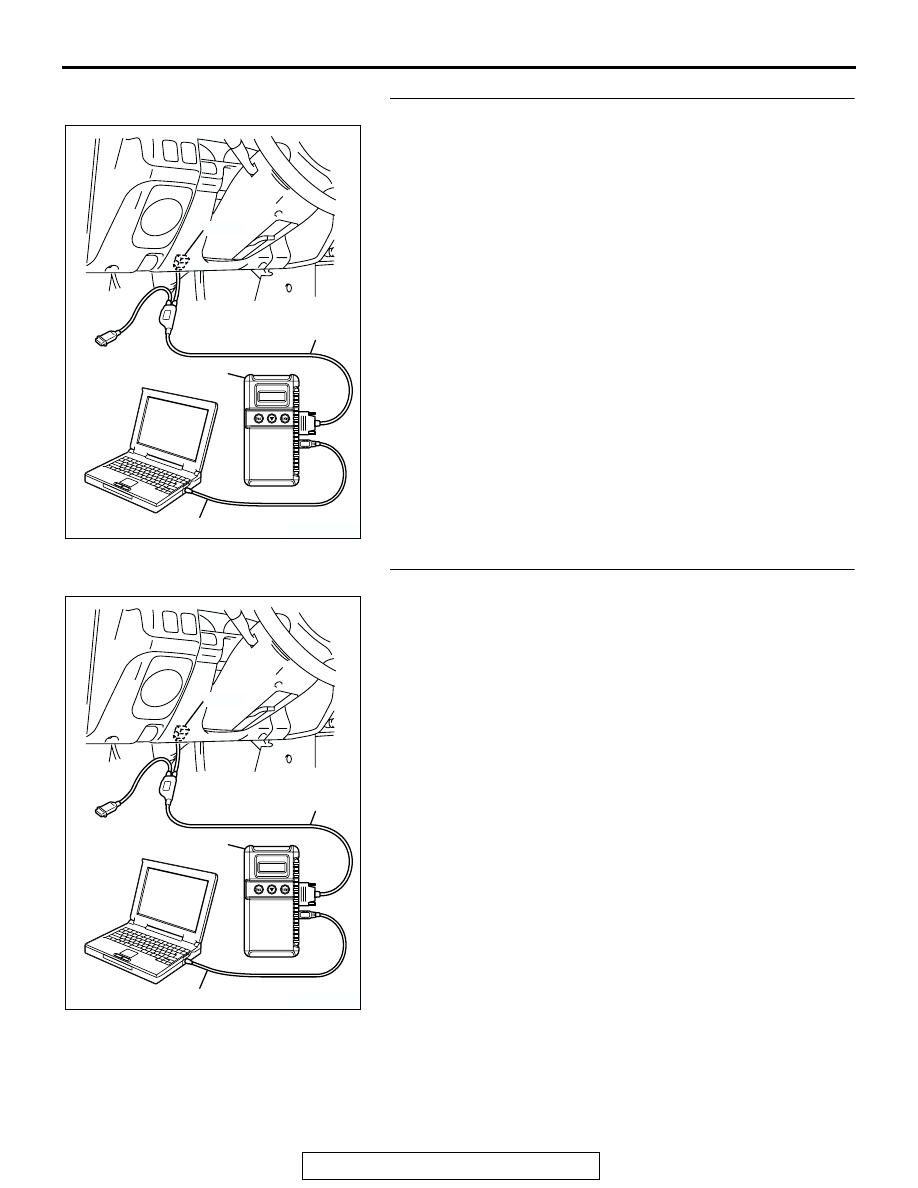

STEP 8. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the actuator test. Refer to

Actuator Test Reference Table

P.13A-854

.

a. Item 08: Evaporative Emission Purge Solenoid.
b. Item 10: EGR Vacuum Reglator Solenoid Valve.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 9.
NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

STEP 9. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13A-839

.

a. Item 45: Idle Air Control Motor Position.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 10.
NO :  Adjust the basic idle speed. Refer to On-vehicle

Service

− Basic Idle Speed Adjustment

P.13A-883

.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AK303629AB

MB991911

MB991827

MB991824

16-PIN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-752

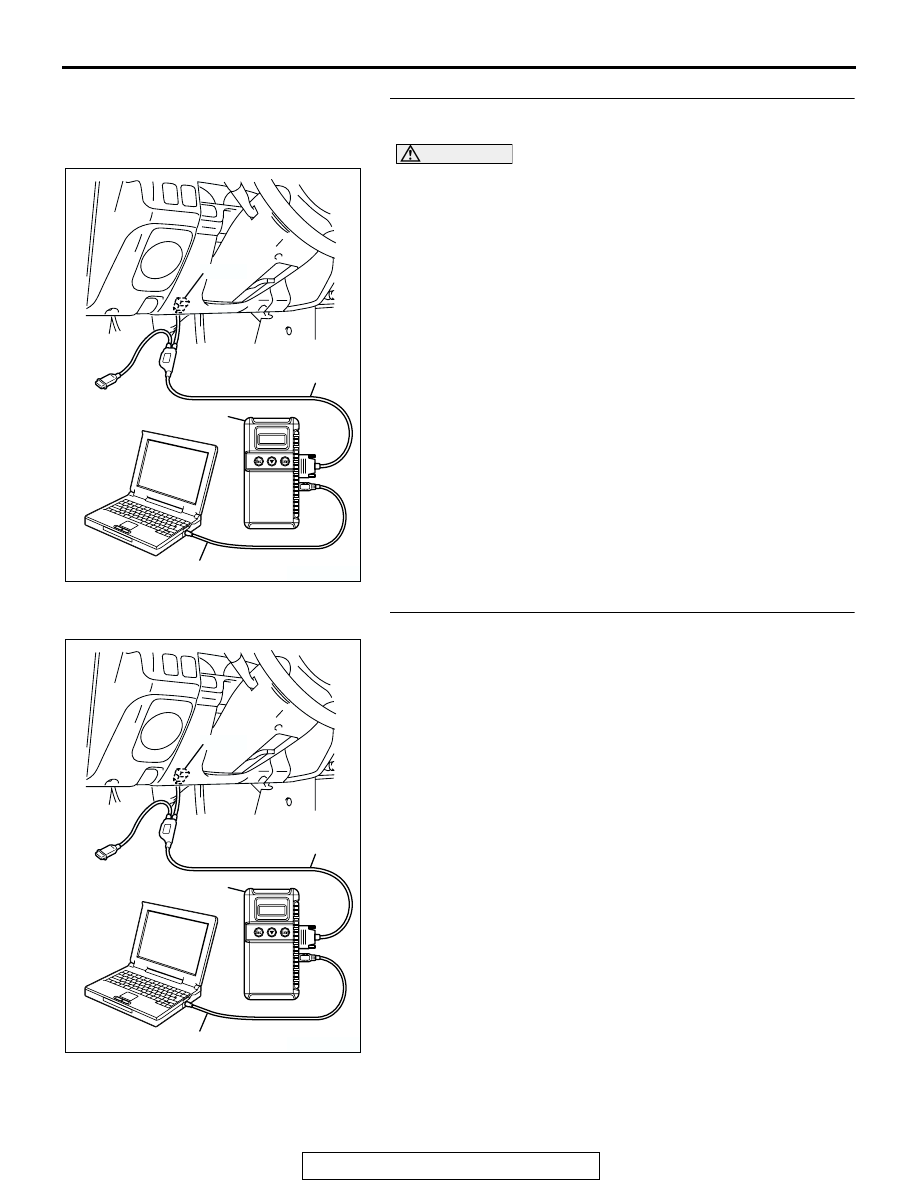

STEP 10. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items of the data list. Refer to Data List

Reference Table

P.13A-839

.

a. Item 39: Right Bank Heated Oxygen Sensor (front)
b. Item 11: Left Bank Heated Oxygen Sensor (front)

• Voltage should fluctuate between 0 − 0.4 volt and 0.6 −

1.0 volt while idling after the engine has been warmed.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13A-884

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Vacuum leak.

• Broken intake manifold gasket.

• Broken air intake hose.

• Broken vacuum hose.

• Positive crankcase ventilation valve does

not operate.

b. Injector clogged.

Then confirm that the malfunction symptom is
eliminated.

NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

AK303629AB

MB991911

MB991827

MB991824
