MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-317

.

CIRCUIT OPERATION

• Power is supplied from the MFI relay (terminal

No. 1) to the left bank heated oxygen sensor
(front) heater.

• The PCM (terminal No. 3) controls continuity to

the left bank heated oxygen sensor (front) heater
by turning the power transistor in the PCM "ON"
and "OFF".

.

TECHNICAL DESCRIPTION

• The PCM checks whether the heater current is

within a specified range when the heater is ener-
gized.

.

DESCRIPTIONS OF MONITOR METHODS
Left bank heated oxygen sensor heater (front) cur-

rent is out of specified range when engine coolant
temperature is over 20

°C (68°F).

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

.

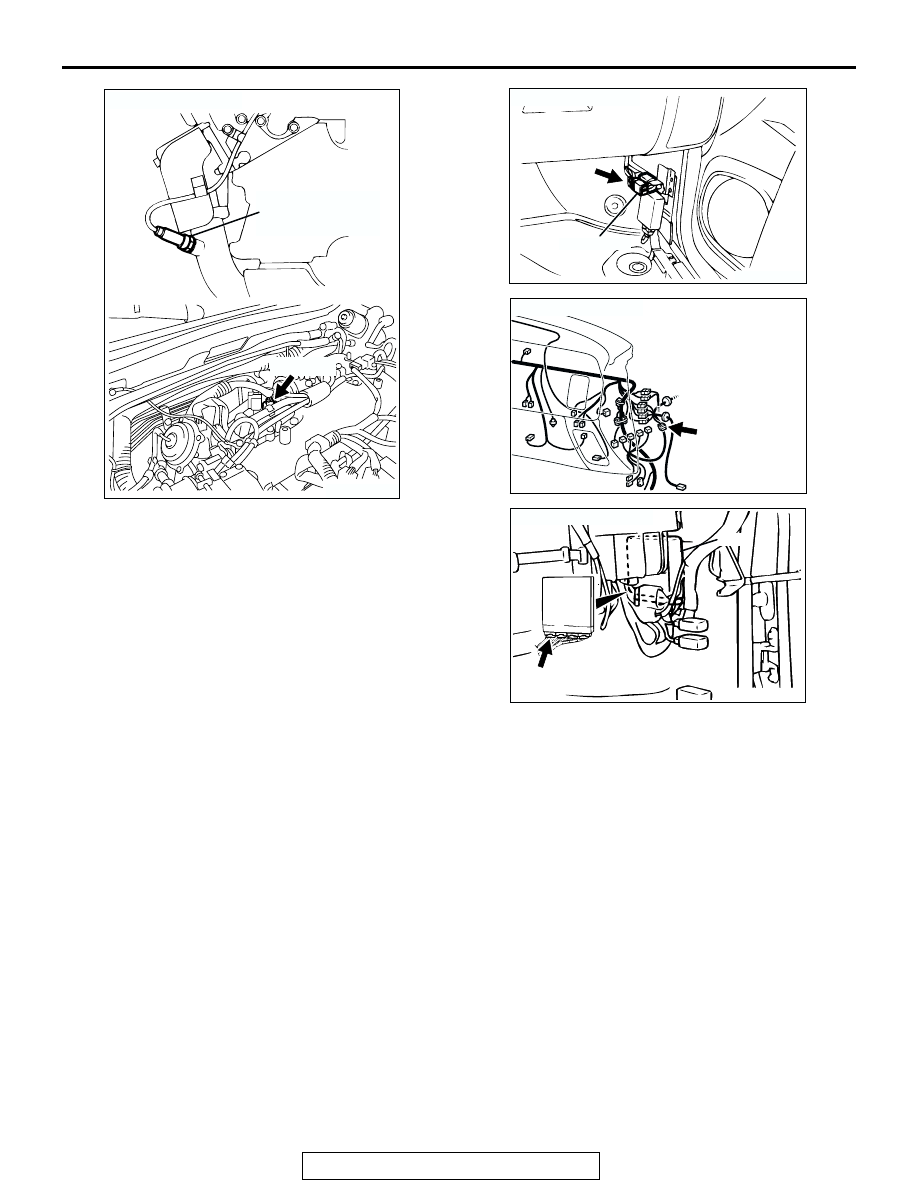

AK200495

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

A-09(GR)

AB

CONNECTOR: A-09

AK201000

MFI RELAY

CONNECTOR: C-59

AB

C-59

AK103911AB

CONNECTOR: C-14

C-14

AK103738AD

CONNECTOR: C-89

PCM

C-89(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-318

DTC SET CONDITIONS

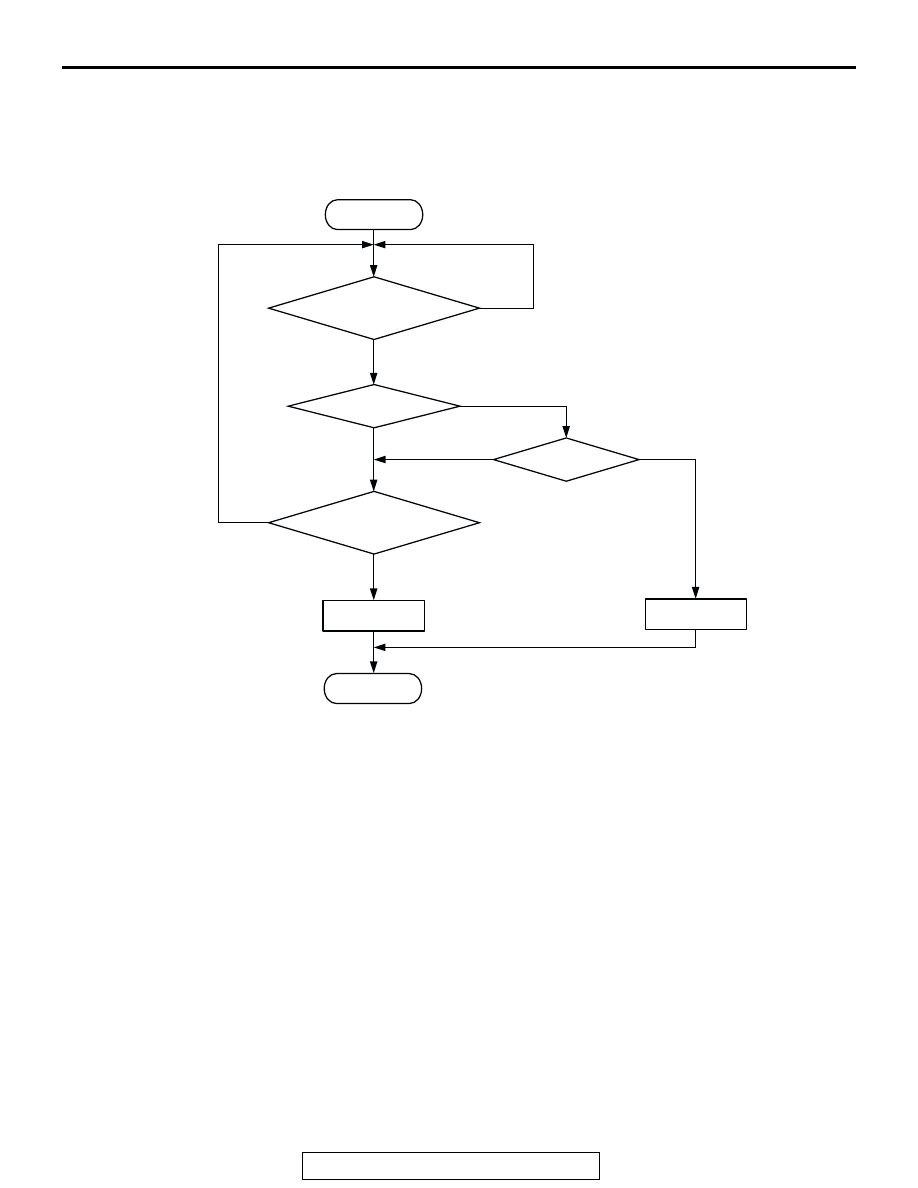

Logic Flow Chart

.

Check Conditions

• 60 seconds have elapsed from the start of the

previous monitoring.

• Engine coolant temperature is higher than 20°C

(68

°F).

• While the left bank heated oxygen sensor (front)

heater is on.

• Battery positive voltage is at between 11 and 16.5

volts.

Judgment Criteria

• Heater current of the left bank heated oxygen

sensor (front) heater has continued to be lower
than 0.16 ampere or higher than 7.5 ampere for 4
seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Open or shorted left bank heated oxygen sensor

(front) heater circuit, harness damage or connec-
tor damage.

• Open circuit in left bank heated oxygen sensor

(front) heater.

• Left bank heated oxygen sensor (front) deterio-

rated.

• PCM failed.

START

END

YES

YES

YES

YES

NO

NO

NO

NO

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 4secs

MONITORING

CONDITIONS

CURRENT < 0.16A

CURRENT > 7.5A

AK301439

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-319

DIAGNOSIS

Required Special Tool:

• MB991316: Test Harness

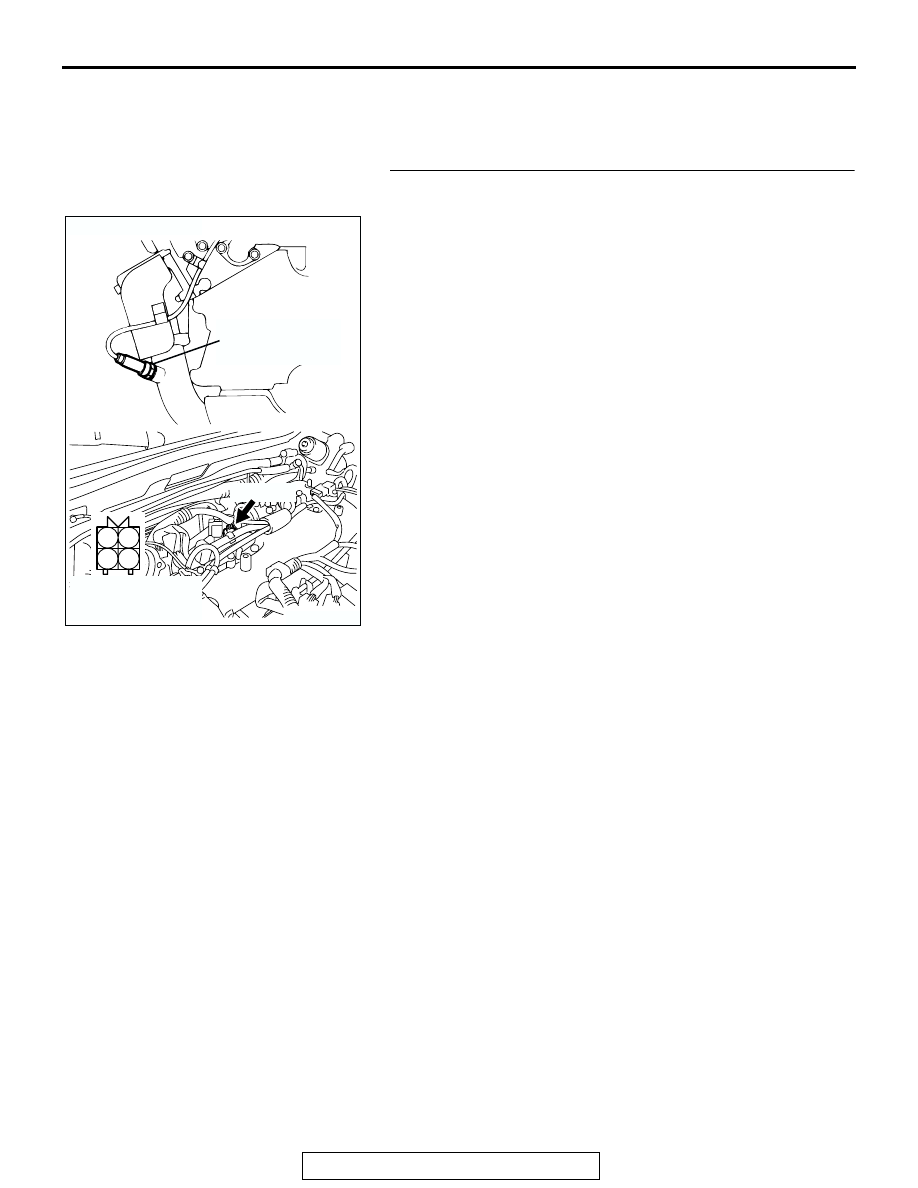

STEP 1. Check connector A-09 at the left bank heated
oxygen sensor (front) for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200496

1

2

3

4

A-09(GR)

AB

CONNECTOR: A-09

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-320

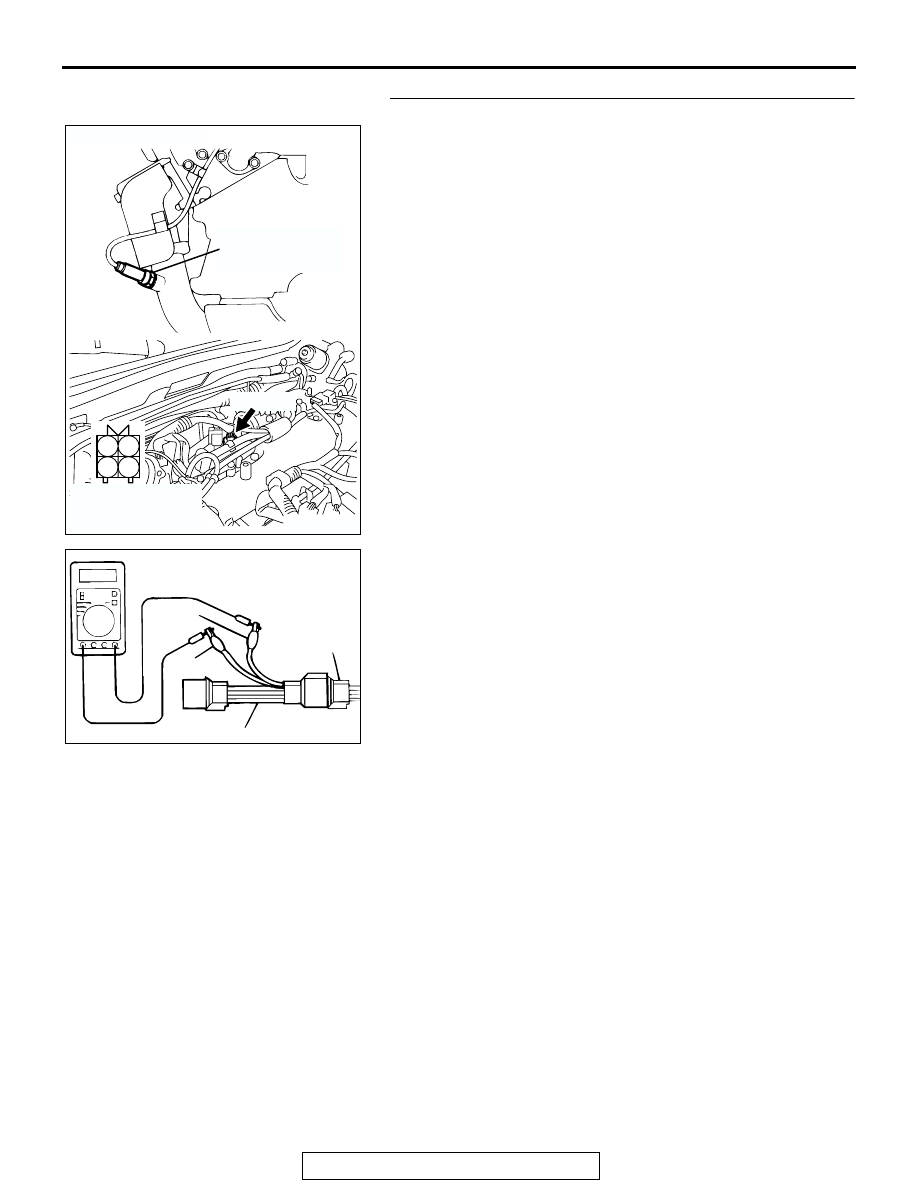

STEP 2. Check the left bank heated oxygen sensor (front).

(1) Disconnect left bank heated oxygen sensor (front)

connector A-09 and connect test harness special tool,
MB991316, to the connector on the left bank heated oxygen
(front) sensor side.

(2) Measure the resistance between heated oxygen sensor

connector terminal No. 1 (red clip) and terminal No. 3 (blue
clip).

Standard value: 4.5

 8.0 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 4.5 and 8.0 ohms?

YES : Go to Step 3.
NO :  Replace the left bank heated oxygen sensor (front).

Then go to Step 12.

AK200496

1

2

3

4

A-09(GR)

AB

CONNECTOR: A-09

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

AKX01624 AB

MB991316

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

BLUE

RED
