MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-205

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Misfire monitor

• Fuel system monitor

Sensor (The sensor below is determined to be

normal)

• Volume airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

.

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 50°C

(122

°F).

• Engine speed is at between 1,250 and 3,000

r/min.

• Under the closed loop air/fuel control.

• Volumetric efficiency is at between 25 and 60

percent.

• Short-term fuel trim is higher than −30 and lower

than +25 percent.

• More than 3 seconds have elapsed after the

above mentioned conditions have been met.

• The PCM monitors for this condition for 7 cycles

of 12 seconds each during the drive cycle.

• The throttle valve is open.

F1: THRESHOLD VALUE FOR REAL-TIME SWITDHING FREQUENCY
F0: THRESHOLD VALUE FOR AVERAGE SWITDHING FREQUENCY

START

MONITORING

CONDITIONS

MALFUNCTION

GOOD

END

NO

NO

YES

YES

Ff < F0

CALCULATE AVERAGE SWITCHING

FREQUENCY (Ff) OVER SPECIFIED TIMES

AK301438

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-206

Judgment Criteria

• The right bank heated oxygen sensor (front)

sends "lean" and "rich" signals alternately 11
times or less for 12 seconds.
NOTE: If the sensor switch time is longer than the
Judgment Criteria due to the MUT-III OBD-II test
Mode

−

 H02S Test Results, it is assumed that the

heated oxygen sensor has deteriorated. If it is
short, it is assumed that the harness is damaged
or has a short circuit.
If the heated oxygen sensor signal voltage has
not changed even once (lean/rich) after the DTC
was erased, the sensor switch time will display as
0 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 4

− Heated Oxygen Sensor Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Right bank heated oxygen sensor (front) deterio-

rated.

• Connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I

• MB991827: USB Cable

• MB991911: Main Harness B

• MD998464: Test Harness

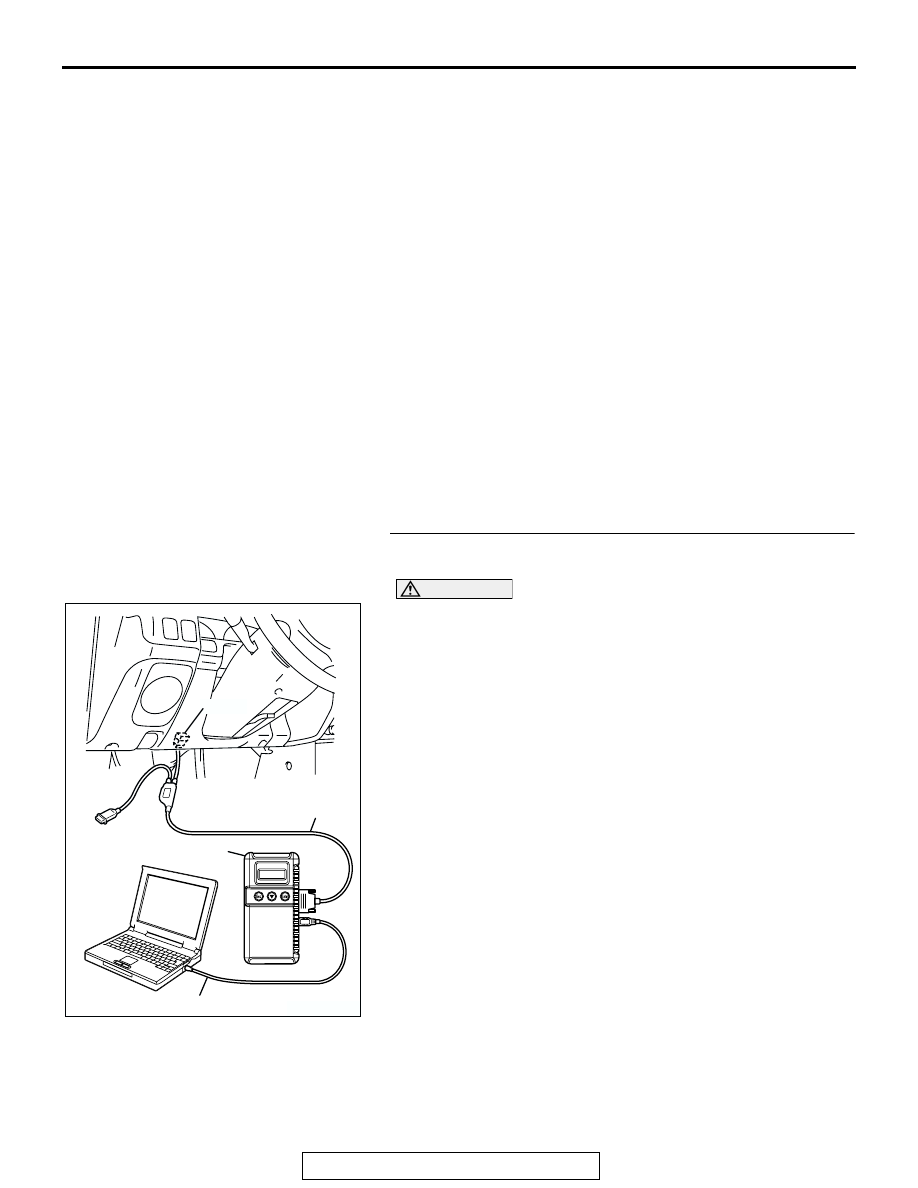

STEP 1. Using scan tool MB991958, check data list item 39:
Heated Oxygen Sensor (front).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

39, Heated Oxygen Sensor (front).

(4) Warm up the engine, 2,500 r/min.

• Output voltage repeats 0.4 volt or less and 0.6 − 1.0 volt

10 times or more within 10 seconds.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to INTRODUCTION, How to Use
Troubleshooting/Inspection Service Points

P.00-7

.

NO :  Go to Step 2.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-207

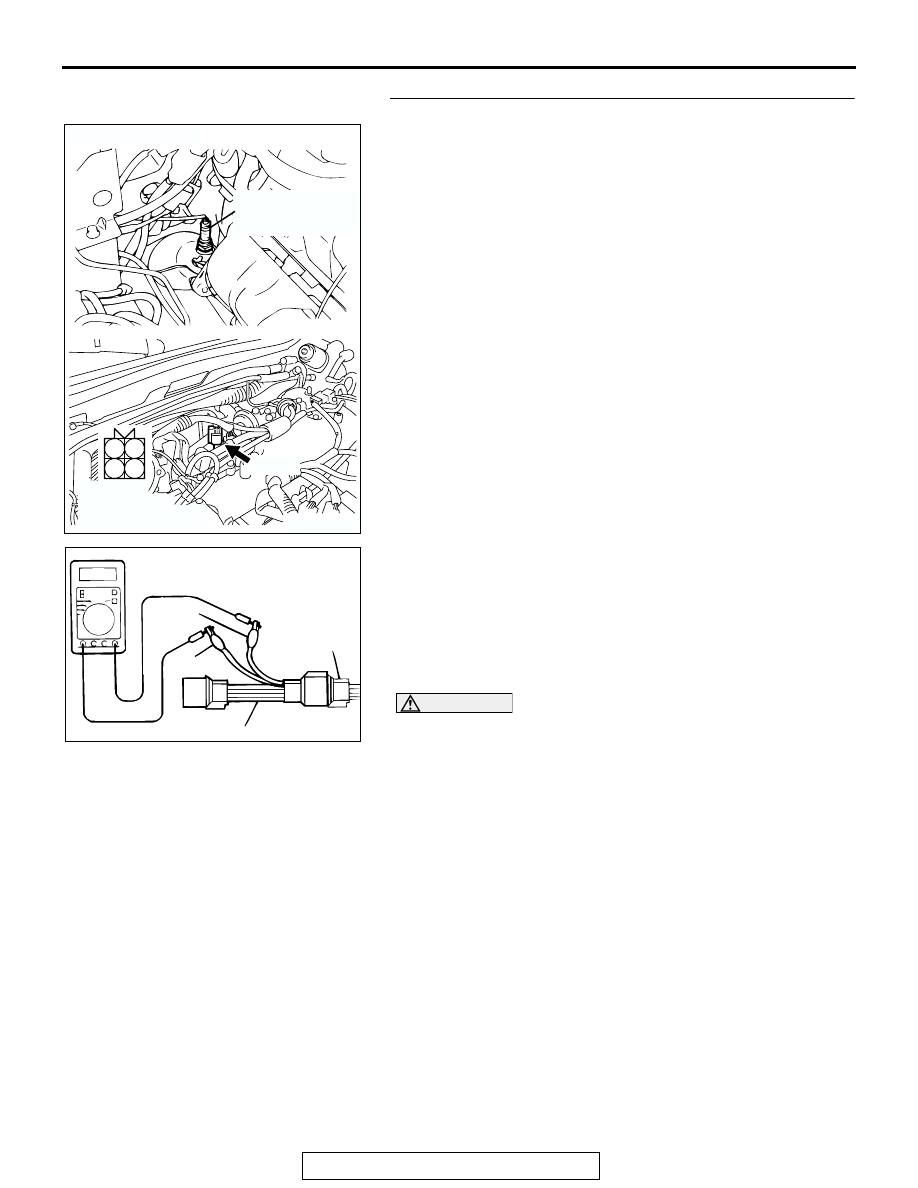

STEP 2. Check the heated oxygen sensor (front).
(1) Disconnect the heated oxygen sensor (front) connector

A-07 and connect test harness special tool, MD998464, to
the connector on the heated oxygen sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Perform a tracing for 5 minutes or more with the engine

speed of 4,500 r/min.

(4) Connect a digital volt meter between terminal No. 2 (black

clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the heated

oxygen sensor (front) output voltage.

Standard value: 0.6

− 1.0 volt

CAUTION

• Be very careful when connecting the jumper wire;

incorrect connection can damage the oxygen sensor.

• Be careful the heater is broken when voltage of beyond

8 volts is applied to the oxygen sensor heater.
NOTE: If the sufficiently high temperature (of approximate
400

°

C or more) is not reached although the oxygen sensor

is normal, the output voltage would be possibly low
although the rich air-fuel ratio. Therefore, if the output volt-
age is low, use a jumper wire to connect the terminal No.1
(red clip of special tool) and the terminal No. 3 (blue clip of
special tool) of the oxygen sensor with a (+) terminal and (-)
terminal of 8 volts power supply respectively, then check
again.

Q: Is the voltage between 0.6 and 1.0 volt?

YES : Go to Step 3.
NO :  Replace the heated oxygen sensor (front). Then go to

Step 4.

AK200490

1

2

3

4

A-07(B)

AB

CONNECTOR: A-07

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MD998464

WHITE

BLACK

AL

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-208

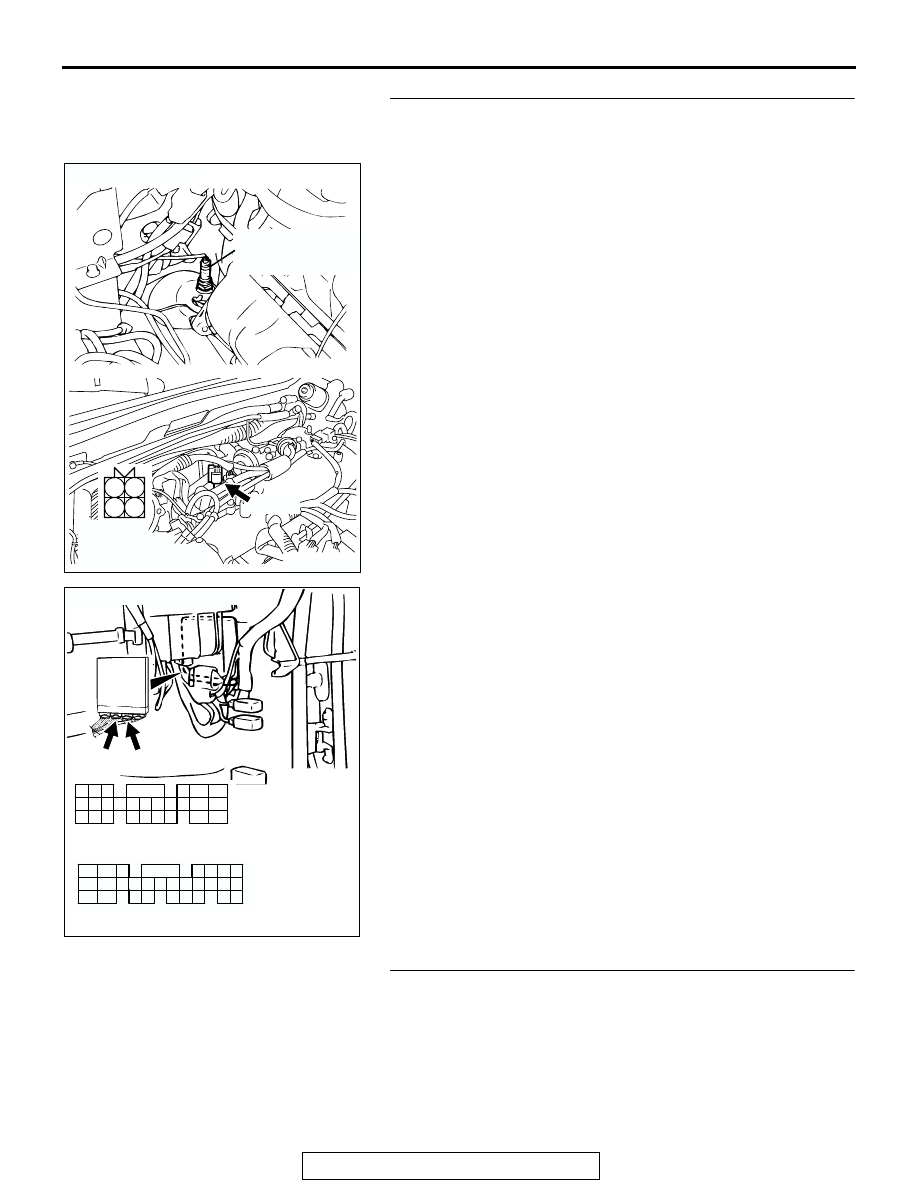

STEP 3. Check harness connector A-07 at heated oxygen
sensor (front) and harness connector C-90, C-91 at PCM
for damage.
Q: Is the harness connector in good condition?

YES : Replace the PCM. Then go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 4.

STEP 4. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 4 −

Heated Oxygen Sensor Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0133 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK200490

1

2

3

4

A-07(B)

AB

CONNECTOR: A-07

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK104029

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97
