MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-13

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

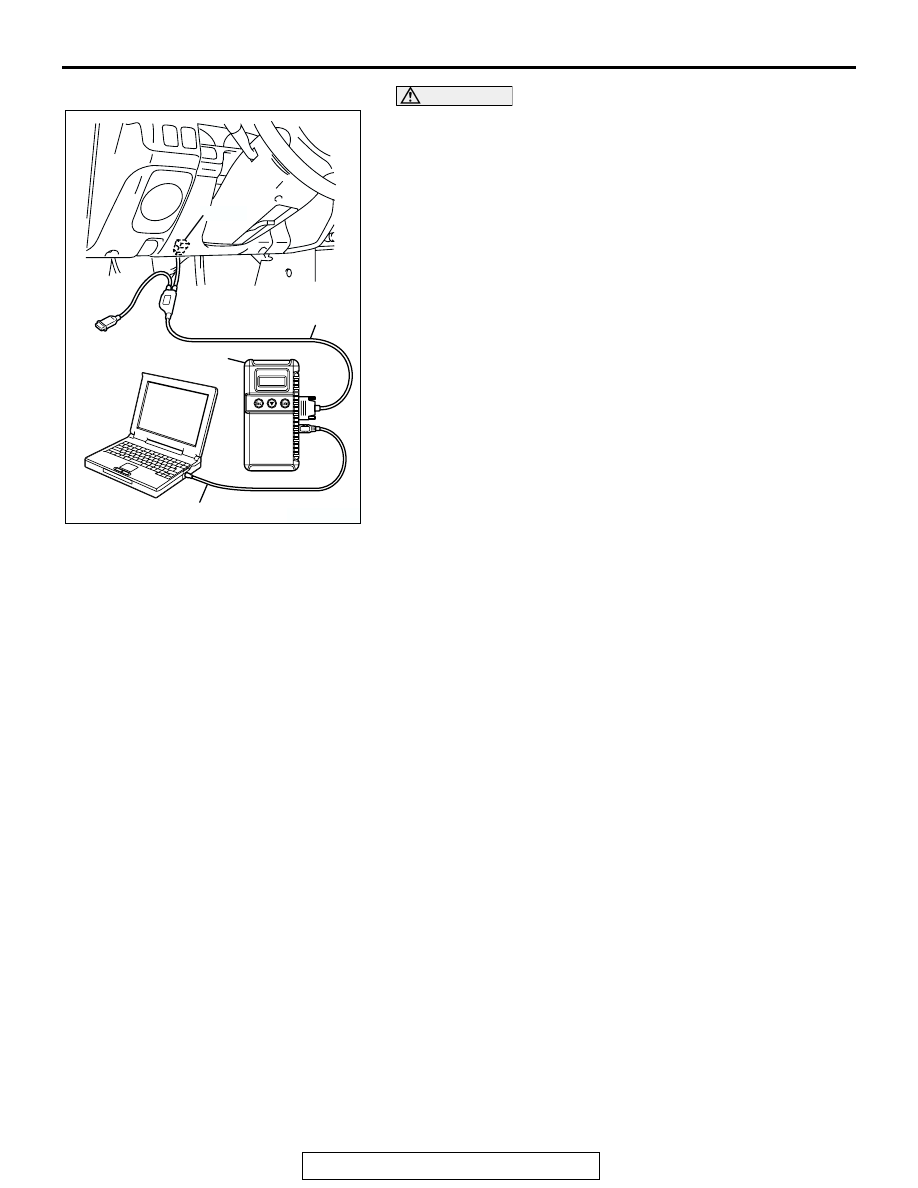

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "MFI" from the "POWER TRAIN" tab.
6. Select "MITSUBISHI."
7. Select "Data List" or "Actuator Test."
8. Choose an appropriate item and select the "OK" button.

ON-BOARD DIAGNOSTICS

The powertrain control module (PCM) monitors the input/output signals (some signals all the time and others
under specified conditions) of the PCM. When a malfunction continues for a specified time or longer after the
irregular signal is initially monitored, the PCM judges that a malfunction has occurred. After the PCM first
detects a malfunction, a diagnostic trouble code is recorded when the engine is restarted and the same mal-
function is re-detected. However, for items marked with a "*", a diagnostic trouble code is recorded on the first
detection of the malfunction. There are 101 diagnostic items. The diagnostic results can be read out with a
scan tool. Since memorization of the diagnostic trouble codes is backed up directly by the battery, the diag-
nostic results are memorized even if the ignition key is turned off. The diagnostic trouble codes will, however,
be erased when the battery terminal or the PCM connector is disconnected. In addition, the diagnostic trouble
code can also be erased by turning the ignition switch to "ON" position and sending the diagnostic trouble
code erase signal from scan tool to the PCM.
NOTE:  If the sensor connector is disconnected with the ignition switch turned on, the diagnostic trouble code
is memorized. In this case, send the diagnostic trouble code erase signal to the PCM in order to erase the
diagnostic memory. The 101 diagnostic items are all indicated sequentially from the smallest code number.
The PCM records the engine operating condition when the diagnostic trouble code is set. This data is called
"Freeze-frame" date. This data can be read by using the scan tool, and can then be used in simulation tests
for troubleshooting. Data items are as follows:
NOTE: If the PCM detects multiple malfunctions, the PCM stores the data for only the first item that was
detected.
However, if the PCM detects a misfire or a fuel system malfunction, PCM tores the data by giving priority to
the misfire or fuel system malfunction, regardless of the order in which the malfunction was detected.
NOTE: As for Diagnostic trouble code P1603, "freeze frame" data is not memorized.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-14

OBD- II DRIVE CYCLE

All kinds of diagnostic trouble codes (DTCs) can be monitored by carrying out a short drive according to the
following six drive cycle pattern. In other words, doing such a drive regenerates any kind of trouble which
involves illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) and
verifies the repair procedure has eliminated the trouble (the Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) is no longer illuminated).

CAUTION

Two technicians should always be in the vehicle when carrying out a test.
NOTE: Check that the diagnosis trouble code (DTC) is not output before traveling in the drive cycle pattern.
Erase the DTC if it has been output.

SCAN TOOL DISPLAY

ITEM
NO.

DATA ITEM

UNIT or STATE

ECT SENSOR

21

Engine coolant temperature sensor

°C or °F

ENGINE LOAD

87

Calculated load value

%

ENGINE SPEED

22

Crankshaft position sensor

r/min

IAT SENSOR

13

Intake air temperature sensor

°C or °F

IG. TIMING ADV

44

Ignition coils and ignition power
transistor

deg

LONG TRIM B1

81

Long-term fuel compensation

%

LONG TRIM B2

83

Long-term fuel compensation

%

MAP/MDP SNSR.

32

Manifold absolute pressure sensor

kPa

SHORT TRIM B1

82

Short-term fuel compensation

%

SHORT TRIM B2

84

Short-term fuel compensation

%

SYS. STATUS B1

88

Fuel system status (right bank)

• Open loop

• Closed loop

• Open loop-drive

condition

• Open loop-DTC set

• Closed loop-O

2

 (rear)

failed

SYS. STATUS B2

89

Fuel system status (left bank)

• Open loop

• Closed loop

• Open loop-drive

condition

• Open loop-DTC set

• Closed loop-O

2

 (rear)

failed

TP SENSOR

8A

Throttle position sensor

%

VAF/MAF SNSR.

12

Volume airflow sensor (mass airflow
rate)

gm/s

VSS

24

Vehicle speed sensor

km/h or mph

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-15

DRIVE CYCLE PATTERN LIST

.

PROCEDUR
E

MONITOR ITEM

DIAGNOSTIC TROUBLE
CODE (DTC)

1

Evaporative emission system leak monitor

P0441, P0442, P0451,
P0452, P0453, P0455,
P0456

2

Fuel trim monitor

P0171, P0172, P0174,
P0175

3

Catalytic converter monitor

P0421, P0431

4

Heated oxygen sensor monitor

P0133, P0139, P0153,
P0159

5

Exhaust gas recirculation (EGR) system monitor

P0401

6

Other monitor

Main components

P0106, P0107, P0108,
P0134, P0154, P0300,
P0301, P0302, P0303,
P0304, P0305, P0306,
P0506, P0507

Sensors and switches

P0101, P0102, P0111,
P0112, P0113, P0116,
P0117, P0118, P0121,
P0122, P0123, P0125,
P0181, P0182, P0183,
P0325, P0335, P0340,
P0461, P2227, P2228,
P2229

Wire breakage and short
circuit

P0130, P0131, P0132,
P0135, P0136, P0137,
P0138, P0141, P0150,
P0151, P0152, P0155,
P0156, P0157, P0158,
P0161, P0201, P0202,
P0203, P0204, P0205,
P0206, P0403, P0443,
P0446

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-16

PROCEDURE 1

EVAPORATIVE EMISSION SYSTEM LEAK MONITOR
DTC

P0441, P0442, P0451, P0452, P0453, P0455, P0456

Drive cycle
pattern

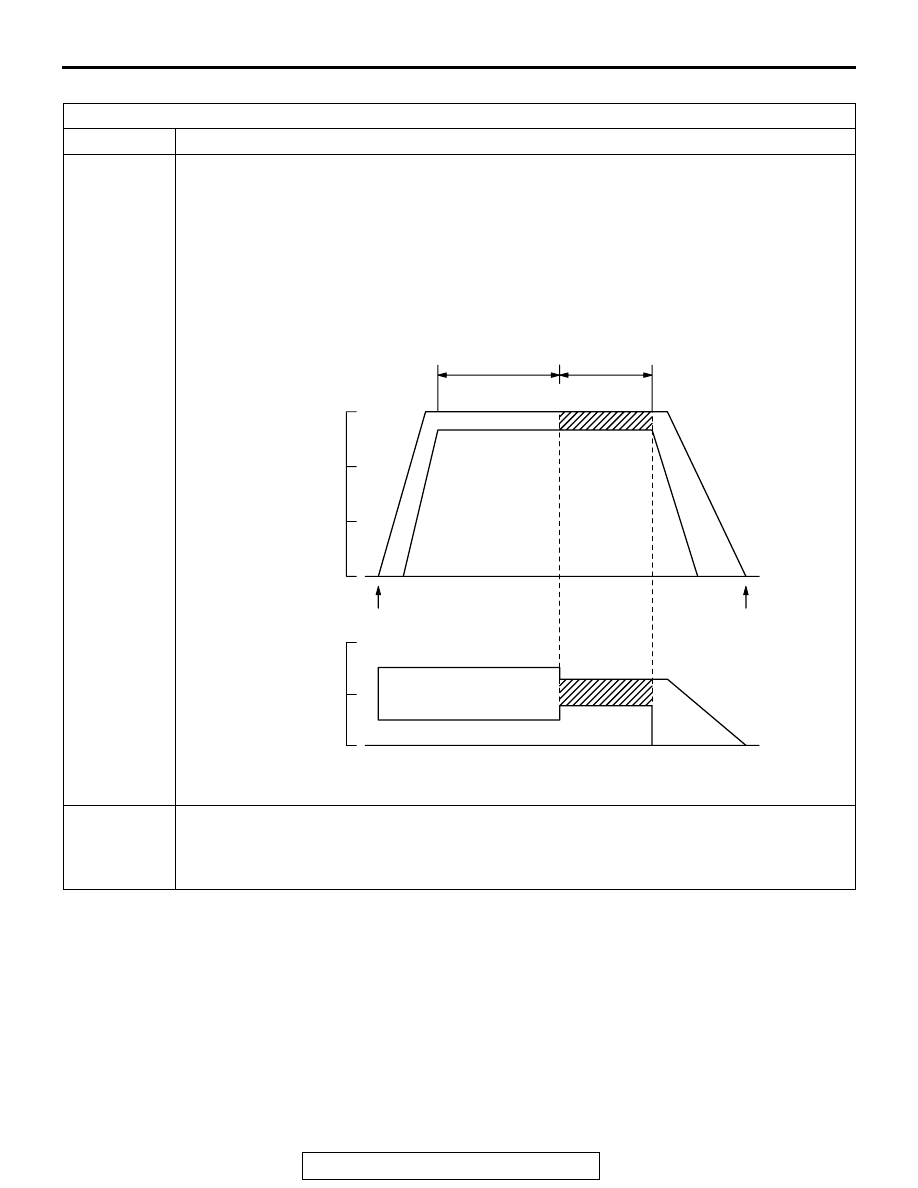

This monitor [from start to ignition switch "LOCK" (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 8 minutes. You must complete this
drive twice.
NOTE: . Vehicle speed and throttle opening angle should be within the shaded range.

Inspection
conditions

• Engine coolant temperature: 45°C (113°F) or less (The engine is stopped before the test

drive is started)

• Atmospheric temperature: 5 − 45°C (41 − 113°F)

• Condition of A/T: Selector lever D range

AKX01345

AKX01345

(3)

(2)

(1)

(4)

(5)

200 SECONDS
OR MORE

PREPARATION
PERIOD

ENGINE START

IGNITION
SWITCH:
"LOCK" (OFF)

DURING
MONITOR

150 SECONDS
OR MORE

89 - 97 km/h (55 - 60 mph)

97
(60)

64
(40)

32
(20)

0

100

50

0

VEHICLE SPEED
km/h (mph)

AKX01345 AB

CALCULATED
LOAD (%)
