Mitsubishi Montero Sport (2004+). Manual - part 129





EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-111

EXHAUST GAS RECIRCULATION (EGR) SYSTEM

GENERAL DESCRIPTION (EXHAUST GAS RECIRCULATION SYSTEM)

M1173005200338

The exhaust gas recirculation (EGR) system lowers
the nitrogen oxides (NOx) emission level. When the
air/fuel mixture combustion temperature is high, a
large quantity of NOx is generated in the combustion
chamber. Therefore, this system recirculates part of
exhaust gas from the exhaust port of the cylinder
head to the combustion chamber through the intake
manifold to decrease the air/fuel mixture combustion
temperature, resulting in reduction of NOx. The EGR
flow rate is controlled by the EGR valve so as not to
decrease the driveability.

OPERATION

When the engine coolant temperature is low, when
the engine is at idle or when a wide open throttle
operation is performed, the EGR valve is kept
closed, achieving no EGR. After warming up of the
engine, the EGR valve can be opened by the power-
train control module (PCM).
The PCM monitors the EGR system and illuminates
the Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) to indicate that there
is a malfunction.

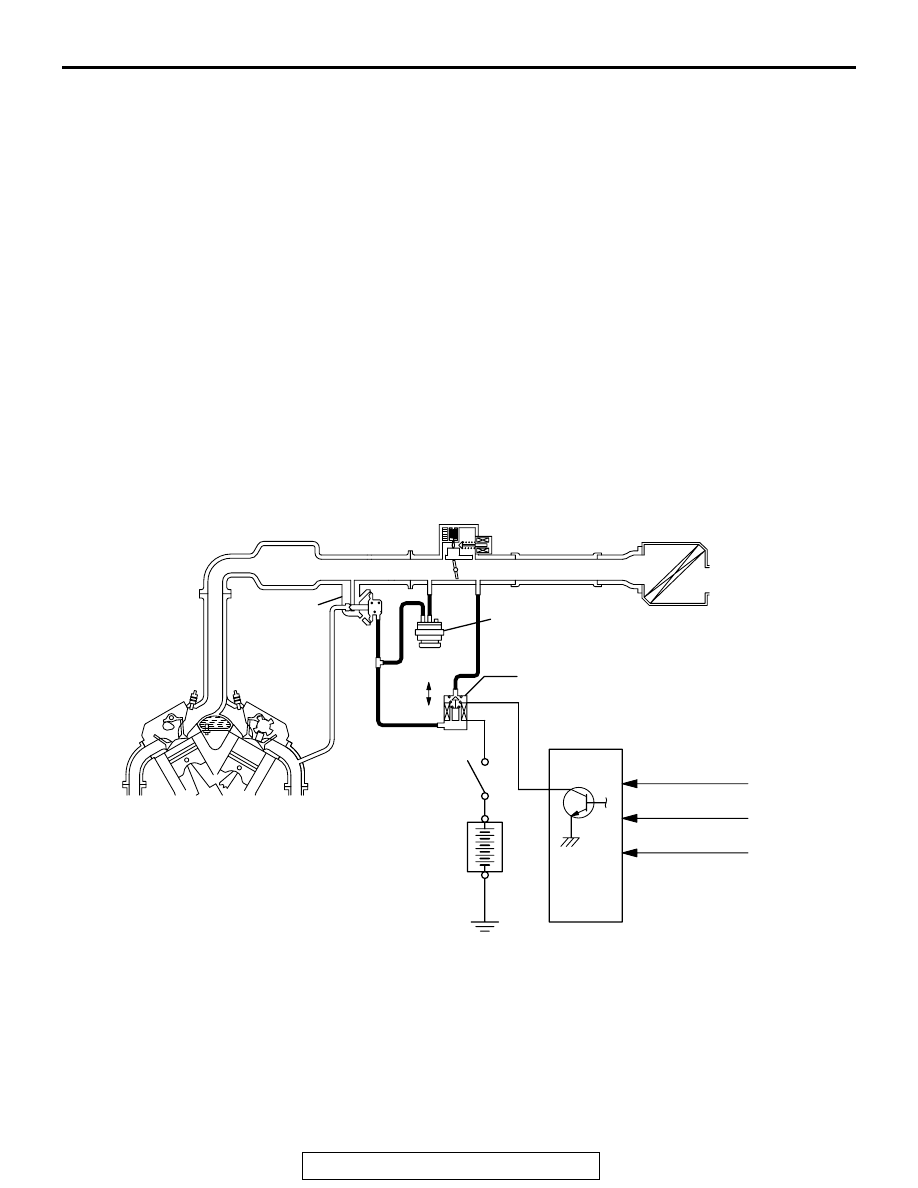

SYSTEM DIAGRAM

AKX00353

VACUUM CONTROL VALVE

ON

OFF

MFI RELAY

BATTERY

PCM

VOLUME AIRFLOW
SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

CRANKSHAFT POSITION
SENSOR

EGR VALVE

AE

EGR VACUUM REGULATOR
SOLENOID VALVE

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-112

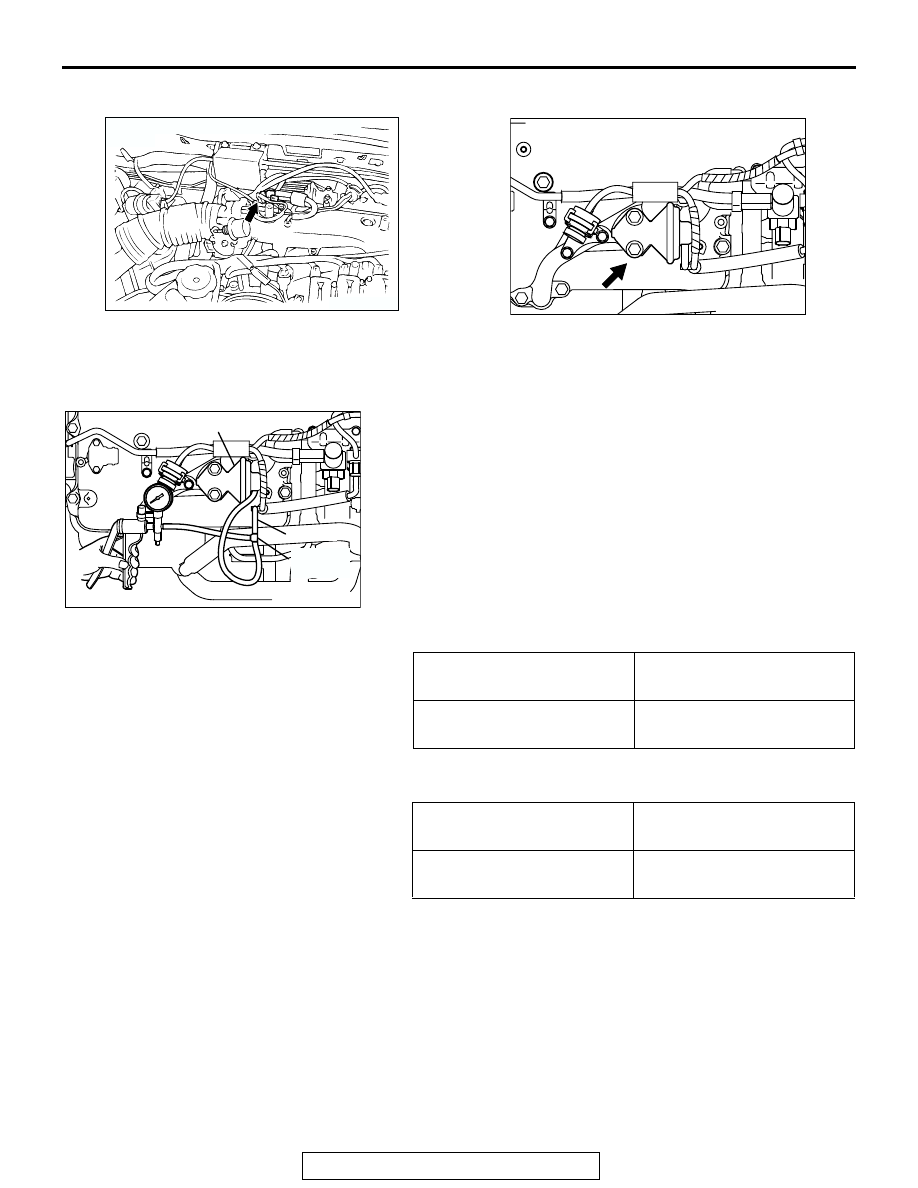

COMPONENT LOCATION

M1173007600235

EXHAUST GAS RECIRCULATION SYSTEM
CHECK

M1173002600359

1. Disconnect the vacuum hose (green stripe or black) from the

EGR valve, and then connect a hand vacuum pump via the
tee-fitting terminal.

2. Start the engine. As described in the chart below, check the

vacuum condition when the throttle valve is opened
suddenly (revving) during cold and hot engine conditions. If
the engine is hot and the vacuum dose not rise over 13 kPa
(3.9 in Hg), perform the vacuum control valve check and
EGR port vacuum check. Then continue to Step 3. If
vacuum rises momentarily, proceed to Step 3.

When engine is cold [Engine coolant temperature: 20

°

(68

°F) or less]

When engine is hot [Engine coolant temperature: 80

°

(176

°F) or less]

AK303328AB

EGR VACUUM REGULATOR SOLENOID
VALVE

AKX00344

EGR VALVE

AB

THROTTLE VALVE

NORMAL VACUUM
CONDITION

Open quickly

No vacuum (Remained as
barometric pressure).

THROTTLE VALVE

NORMAL VACUUM
CONDITION

Open quickly

Momentarily rise over 13 kPa
(3.9 in Hg)

AKX00345

EGR VALVE

BLACK

TEE-
FITTING

AB

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-113

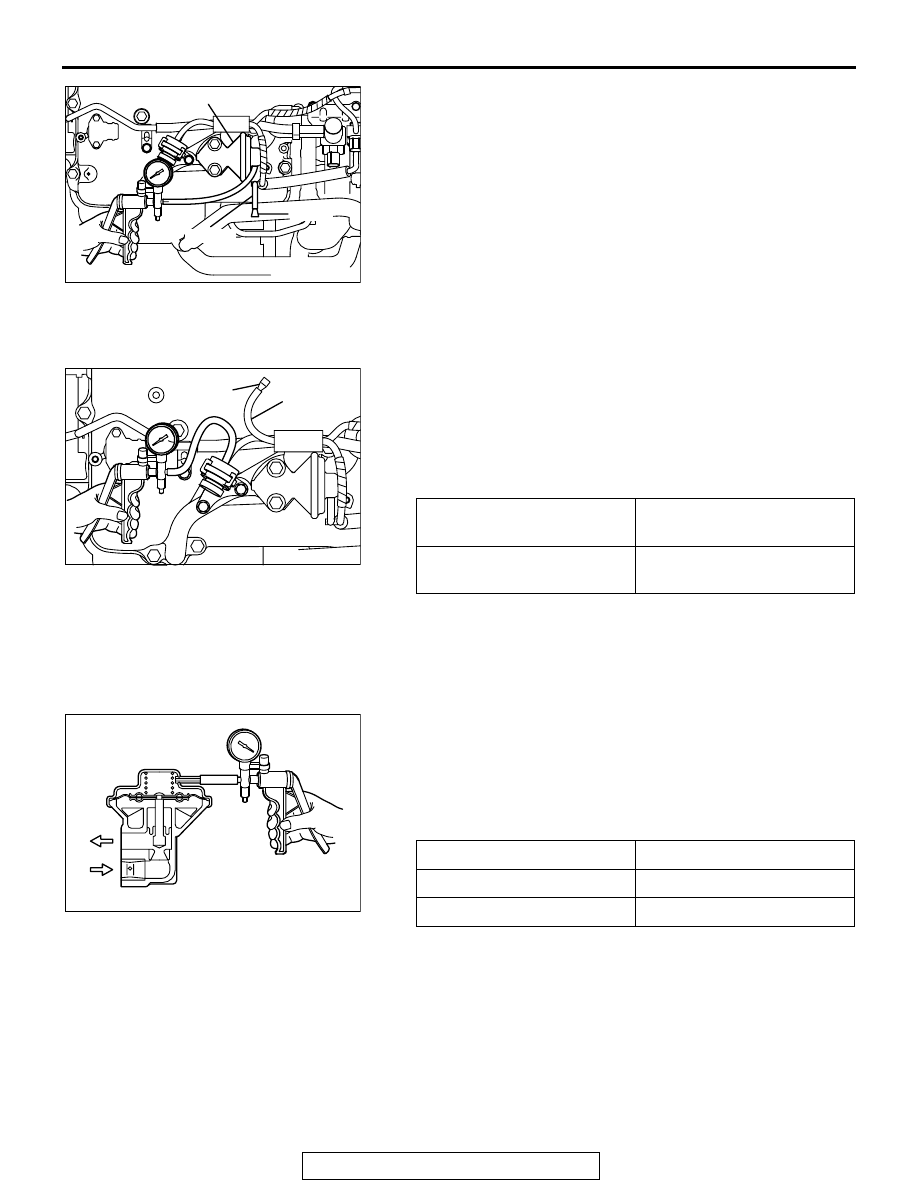

3. Stop the engine. Remove the tee-fitting and the hand

vacuum pump.

4. Connect the hand vacuum pump directly to the EGR valve.
5. Start the engine and run at idle until warm.
6. The engine idling speed should be rough when a vacuum of

29 kPa (8.7 in Hg) or more is applied to the EGR valve.

7. If engine idles rough, EGR passage is open and the system

is OK. If engine idle is not rough, the EGR passage and the
valve must be checked for restrictions. Perform the EGR
valve check. Then repeat the exhaust gas recirculation
system check.

VACUUM CONTROL VALVE CHECK

M1173002700163

1. Disconnect the vacuum hose (white stripe) from the vacuum

control valve and connect the hand vacuum pump to the
vacuum control valve

2. Plug the end of the removed vacuum hose.
3. Start the engine and run at idle.
4. As described in the chart below,check the vacuum condition.

EGR VALVE CHECK

M1173002800171

1. Removal the EGR valve and inspect for sticking, carbon

deposits, etc. If found, clean with a suitable solvent so that
the valve seats correctly.

2. Connect a hand vacuum pump to the EGR valve.
3. Apply 67 kPa (20 in Hg) of vacuum, and check to be sure

that the vacuum is maintained.

4. As described in the chart below, apply a vacuum and check

the passage of air by blowing through one side of the EGR
passage.

NOTE: Passage of air should be checked by blowing the
valve port.

5. Reinstall the EGR valve, using a new gasket, and tighten to

the specified torque.

Tightening torque: 22

± 4 Nm (16 ± 3 ft-lb)

AKX00346

EGR VALVE

BLACK

PLUG

AB

ENGINE CONDITION

NORMAL VACUUM
CONDITION

Idling

Approximately 21.3

− 24.0

kPa (6.3

− 7.1 in Hg)

AKX00347

PLUG

WHITE
STRIPE

AB

VACUUM

PASSAGE OF AIR

5.3 kPa (1.6 in Hg) or less

Air is not blown out

29 kPa (8.7 in Hg) or more

Air is blown out

AKX00348

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-114

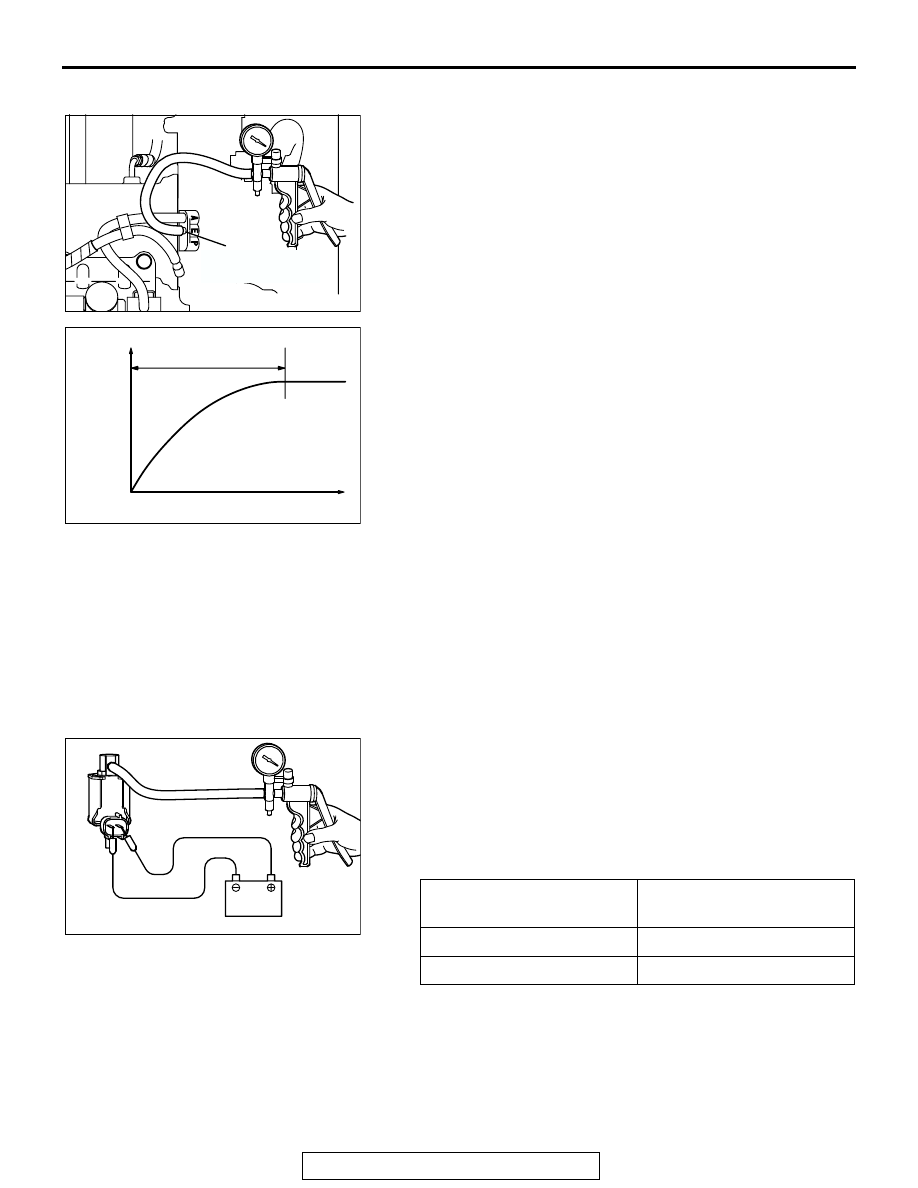

EGR PORT VACUUM CHECK

M1173002900093

1. Disconnect the vacuum hose (green stripe) from the throttle

body EGR vacuum nipple and connect a hand vacuum
pump to the nipple.

2. Start the engine.
3. Measure engine vacuum at idle.

Standard value: 51 kPa (15 in Hg) or more

4. Reset the vacuum pump to "0" (Release vacuum).
5. Using a stop watch, measure how long it takes for the

vacuum gauge to reach 51 kPa (15 in Hg).

Standard value: 1.0 second or less

6. If it takes more than 1.0 second for the gauge to reach 51

kPa (15 in Hg), the EGR may be restricted and should be
cleaned.

EGR VACUUM REGULATOR SOLENOID VALVE
CHECK

M1173003100250

1. Disconnect the vacuum hose (black, yellow stripe) from the

EGR vacuum regulator solenoid valve.
NOTE: When disconnecting the vacuum hose, always make
sure that it can be reconnected at its original position.

2. Disconnect the harness connector.
3. Connect a hand vacuum pump to the nipple (A) of the EGR

vacuum regulator solenoid valve. (Refer to the illustration at
left.)

4. As described in the chart below, check airtightness by

applying a vacuum with voltage applied directly from the
battery to the EGR vacuum regulator solenoid valve and
without applying voltage.

AKX00349 AB

EGR PORT
VACUUM NIPPLE

AKX00350

1.0 SECOND

VACUUM

RESET

TIME

AB

BATTERY POSITIVE
VOLTAGE

NORMAL CONDITION

Not applied

Vacuum leaks

Applied

Vacuum maintained

AKX00351

A

B

AB
