MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-63

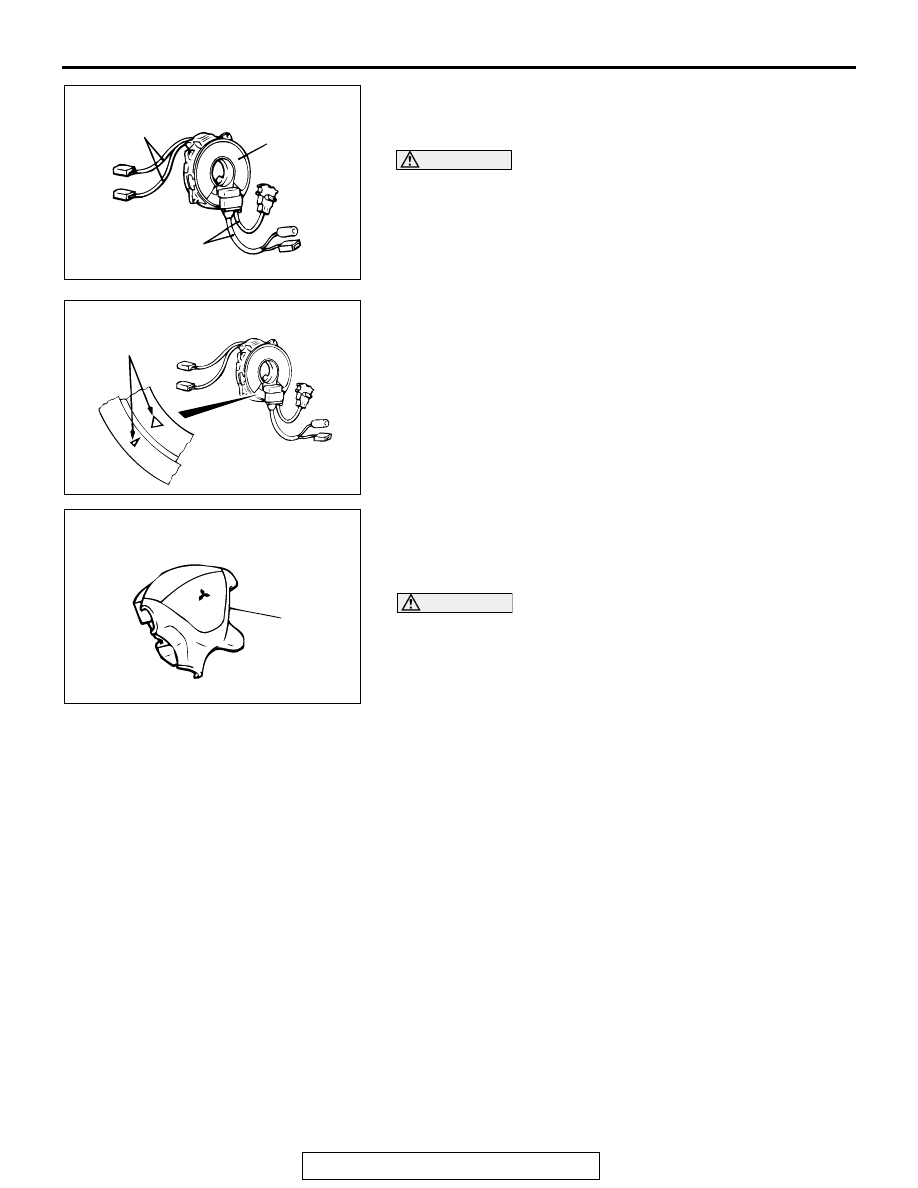

6. Check the clock spring connectors and protective tube for

damage, and terminals for deformities.

7. Visually check the case for damage.

WARNING

If the clock spring's mating mark is not properly
aligned, the steering wheel may not completely rotate
during a turn, or the flat cable within the clock spring
may be severed, obstructing normal operation of the
SRS and possibly leading to serious injury to the
vehicle's driver and passenger.

8. Align the mating marks of the clock spring, and after turning

the front wheels to the straight-ahead position, install the
clock spring to the column switch.

Mating marks alignment
After turning the clock spring fully clockwise, turn it approxi-

mately 3 4/5 turns counterclockwise until the mating marks
are aligned.

9. Install the steering column covers, steering wheel and air

bag module.

10.Check the steering wheel for noise, binds or difficult

operation.

DANGER

The SRS may not activate if any of the above compo-
nents are not installed properly, which could result in
serious injury or death to the vehicle's driver and pas-
senger.

11.Check the steering wheel for excessive free play.

REPLACE ANY VISUALLY INSPECTED PART IF IT FAILS
THAT INSPECTION. (Refer to GROUP 52B, Air Bag Module
and Clock Spring

P.52B-84

.)

.

AC003384AB

CASE

PROTECTIVE TUBE

PROTECTIVE TUBE

AC003385

MATING MARKS

AB

AC003386AB

AIR BAG
MODULE

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-64

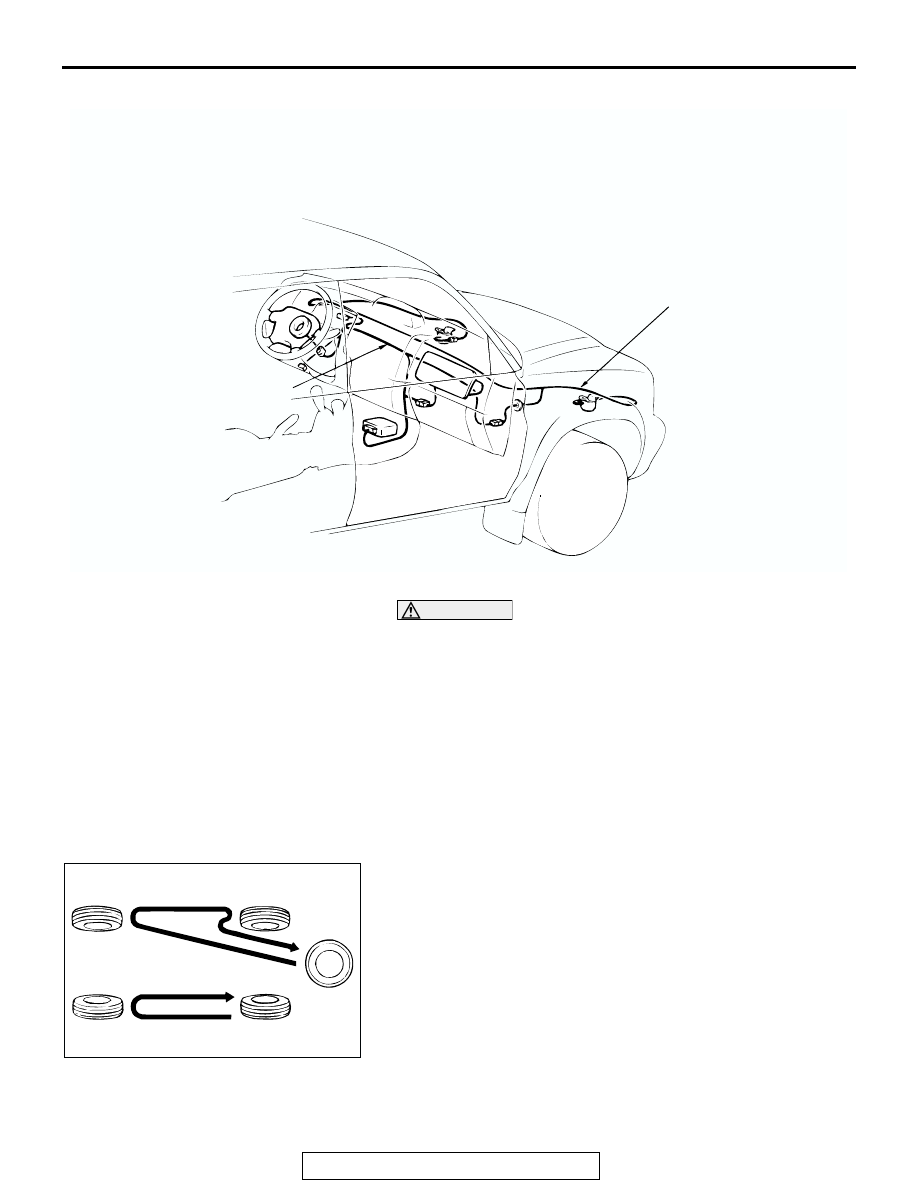

WIRING HARNESS

1. Check the connector for poor connection.

DANGER

The SRS system may not operate if SRS harnesses or
connectors are damaged or improperly connected,
which could result in serious injury or death to the
vehicle's driver and passenger.

2. Check the harness for binds, the connectors for damage,

and the terminals for deformation.
REPLACE ANY CONNECTORS OR HARNESS THAT
FAILS THE VISUAL INSPECTION. (Refer to GROUP 52B,
SRS Service Precautions

P.52B-17

.)

26. TIRES (ROTATE)

M1001008900347

Rotate the tires to equalize the wear and help extend tire life.
When rotating tires, check for uneven wear and damage.

AC003387AB

BODY WIRING
HARNESS

FRONT WIRING
HARNESS

AC003388

MAIN SEALANT AND ADHESIVE TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-65

MAIN SEALANT AND ADHESIVE TABLE

M1001003800248

APPLICATION

3M

 NO.

LOCTITE

/

PERMATEX

NO.

ENGINE AND
DRIVETRAIN

Between rocker cover and
camshaft bearing cap.
Between rocker cover,
semicircular packing and
cylinder head. Between oil
pressure switch and engine.

3M

 AAD Part No. 8660

Ultrapro High Temp. Silicone
Gasket or 3M

 AAD Part No.

8679 Black/8678 Black
Press-In-Place Silicone
gasket strips

Permatex

 Ultra Black

598, No.82180

Between engine coolant
temperature switch, engine
coolant temperature sensor,
thermo valve, thermo switch,
joint, engine coolant
temperature gauge unit
(large-size) and engine

3M

 AAD Part No. 8731

Medium Strength Blue
Threadlocker

Loctite

242 Blue Service

Tool Removable 24200

Between oil pan and engine
block

3M

 AAD Part No. 8672,

3M

 AAD Part No. 8704 or

3M

 AAD Part No. 8679/

3M

 AAD Part No. 8678

Permatex

 Ultra Gray

599, No.82194

WEATHER-STR
IPPING FOR
GLASS

Between tempered glass,
body flanges, and
weatherstrip

3M

 AAD Part No. 8509

Auto Bedding and Glazing
Compound or 3M

 AAD Part

No. 8633 Windo-weld
Resealant

WEATHER-STR
IPPING FOR
GLASS

Between laminated glass and
weatherstrip

3M

 AAD Part No. 8633

INTERIORS

Adhesive of vinyl chloride
cloth

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8064

Vinyl Trim Adhesive

Permatex

 Vinyl Repair

Kit No.81786

Adhesion of door
weatherstrip

3M

 AAD Part No. 8001

(yellow) or 3M

 AAD Part

No. 8008 (black) Super
Weatherstrip Adhesive or
3M

 AAD Part No. 8011

Black Weatherstrip Adhesive

Permatex

 Super Black

Weatherstrip Adhesive
No.82, 81850

Sealing of various grommets
and packing

3M

 AAD Part No. 8509 or

3M

 AAD Part No. 8678

Adhesion of headliners and
various interior decorative
materials

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8090

Super Trim Adhesive

Permatex

 Spray

Adhesive No.82019

MAIN SEALANT AND ADHESIVE TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-66

BODY
SEALANTS

Sealing of sheet metal joints,
drip rail, floor, side panels,
trunk, front panel, tail gate
hinge

3M

 AAD Part No. 8531

Heavy Drip-Check Sealer
(gray) or 3M

 AAD Part No.

8302 Ultrapro Autobody
Sealant (clear) or 3M

 AAD

Part No. 8361 Urethane A/B
Sealant (gray or white)

Miscellaneous body sealants
(originally mounted
w/adhesive tape)

• Waterproof door film

• Fender panel

• Splash shield

• Mud guard

• Rear combination lamp

3M

 AAD Part No. 8633

Windo-weld Resealant

Fuel Tank and Pad

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8090

Super Trim Adhesive

Permatex

 Spray

Adhesive No.82019

CHASSIS
SEALANT

Sealant of various flange
faces and threaded parts.
Packing of fuel gauge unit

3M

 AAD Part No. 8730

High Strength Red
Threadlock or 3M

 AAD Part

No. 8731 Medium Strength
Blue Threadlocker

Loctite

272 High Strength

and High Temperature
27200

Sealing of various threaded
parts, dust covers. Differential
carrier packing, dust covers
and ball joint and linkage.
Packing and shims of
steering box, sealing of rack
support cover and top cover
of steering box housing, seal
of junction face of knuckle
arm flange

3M

 AAD Part No. 8672

Ultrapro High Temp. Silicone
Gasket or 3M

 AAD Part No.

8679 (black) or 3M

 AAD

Part No. 8678 (black)
Press-In-Place Silicone
gasket strips 3M

 AAD Part

No. 8661 or 3M

 AAD Part

No. 8663 Super Silicone
sealant

Permatex

 The Right Stuff

No.25223

Seal of brake shoe hold down
pin and wheel cylinder of
drum brakes

3M

 AAD Part No. 8633

Windo-weld Resealant

APPLICATION

3M

 NO.

LOCTITE

/

PERMATEX

NO.
