POWER DISTRIBUTION SYSTEM

TSB Revision

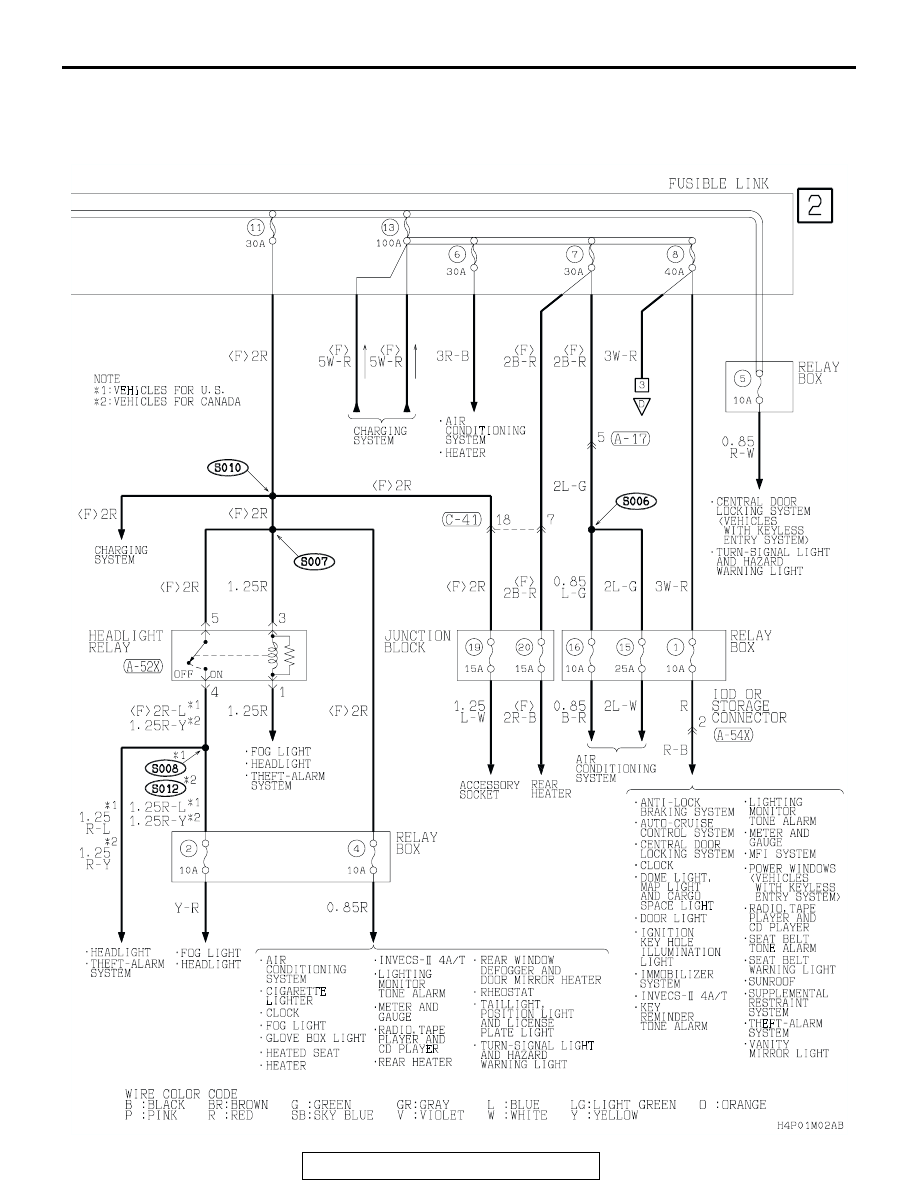

CIRCUIT DIAGRAMS

90-23

POWER DISTRIBUTION SYSTEM

TSB Revision

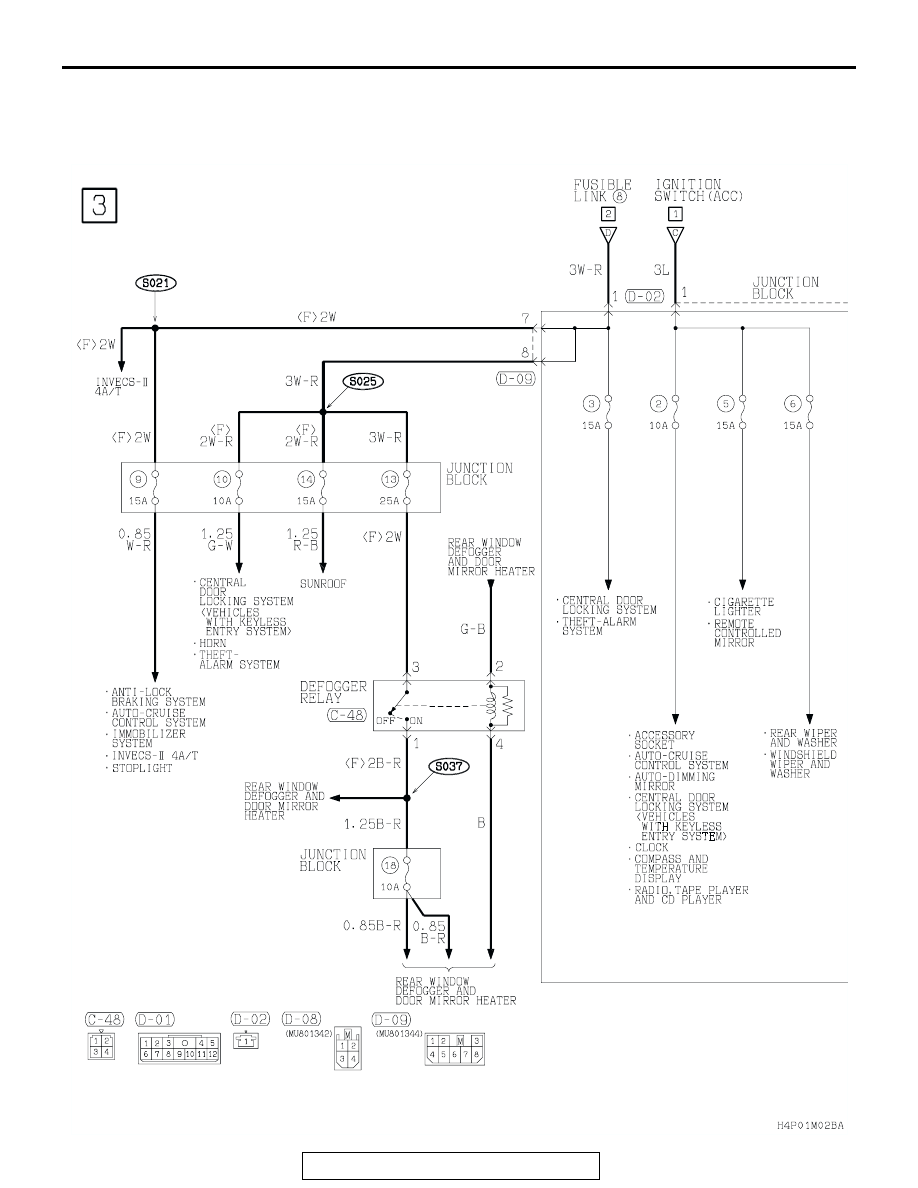

CIRCUIT DIAGRAMS

90-24

POWER DISTRIBUTION SYSTEM (CONTINUED)

POWER DISTRIBUTION SYSTEM

TSB Revision

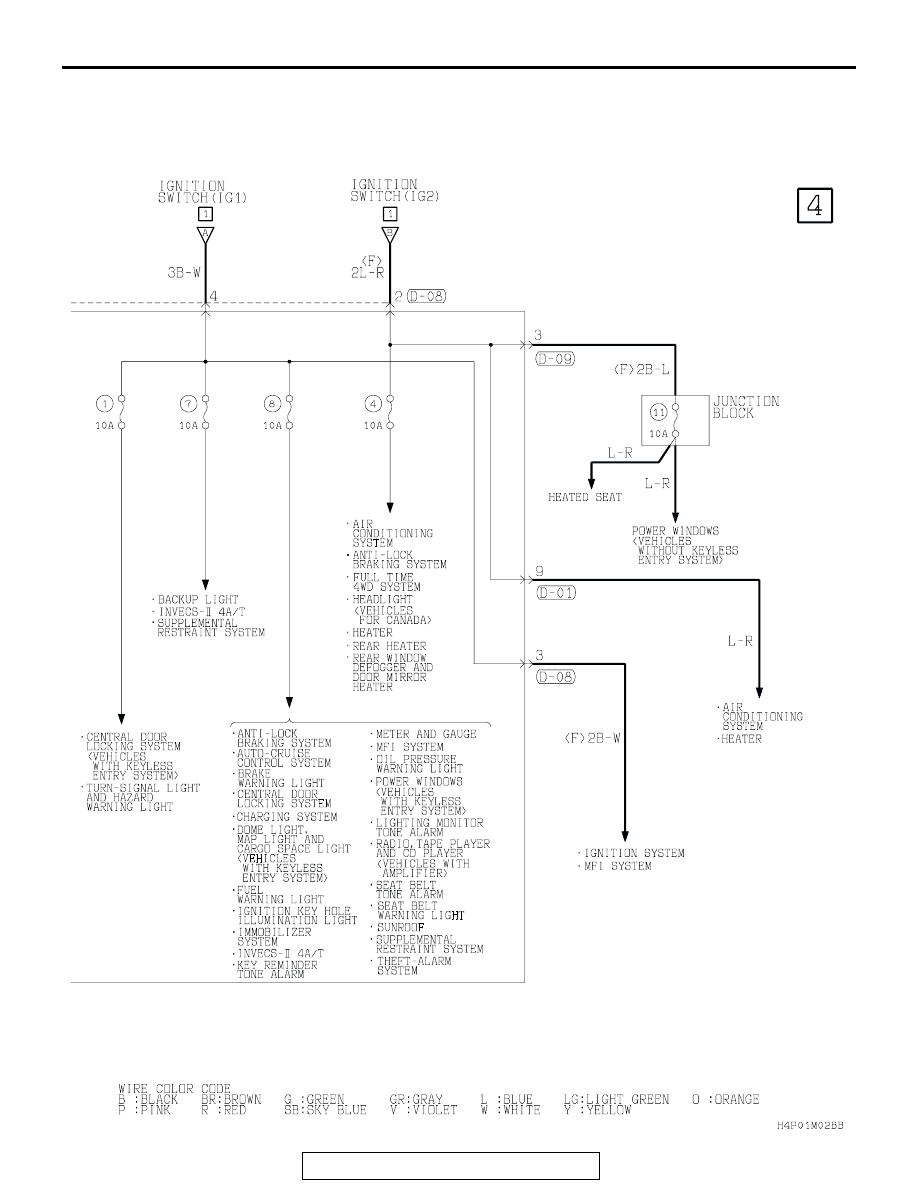

CIRCUIT DIAGRAMS

90-25

STARTING SYSTEM

TSB Revision

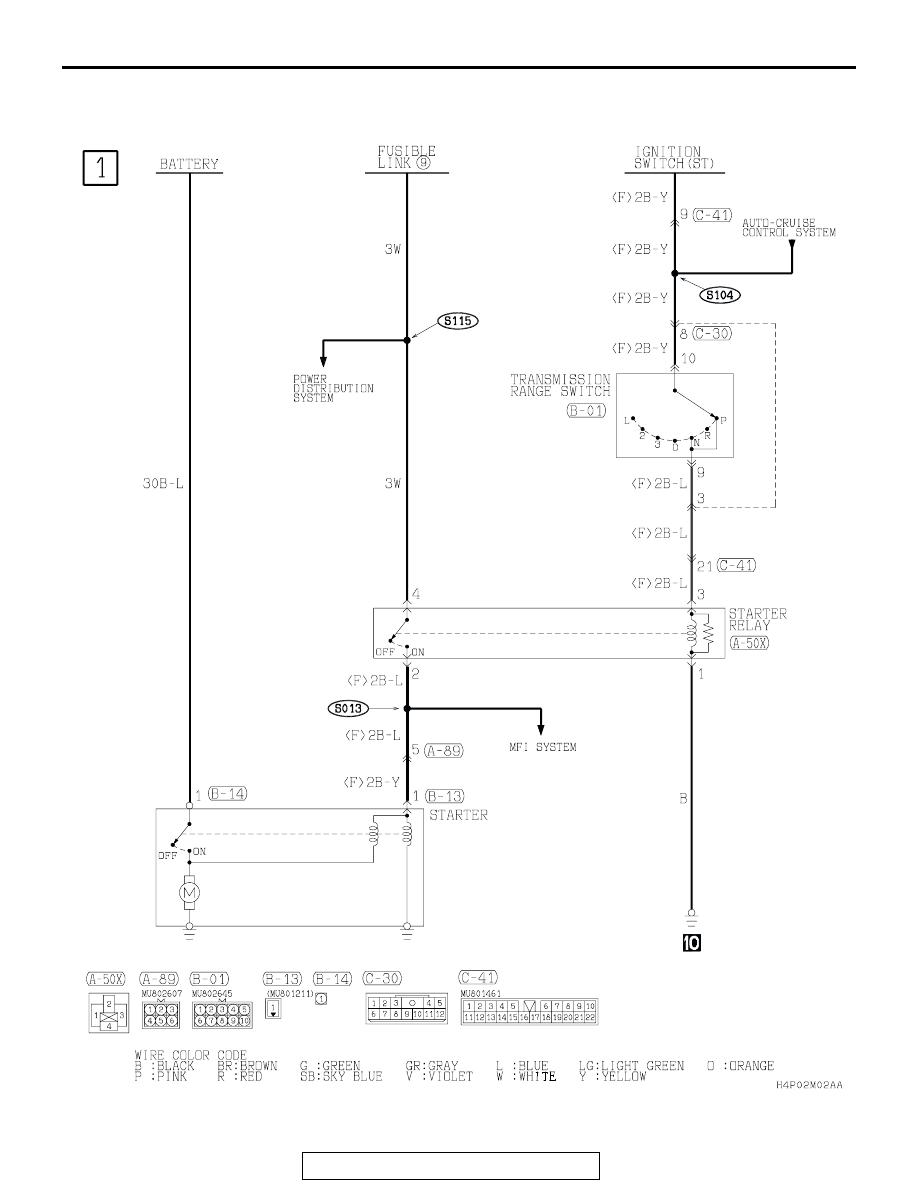

CIRCUIT DIAGRAMS

90-26

STARTING SYSTEM

M1901000500917
