Mitsubishi Montero Sport (2004+). Manual - part 18





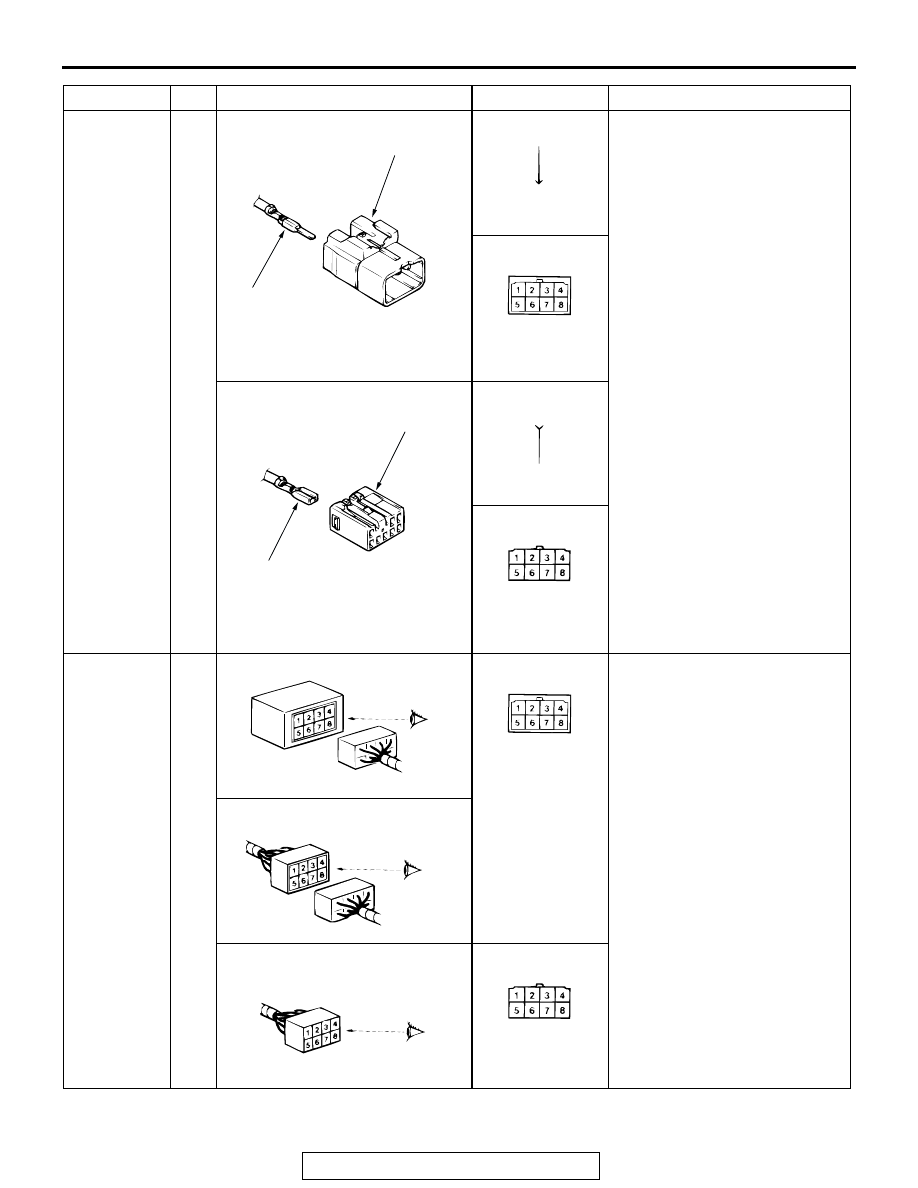

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-7

ITEM

NO. CONNECTOR/ GROUNDING

SYMBOL

CONTENTS

Connector
and terminal
marking

1

The male and female terminals
are indicated as shown. The
connector with male terminal(s)
is called as male connector and
indicated by two connector
contour lines, while the
connector with female
terminal(s) is called as female
connector and indicated by
single connector contour line.

Connector
symbol
marking

2

The symbol indicates the
connector is viewed as shown.
At a device connection, the
connector symbol on the device
side is shown. For an
intermediate connector, the
male connector symbol is
shown. For spare connectors
and check connectors, no
device is connected, and so the
harness-side connector symbol
is shown for these connectors.
For the data link connector, its
contents differ from the previous
description. Refer to the
"MUT-II/MUT-II+ Reference
Manual" for details.

ACX01251AB

Male terminal

Male connector

ACX01252AB

Male terminal

ACX01253 AB

ale connector

ACX01254 AB

Female terminal

Female connector

ACX01255AB

Female terminal

ACX01256 AB

Female connector

ACX01257AB

Device

ACX01253

ACX01258AB

Intermediate connector

ACX01816

Spare connector, check connector

AB

ACX01256

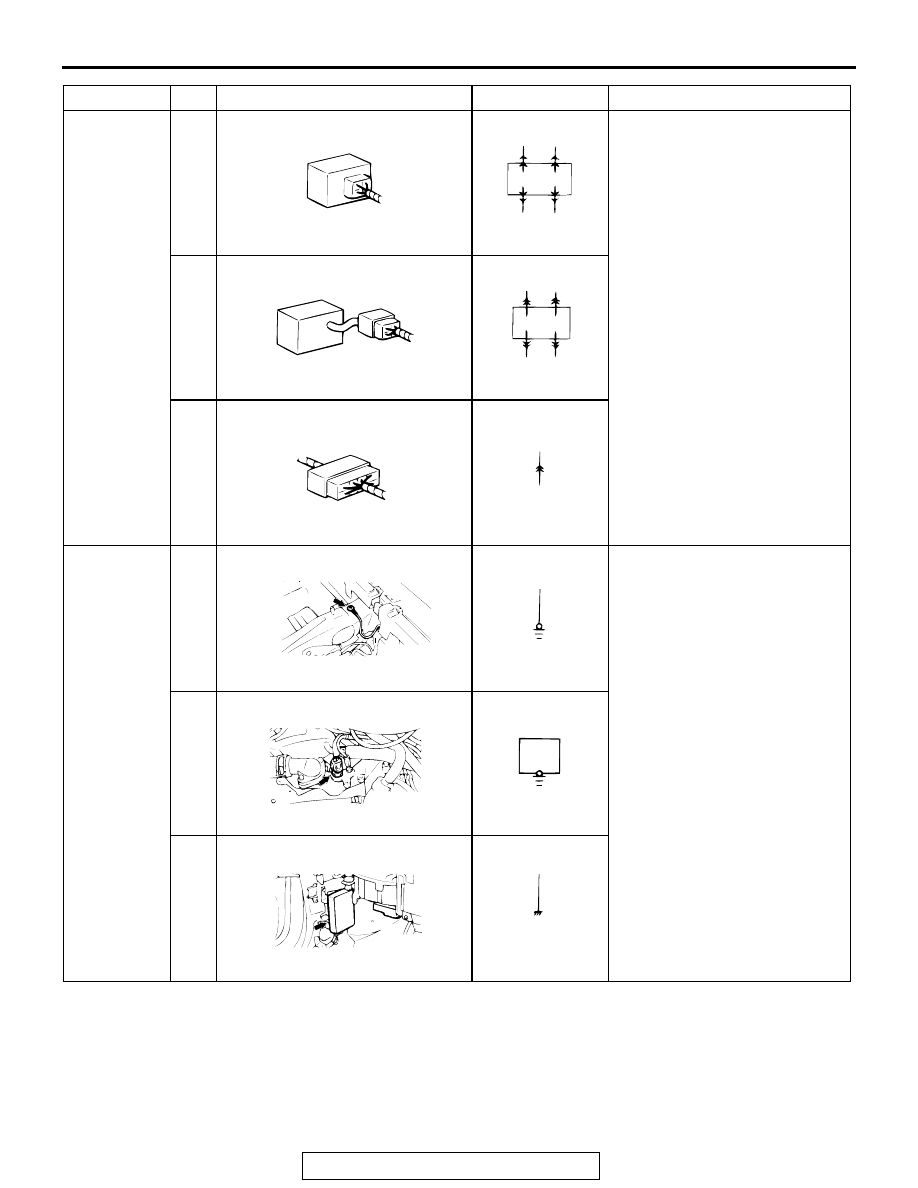

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-8

Connector
connection
marking

3

Connection between a device
and the harness is either by
direct insertion in the device
(direct connection type) or by
connection with a harness
connector furnished on the
device side (harness
connection type). The two types
are indicated as illustrated.

4

5

Ground
markings

6

Grounding is either by body
ground, device ground or
control unit interior ground.
These are indicated as
illustrated.

7

8

ITEM

NO. CONNECTOR/ GROUNDING

SYMBOL

CONTENTS

ACX01260 AB

Direct connection type

ACX01261

ACX01262 AB

Harness connection type

ACX01263

ACX01264AB

Intermediate connector

ACX01265

ACX01273

AB

Body ground

ACX01274

ACX01275

AB

Device ground

ACX01276

ACX01277

AB

Ground in control unit

ACX01278

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-9

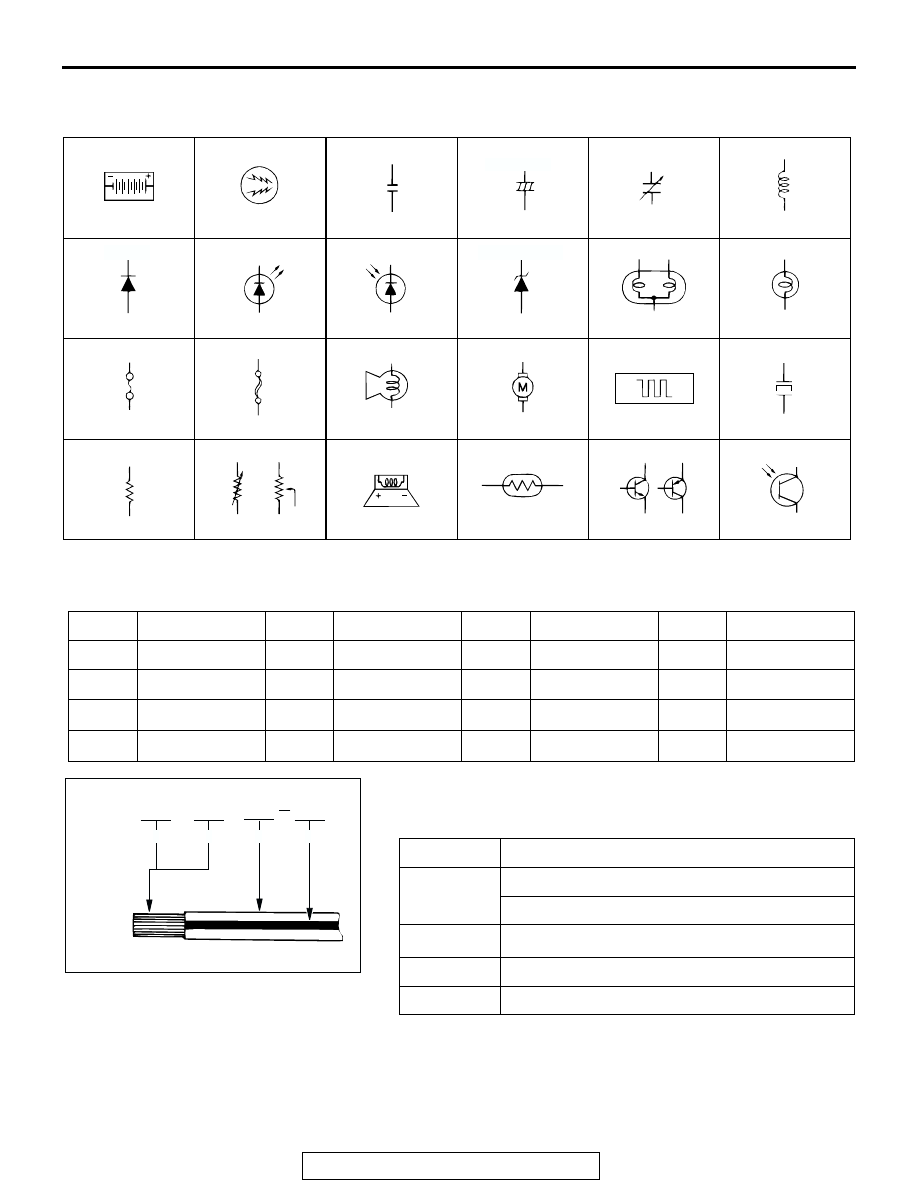

SYMBOLS (EXCEPT CONNECTOR AND GROUNDING)

Devices appearing in circuit diagrams are indicated by the following symbols.

WIRE COLOR CODES

Wire colors are identified by the following color codes.

If a cable has two colors, the first of the two color code charac-
ters indicates the basic color (color of the cable coating) and
the second indicates the marking (tracer) color.

NOTE:
*: No code indicates 0.5 mm

2

(0.0008 in

2

). Cable color code in

parentheses indicates 0.3 mm

2

 (0.0005 in

2

).

ACX02377AB

Battery

ACX02378 AB

Buzzer

ACX02379AB

Capacitor

ACX02380 AB

Electrolytic

capacitor

ACX02381 AB

Variable

capacitor

ACX02382 AB

Coil

ACX02383 AB

Diode

ACX02384

Light emitting
diode

AB

ACX02385

Photo diode

AB

ACX02386 AB

Zener diode

ACX02387AC

Dual filament bulb

ACX02388AC

Single filament

bulb

ACX02389AB

Fuse

ACX02390AB

Fusible link

ACX02391AB

Horn

ACX02392 AB

Motor

ACX02393 AB

Pulse generator

ACX02394 AB

Piezoelectric
device

ACX02395AB

Resistor

ACX02396AB

Variable resistor

ACX02397AB

Speaker

ACX02398 AB

Thermistor

ACX02399AB

Transistor

ACX02400AB

Photo transistor

CODE

WIRE COLOR

CODE

WIRE COLOR

CODE

WIRE COLOR

CODE

WIRE COLOR

B

Black

L

Blue

R

Red

Y

Yellow

BR

Brown

LG

Light green

SB

Sky blue

G

Green

O

Orange

V

Violet

GR

Gray

P

Pink

W

White

NO.

MEANING

1

<F>: Flexible wire

<T>: Twisted wire

2

Wire size (mm

2

)*

3

Basic color (color of the cable coating)

4

Marking color

ACX01279 AB

<F>

1.25

G

B

1

2

3

4

Example:

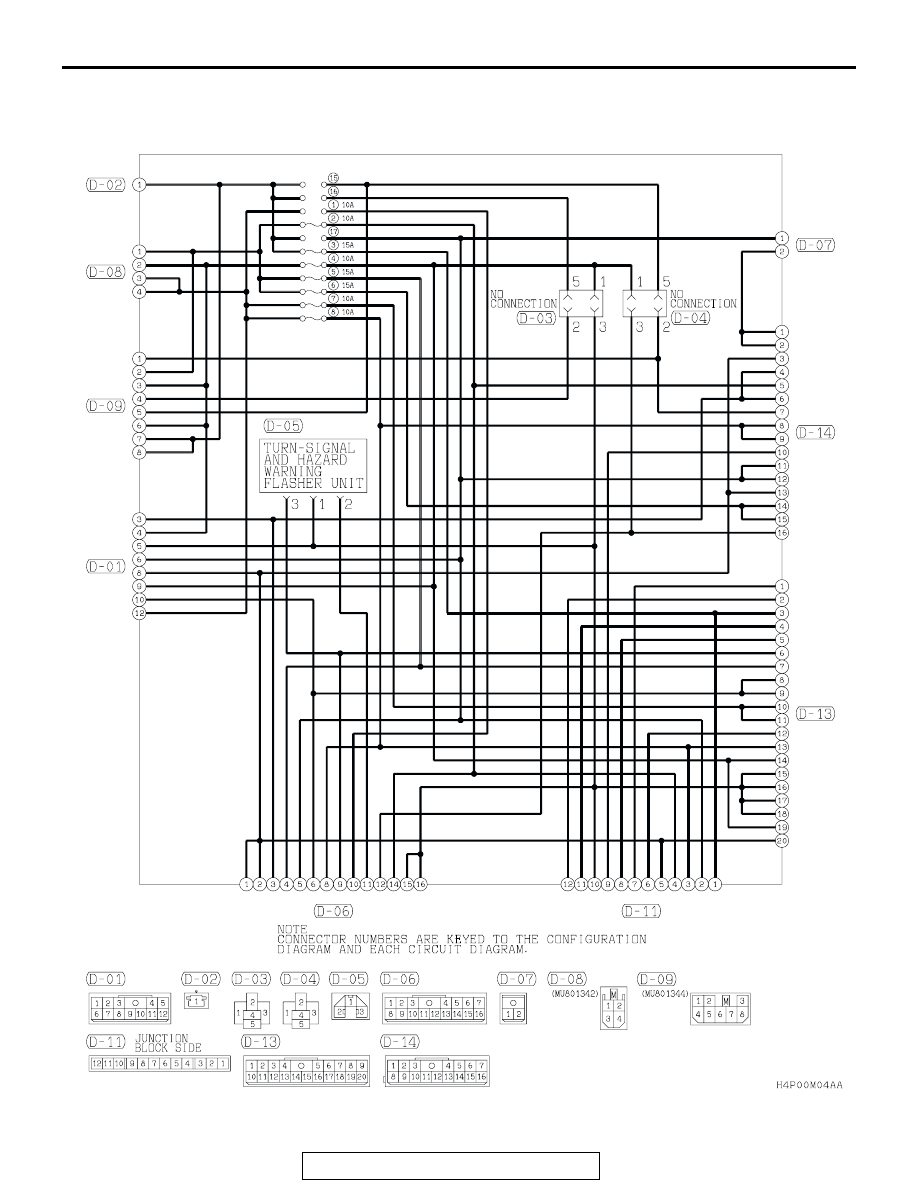

JUNCTION BLOCK

TSB Revision

CIRCUIT DIAGRAMS

90-10

JUNCTION BLOCK

M1901000200682
