Mitsubishi Montero Sport (2004+). Manual - part 5

JUNCTION BLOCK AND STEERING COLUMN

TSB Revision

CONFIGURATION DIAGRAMS

80A-17

AC002423

CONNECTOR COLOR CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE

NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

D-28

AC

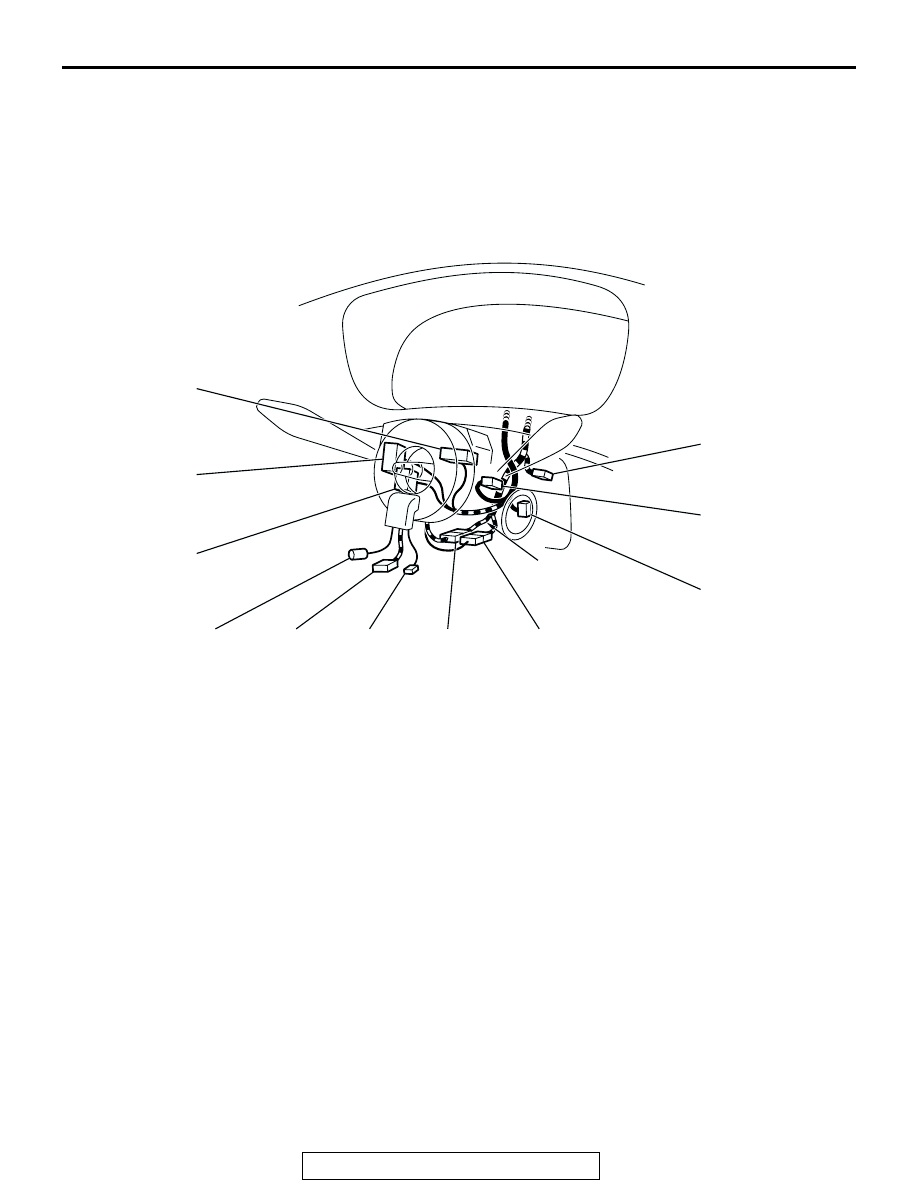

STEERING COLUMN

D-15

D-16

Y

D-17
D-25

D-18

D-19

D-20

D-21

D-22

D-23

D-24

D-15

(6-B)

IGNITION SWITCH

D-16

(7)

KEY REMINDER SWITCH

D-17

(3)

CLOCK SPRING <WITHOUT
AUTO-CRUISE CONTROL SYSTEM>

D-18

(2-R)

CLOCK SPRING

D-19

(3-Y)

AUTO-CRUISE CONTROL SWITCH

D-20

(2)

AIR BAG MODULE (SQUIB)
(DRIVER'S SIDE)

D-21

(1)

HORN SWITCH

D-22

(6)

COLUMN SWITCH

D-23

(12)

COLUMN SWITCH

D-24

(10)

COLUMN SWITCH

D-25

(4)

CLOCK SPRING <WITH
AUTO-CRUISE CONTROL SYSTEM>

D-26

(12-B)

ETACS-ECU <WITH KEYLESS
ENTRY SYSTEM>

D-27

(16-B)

ETACS-ECU <WITH KEYLESS
ENTRY SYSTEM>

D-28

(2)

IGNITION KEY RING ANTENNA
<IMMOBILIZER SYSTEM>

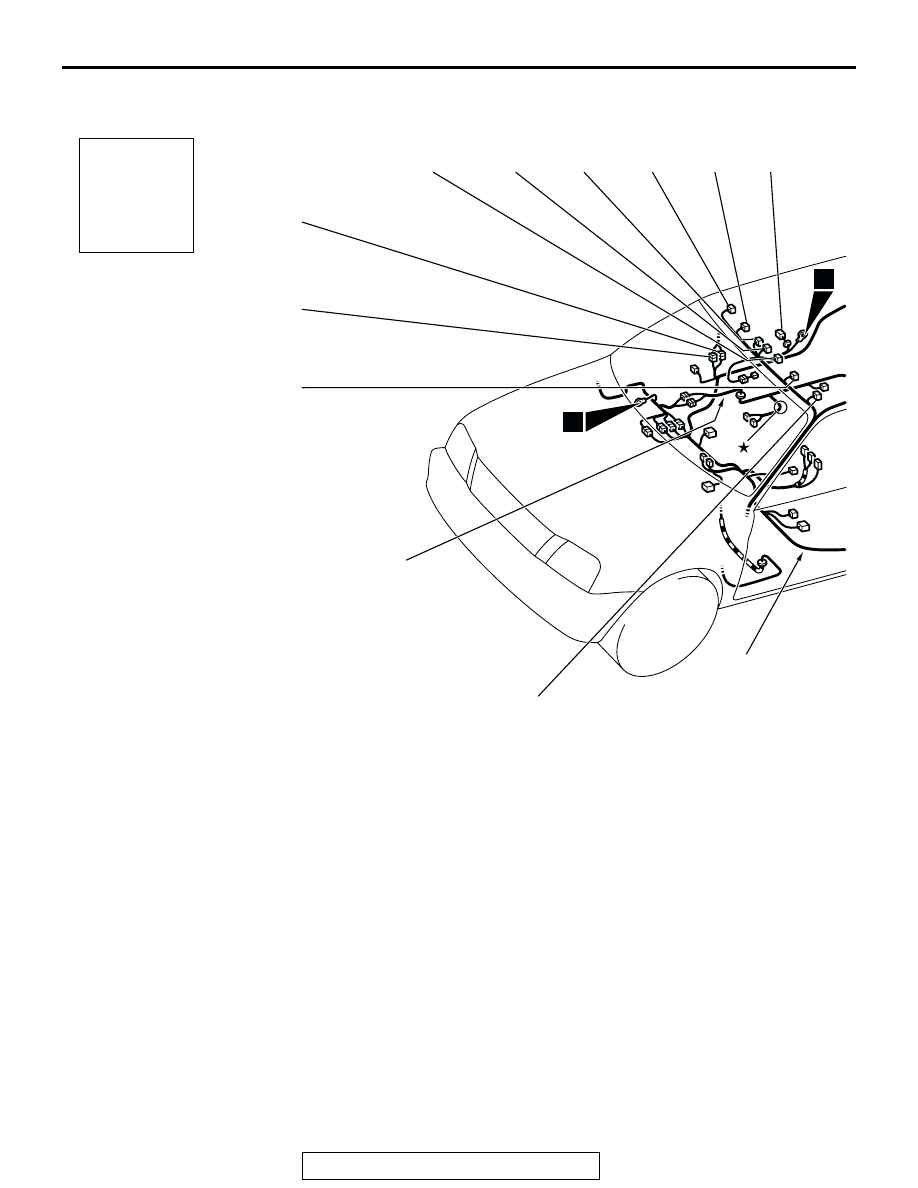

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-18

FLOOR AND ROOF

M1801000900394

AC002479

E-03

AD

Connector
symbol

-01
thru
-33

E

E-04

E-02

E-01

E-09

E-05

E-06

E-07

E-08

E-10

5

6

FLOOR
WIRING
HARNESS

FRAME
WIRING
HARNESS

E-01

(7)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(RH) COMBINATION

E-02

(6)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(RH) COMBINATION

E-03

(6)

SUNROOF SWITCH

E-04

(4)

CLOCK

E-05

(2)

MAP LIGHT <WITHOUT SUNROOF>

E-06

(2)

VANITY MIRROR LIGHT (RH)

E-07

(10)

SUNROOF-ECU

E-08

(1-B)

REAR DOOR SWITCH (RH)

E-09

(2)

SUNROOF SWITCH

E-10

(2)

VANITY MIRROR LIGHT (LH)

E-11

(18)

AMPLIFIER

E-12

(1)

ACCESSORY SOCKET (2)

E-13

(1-B)

ACCESSORY SOCKET (2)

E-14

(2)

REAR WASHER MOTOR

E-15

(6-B)

REAR COMBINATION LIGHT (RH)

E-16

(2)

CARGO SPACE LIGHT

E-18

(13)

ROOF WIRING HARNESS AND
LIFTGATE WIRING HARNESS
COMBINATION

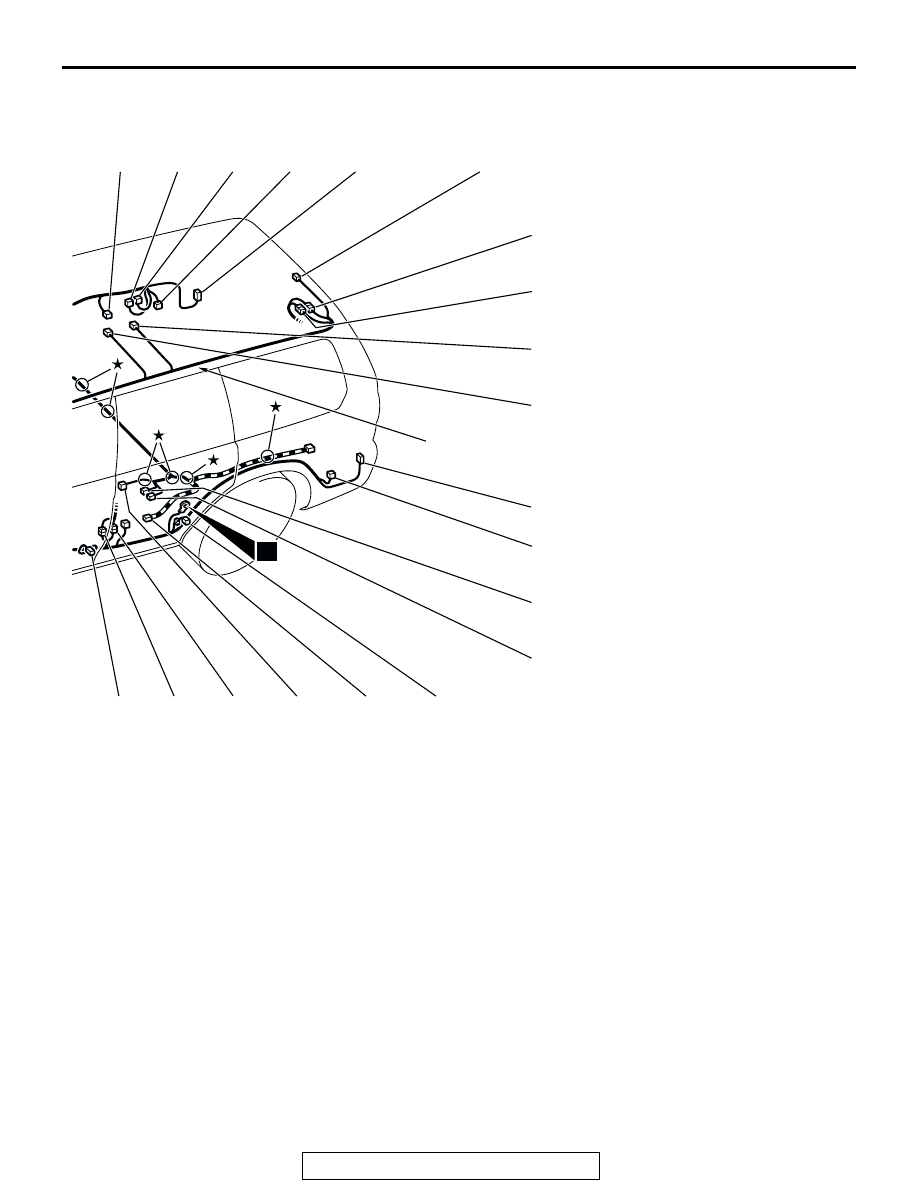

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-19

AC002480

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

AD

E-11

E-12

E-13

E-14

E-15

E-16

E-18

E-19

E-20

E-21

E-23

E-25

E-26

E-28

E-27

E-29

E-30

E-31

E-32

E-33

8

ROOF
WIRING
HARNESS

E-19

(1)

ROOF WIRING HARNESS AND
LIFTGATE WIRING HARNESS
COMBINATION

E-20

(2-GR)

DOME LIGHT <WITH SUNROOF>

E-21

(2-GR)

DOME LIGHT <WITHOUT
SUNROOF>

E-23

(6-B)

REAR COMBINATION LIGHT (LH)

E-25

(6-B)

KEYLESS ENTRY RECEIVER-ECU

E-26

(2)

FUEL PUMP

E-27

(1-B)

REAR DOOR SWITCH (LH)

E-28

(3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

E-29

(2-B)

WHEEL SPEED SENSOR (REAR:
LH) <ABS>

E-30

(3)

FUEL GAUGE UNIT

E-31

(7)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(LH) COMBINATION

E-32

(6)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(LH) COMBINATION

E-33

(2)

FRONT DOOR SWITCH (LH)

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-20

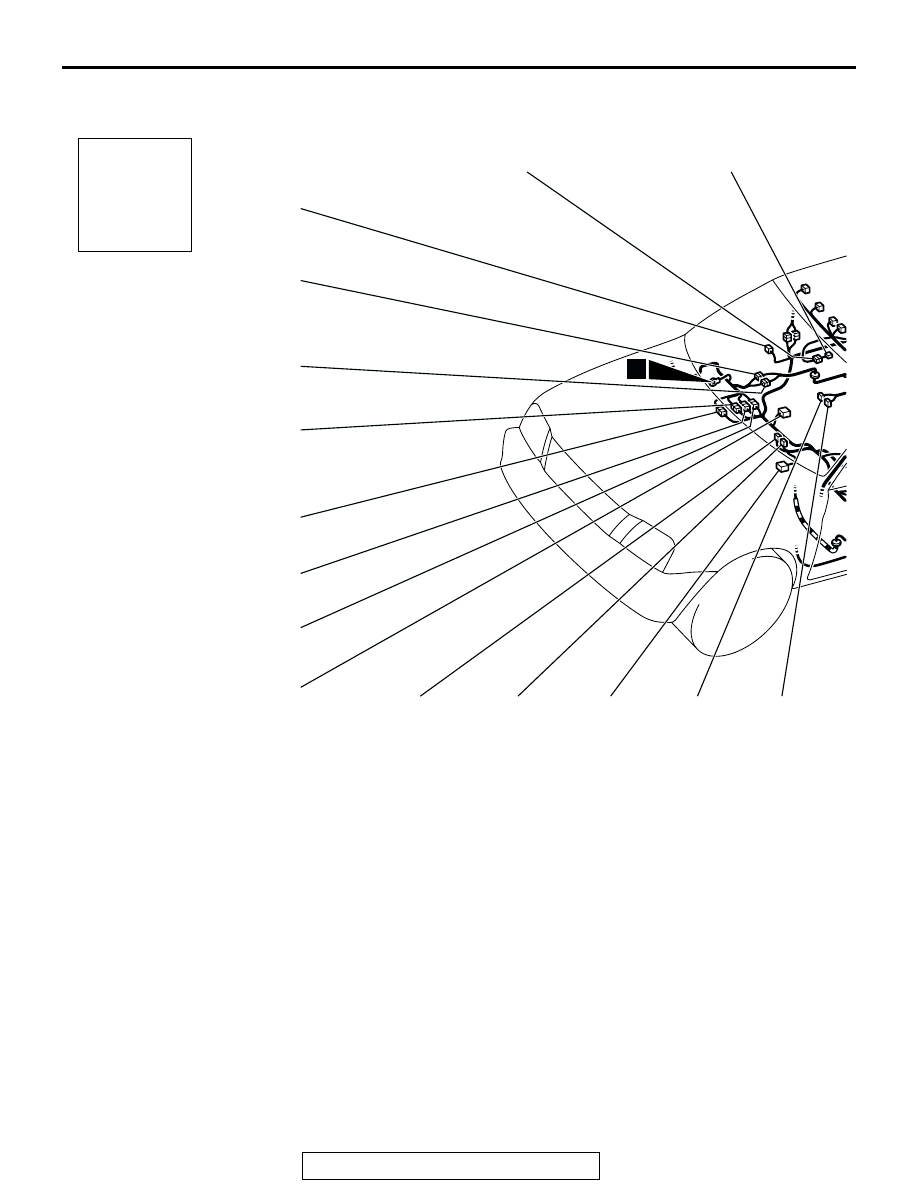

FLOOR AND ROOF (CONTINUED)

AC002481

Connector
symbol

-34
thru
-63

E

AC

E-60

E-59

E-46

E-45

E-44

E-42

E-62

E-43

E-41

E-55

E-58

E-57

E-54

E-48

E-47

5

E-34

(4)

REAR FAN MOTOR ASSEMBLY AND
RESISTOR

E-35

(2)

SEAT BELT SWITCH

E-36

(6)

REAR HEATER SWITCH

E-37

(1-B)

PARKING BRAKE SWITCH

E-38

(2)

REAR HEATER CONTROL PANEL
ILLUMINATION LIGHT

E-39

(2-B)

WHEEL SPEED SENSOR (REAR:
RH) <ABS>

E-41

(22)

BODY WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION

E-42

(19)

BODY WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION

E-43

(10)

BODY WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION <WITH AMPLIFIER>

E-44

(20)

BODY WIRING HARNESS AND
FRAME WIRING HARNESS
COMBINATION
