TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-407

Q: Are the connectors and terminals in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

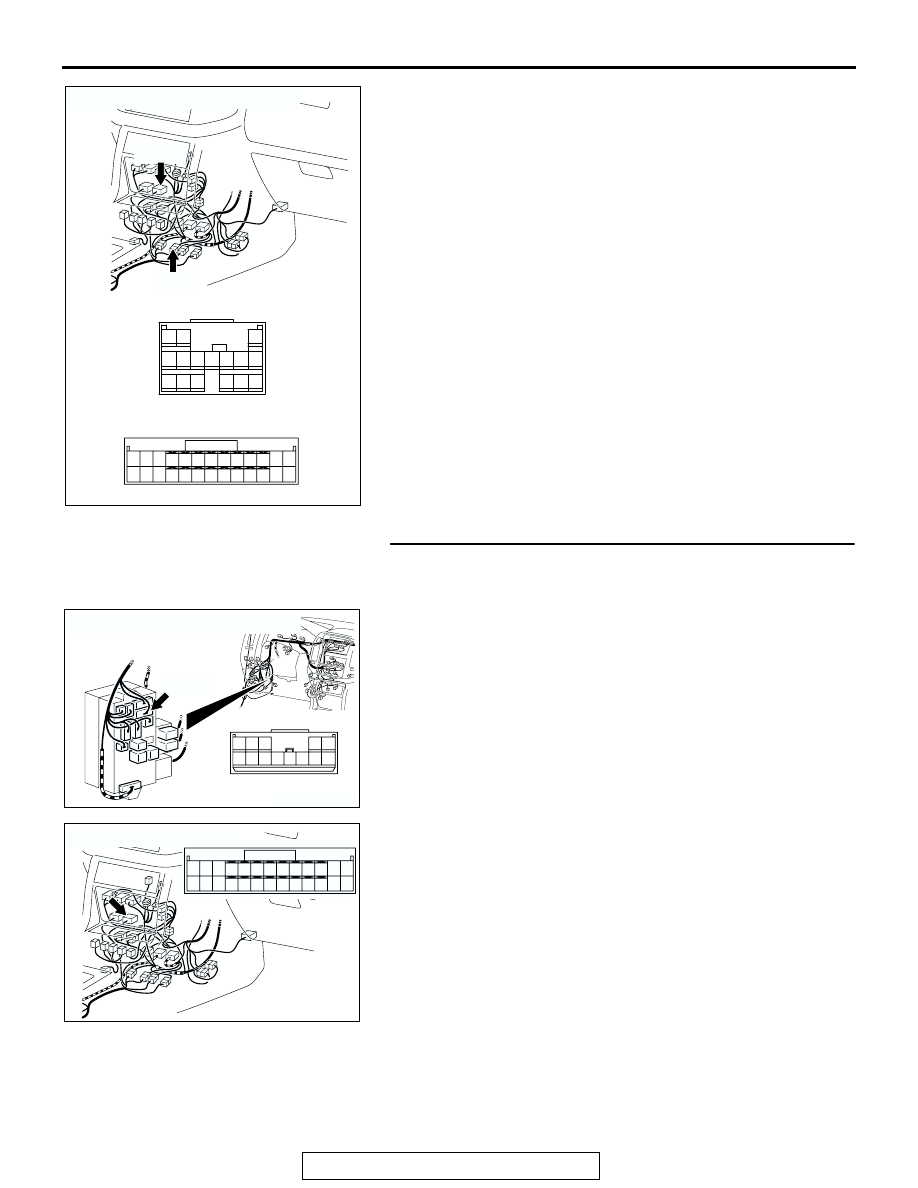

STEP 4. Check the harness for open circuit or short circuit
to ground between junction block connector D-210
terminal 12 and transfer-ECU connector E-109 terminal 13.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC204194

CONNECTORS : E-11, E-109

E-109

E-109

E-11

E-11

AW

3

10

16

9

7 8

6

1

4

2

5

11

14

1213

15

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204173

CONNECTOR : D-210

D-210

BO

5

4

12 13

3

2

9

7 8

10

6

1

11

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-408

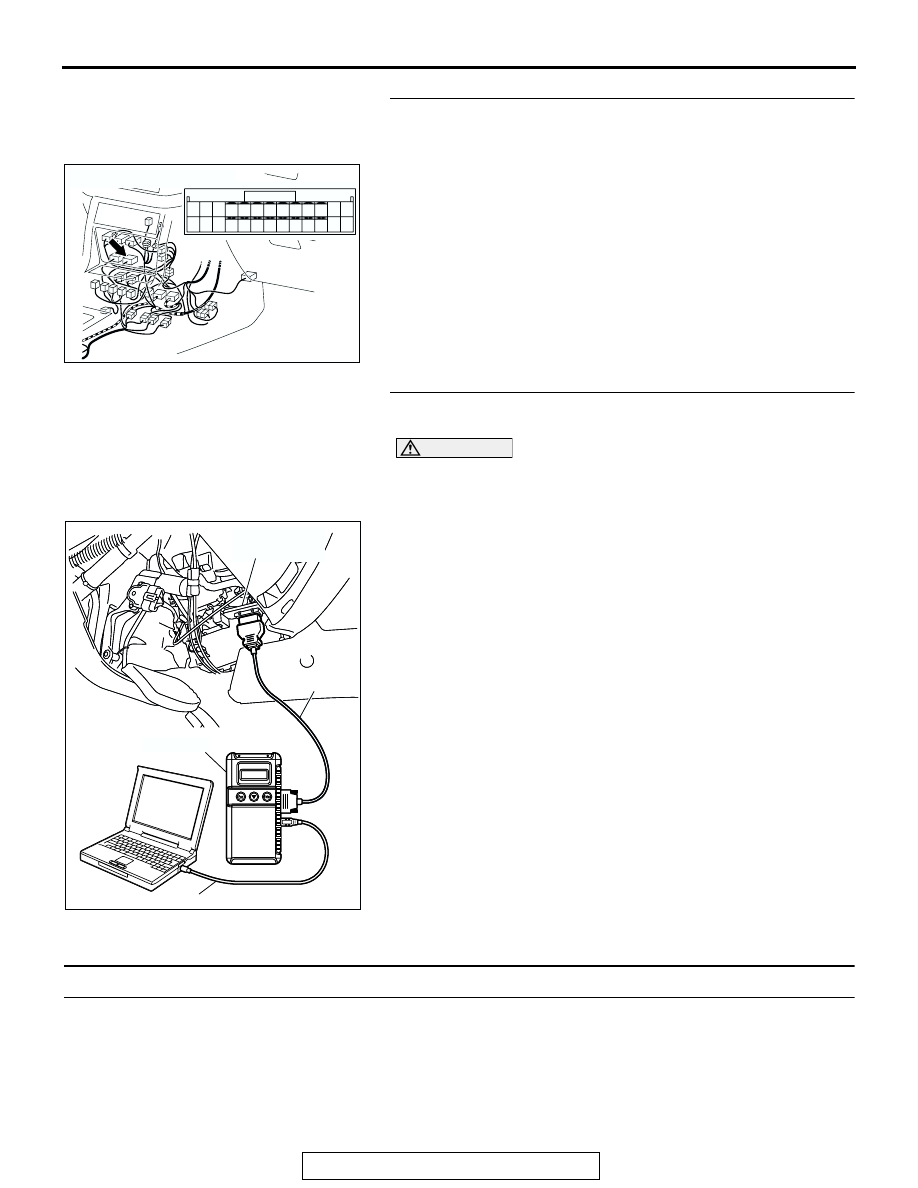

STEP 5. Check transfer-ECU connector E-109 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 6. Using scan tool MB991958, check data list item 09:
Ignition switch power supply.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode.

• Item 09: Ignition Switch Power Supply.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage equal battery positive voltage?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the transfer-ECU.

DTC 13: Main Relay System (Inside of ECU)

.

CIRCUIT OPERATION
The power supplied from the ignition switch is distrib-
uted to each part of ECU through the main relay
located inside of ECU.

.

DTC SET CONDITIONS
When the voltage at main relay OFF is 6 volts and
over, or the voltage at main relay ON is 6 volts and
less, the DTC 13 is set as the main relay malfunction.

.

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-409

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET:)

• Malfunction of the transfer-ECU

DIAGNOSIS

Replace the transfer-ECU.
Q: Is the malfunction eliminated?

YES : The procedure is complete (If no malfunction is not

found an intermittent malfunction is suspected. Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace the PCM.

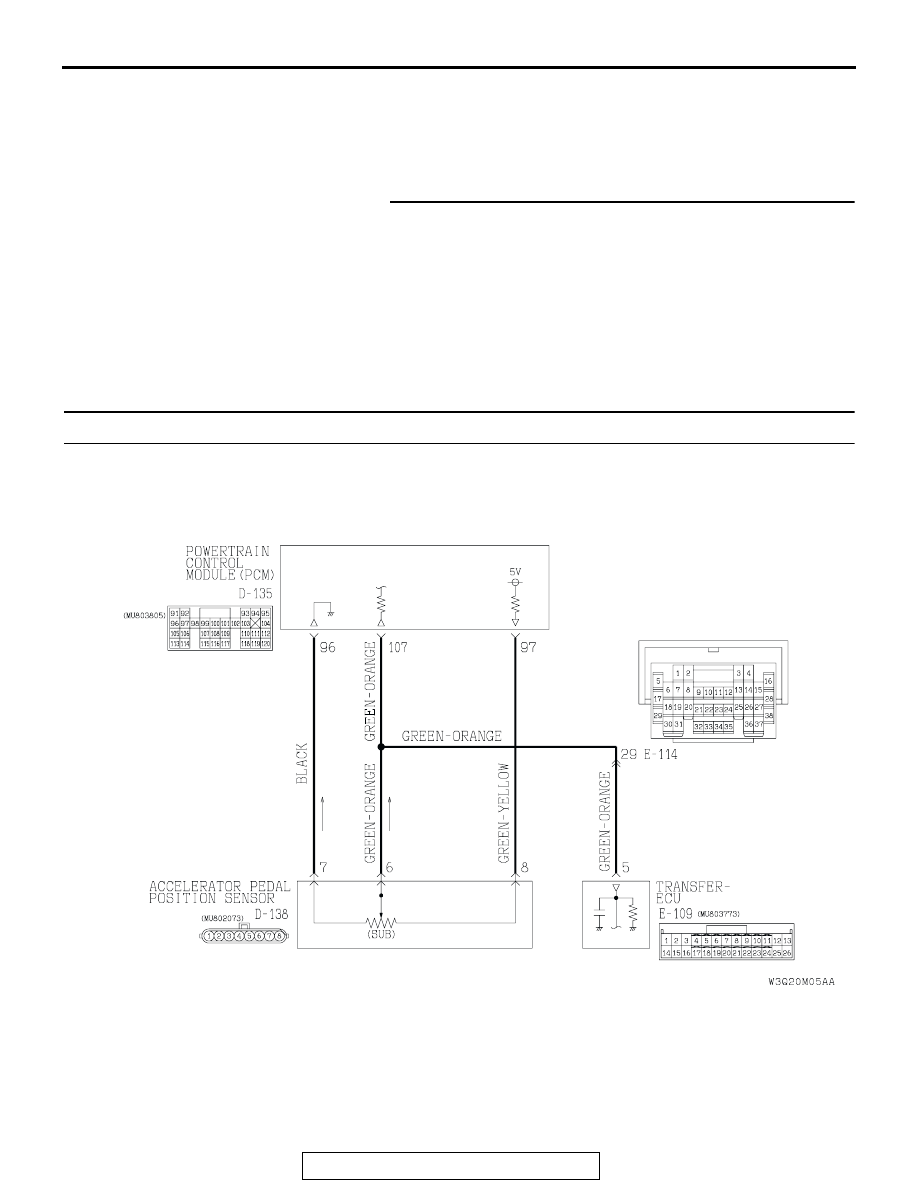

DTC 21: Accelerator Pedal Position Sensor System

AC205258AB

Accelrator Pedal Position Sensor System Circuit

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-410

.

CIRCUIT OPERATION

• When the throttle valve shaft rotates from the idle

position to the fully opened position, the resis-
tance between the accelerator pedal position
sensor output terminal (terminal 6) and ground
terminal (terminal 7) will increase according to
the rotation.

• With the ignition switch in the "ON" position. Volt-

age at pin 5 increases from approximately 0.7
volt at closed throttle, to approximately 5 volts at
wide open throttle.

.

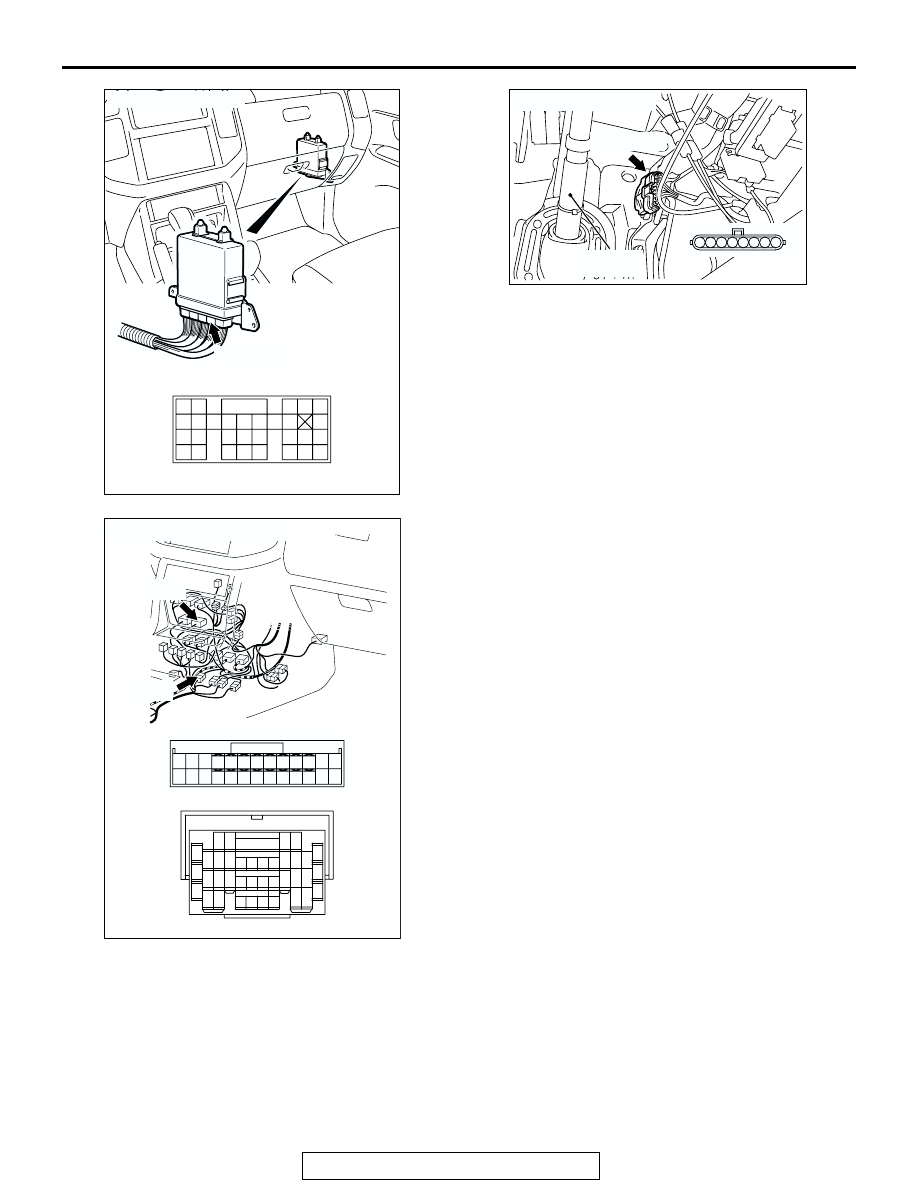

AC204681AB

CONNECTOR: D-135

D-135 (GR)

91 92

93

101

94 95

96 97 98 99 100

102103

104

105106

107108 109

110 111112

113114

115116 117

118 119120

AC203914

AD

STEERING
SHAFT

CONNECTOR : D-138

D-138 (GR)

1

3

2

4

6

5

7 8

AC204194

CONNECTORS : E-109, E-114

BH

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

E-109

E-114

E-109

E-114

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15
