AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-267

STEP 6. Overhaul the A/T.
(1) Replace the following parts.

• If DTC 41, 42, 43 or 44 are set individually or in a group,

replace the underdrive clutch. Refer to GROUP 23B,
Underdrive Clutch

P.23B-59

.

• If DTC 43, 44 or 45 are set individually or in a group,

replace the overdrive clutch. Refer to GROUP 23B,
Reverse and Overdrive Clutch

P.23B-50

.

• If DTC 44 or 45 are set individually or in a group, replace

the direct clutch. Refer to GROUP 23B, Direct Clutch

P.23B-71

.

• If DTC 46 is set individually or in a group, replace the

reverse clutch. Refer to GROUP 23B, Reverse and
Overdrive Clutch

P.23B-50

.

• If DTC 41 or 46 are set individually or in a group, replace

the low-reverse brake. Refer to GROUP 23B, Transmis-
sion

P.23B-14

.

• If DTC 42 or 45 are set individually or in a group, replace

the second brake. Refer to GROUP 23B, Transmission

P.23B-14

.

• If DTC 41, 42, 43 or 46 are set individually or in a group,

replace the reduction brake. Refer to GROUP 23B,
Transmission

P.23B-14

.

• If DTC 41 is set individually or in a group, replace the

one-way clutch (OWC-L). Refer to GROUP 23B, Low
Reverse Annulus Gear

P.23B-55

.

• If DTC 41, 42 or 43 are set individually or in a group,

replace the one-way clutch (OWC-D). Refer to GROUP
23B, Output Shaft Suppor

P.23B-74

.

(2) Test drive the vehicle.
(3) Check for A/T diagnostic trouble code.
Q: Are any A/T DTCs set again?

YES : An A/T DTC may have set due to external radio

frequency interference (RFI) possibly caused by
cellular phone activity, or aftermarket components
installed on the vehicle.

NO :  The procedure is complete.

DTC 52 (P0741): Torque Converter Clutch System

.

DESCRIPTIONS OF MONITOR METHODS
At start of lock-up operation, if lock-up clutch cannot
be engaged even when duty ratio of torque converter
clutch solenoid remains 100% for more than speci-
fied time, PCM judges that torque converter clutch is
stuck OFF.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• DTC 21 (P0335): Crankshaft position sensor mal-

function

• DTC 22 (P0715): Input shaft speed sensor mal-

function

• DTC 23 (P0720): Output shaft speed sensor mal-

function

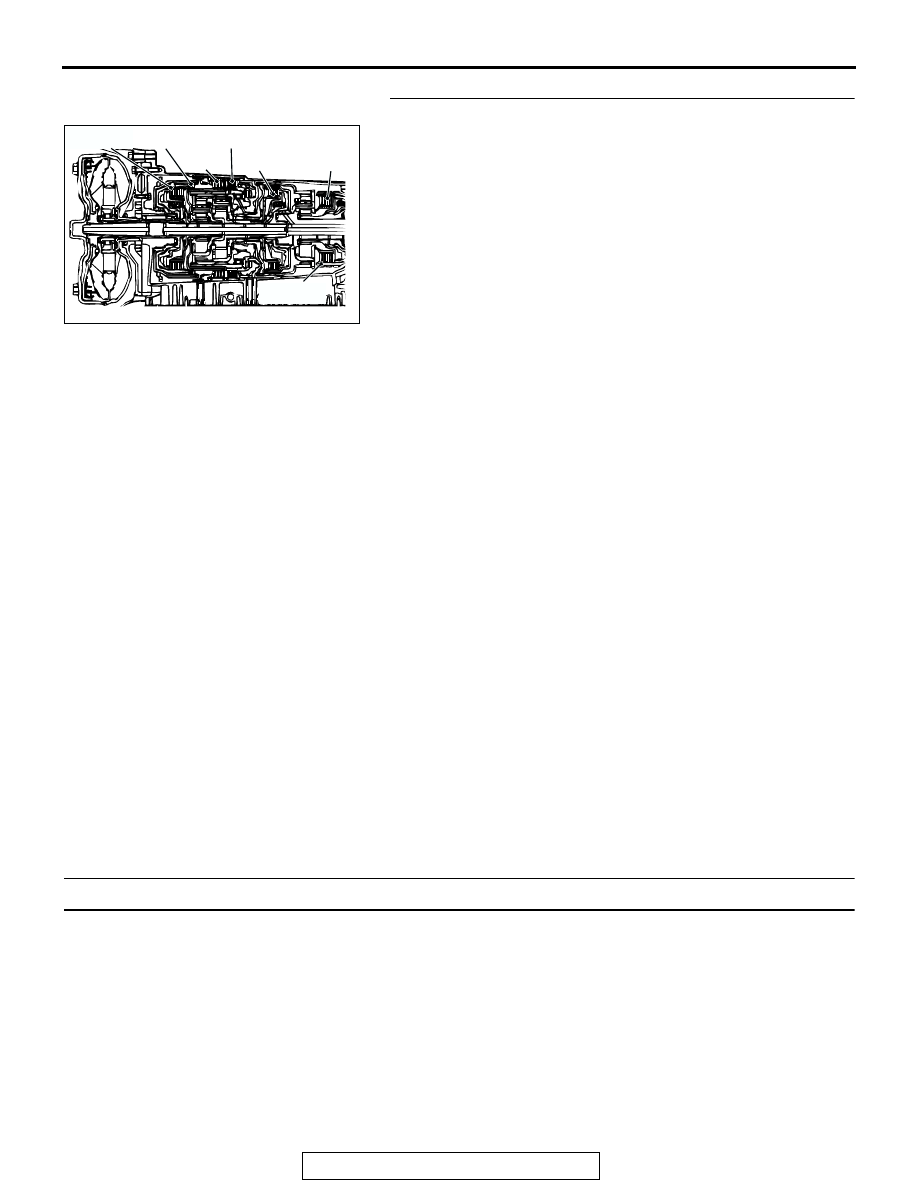

AC204883 AH

OVERDRIVE
CLUTCH

REDUCTION
BRAKE

REVERSE
CLUTCH

SECOND
BRAKE

LOW-REVERSE
BRAKE

UNDERDRIVE
CLUTCH

DIRECT
CLUTCH

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-268

• DTC 53 (P0742): Torque converter clutch system

malfunction (Stuck ON)

• DTC 36 (P0743): Torque converter clutch sole-

noid malfunction

• DTC 31 (P0753): Low-reverse solenoid malfunc-

tion

• DTC 32 (P0758): Underdrive solenoid malfunc-

tion

• DTC 33 (P0763): Second solenoid malfunction

• DTC 34 (P0768): Overdrive solenoid malfunction

• DTC 35 (P0773): Reduction solenoid malfunction

• DTC 54 (P1751): A/T control relay malfunction

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Crankshaft position sensor

• Torque converter clutch solenoid

• Low-reverse solenoid

• Underdrive solenoid

• Second solenoid

• Overdrive solenoid

• Reduction solenoid

• A/T control relay

.

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-269

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Solenoid status: plunging into connecting condi-

tion.

• Transmission range switch position: D.

Judgement Criteria

• Time during 100% duty: 4 seconds or more.

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, and drive at 100 km/h (62 mph) for
10 seconds. Then stop the vehicle, and turn OFF the
ignition switch. After that, restart the engine, and
drive again at 100 km/h (62 mph) for 10 seconds.

.

AC205238

START

END

Transmission range
switch position is in
D, 3 or 2 range

TCC is plunging
into connecting
condition?

TCC solenoid duty
ratio is 100%

Continuous failure for 4 secs.

Good

Malfunction

No

Yes

No

Yes

No

Yes

No

Yes

AC

Transmission range
switch position is in
D range

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-270

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

• Malfunction of the torque converter clutch sole-

noid valve

• Malfunction of the input shaft speed sensor

• Malfunction of the reverse clutch retainer

• Malfunction of the valve body

• Damaged harness or connector

• Malfunction of the PCM

• Malfunction of the torque converter

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Using scan tool MB991958, read the A/T
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

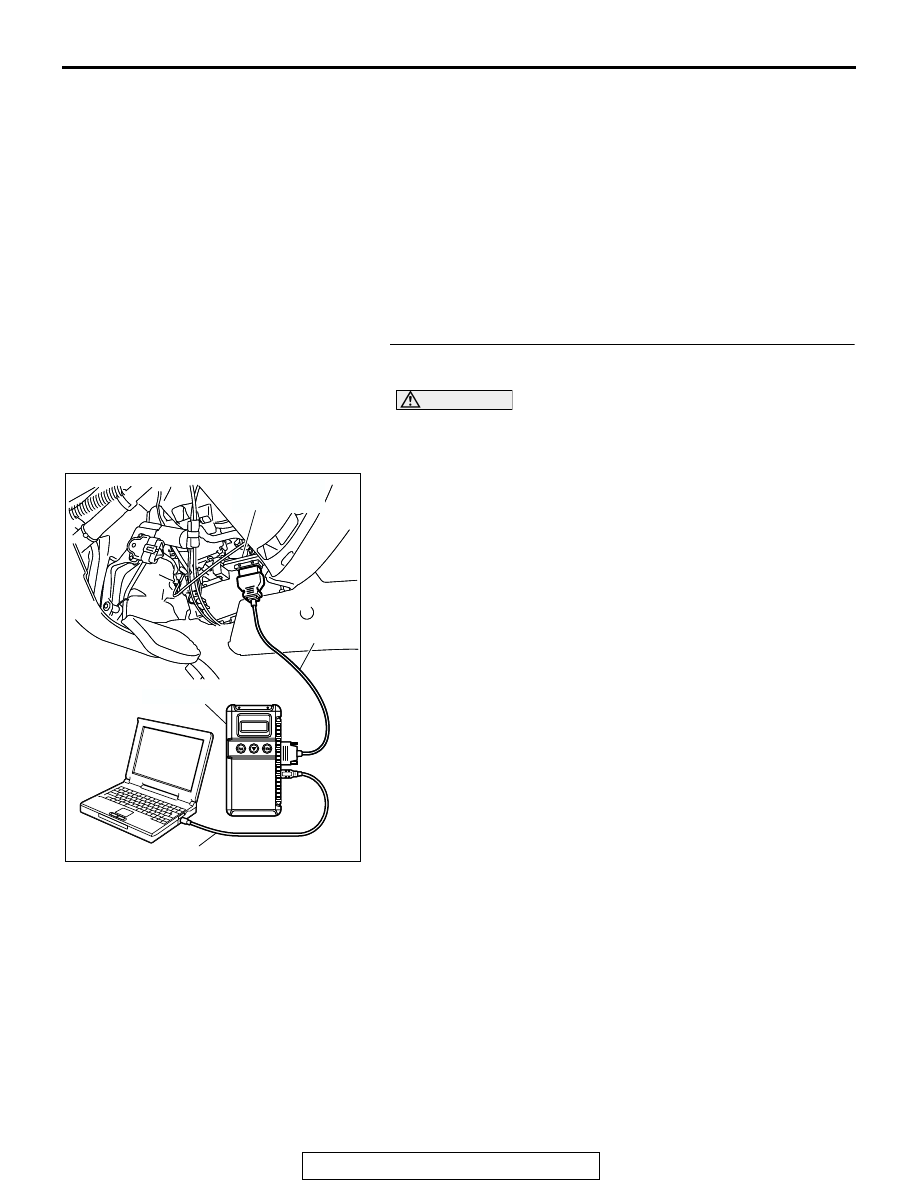

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check for A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC 22 or 36 set?

YES <DTC 22 set> : Refer to

P.23A-71

, DTC 22: Input

Shaft Speed Sensor System.

YES <DTC 36 set> : Refer to

P.23A-239

, DTC 36: Torque

Converter Clutch Solenoid Valve System.

NO :  Go to Step 2.

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR
