Mitsubishi Montero (2004+). Manual - part 893





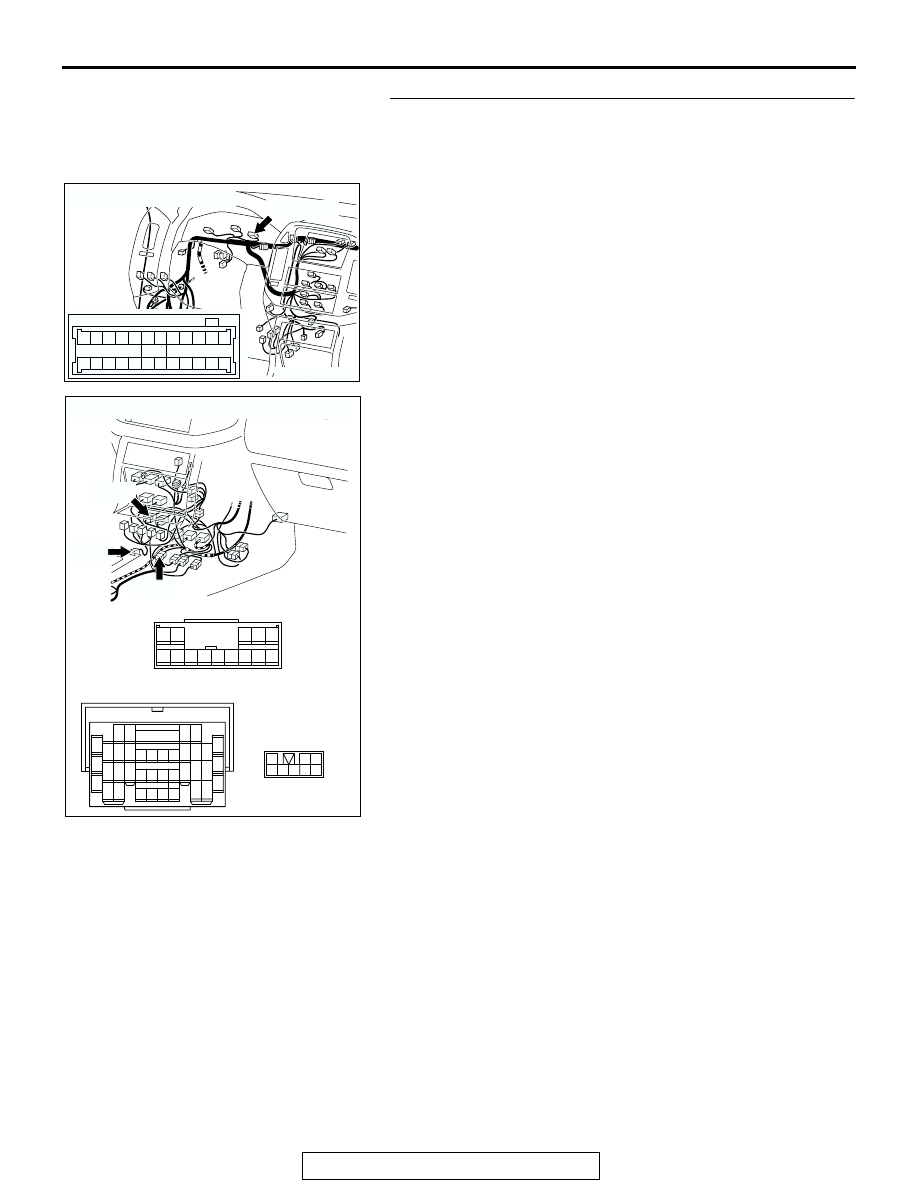

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-147

STEP 33. Check combination meter connector D-32,
intermediate connector E-113, E-114 and shift switch
assembly connector E-115 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 34.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204170

CONNECTOR : D-32

CF

D-32 (GR)

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204194

CONNECTORS : E-113, E-114, E-115

E-113

E-113

BF

E-115

E-115

E-114

E-114

1

6

2

7 8 9 10 11 12 13 14

3 4 5

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

8

3

4 5

1

2

6 7

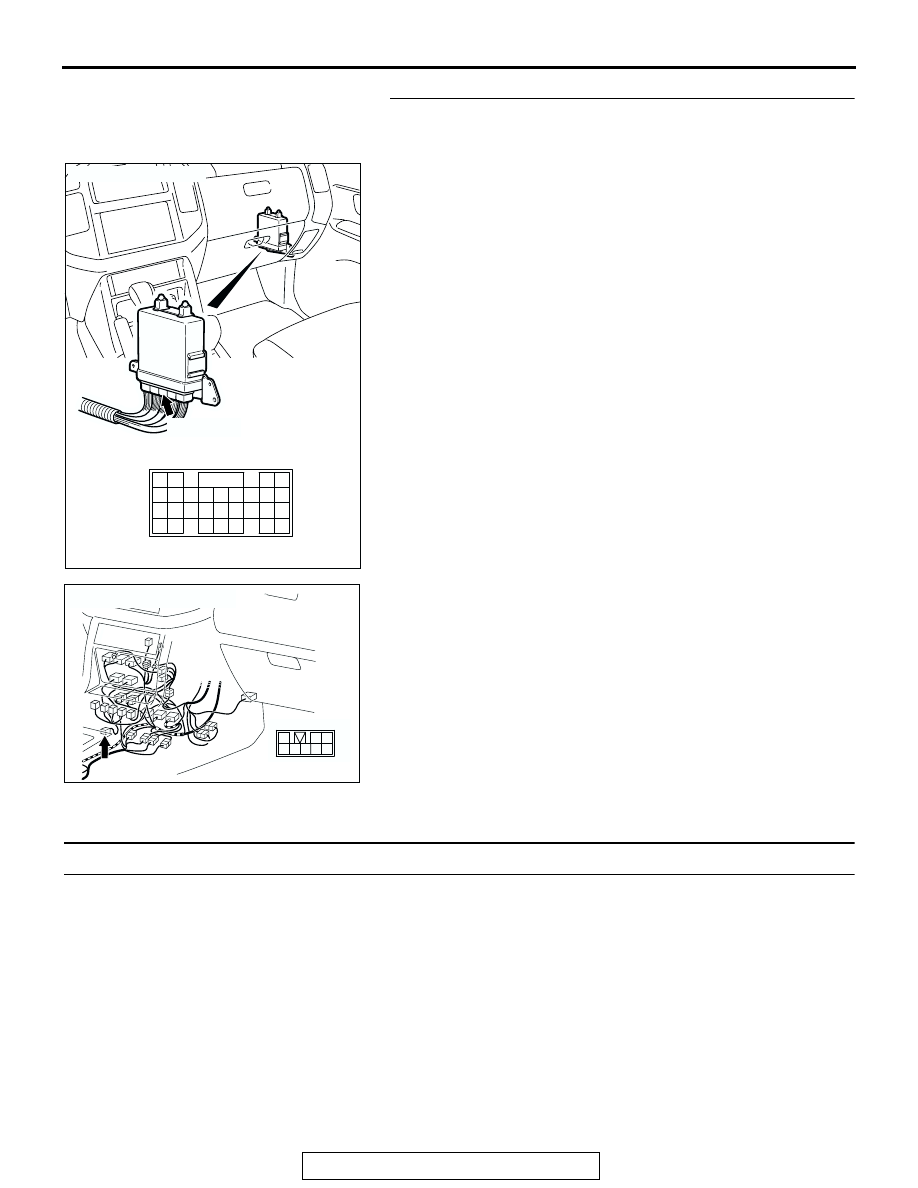

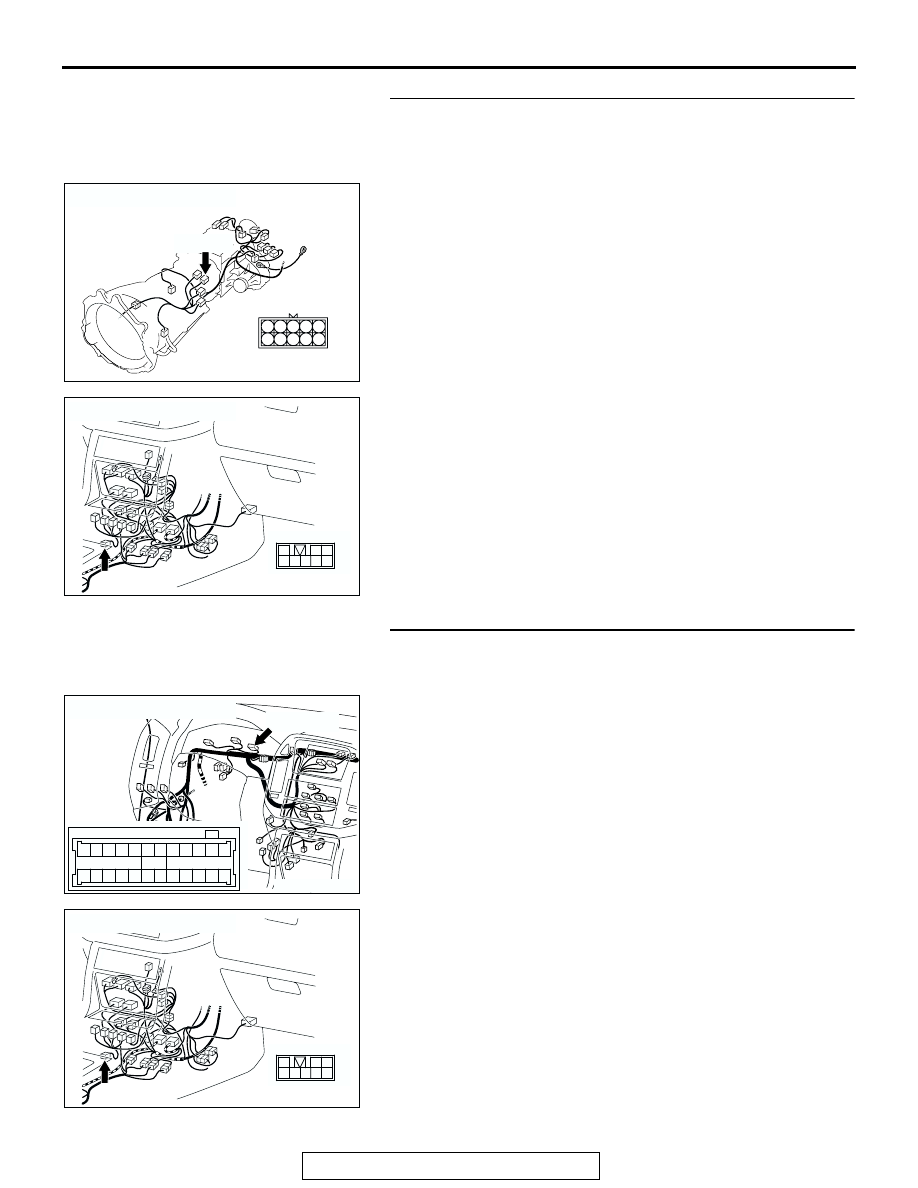

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-148

STEP 34. Check harness for short circuit to ground
between transmission range switch connector C-04
terminal 3 and shift switch assembly connector E-115
terminal 1.
Q: Is the harness wire in good condition?

YES : Go to Step 35.
NO :  Repair or replace the harness wire.

STEP 35. Check the harness for short circuit to ground
between combination meter connector D-32 terminal 4 and
shift switch assembly connector E-115 terminal 5.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-04

AF

C-04 (B)

4
9

5

10

3
8

2
7

6

1

AC204176

CONNECTOR : E-115

BE

8

3

4 5

1

2

6 7

AC204170

CONNECTOR : D-32

CF

D-32 (GR)

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204176

CONNECTOR : E-115

BE

8

3

4 5

1

2

6 7

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-149

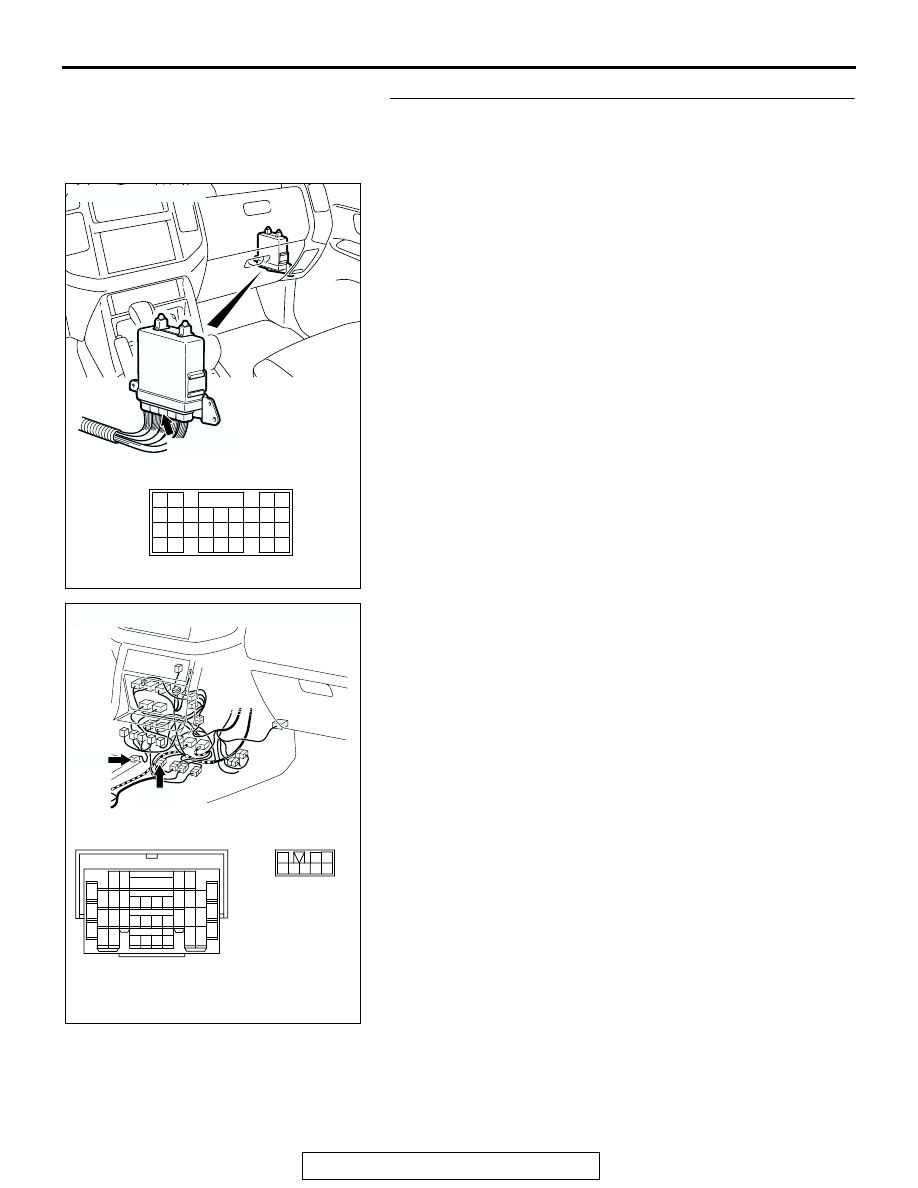

STEP 36. Check PCM connector D-134, intermediate
connector E-114 and shift switch assembly connector
E-115 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is the connector in good condition?

YES : Go to Step 37.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204194

CONNECTORS : E-114, E-115

BG

E-115

E-115

E-114

E-114

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

8

3

4 5

1

2

6 7

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-150

STEP 37. Check the harness for short circuit to ground
between PCM connector D-134 terminal 85 and shift switch
assembly connector E-115 terminal 4.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

DTC 28 (P0705): Transmission Range Switch System (Short Circuit)

.

TRANSMISSION RANGE SWITCH SYSTEM
CIRCUIT
Refer to

P.23A-121

.

.

CIRCUIT OPERATION
Refer to

P.23A-121

.

.

DESCRIPTIONS OF MONITOR METHODS
If two types or more of signals are input from trans-
mission range switch for more than 30 seconds,
PCM judges that transmission range switch has a
failure.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-115

BE

8

3

4 5

1

2

6 7
