INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-553

STEP 6. Check the wiring harness between hazard warning
light switch connector D-103 (terminal 1) and ETACS-ECU
connector D-224 (terminal 27).
Q: Is the wiring harness between hazard warning light

switch connector D-103 (terminal 1) and ETACS-ECU
connector D-224 (terminal 27) in good condition?
YES :
Replace the ETACS-ECU. If the equipment, which

are described in "CIRCUIT OPERATION", work
normally, the input signal from the hazard warning
light switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
equipment, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the hazard warning light switch should be normal.

INSPECTION PROCEDURE P-3: ETACS-ECU does not receive any signal from the driver's seat belt
switch.

AC204170

CONNECTOR : D-103

AK

1

2

4 3

HARNESS
SIDE

D-103

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

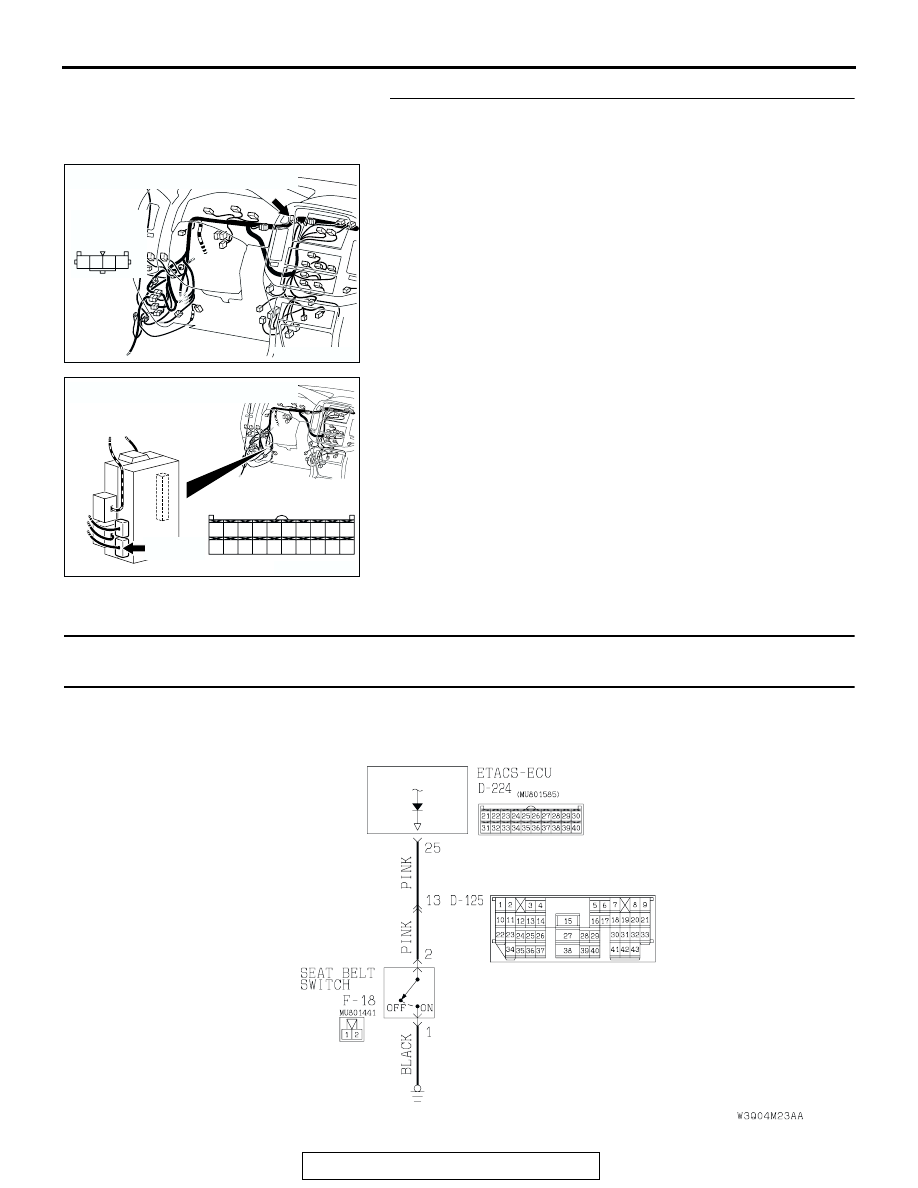

Seat Belt Switch Input Circuit

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-554

.

CIRCUIT OPERATION
The ETACS-ECU operates the following functions
and equipment according to signal from the driver's
seat belt switch:

• Seat belt tone alarm function

• Seat belt warning light

.

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the equipment and func-
tions, which are described in "CIRCUIT OPERA-
TION", do not work normally.

.

TROUBLESHOOTING HINTS

• The driver's inner seat belt (driver's seat belt

switch) may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

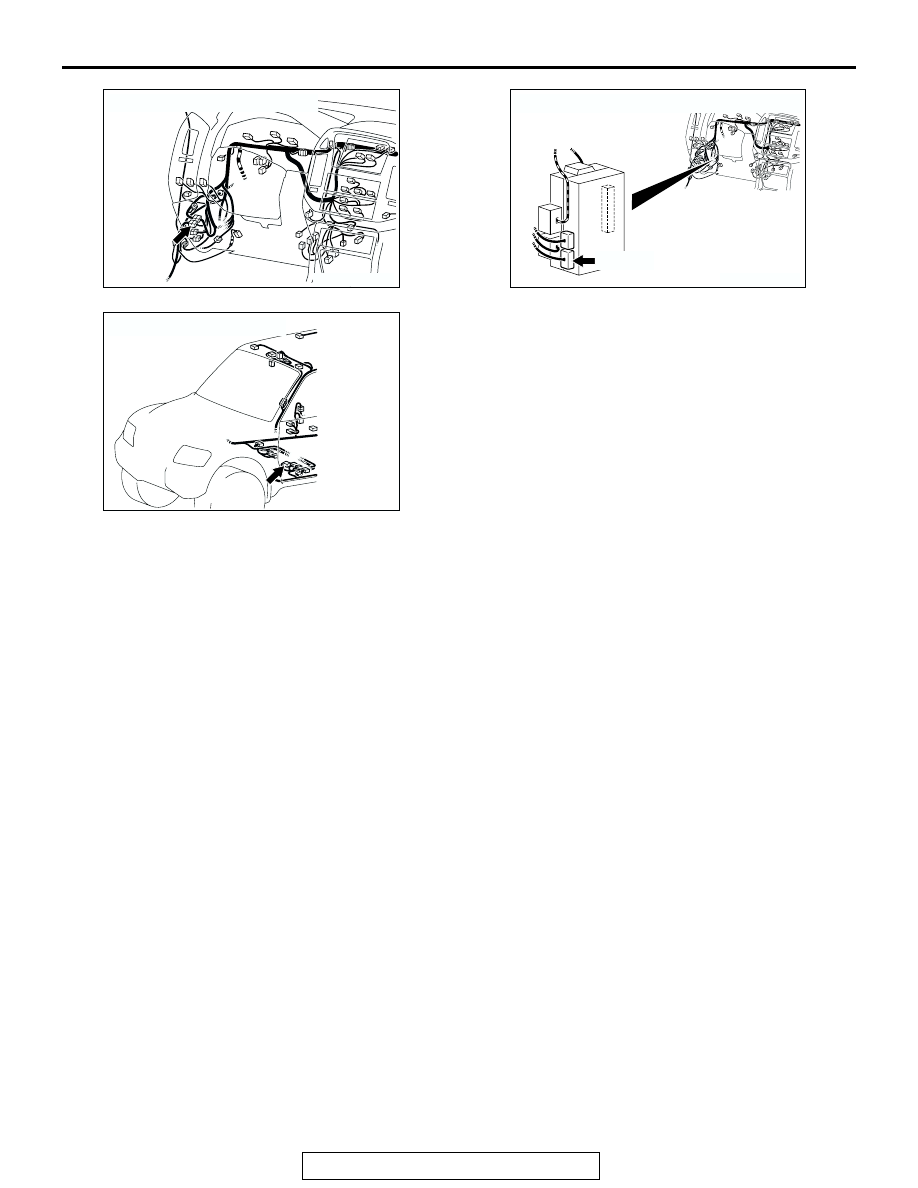

AC204170

CONNECTOR : D-125

BE

AC204174

CONNECTOR : D-224

D-224(B)

AG

AC204177

CONNECTOR : F-18

AL

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-555

STEP 1. Check driver's seat belt switch connector F-18 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is driver's seat belt switch connector F-18 in good

condition?
YES :
Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions, which are described in

"CIRCUIT OPERATION", work normally, the input
signal from the driver's seat belt switch should be
normal.

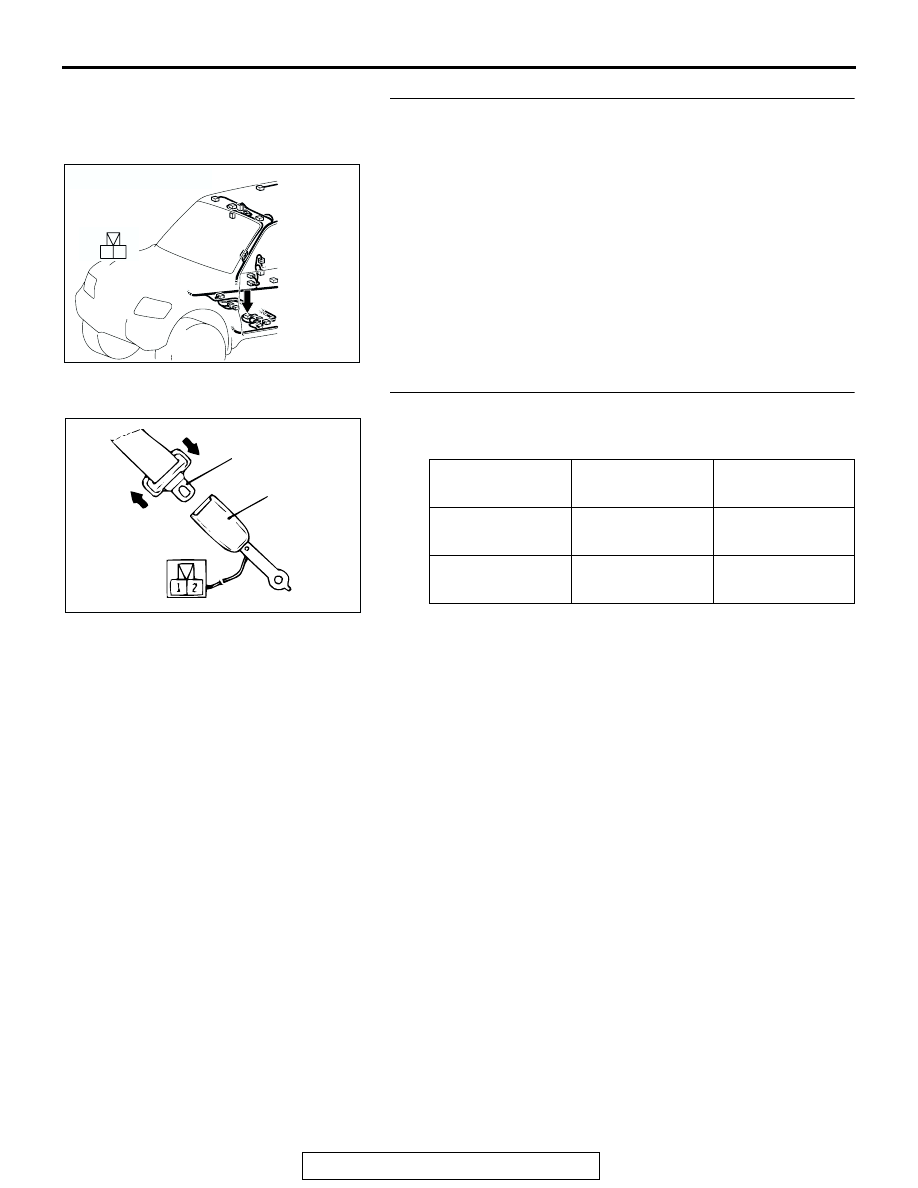

STEP 2. Check the driver's seat belt switch.
Disconnect driver's seat belt switch connector F-18. Then
check continuity between the switch terminals.

Q: Is the driver's seat belt switch in good condition?

YES : Go to Step 3.
NO :  Replace the driver's inner seat belt. If the functions,

which are described in "CIRCUIT OPERATION", work
normally, the input signal from the driver's seat belt
switch should be normal.

AC204177

CONNECTOR : F-18

AD

HARNESS SIDE

2 1

F-18

ITEM

TESTER
CONNECTION

SPECIFIED
CONDITION

Fastened seat
belt

− 2

Open circuit

Unfastened seat
belt

− 2

Less than 2 ohms

ACX00636

TONGUE

BUCKLE

AC

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-556

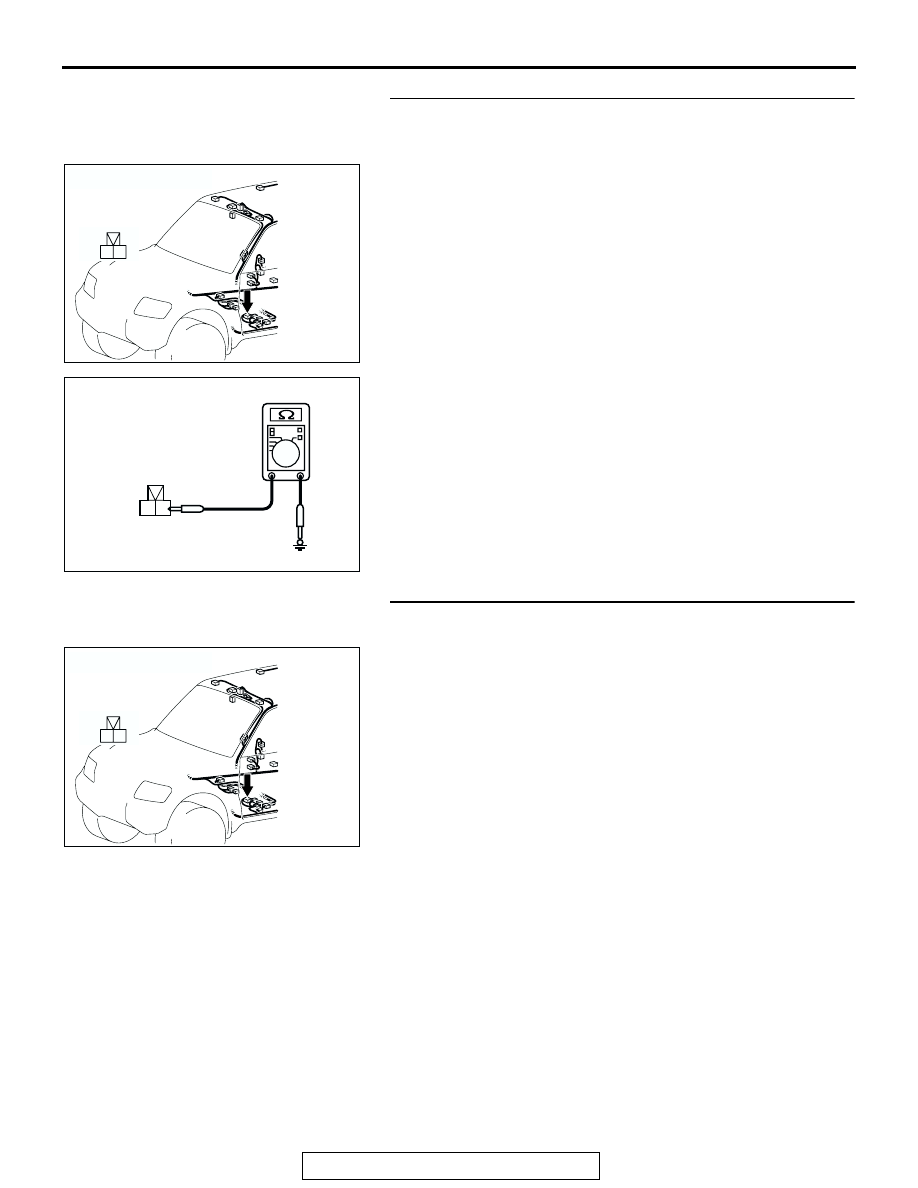

STEP 3. Check the battery ground circuit to the driver's
seat belt switch. Test at driver's seat belt switch connector
F-18.
(1) Disconnect driver's seat belt switch connector F-18 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 1 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between driver's seat
belt switch connector F-18 (terminal 1) and ground.
Q: Is the wiring harness between driver's seat belt switch

connector F-18 (terminal 1) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the driver's seat belt switch should be normal.

AC204177

CONNECTOR : F-18

AD

HARNESS SIDE

2 1

F-18

ACX01670

2 1

AB

CONNECTOR F-18
(HARNESS SIDE)

AC204177

CONNECTOR : F-18

AD

HARNESS SIDE

2 1

F-18
