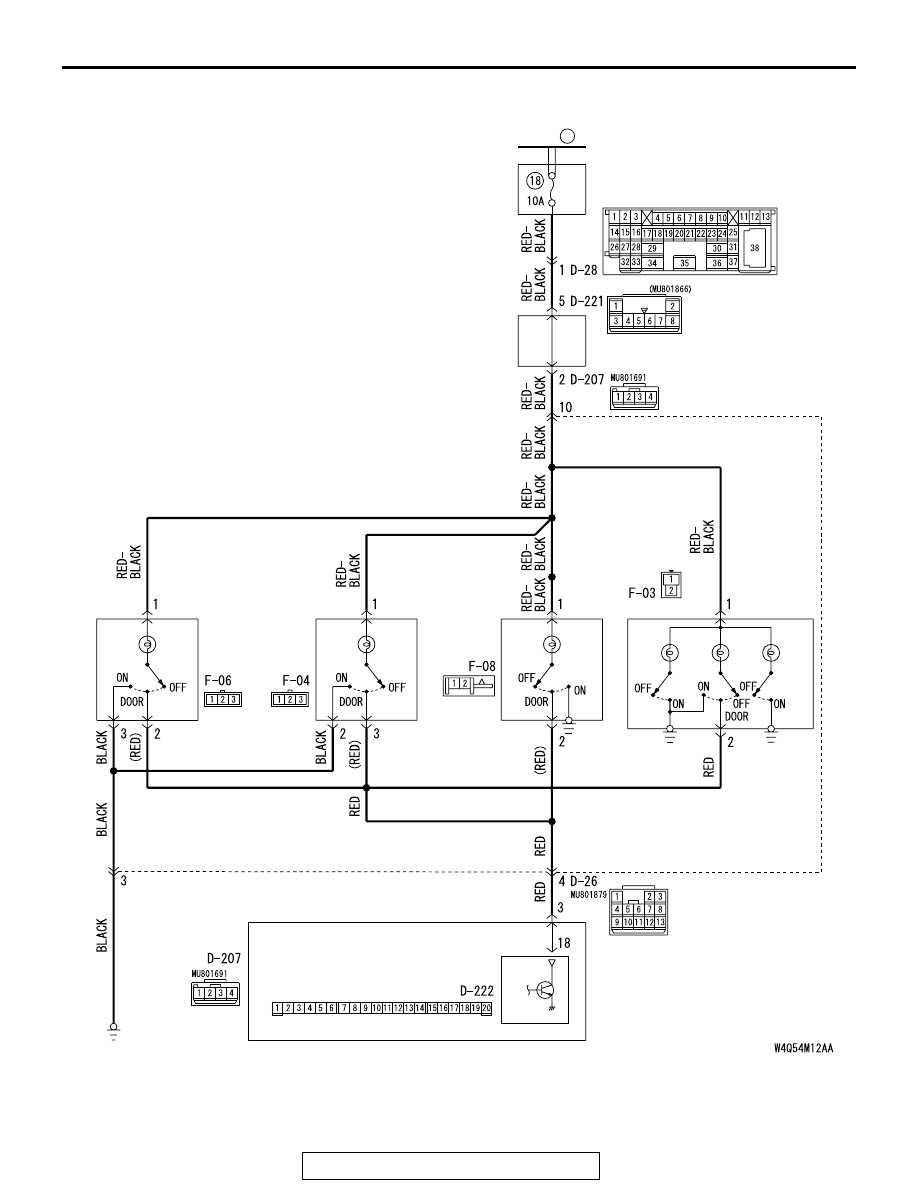

Interior Light Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-430

.

CIRCUIT OPERATION
The ETACS-ECU illuminates the front dome light, the
cargo space light and the rear personal lights accord-
ing to the following signals:

• Ignition switch (IG1)

• Key reminder switch

• Front door switch (LH)

• All door switches

• Driver’s door lock actuator switch

.

TECHNICAL DESCRIPTION (COMMENT)
If the front dome light and the rear dome light do not
illuminate normally, the dome light bulb(s) may be
burned out or the input circuit system from the
switches, the power supply lines to the switches or
the ETACS-ECU may be defective (refer to "CIR-
CUIT OPERATION"). Alternatively, the delay-off
function may be set to "0 second" by using the con-
figuration function.

.

TROUBLESHOOTING HINTS

• The key reminder switch may be defective

• The door switch may be defective

• The driver’s door lock actuator switch may be

defective

• The dome light may be defective

• The cargo space light may be defective

• The rear personal light may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204170

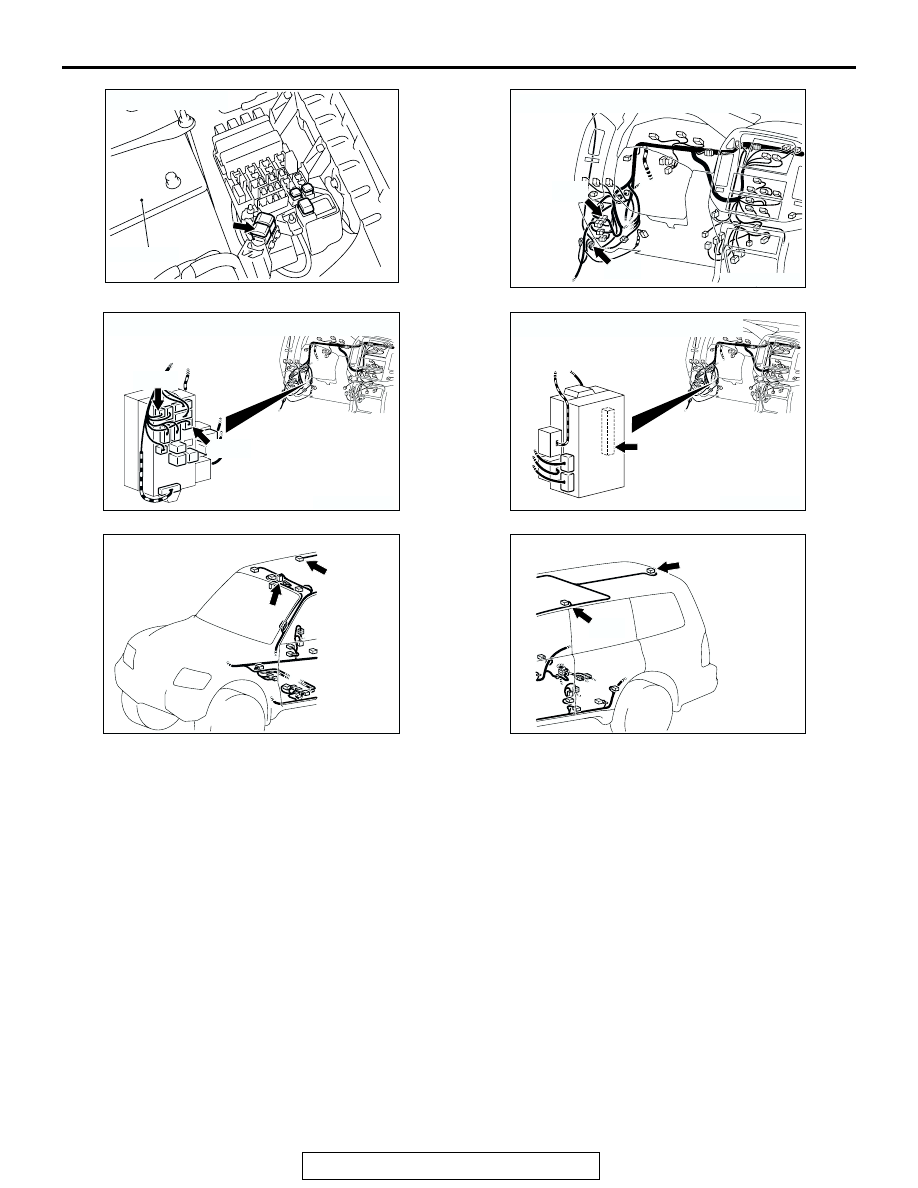

CONNECTORS : D-26, D-28

BP

D-28

D-26

AC204173

CONNECTORS : D-207, D-211

D-207

D-211(B)

AQ

AC204174

CONNECTOR : D-222

AE

AC204177

CONNECTORS: F-03, F-04

AP

F-03

F-04

AC204178

CONNECTORS : F-06, F-08

AR

F-06

F-08 (GR)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-431

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

STEP 1. Verify the adjustment function.
Q: Is the interior light delay-off time set to "7.5 seconds,"

"10 seconds," "15 seconds" or "30 seconds" by using
the adjustment function?
YES : Go to Step 2.
NO :  Set the interior light delay-off time to "7.5 seconds,"

"10 seconds," "15 seconds" or "30 seconds" by using
the adjustment function. Verify that the interior light
illuminates normally.

STEP 2. Use scan tool MB991958 to select "ECU COMM
CHK" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

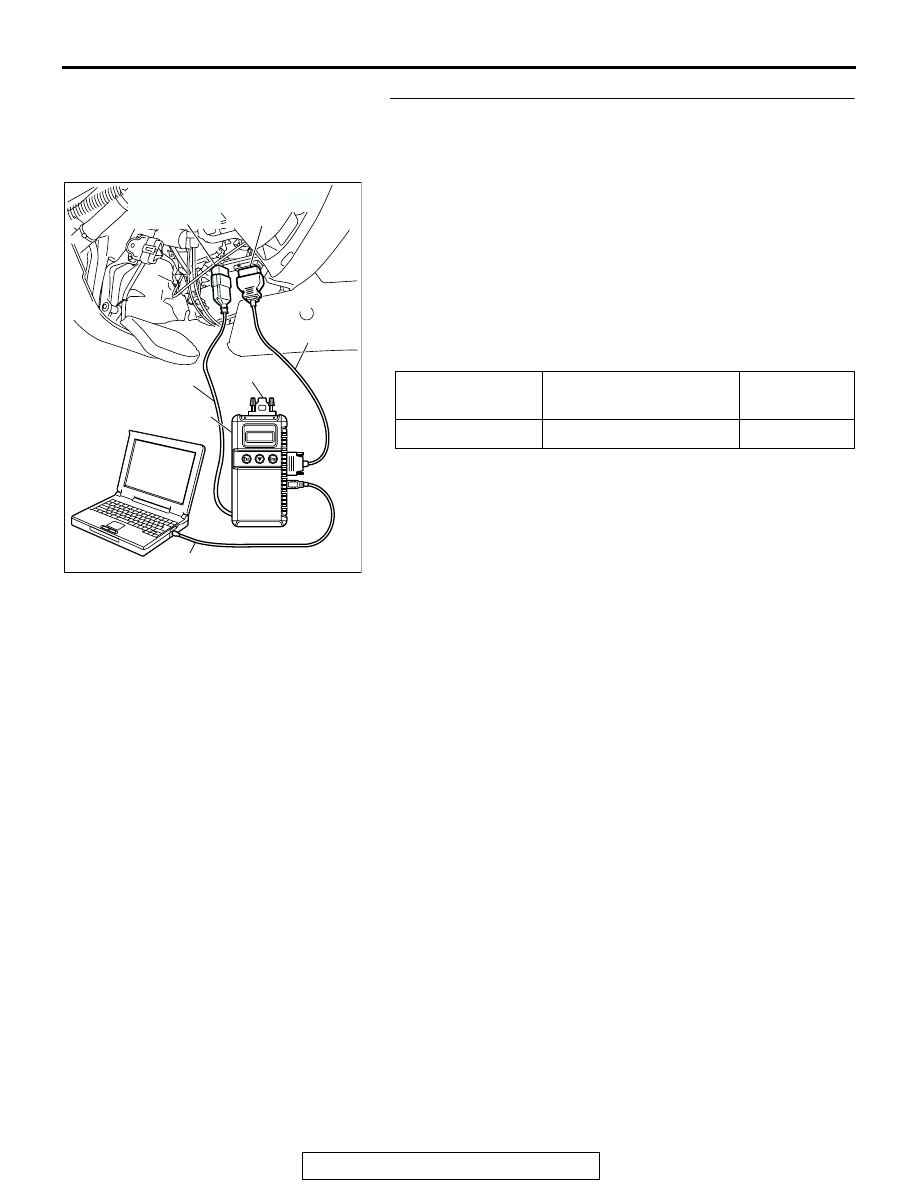

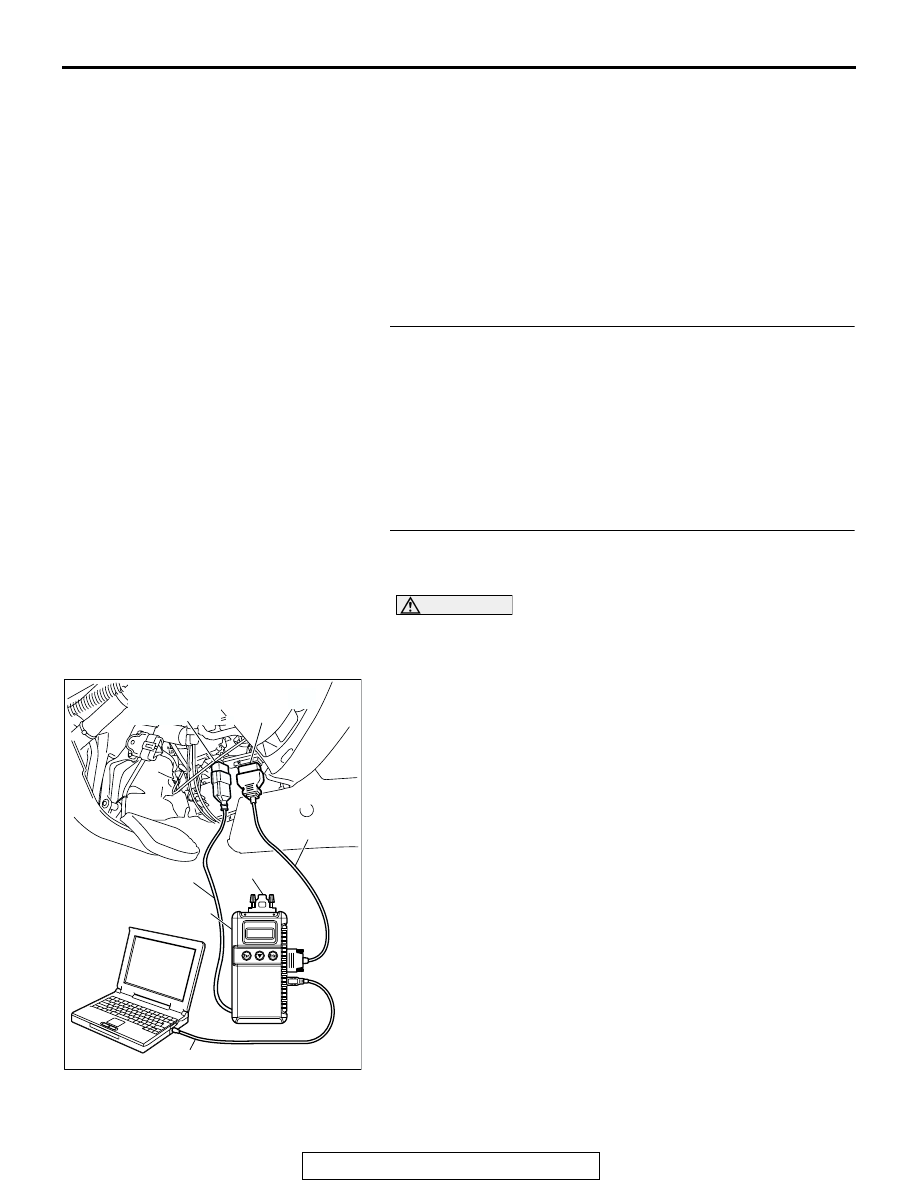

(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-7

.

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM CHK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM CHK" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed on the "ETACS ECU" menu?

YES : Go to Step 3.
NO :  Refer to Inspection Procedure A-3 "Communication

with ETACS-ECU is impossible

P.54B-42

."

AC309091

MB991911

MB991827

MB991824

AB

MB991806

MB991862

DATA LINK
CONNECTOR
(16-PIN)

DATA LINK
CONNECTOR
(13-PIN)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-432

STEP 3. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Turn the ignition switch to the "OFF" position before checking
input signals from the ignition switch:
Operate scan tool MB991958 according to the procedure below
to display "ETACS ECU."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "DATA LIST."
5. Select "ETACS ECU."

Check that normal conditions are displayed on the items
described in the table below.

Q: Are normal conditions displayed on the "IG SW (IG1)"?

YES : Go to Step 4.
NO :  Refer to Inspection Procedure O-2 "ETACS-ECU

does not receive a signal from the ignition switch
(IG1)

P.54B-505

."

ITEM NO.

ITEM NAME

NORMAL
CONDITION

ITEM 30

IG SW (IG1)

OFF
