SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-385

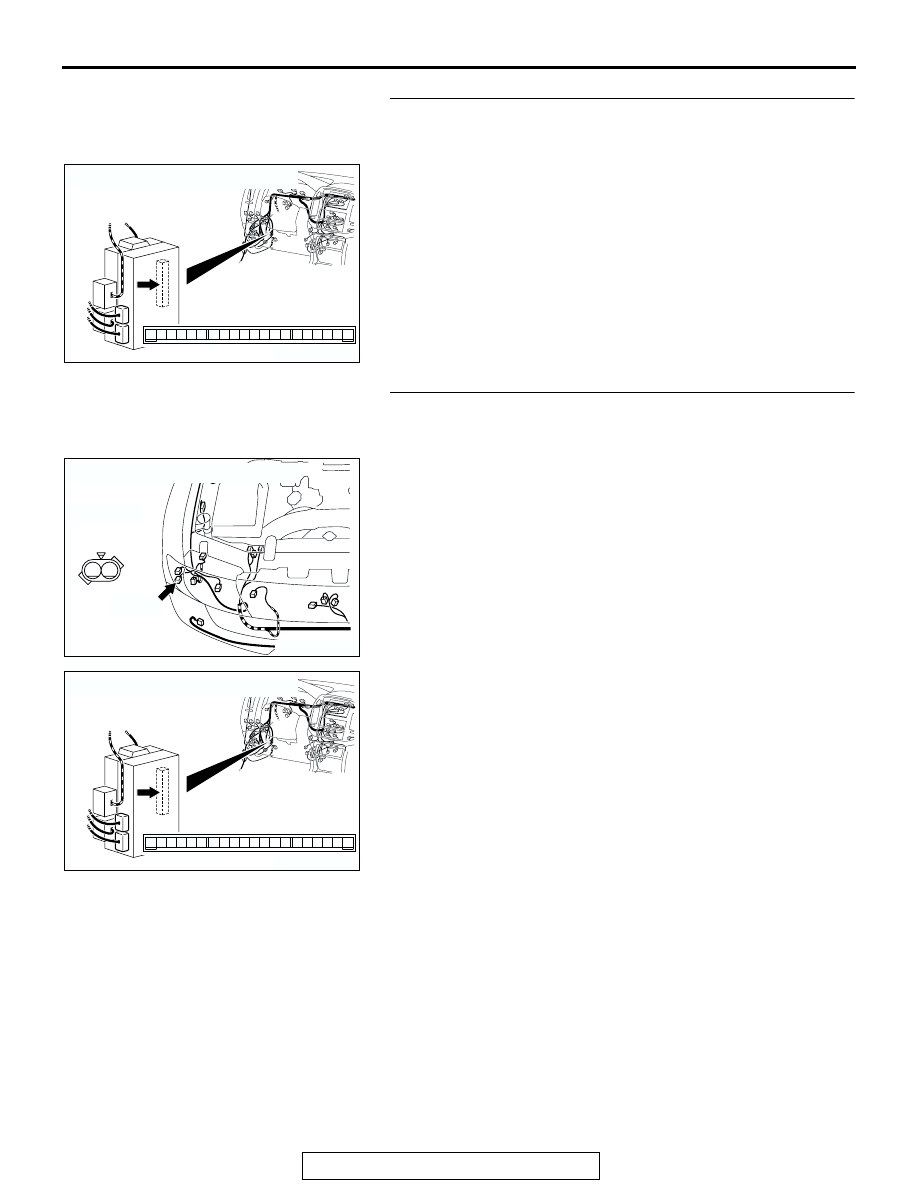

STEP 6. Check ETACS-ECU connector D-222 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q:  Is ETACS-ECU connector D-222 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

STEP 7. Check the wiring harness between front
turn-signal light (LH) connector A-19 (terminal 1) and
ETACS-ECU connector D-222 (terminal 15).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204185

CONNECTORS : A-16, A-19

A-19(B)

A-16

AD

A-16

HARNESS SIDE

A-19(B)

1

2

5 6

2 3 4

1

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-386

NOTE: Also check junction block connector D-212, joint con-
nector A-16 and intermediate connector D-28 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If junction block connector D-212, joint connector
A-16 or intermediate connector D-28 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front turn-signal light

(LH) connector A-19 (terminal 1) and ETACS-ECU
connector D-222 (terminal 15) in good condition?
YES : Replace the socket. Verify that the turn-signal lights

illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lights illuminate normally.

STEP 8. Check the front turn-signal light bulb (RH).
(1) Remove the front turn-signal (RH) light bulb.
(2) Verify that the front turn-signal light bulb (RH) is not

damaged or burned out.

Q: Is the front turn-signal (RH) light bulb in good

condition?
YES : Go to Step 9.
NO :  Replace the front turn-signal (RH) light bulb. Verify

that the turn-signal lights illuminate normally.

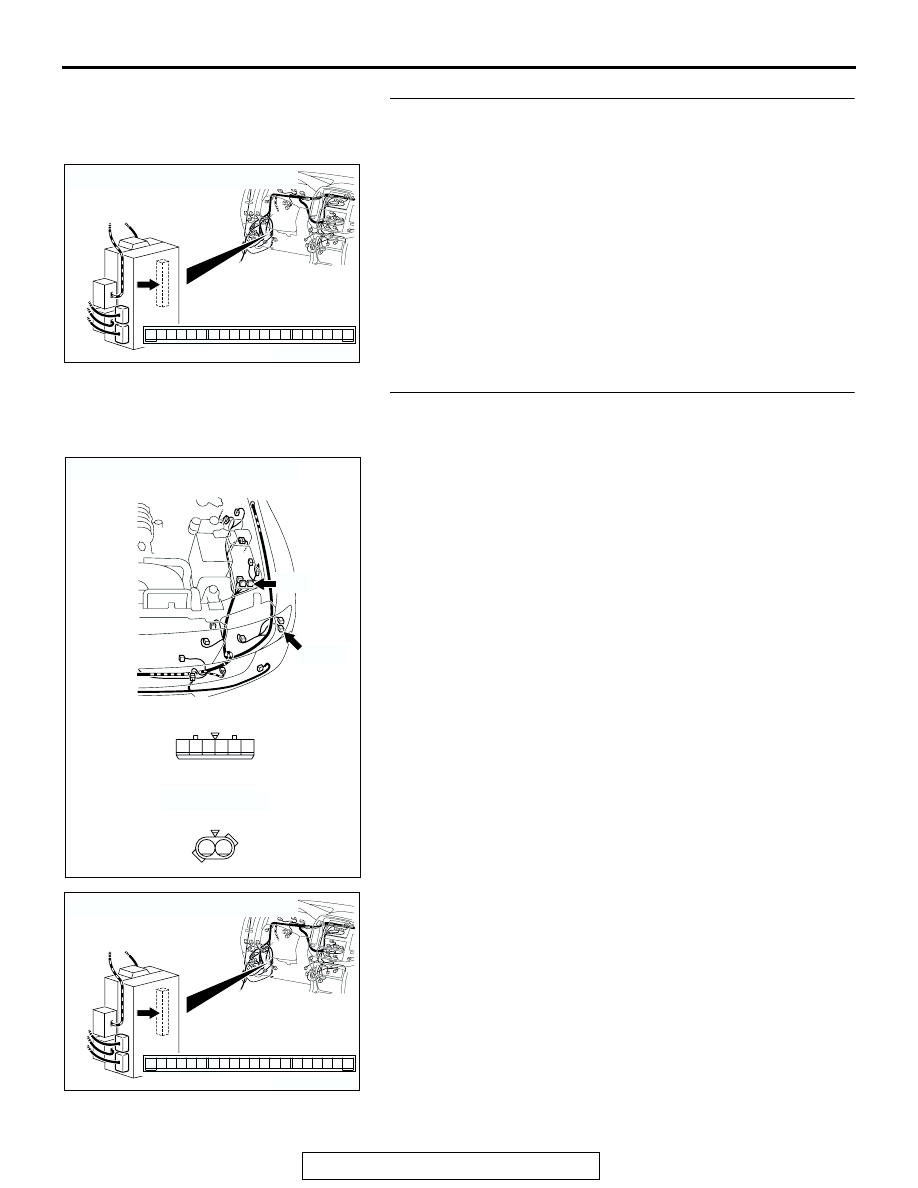

STEP 9. Check front turn-signal light (RH) connector A-35
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is the front turn-signal (RH) connector A-35 in good

condition?
YES : Go to Step 10.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

AC204170

CONNECTOR : D-28

AI

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204173

CONNECTOR : D-212

AF

HARNESS SIDE

7 6 5

2 1

9 8

11 10

4 3

D-212

AC204166

CONNECTOR : A-35

HARNESS
SIDE

A-35(B)

A-35(B)

AF

1

2

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-387

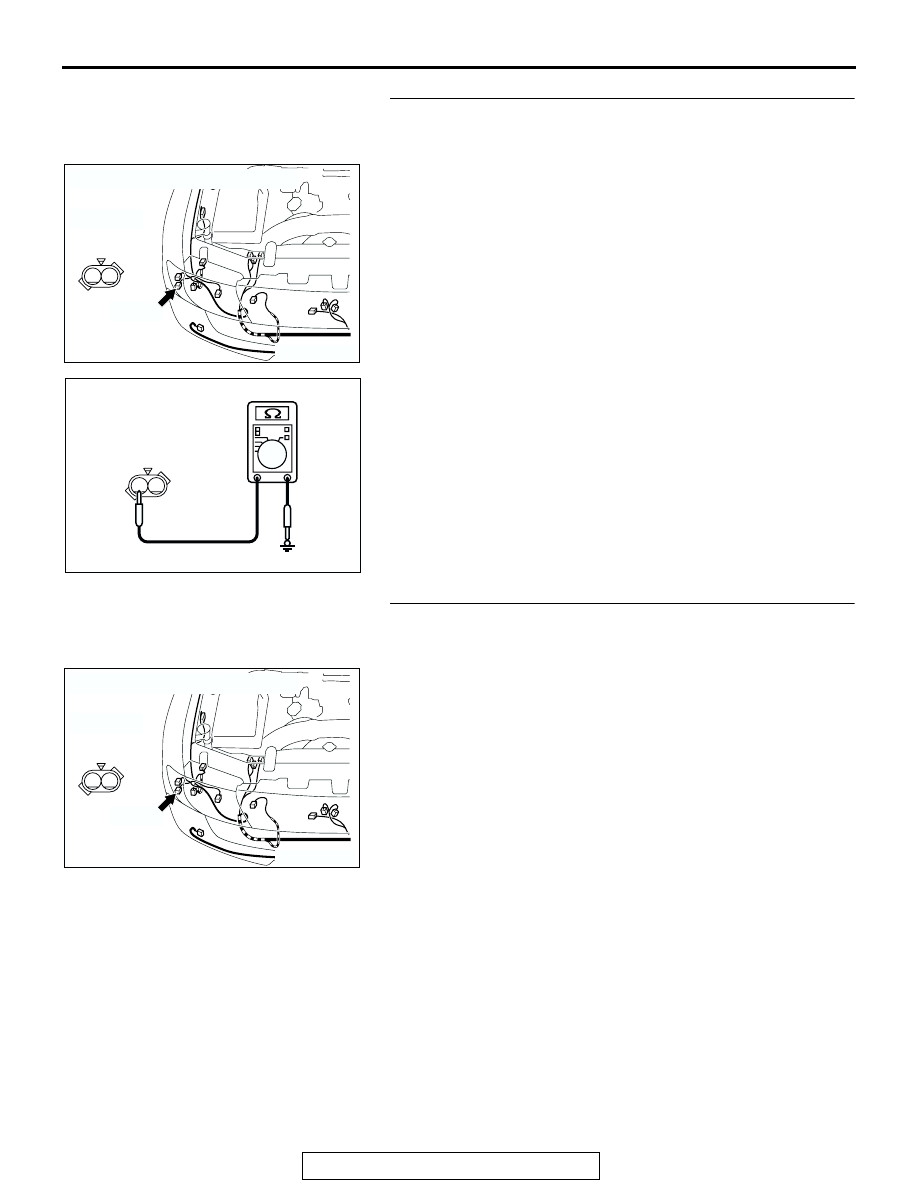

STEP 10. Check the ground circuit to the front
combination light (RH). Test at front combination light (RH)
connector A-35.
(1) Disconnect front combination light (RH) connector A-35 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check the wiring harness between front
turn-signal light (RH) connector A-35 (terminal 2) and
ground.
Q:  Is the wiring harness between front turn-signal light

(RH) connector A-35 (terminal 2) and ground in good
condition?
YES : Replace the socket. Verify that the turn-signal lights

illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lights illuminate normally.

AC204166

CONNECTOR : A-35

HARNESS
SIDE

A-35(B)

A-35(B)

AF

1

2

AC204786

1

2

AC

CONNECTOR A-35
(HARNESS SIDE)

AC204166

CONNECTOR : A-35

HARNESS
SIDE

A-35(B)

A-35(B)

AF

1

2

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-388

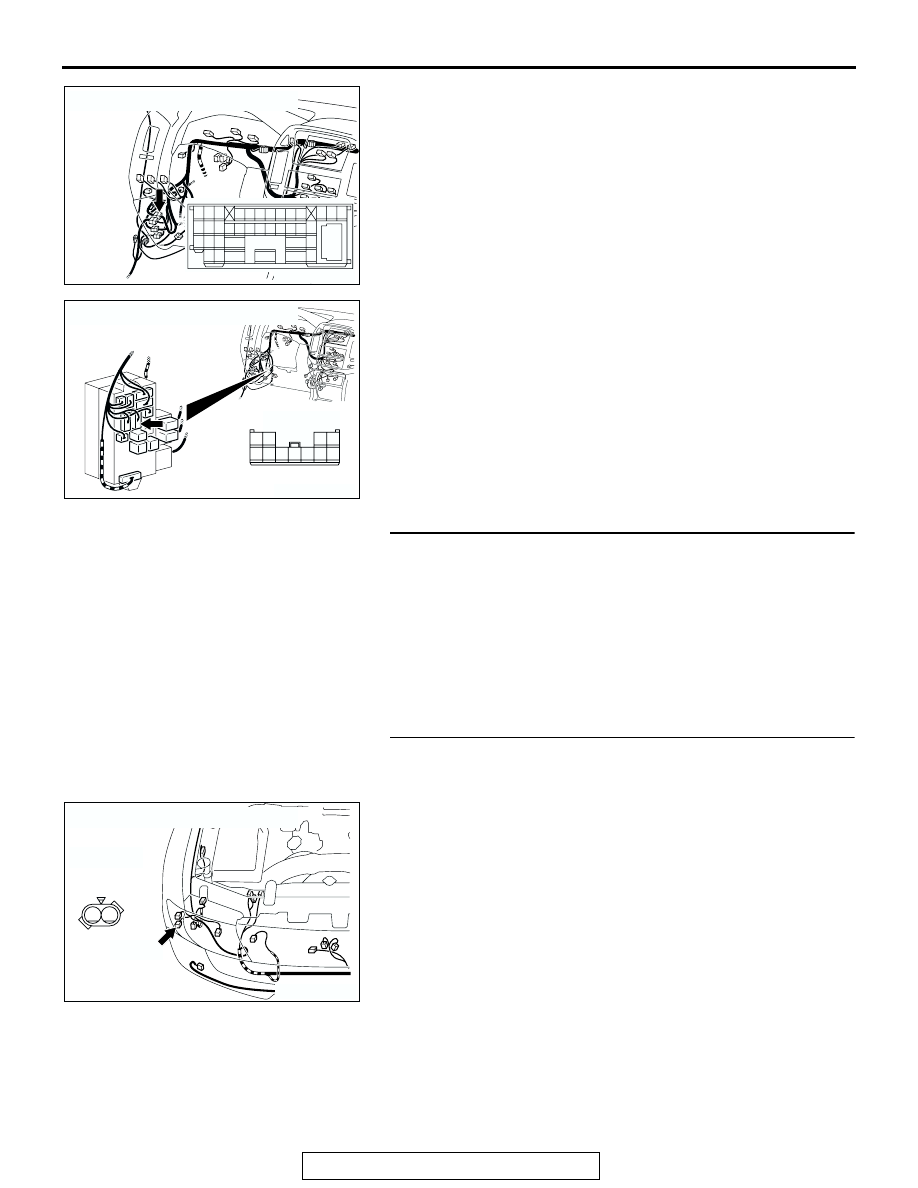

STEP 12. Check ETACS-ECU connector D-222 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-222 in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lights illuminate

normally.

STEP 13. Check the wiring harness between front
turn-signal light (RH) connector A-35 (terminal 1) and
ETACS-ECU connector D-222 (terminal 14).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204166

CONNECTOR : A-35

HARNESS
SIDE

A-35(B)

A-35(B)

AF

1

2

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222
