SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-281

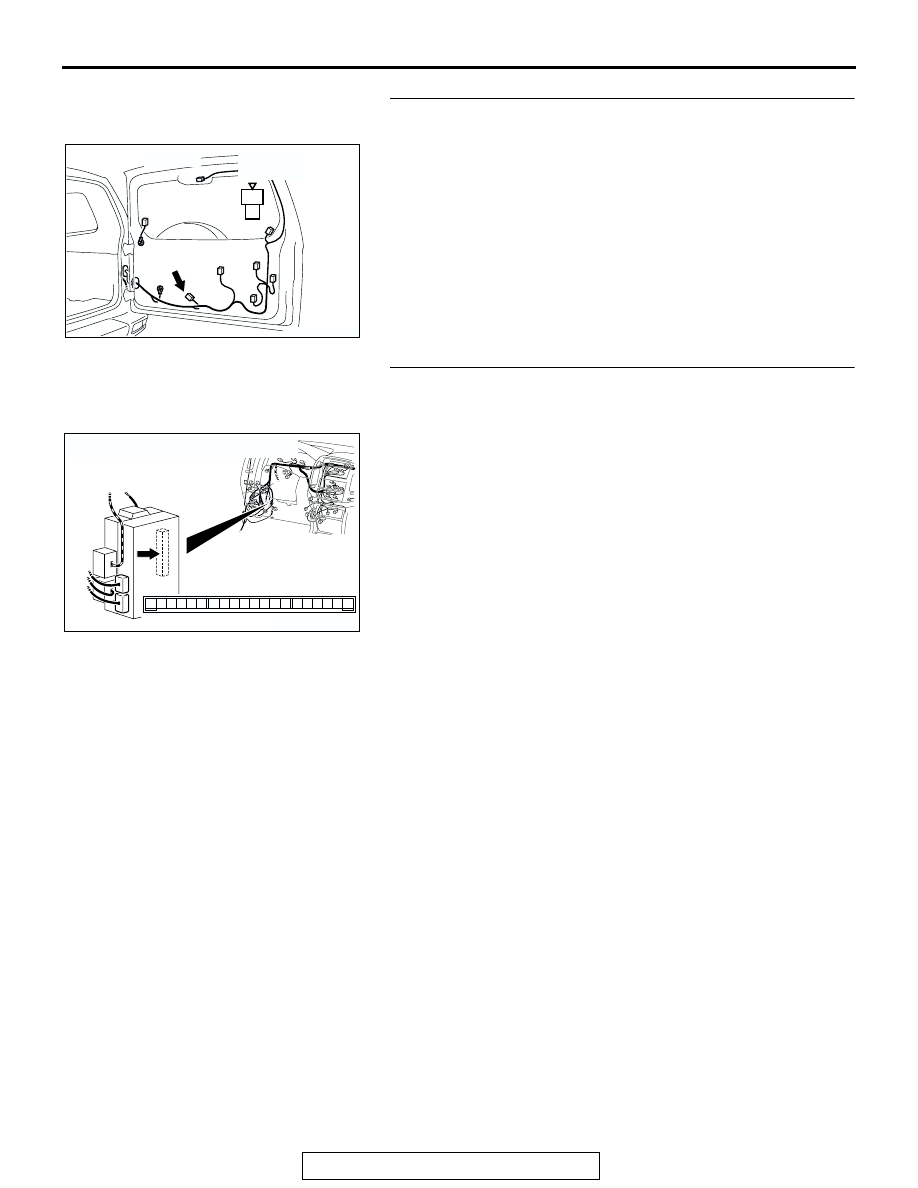

STEP 6. Check the wiring harness between rear washer
motor connector I-08 (terminal 1) and ground.
Q: Is the wiring harness between rear washer motor

connector I-08 (terminal 1) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the connector

may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the
wiring harness as necessary. Verify that the rear
washer works normally.

STEP 7. Check ETACS-ECU connector D-222 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-222 in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the rear washer works normally.

ACX02293 AT

CONNECTOR: I-08

I-08 (B)

2

1

(HARNESS SIDE)

I-08 (B)

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-282

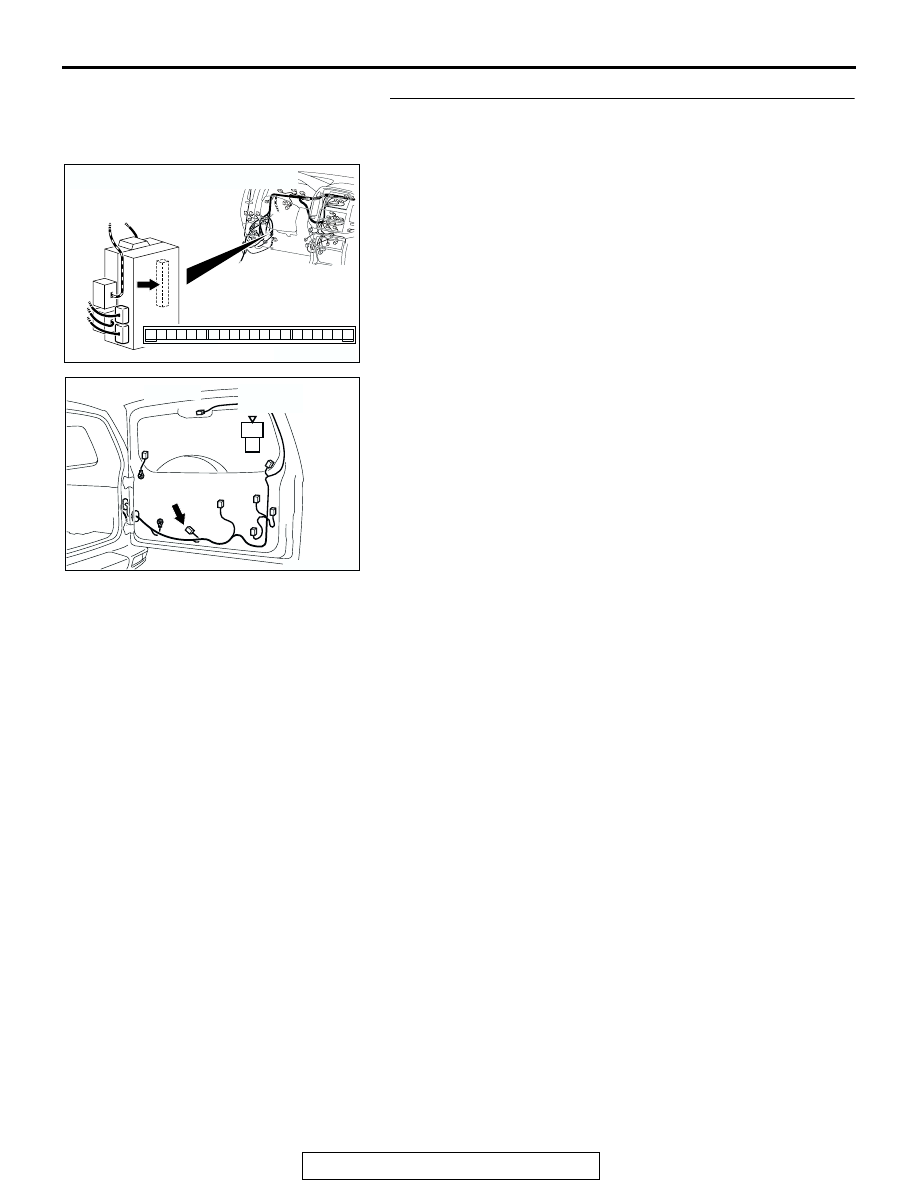

STEP 8. Check the wiring harness between rear washer
motor connector I-08 (terminal 2) and ETACS-ECU
connector D-222 (terminal 3).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

ACX02293 AT

CONNECTOR: I-08

I-08 (B)

2

1

(HARNESS SIDE)

I-08 (B)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-283

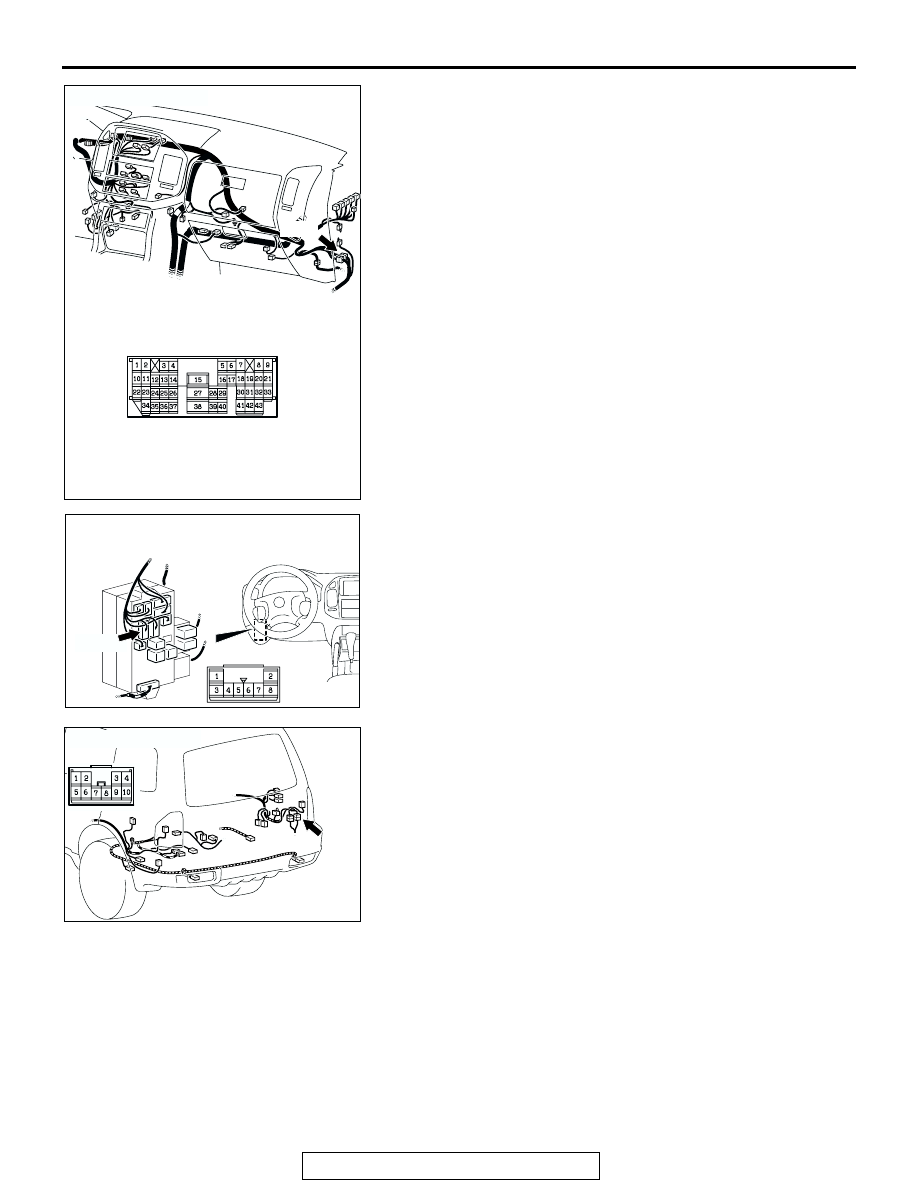

NOTE: Also check intermediate connectors D-111,G-10 and
junction block connector D-221 for loose, corroded, or dam-
aged terminals, or terminals pushed back in the connector. If
intermediate connectors D-111,G-10 and junction block con-
nector D-221 is damaged, repair or replace damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between rear washer motor

connector I-08 (terminal 2) and ETACS-ECU connector
D-222 (terminal 3) in good condition?
YES : Replace the ETACS-ECU. Verify that the rear washer

works normally.

NO :  The wiring harness may be damaged or the connector

may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the
wiring harness as necessary. Verify that the rear
washer works normally.

AC203860AC

D-111

CONNECTOR: D-111

D-111

ACX02285

CONNECTOR: D-221

BX

JUNCTION BLOCK (FRONT VIEW)

D-221

D-221

AC204524

CONNECTOR: G-10

AC

G-10

G-10

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-284

SEAT BELT WARNING LIGHT

GENERAL DESCRIPTION CONCERNING SEAT BELT WARNING LIGHT

M1549023900143

The ECU related to the seat belt warning light func-
tion is as follows.

Seat belt warning light function
If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU illumi-
nates the indicator light by using the driver's seat belt
switch signal.

• The ETACS-ECU illuminates the indicator light

for six seconds if the ignition switch is turned
"ON" while the seat belt switch is on (the driver's
seat belt is not fastened).

• The ETACS-ECU flashes the indicator light 12

cycles (after 0.5 seconds) if the seat belt switch is
on (driver's seat belt is not fastened) when sixty
seconds or more have elapsed since the ignition
switch is turned "ON". One cycle consists of
five-second "on" and then three-second "off".

NOTE: The ETACS-ECU stops flashing the indicator
light immediately when the seat belt witch is off
(driver's seat belt is fastened) or the ignition switch is
turned to the "OFF" or "ACC" position while the seat
belt tone alarm function is working.

General circuit diagram for the seat belt warning light function

FUNCTION

CONTROL ECU

Seat belt warning light function

ETACS-ECU

AC308837

T

T: 3 seconds

6 seconds

60 seconds

1 cycle
(approximately 8 seconds)

12 cycles (approximately 90 seconds)

5 seconds

ON

OFF

ON

 (UNFASTENED)

OFF

 (FASTENED)

Ignition
switch (IG1)

Seat
belt
switch

ON

(ILLUMINATED)

OFF

(NOT ILLUMINATED)

Seat belt
warning
light

AB
