SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-145

Lowers the passenger’s power window
When the power window sub switch is pushed down, the sys-
tem energizes its respective power window motor, and then
passenger’s window glass lowers.

Power window timer function
When the ignition switch is turned to the "ON" position, the
power window relay is turned ON. After the ignition switch is
turned OFF, the system continues to turn ON the power window
relay for about 30 seconds and to enable the opening and clos-
ing of the door window by the power window switch. When the
driver's or front passenger’s door is opened while the timer is in
operation, the power window relay will be turned OFF.

AC106705

LOWER SIDE



POWER
WINDOW
MOTOR

PASSENGER'S
POWER
WINDOW
SUB SWITCH

LOWER SIDE

ON

OFF

ON

OFF

AM

AC200337 AC

ON

OFF

ON

OFF

ON

(Open)

OFF

(Closed)

IGNITION SWITCH (IG1)

POWER WINDOW
RELAY

DRIVER'S OR FRONT
PASSENGER'S
SEAT DOOR
SWITCH

t

t: 30 seconds

t

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-146

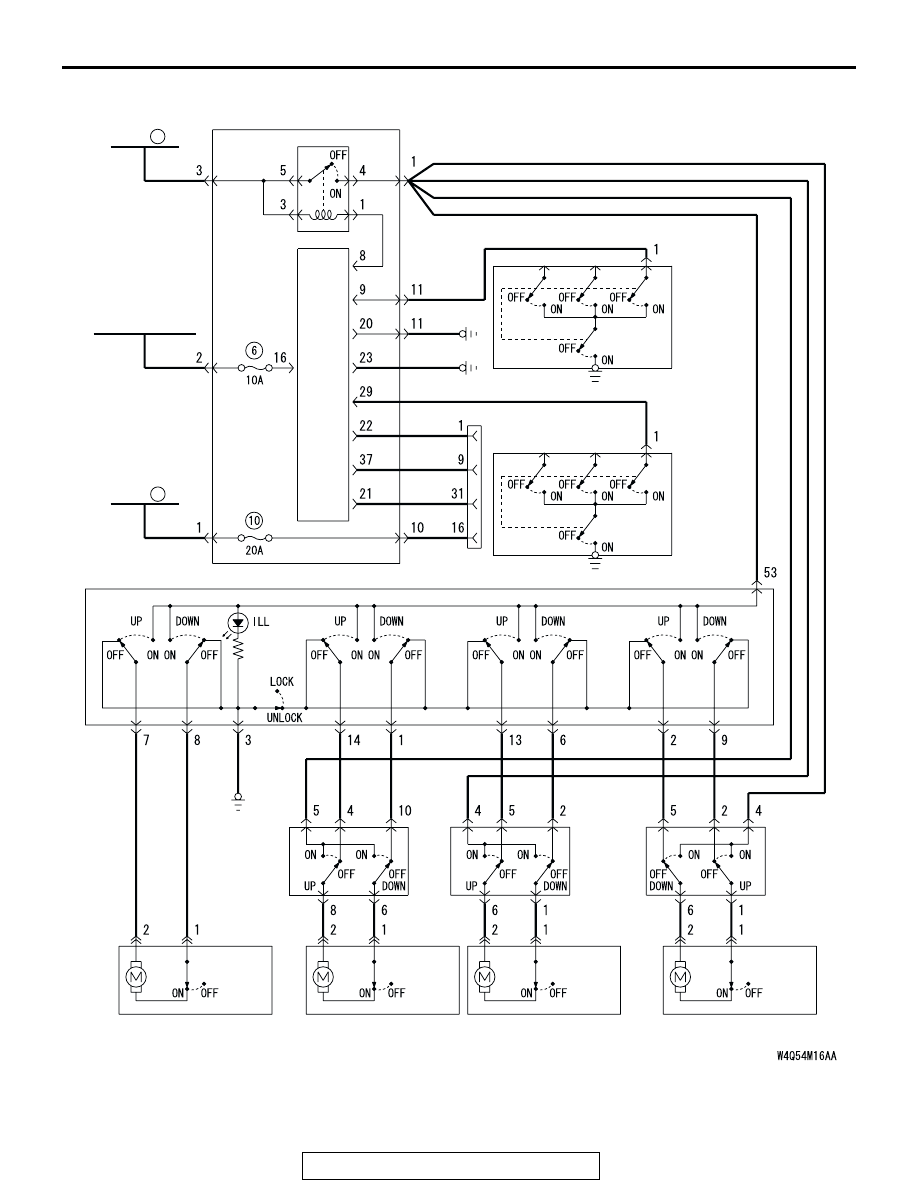

General circuit diagram for the power windows

IGNITION
SWITCH (IG1)

DATA LINK
CONNECTOR

FRONT
DOOR
SWITCH
(RH)

FRONT
DOOR
SWITCH
(LH)

ETACS-
ECU

POWER
WINDOW
RELAY

POWER
WINDOW
SUB
SWITCH

(FRONT: RH)

POWER WINDOW
MOTOR

(FRONT: RH)

POWER  WINDOW
MOTOR

(FRONT: LH)

POWER WINDOW
MOTOR

(REAR: LH)

POWER  WINDOW
MOTOR

(REAR: RH)

POWER
WINDOW
SUB
SWITCH

(REAR: LH)

POWER
WINDOW
SUB
SWITCH

(REAR: RH)

POWER WINDOW MAIN SWITCH

FRONT (LH)

FRONT (RH)

REAR (LH)

REAR (RH)

CIRCUIT
BREAKER

CIRCUIT
BREAKER

CIRCUIT
BREAKER

CIRCUIT
BREAKER

JUNCTION BLOCK

FUSIBLE
LINK

2

FUSIBLE
LINK

4

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-147

INSPECTION PROCEDURE D-1: Power Window: Power windows do not work at all.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991862. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-10

."

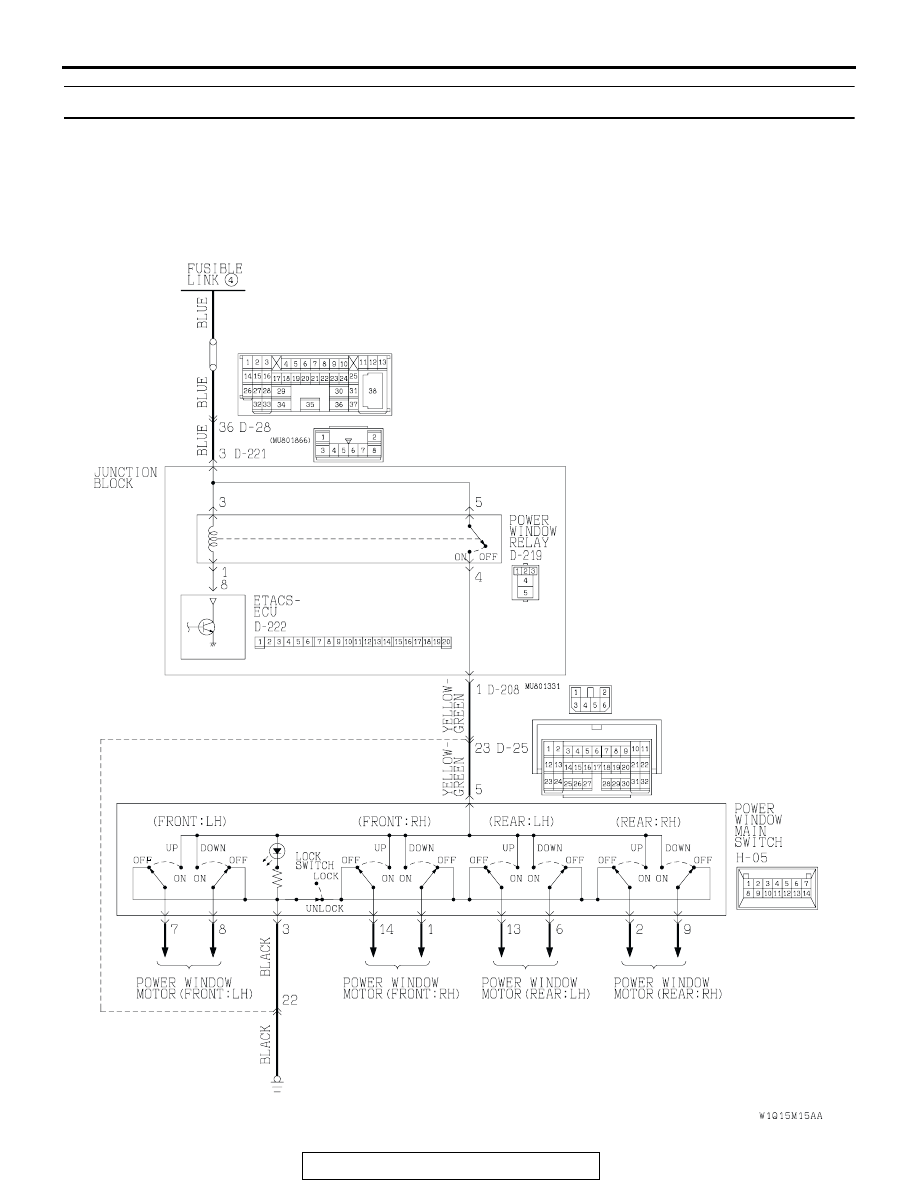

Power Window Relay Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-148

.

CIRCUIT OPERATION
The ETACS-ECU turns on the power window relay to
activate the power windows when the ignition switch
(IG1) is in the "ON" position. The power window relay
is located in the under-dash junction block, to the left
of the steering column. It plugs into connector D-219.

.

TROUBLESHOOTING HINTS

• The power window relay may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

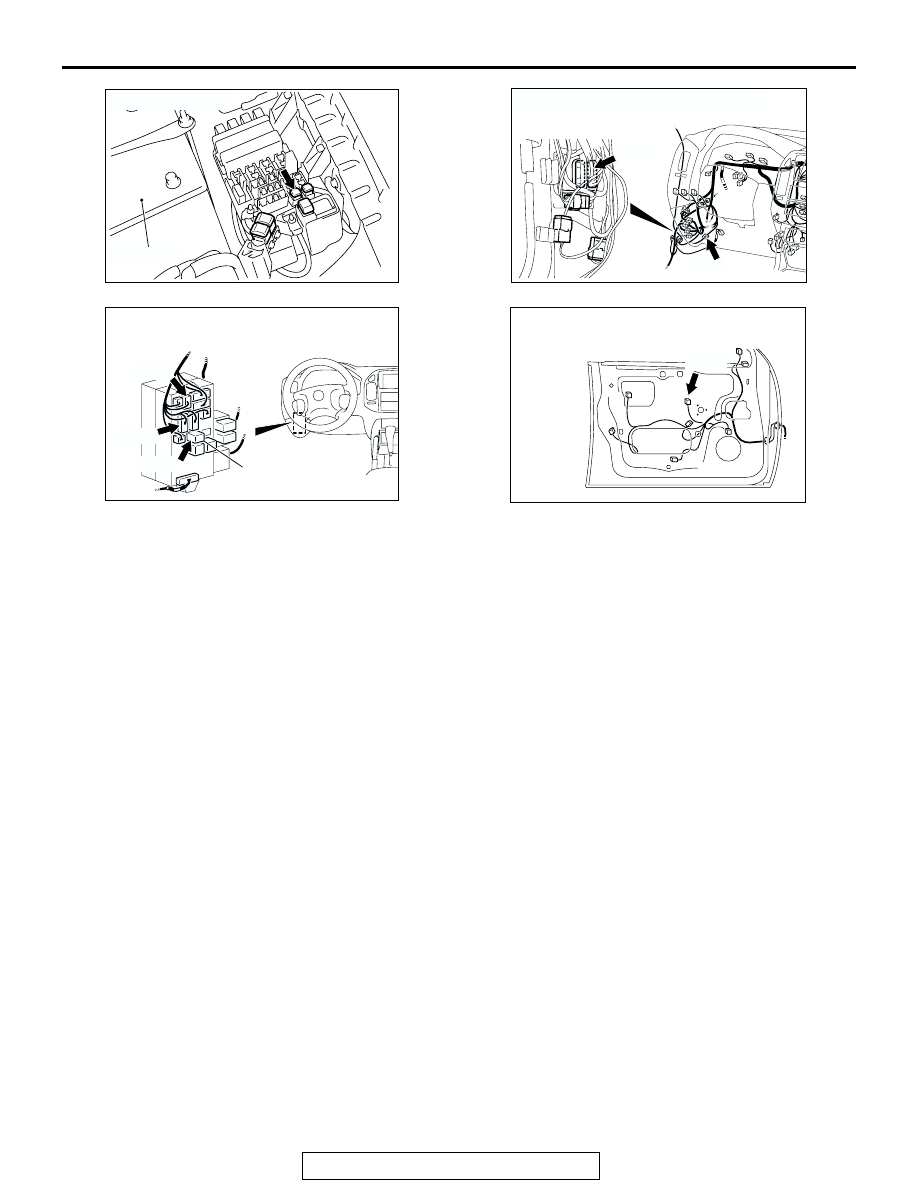

ACX02274

FUSIBLE LINK (4)

AD

BATTERY

AC000758

CONNECTORS: D-25, D-28

AK

D-25

D-28

ACX02285

CONNECTORS: D-208, D-219, D-221

AG

D-208

D-219

JUNCTION BLOCK (FRONT VIEW)

D-221

POWER WINDOW
RELAY

AC203774

CONNECTOR: H-05

AD

DRIVER'S DOOR

H-05
