SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-105

INSPECTION PROCEDURE C-2: Central Door Locking System: Some doors do not lock or unlock.

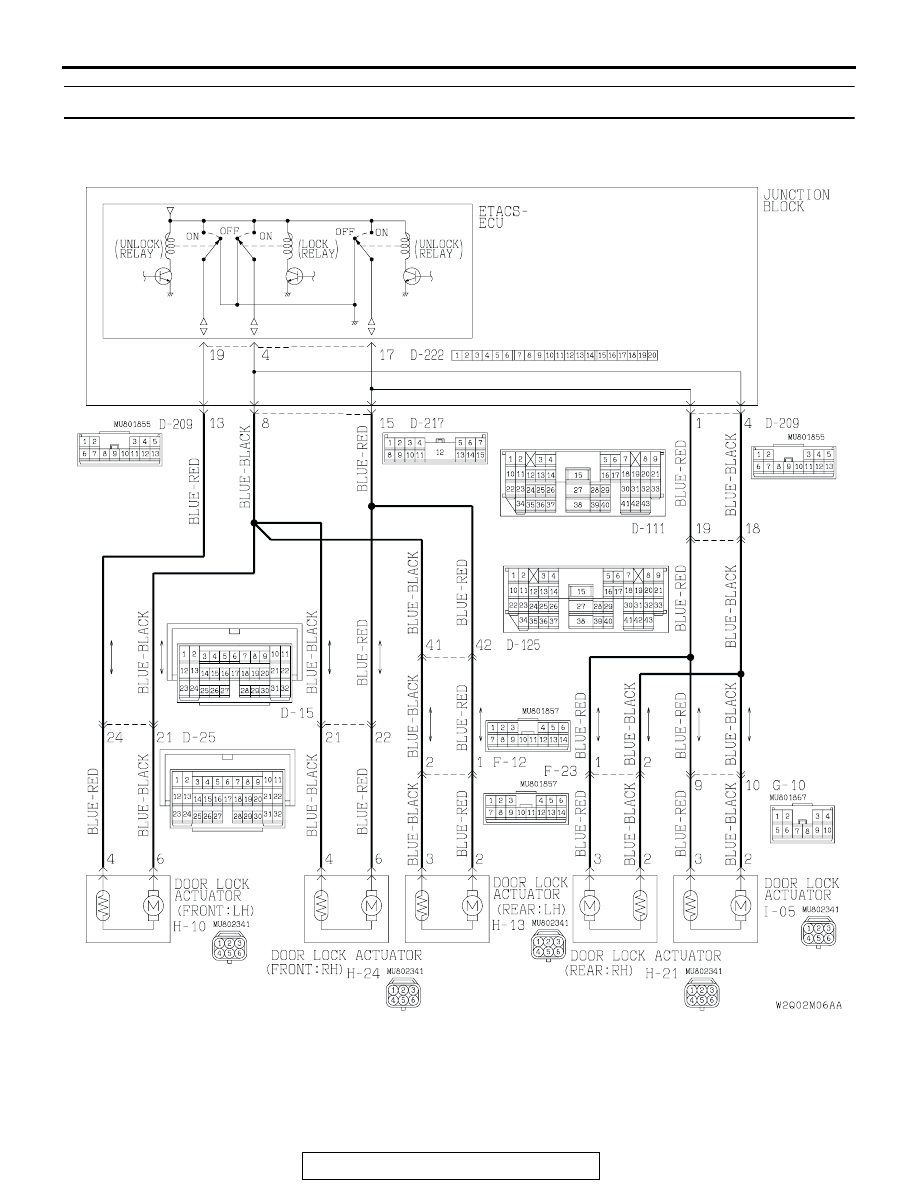

Central Door Lock Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-106

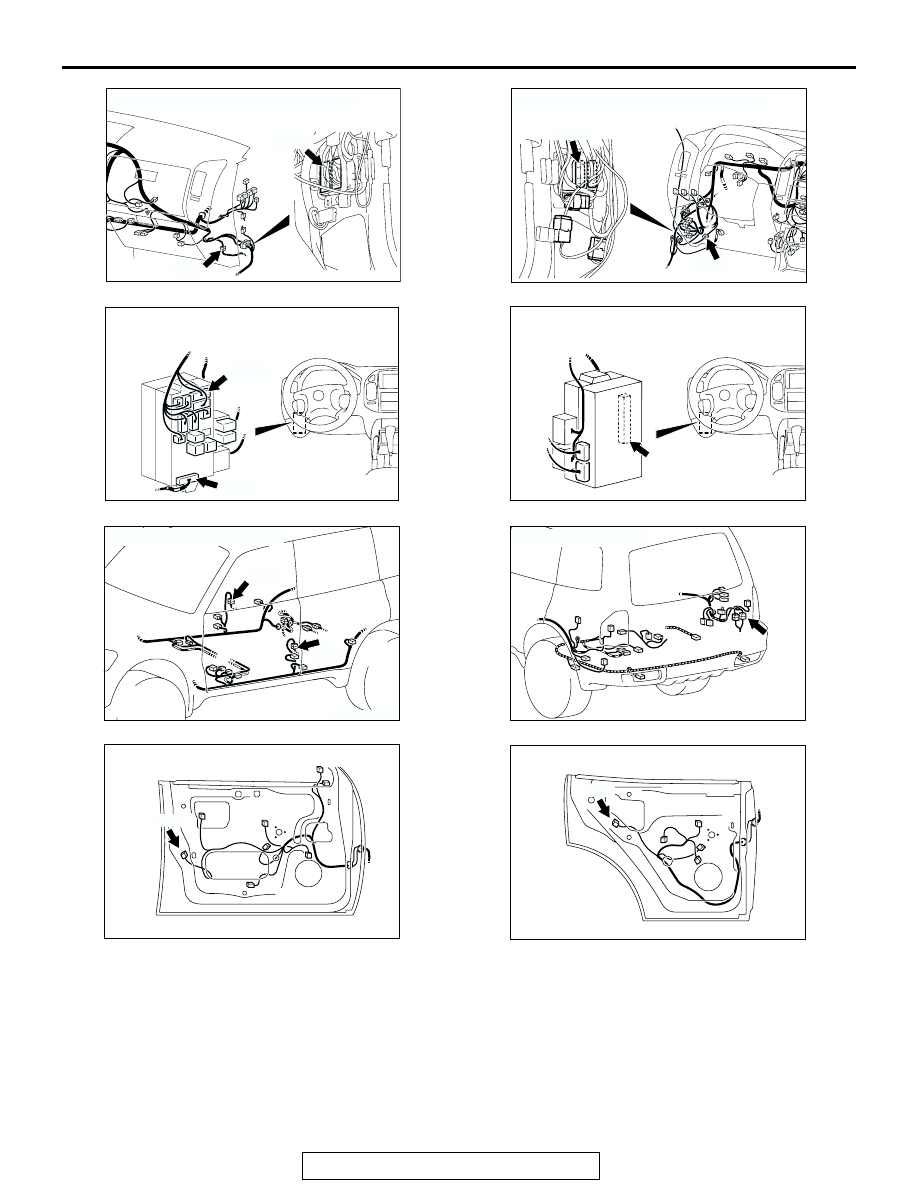

AC000759

CONNECTORS: D-15, D-111

AB

D-15

D-111

AC000758

CONNECTORS: D-25, D-125

AI

D-25

D-125

ACX02285

CONNECTORS: D-209, D-217

AL

D-209

D-217

JUNCTION BLOCK (FRONT VIEW)

ACX02286

CONNECTOR: D-222

AC

JUNCTION BLOCK (REAR VIEW)

ACX02289

CONNECTORS: F-12, F-23

F-23

AE

F-12

AC204524

CONNECTOR: G-10

AB

G-10

AC000235 AD

H-10

CONNECTOR: H-10

FRONT DOOR <DRIVER'S SIDE>

AC000237AI

H-13

CONNECTOR: H-13

REAR DOOR <LH>

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-107

.

CIRCUIT OPERATION

• The ETACS-ECU controls the central door lock

system, locking or unlocking all the doors by acti-
vating the central door lock relay (built into the
ECU). The ETACS-ECU uses inputs from the fol-
lowing components:

• Driver's or passenger's door lock actuator

switch

• Driver's or passenger's door lock key cylinder

switch

• Door lock switch, which is incorporated in the

power window main switch or power window
sub switch (front RH)

.

TECHNICAL DESCRIPTION (COMMENT)
If only some doors do not lock or unlock, the harness
wiring between the door lock actuator or the
ETACS-ECU and the door lock actuator may be
defective.

.

TROUBLESHOOTING HINTS

• The driver’s or front passenger’s door lock actua-

tor may be defective

• The ETACS-ECU may be defective

• The harness wiring or connectors may have

loose, corroded or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check which door lock is defective.
Q: Which of the door locks is defective?

Driver's door : Go to Step 2.
Front passenger's door : Go to Step 7.
Rear passenger's door (LH) : Go to Step 12.
Rear passenger's door (RH) : Go to Step 17.
Back door : Go to Step 22.

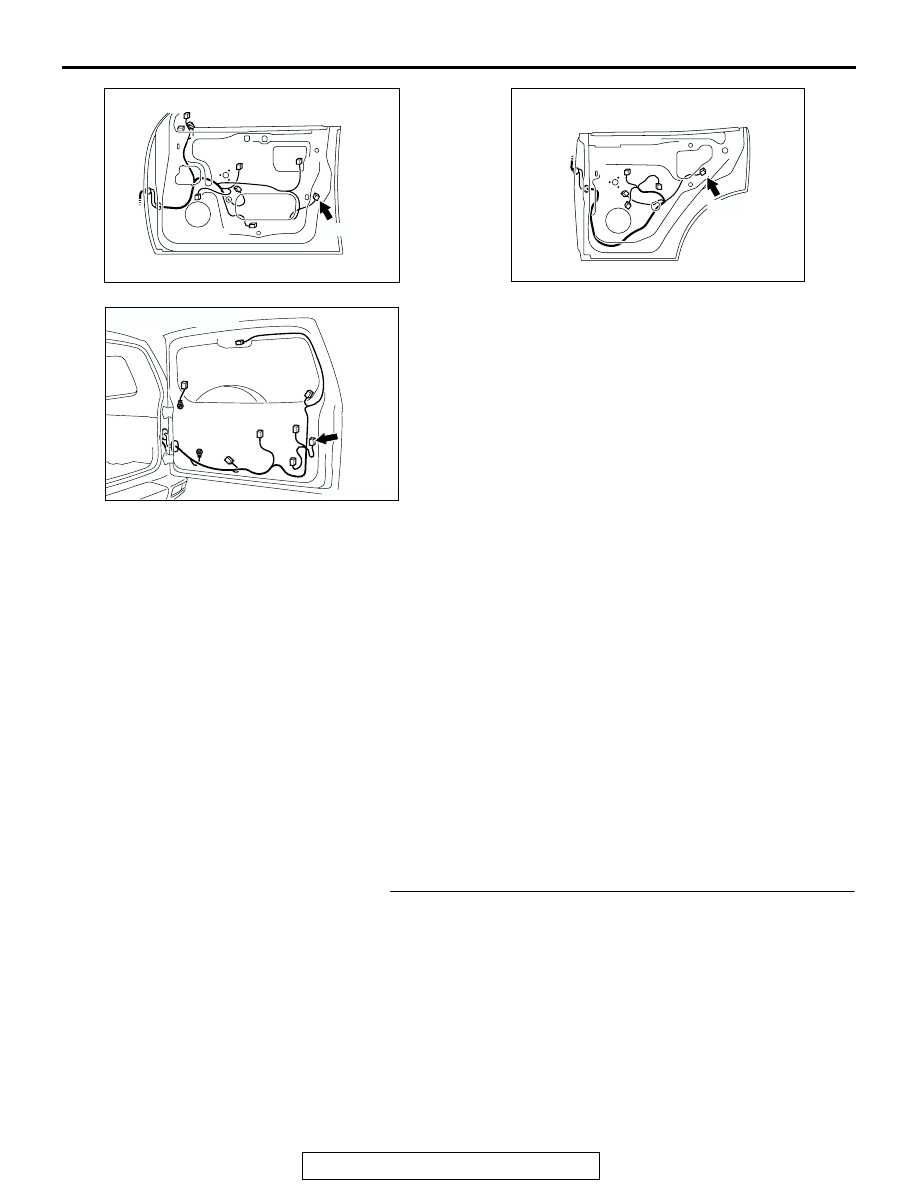

AC000238AJ

H-24

CONNECTOR: H-24

FRONT DOOR <RH>

AC000316 AH

H-21

CONNECTOR: H-21

REAR DOOR <RH>

ACX02293

CONNECTOR: I-05

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-108

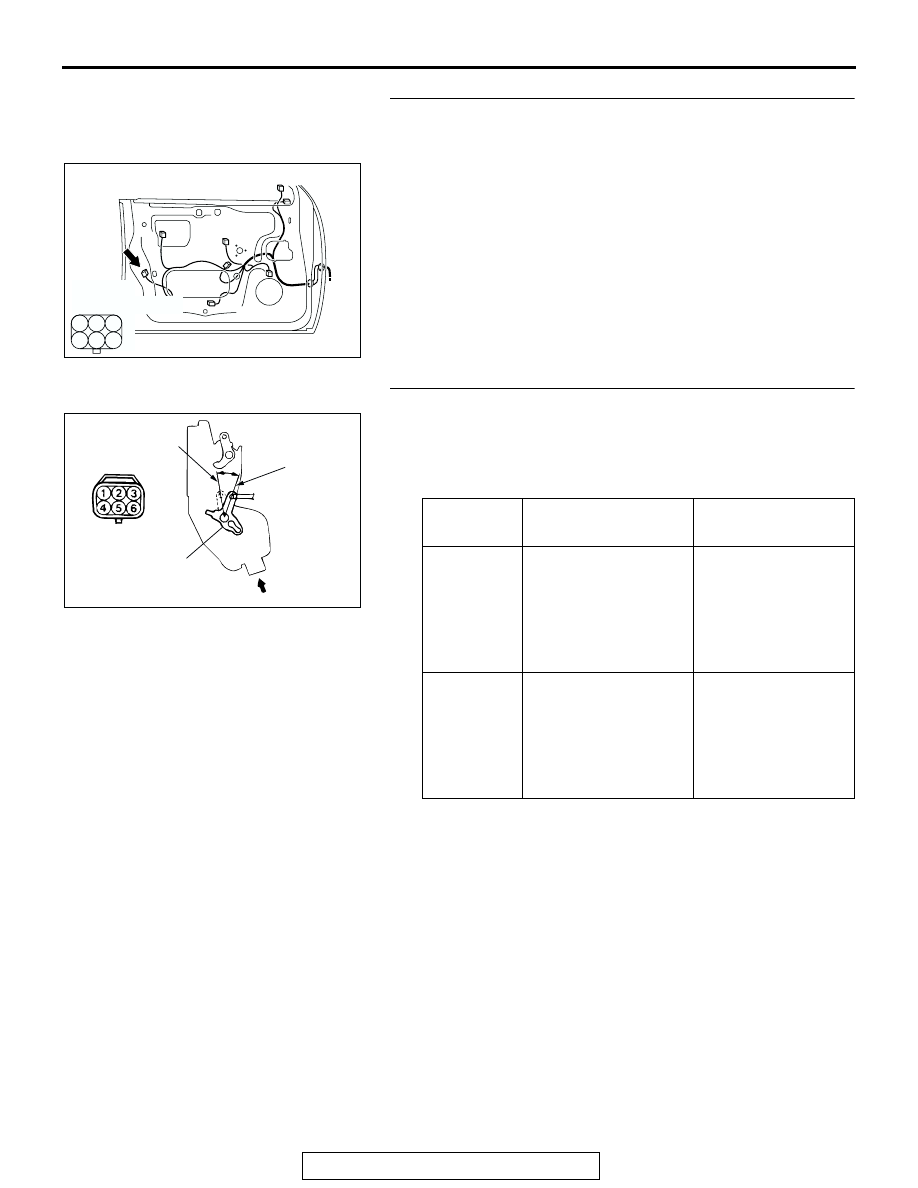

STEP 2. Check driver's door lock actuator connector H-10
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is driver's door lock actuator connector H-10 in good

condition?
YES : Go to Step 3.
NO :  Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. After repairs

have been made, verify that all the doors can now be
locked and unlocked normally.

STEP 3. Check the driver's door lock actuator.

1. Remove the driver's door lock actuator, and check it. Refer

to GROUP 42

− Door Handle and Latch

P.42-41

.

2. Follow the table below to check the driver's door lock actua-

tor for correct operation.

Q: Does the driver's door lock actuator work normally?

YES : Go to Step 4.
NO :  Replace the driver's door lock actuator. Verify that all

the doors can be locked and unlocked function should
now work normally.

AC000235 AE

H-10 (B)

CONNECTOR: H-10

FRONT DOOR <DRIVER'S SIDE>

H-10 (B)

1

2

3

4

5

6

(HARNESS SIDE)

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the
"LOCK"
position

• Connect terminal 4

to the positive
battery terminal

• Connect terminal 6

to the negative
battery terminal

The lever moves
from the "LOCK"
position to the
"UNLOCK" position.

At the
"UNLOCK"
position

• Connect terminal 6

to the positive
battery terminal

• Connect terminal 4

to the negative
battery terminal

The lever moves
from the "UNLOCK"
position to the
"LOCK" position.

ACX00543

LOCK

UNLOCK

VIEW A

A

AE

LEVER
