AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-25

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B (Vehicles without

CAN communication system)

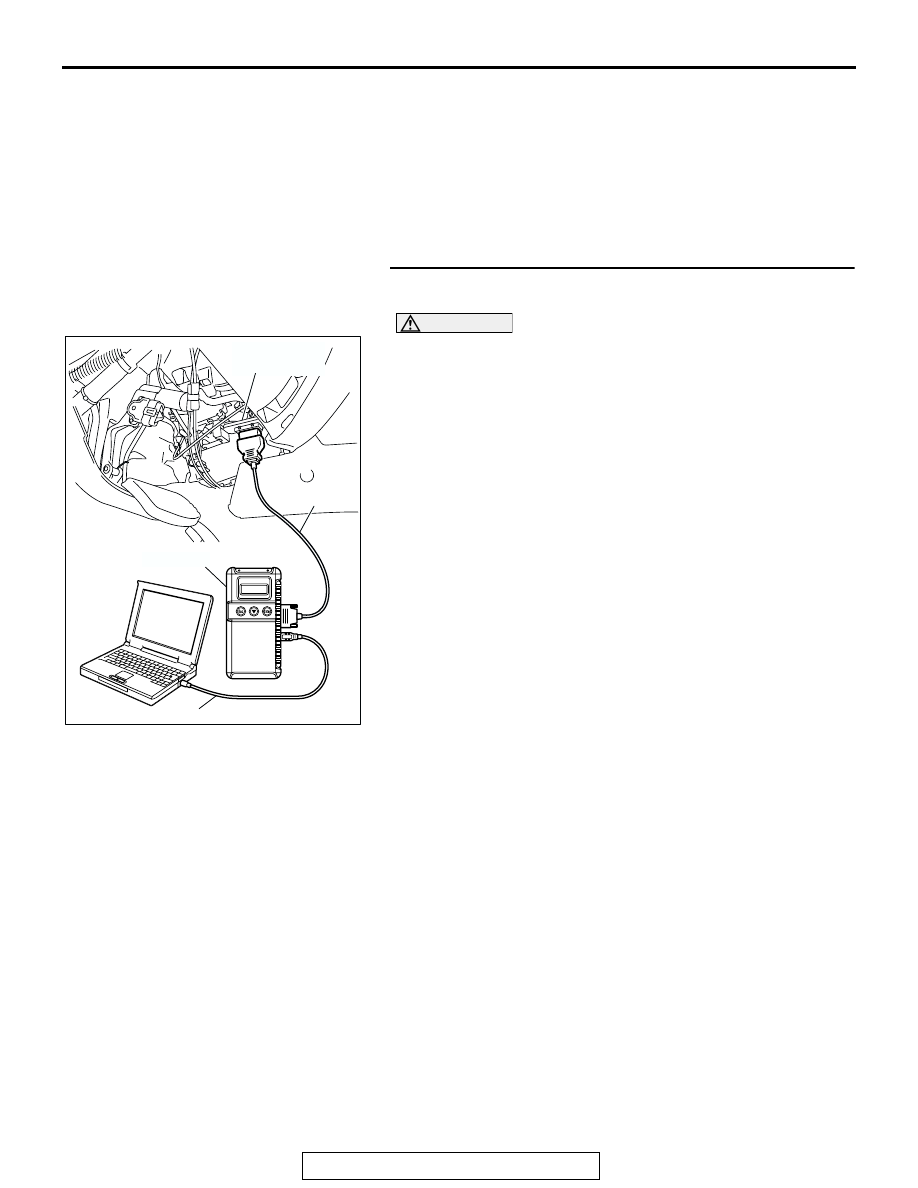

STEP 1. Using scan tool MB991958, check data list item 32:
Mode selection damper control motor and potentiometer.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
Check the data list.
Item 32: mode selection damper control motor and potentiome-
ter
Q: Does the data list show approximately 0% (at FACE

position), approximately 60% (at FOOT position),
approximately 80% (at FOOT/DEF position), and
approximately 100% (at DEF position)?
YES :  It can be assumed that this malfunction is intermittent

(Refer to GROUP 00 - How to Cope with Intermittent
Malfunction

P.00-6

).

NO :   Go to Step 2.

AC307591 AB

MB991911

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-26

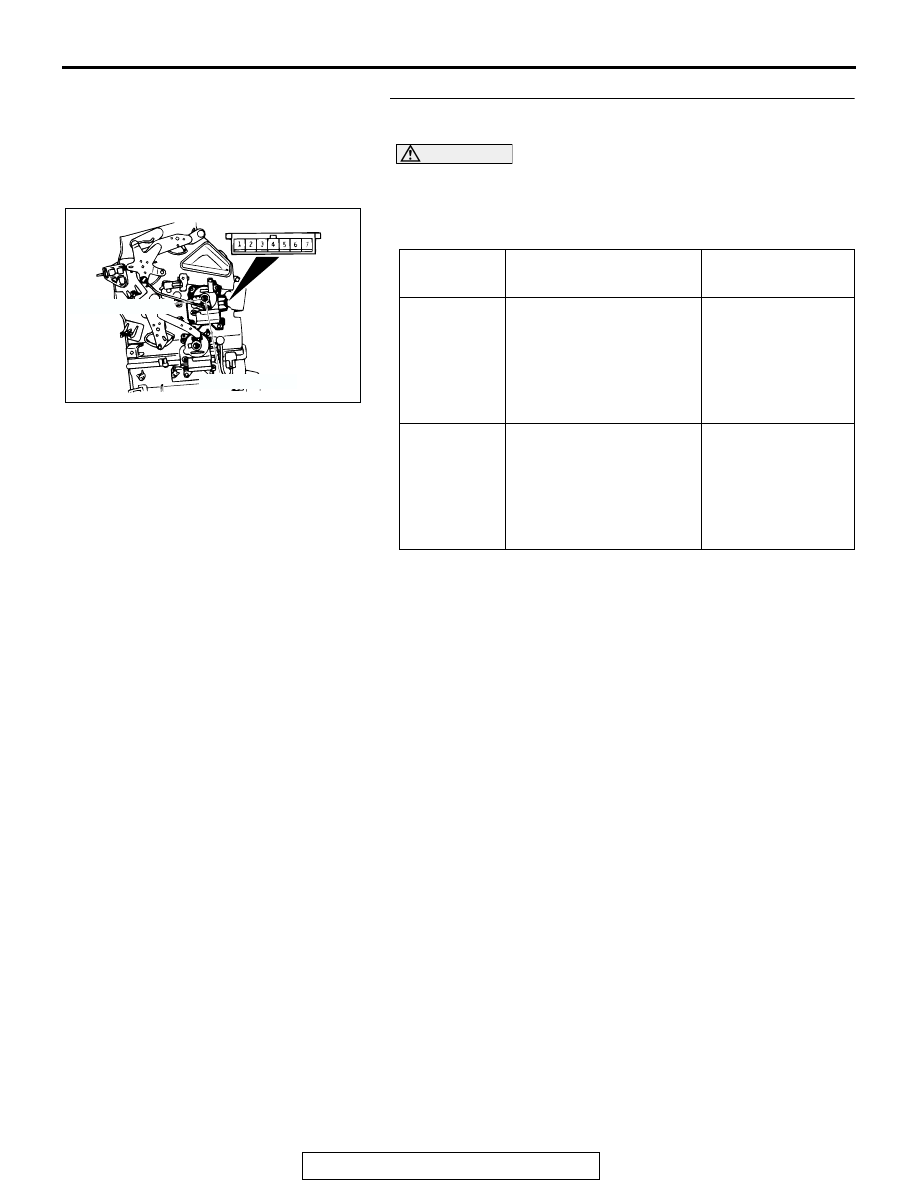

STEP 2. Check the mode selection damper control motor
and potentiometer.

CAUTION

Do not apply battery voltage when the damper is in the
FACE or DEF position.
Check the mode selection damper control motor by the follow-
ing procedures.

While checking the mode selection damper control motor, mea-
sure the resistances between terminal Nos. 3 and 5 as well as
terminal Nos. 3 and 7. At this time, the resistances should
change gradually within the standard value.

Standard value: 0.96

− 5.76 kΩ

Q: Does mode selection damper control motor and

potentiometer work normally?
YES : Go to Step 3.
NO :  Replace the mode selection damper control motor

and potentiometer. Then go to Step 5.

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the DEF
position

• Connect terminal 1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

The lever moves
from the DEF
position to the
outside position

At the FACE
position

• Connect terminal 2 to

the positive battery
terminal

• Connect terminal 1 to

the negative battery
terminal

The lever moves
from the FACE
position to the
inside position

ACX01457

FACE POSITION

DEF POSITION

AB

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-27

STEP 3. Check mode selection damper control motor and
potentiometer connector D-22 and A/C-ECU connector
D-24 for damage.

Q: Is mode selection damper control motor and

potentiometer connector D-22 and A/C-ECU connector
D-24 in good condition?
YES : Go to Step 4.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 5.

STEP 4. Check the wiring harness between mode selection
damper control motor and potentiometer connector D-22
(terminals 7, 3 and 5) and A/C-ECU D-24 (terminals 21, 32
and 29).

Q: Is the wiring harness between mode selection damper

control motor and potentiometer connector D-22
(terminals 7, 3 and 5) and A/C-ECU D-24 (terminals 21,
32 and 29) in good condition?
YES : Replace the A/C-ECU (Refer to

P.55B-142

). Then go

to Step 5.

NO :  Repair the wiring harness. Then go to Step 5.

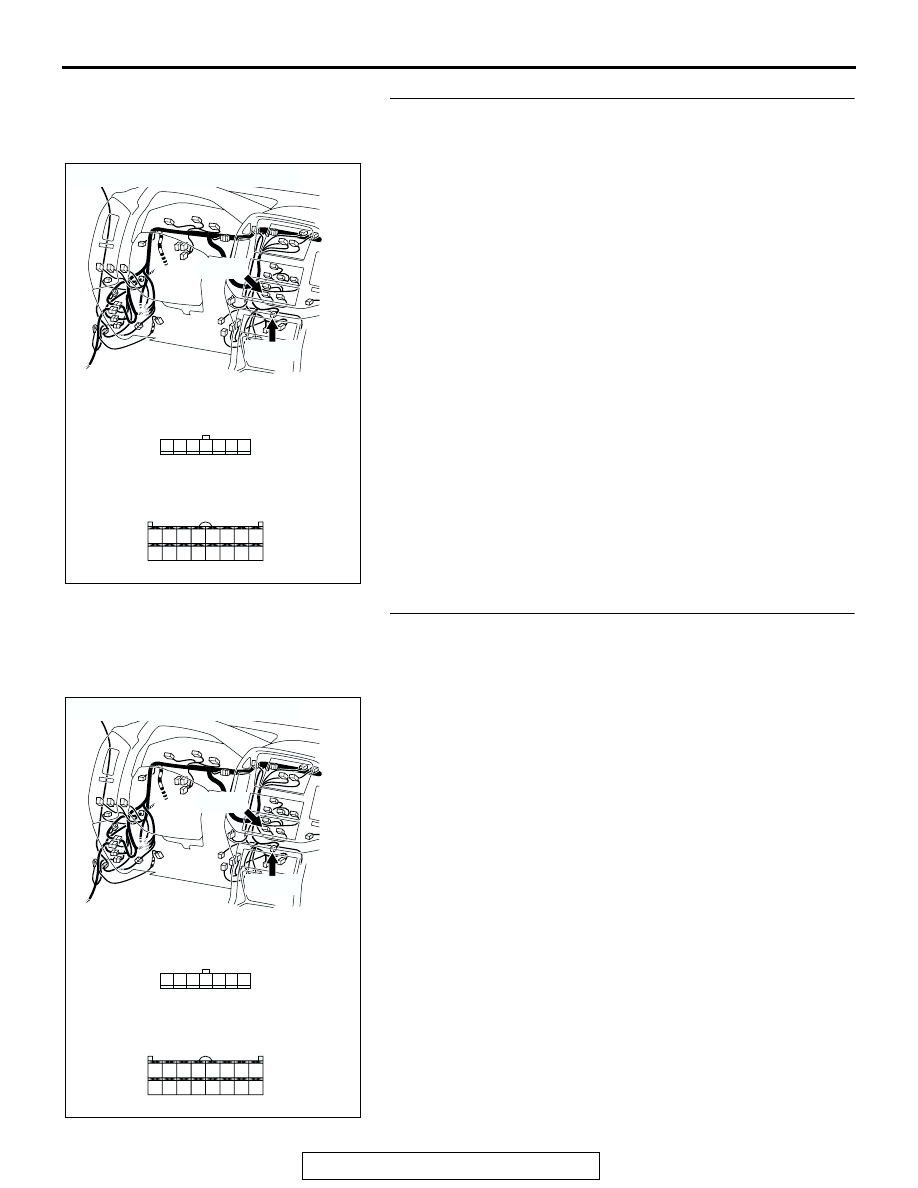

AC204188

CONNECTORS : D-22, D-24

D-24(B)

D-24(B)

CA

D-22(B)

D-22(B)

HARNESS SIDE

HARNESS SIDE

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

7 6 5 4 3 2 1

AC204188

CONNECTORS : D-22, D-24

D-24(B)

D-24(B)

CA

D-22(B)

D-22(B)

HARNESS SIDE

HARNESS SIDE

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

7 6 5 4 3 2 1

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-28

STEP 5. Recheck for diagnostic trouble code.
Q: Is DTC 32 set?

YES :  Return to Step 1.
NO :  The procedure is complete.

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Communication with scan tool is not Possible.

.

TECHNICAL DESCRIPTION
The harness wires between the A/C-ECU power sup-
ply line or the A/C-ECU and the data link connector
may be defective.

.

TROUBLESHOOTING HINT

• Malfunction of connector.

• Malfunction of the harness.

• Malfunction of the A/C-ECU.

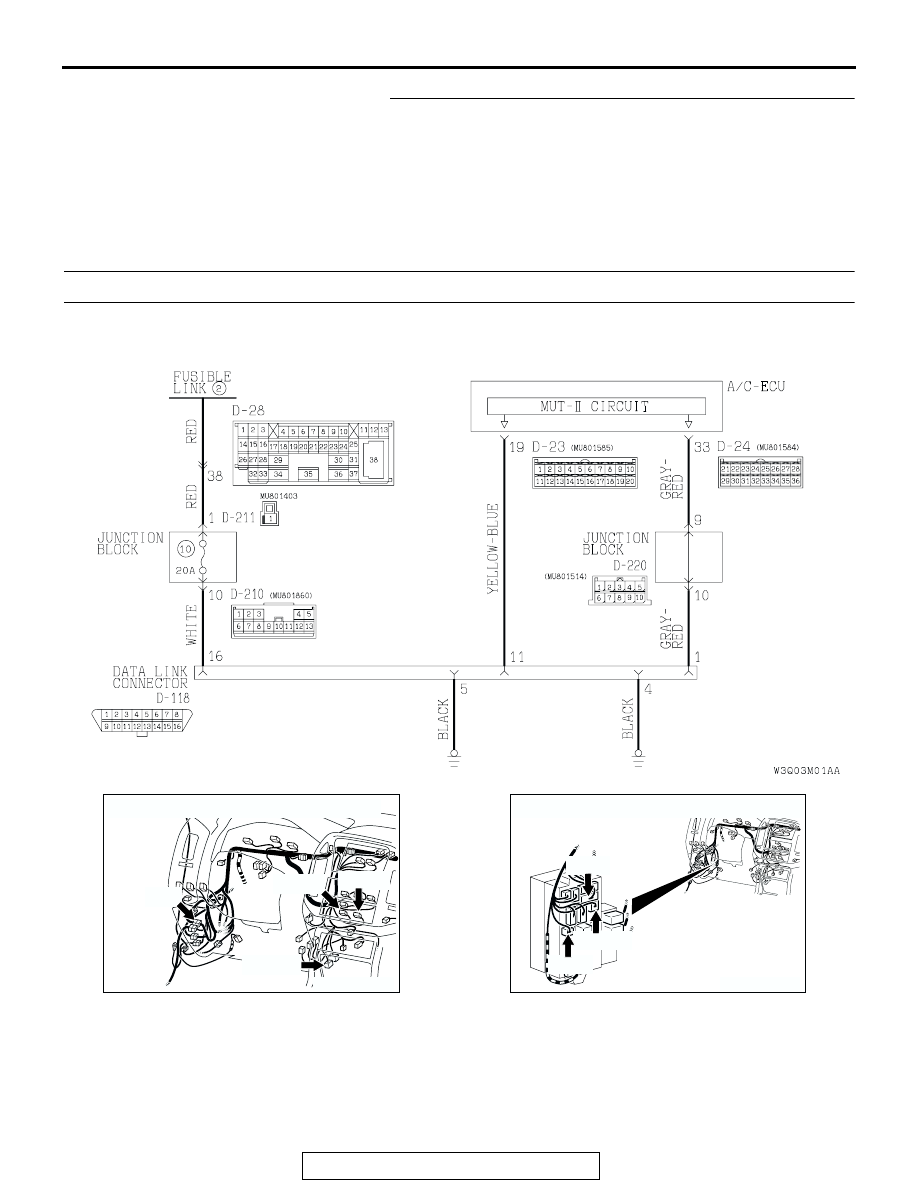

Data Link Connector Circuit

AC204170

CONNECTORS : D-23, D-24, D-28, D-118

D-23(B)

D-24(B)

D-28

EH

D-118(B)

AC204173

CONNECTORS : D-210, D-211, D-220

D-210

D-211(B)

BR

D-220
