Mitsubishi Montero (2004+). Manual - part 611





REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-87

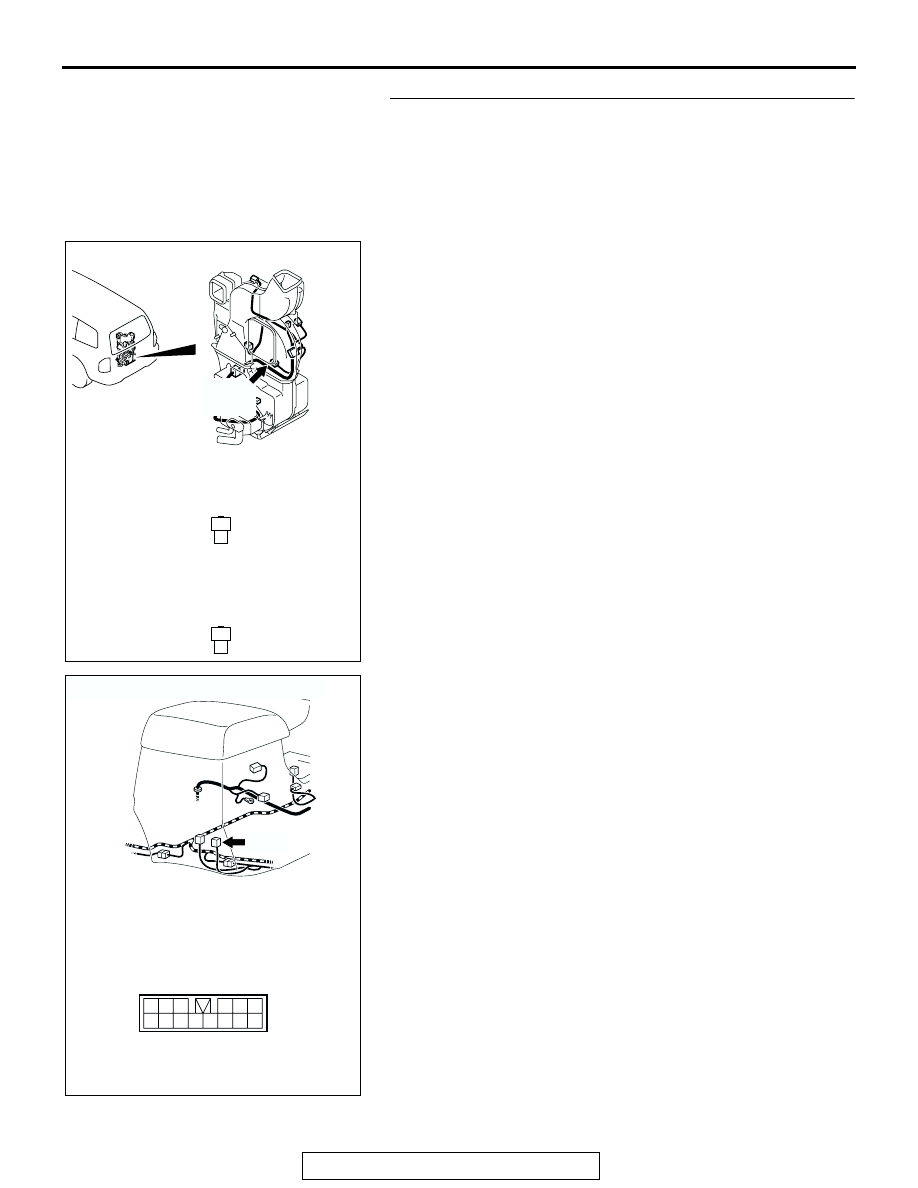

STEP 25. Measure the resistance at rear heater switch
connector E-21 <vehicles with rear heater>, rear cooler
switch connector E-17 <vehicles with rear cooler> or rear
A/C switch connector E-22 <vehicles with rear A/C>.

(1) Disconnect connector E-21, E-17 or E-22 and measure the

resistance at the wiring harness side.

(2) Measure the resistance value between terminal 1 and

ground.

• 2 ohm or less

Q: Does the measured resistance value correspond with

this range?
YES :  Go to Step 26.
NO :   Go to Step 28.

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204738 CM

HARNESS SIDE : E-17, E-21, E-22

1
7

2
8

10

11

5

13

6

14

12

4

9

3

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-88

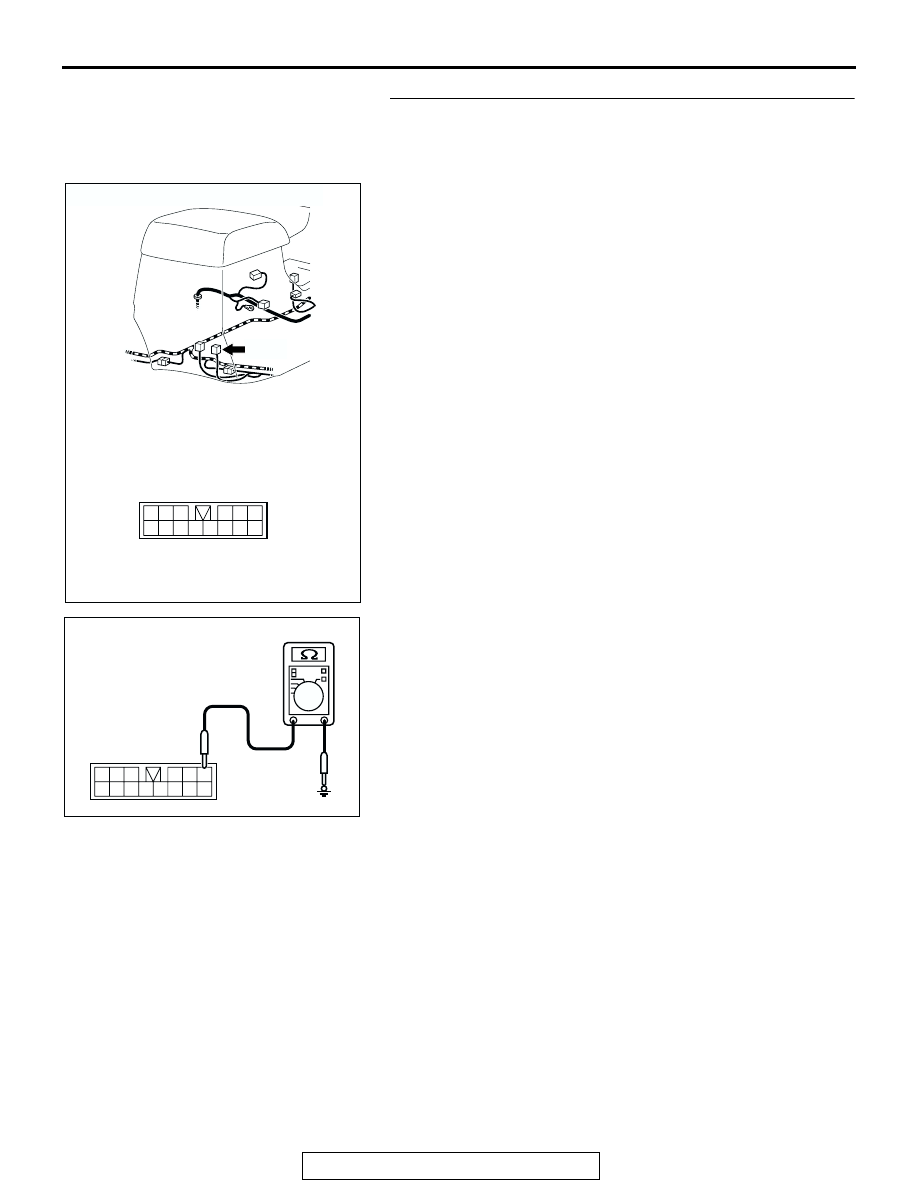

STEP 26. Check rear blower motor connector G-06-1
<vehicles with rear heater or rear cooler> or G-22-1
<vehicles with rear A/C> and rear heater switch connector
E-21 <vehicles with rear heater>, rear cooler switch
connector E-17 <vehicles with rear cooler> or rear A/C
switch connector E-22 <vehicles with rear A/C> for
damage.

Q: Is rear blower motor connector G-06-1 <vehicles with

rear heater or rear cooler> or G-22-1 <vehicles with rear
A/C> and rear heater switch connector E-21 <vehicles
with rear heater>, rear cooler switch connector E-17
<vehicles with rear cooler> or rear A/C switch connector
E-22 <vehicles with rear A/C> in good condition?
YES : Go to Step 27.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204699

CONNECTORS :G-06-1, G-22-1

AL

G-06-1
G-22-1

G-06-1

HARNESS SIDE

G-22-1

HARNESS SIDE

<VEHICLES WITH A/C>

<VEHICLES WITH REAR HEATER
OR REAR COOLER>

1
2

1
2

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-89

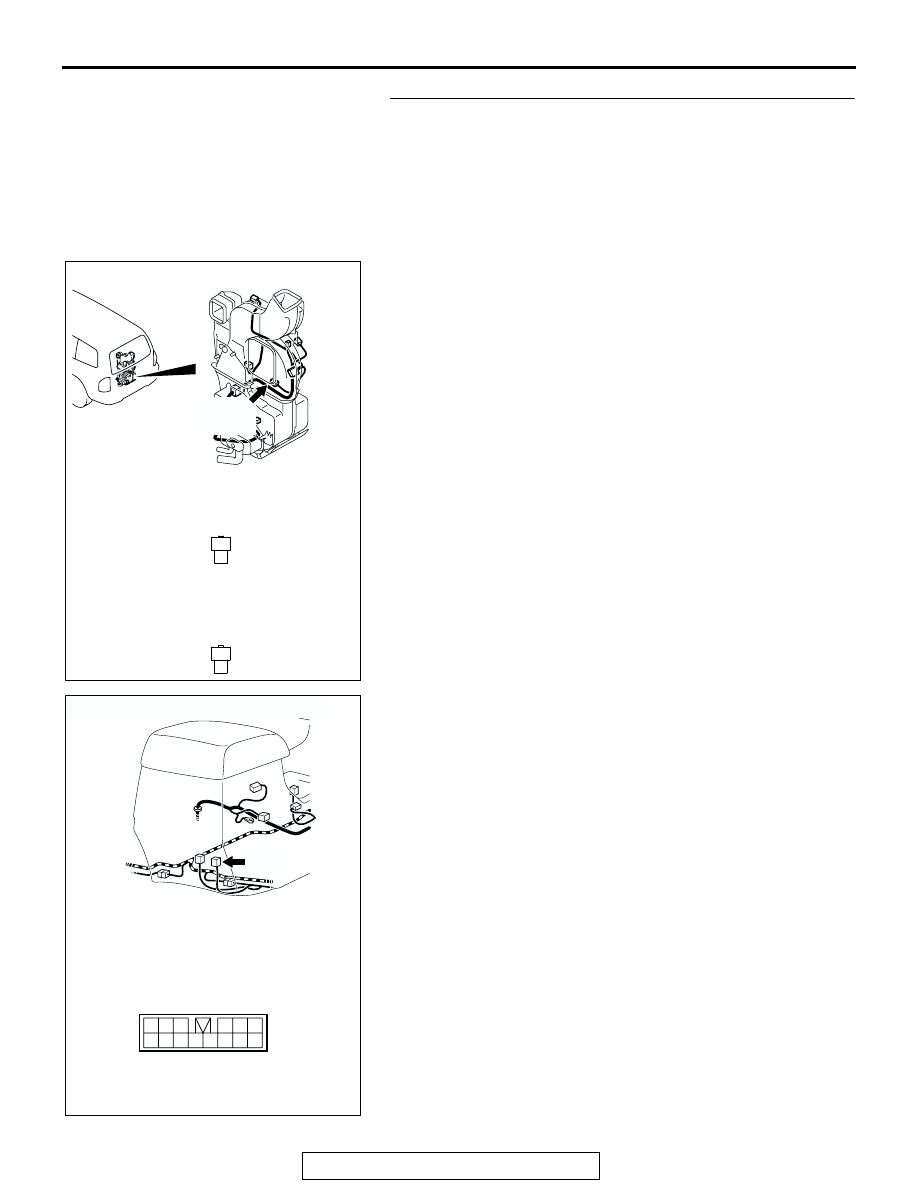

STEP 27. Check the wiring harness between rear blower
motor connector G-06-1 (terminal 1) <vehicles with rear
heater or rear cooler> or G-22-1 (terminal 1) <vehicles with
rear A/C> and rear heater switch connector E-21 (terminal
7) <vehicles with rear heater>, rear cooler switch
connector E-17 (terminal 7) <vehicles with rear cooler> or
rear A/C switch connector E-22 (terminal 7) <vehicles with
rear A/C>.

AC204699

CONNECTORS :G-06-1, G-22-1

AL

G-06-1
G-22-1

G-06-1

HARNESS SIDE

G-22-1

HARNESS SIDE

<VEHICLES WITH A/C>

<VEHICLES WITH REAR HEATER
OR REAR COOLER>

1
2

1
2

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-90

NOTE: Also check rear blower unit connector G-06 <vehicles
with rear heater or rear cooler> or G-22 <vehicles with rear
A/C>. If rear blower unit connector G-06 <vehicles with rear
heater or rear cooler> or G-22 <vehicles with rear A/C> is dam-
aged, repair or replace the connector as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear blower motor

connector G-06-1 (terminal 1) <vehicles with rear heater
or rear cooler> or G-22-1 (terminal 1) <vehicles with rear
A/C> and rear heater switch connector E-21 (terminal 7)
<vehicles with rear heater>, rear cooler switch
connector E-17 (terminal 7) <vehicles with rear cooler>
or rear A/C switch connector E-22 (terminal 7) <vehicles
with rear A/C> in good condition?
YES : The rear blower motor should operate normally.
NO :  Repair the wiring harness. The rear blower motor

should operate normally.

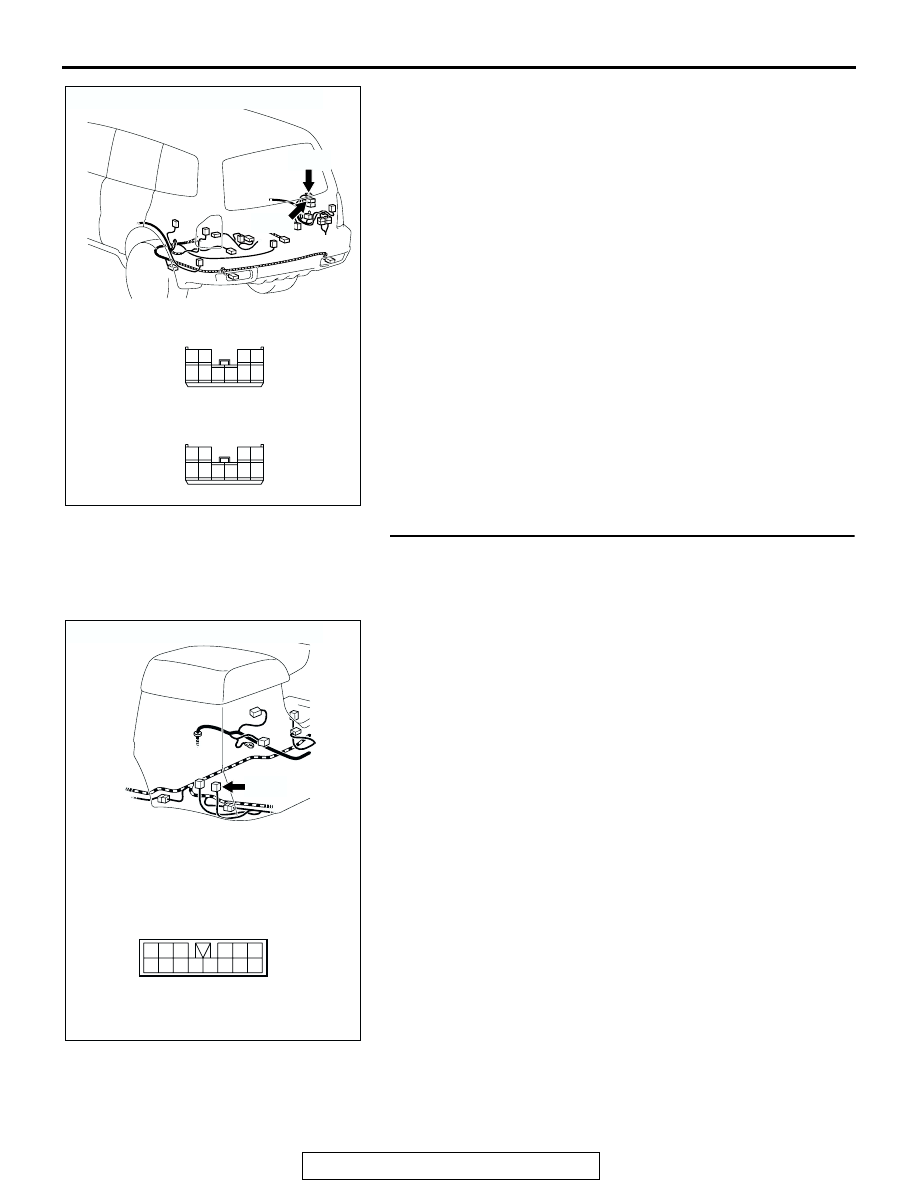

STEP 28. Check rear heater switch connector E-21
<vehicles with rear heater>, rear cooler switch connector
E-17 <vehicles with rear cooler> or rear A/C switch
connector E-22 <vehicles with rear A/C> for damage.

Q: Is rear heater switch connector E-21 <vehicles with rear

heater>, rear cooler switch connector E-17 <vehicles
with rear cooler> or rear A/C switch connector E-22
<vehicles with rear A/C> in good condition?
YES : Go to Step 29.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204197

CONNECTORS : G-06, G-22

AB

G-06

G-22

G-06

HARNESS SIDE

G-22

HARNESS SIDE

1

5

7

8

2

6

10

4

9

3

1

5

7

8

2

6

10

4

9

3

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3
