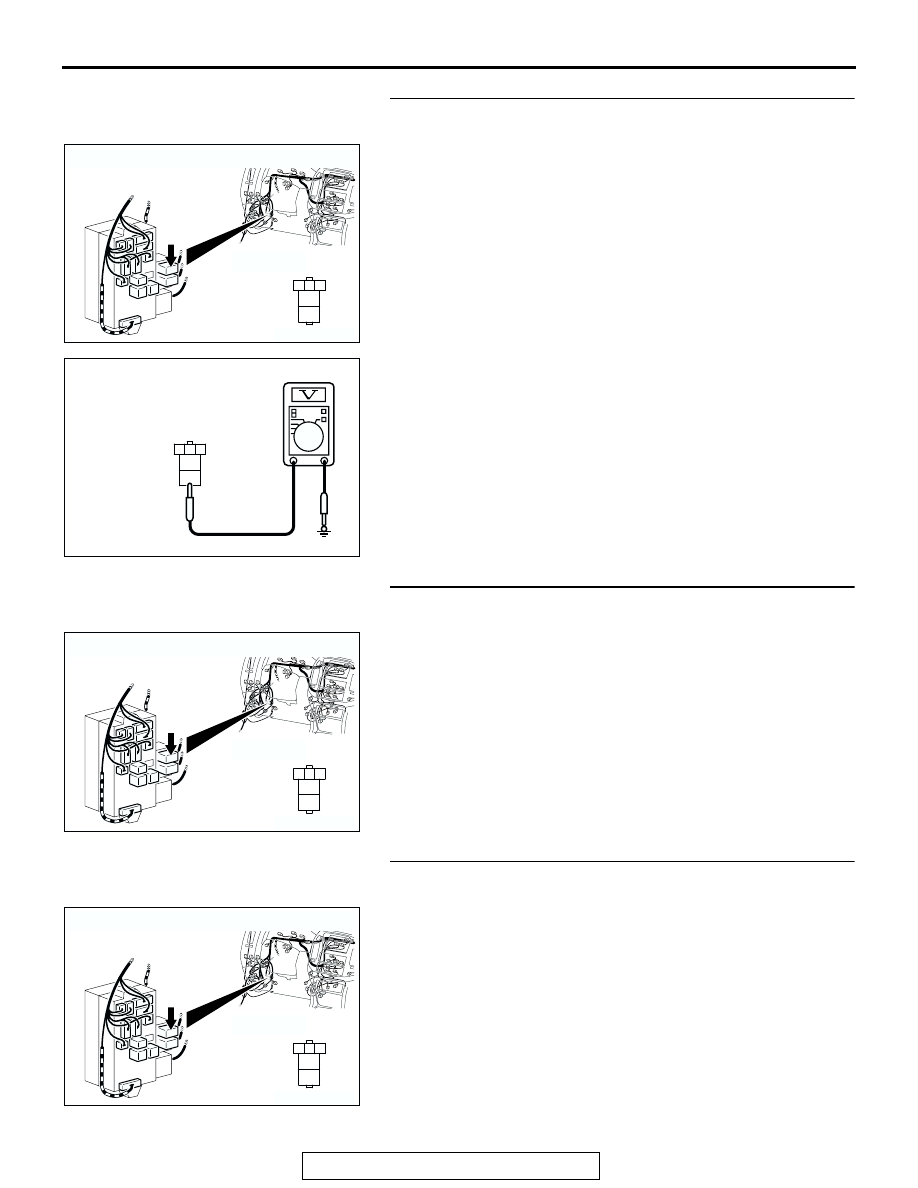

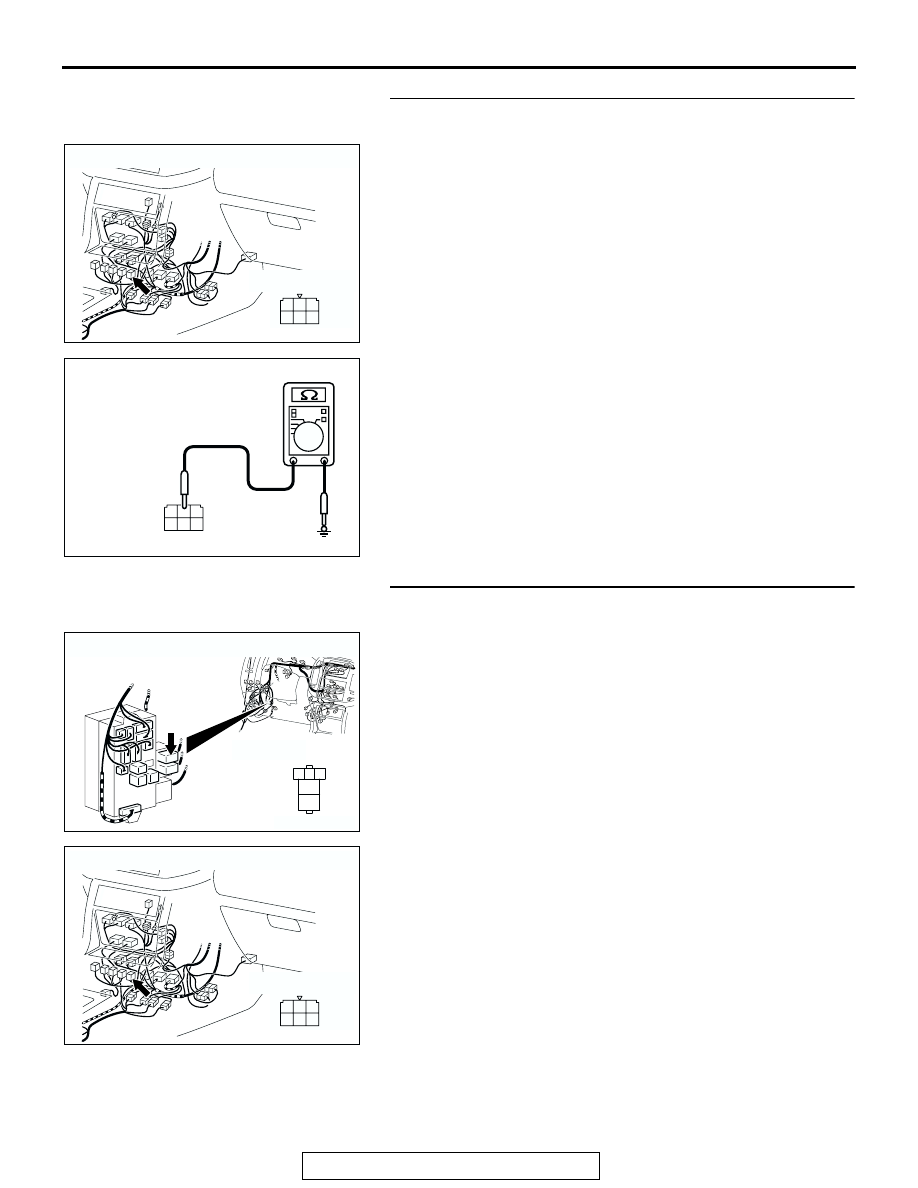

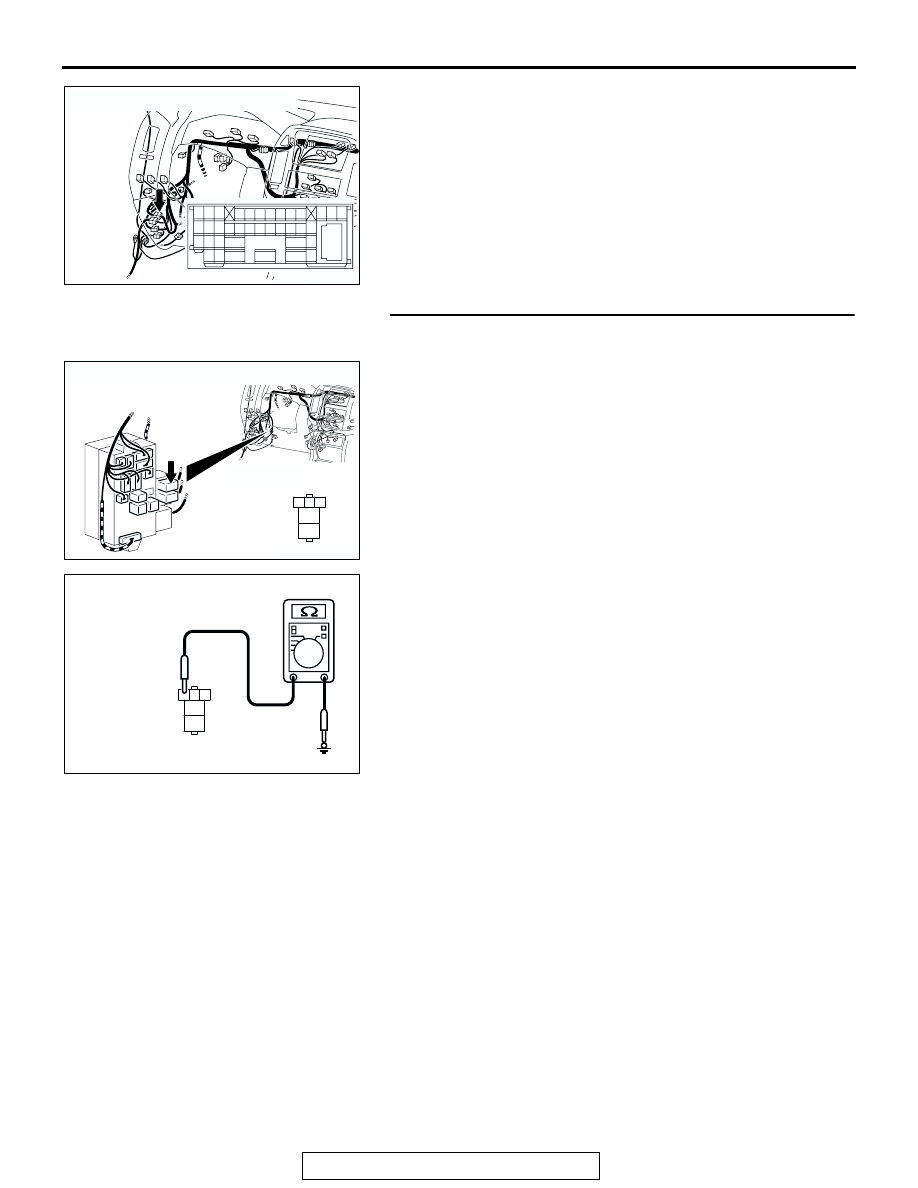

REAR AIR CONDITIONING DIAGNOSIS TSB Revision HEATER, AIR CONDITIONING AND VENTILATION 55A-75 STEP 8. Measure the voltage at rear blower relay (1) Disconnect rear blower relay connector D-213, and measure the voltage at the junction block side. (2) Measure the voltage between terminal 5 and ground. • The measured value should be approximately 12 volts (battery positive voltage). Q: Does the measured voltage correspond with this range? YES : Go to Step 11. STEP 9. Check rear blower relay connector D-213 for Q: Is rear blower relay connector D-213 in good condition? YES : Go to Step 10. 00E, Harness Connector Inspection blower motor should operate normally. STEP 10. Check the wiring harness between rear blower AC204173 CONNECTOR : D-213 AY JUNCTION 2 1 5 4 3 AC204738 HARNESS SIDE : D-213 CS 2 1 5 4 3 AC204173 CONNECTOR : D-213 AY JUNCTION 2 1 5 4 3 AC204173 CONNECTOR : D-213 AY JUNCTION 2 1 5 4 3 |
