RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-285

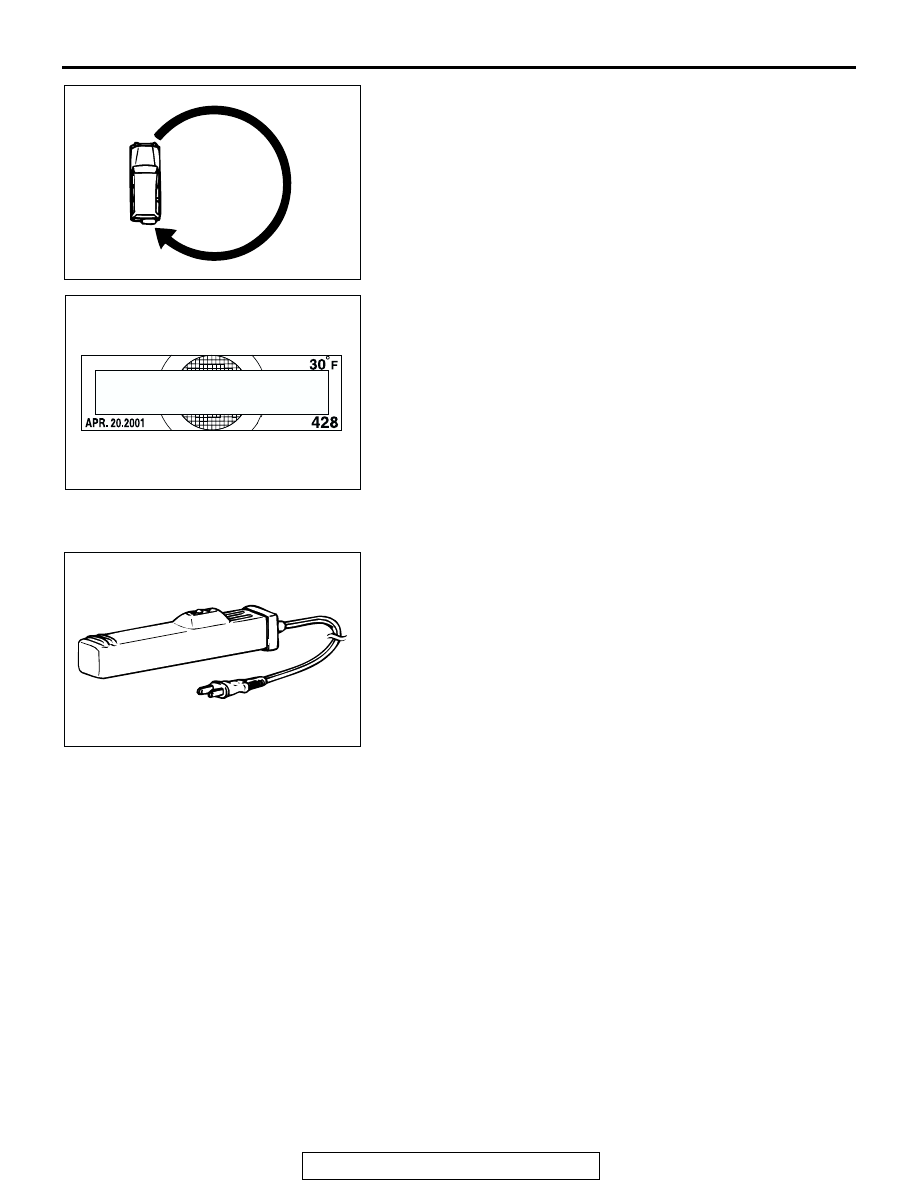

3. Drive around the vehicle.

NOTE: When driving around the vehicle to correct the sen-
sor, select a safe and open area where there are no struc-
tures exist such as the high-tension line and the iron bridge
that affect the geomagnetic sensor in circumference.

4. A message of completing geomagnetization calibration is

displayed.

• When pressing "DISP" and "ADJ" switches

• When pressing function switch 3 (CANCEL)

• When operating auto A/C and audio

• When turning the ignition switch to the "OFF" (LOCK) posi-

tion

Demagnetization and correction method

1. Demagnetize the body using a commercial demagnetizer.

AC001243 AB

AC101719

1 0 : 1 0

Completed  tha  calibration.

AC001246AB

COMMERCIAL DEMAGNETIZER

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-286

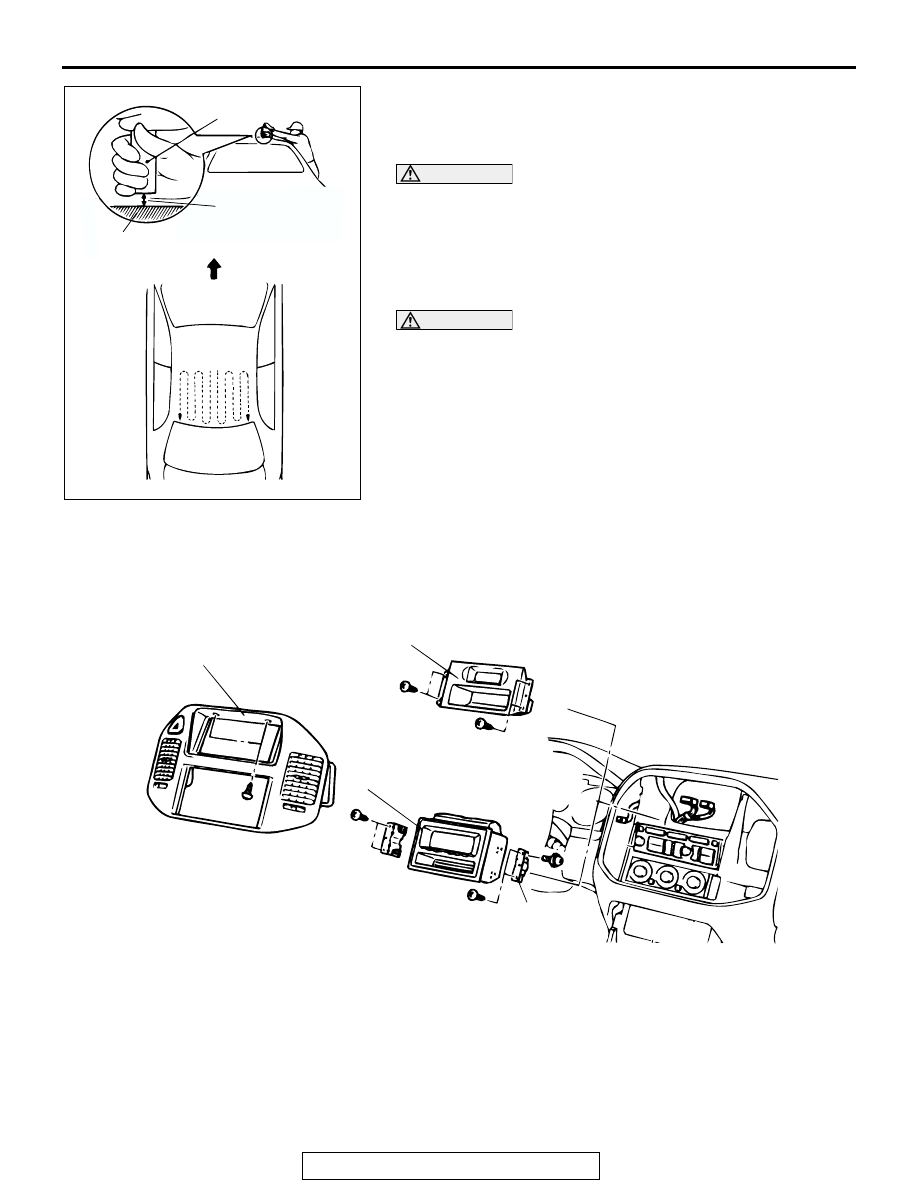

2. While keeping the distance between the tip of demagnetizer

and the roof panel to approximately 5 cm (2.0 inches), move
the demagnetizer slowly with a sweeping manner on the
rear-half surface of roof panel.

CAUTION

If the tip of demagnetizer touches the roof panel, the mag-
netizing condition of body becomes worse to the contrary.
Absolutely avoid this.
3. Slowly draw the demagnetizer apart from the body. Turn

OFF the switch of demagnetizer when it is apart from the
body more than 5 cm.

CAUTION

If the demagnetizer is turned OFF near the body or it is
suddenly separated from the body, the magnetizing condi-
tion of body becomes worse to the contrary. Absolutely
avoid these.
4. After degeomagnetization, geomagnetization calibration is

carried out.

MULTI METER ASSEMBLY

REMOVAL AND INSTALLATION

M1543003900068

AC001247

FRONT

DEMAGNETIZER

AB

APPROXIMATELY
5cm(2.0 in)

ROOF PANEL

ACX01973

1

2

3

4

AB

REMOVAL STEPS

1.

CENTER PANEL (REFER TO GROUP
52A, INSTRUMENT PANEL-TRIM

P.52A-8

.)

2.

CLOCK

3.

RV METER

4.

BRACKET

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-287

THEFT ALARM

THEFT-ALARM SYSTEM DIAGNOSIS

M1547000700153

The theft-alarm system is controlled by the Simplified
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, SWS Diagnosis

− Symptom Chart

P.54B-22

.

THEFT ALARM

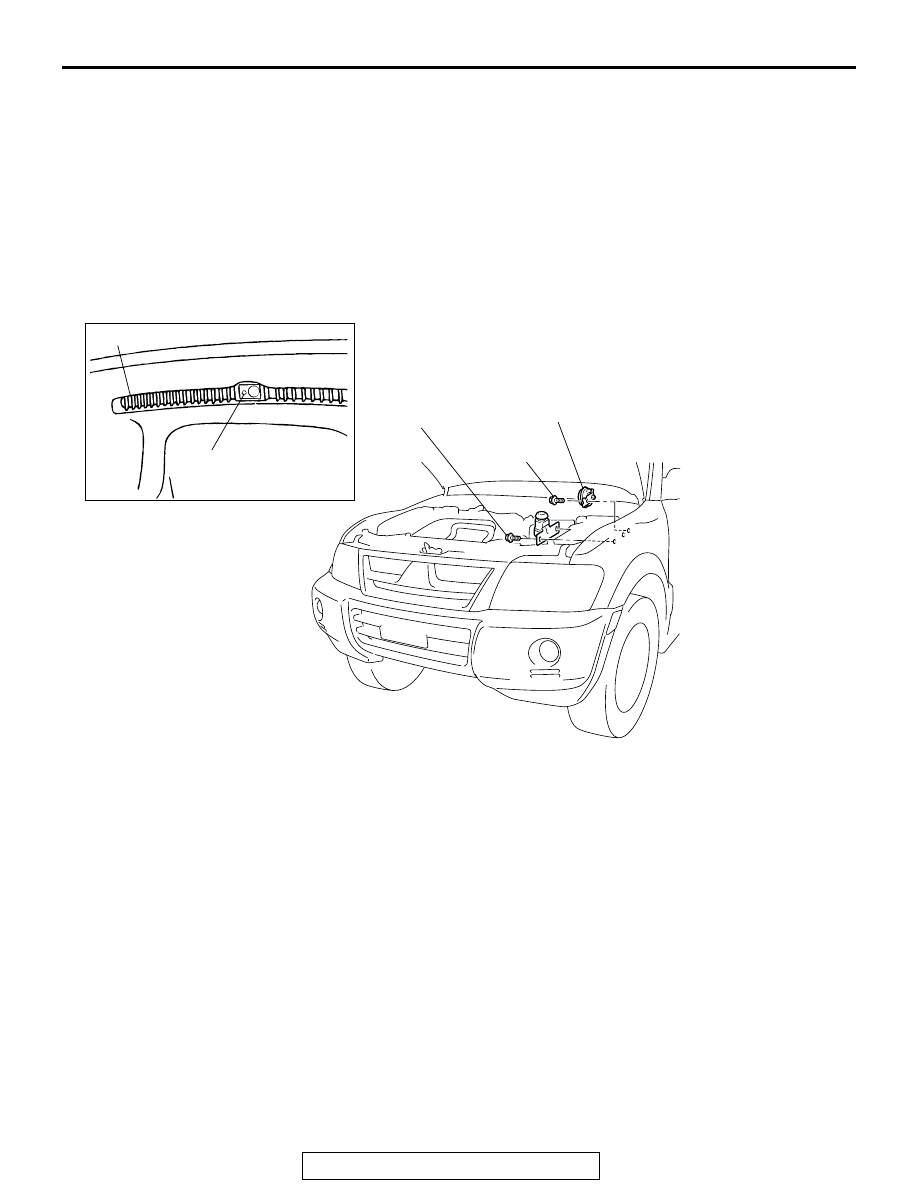

REMOVAL AND INSTALLATION

M1547001000191

AC204114

1

2

12 ± 1 N·m

104 ± 7 in-lb

DEFROSTER NOZLE



3

AB

REMOVAL STEPS

1. HORN (FOR KEYLESS ENTRY ANSWERBACK

AND THEFT ALARM SYSTEM)

2. HOOD SWITCH
3. SECURITY INDICATOR

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-288

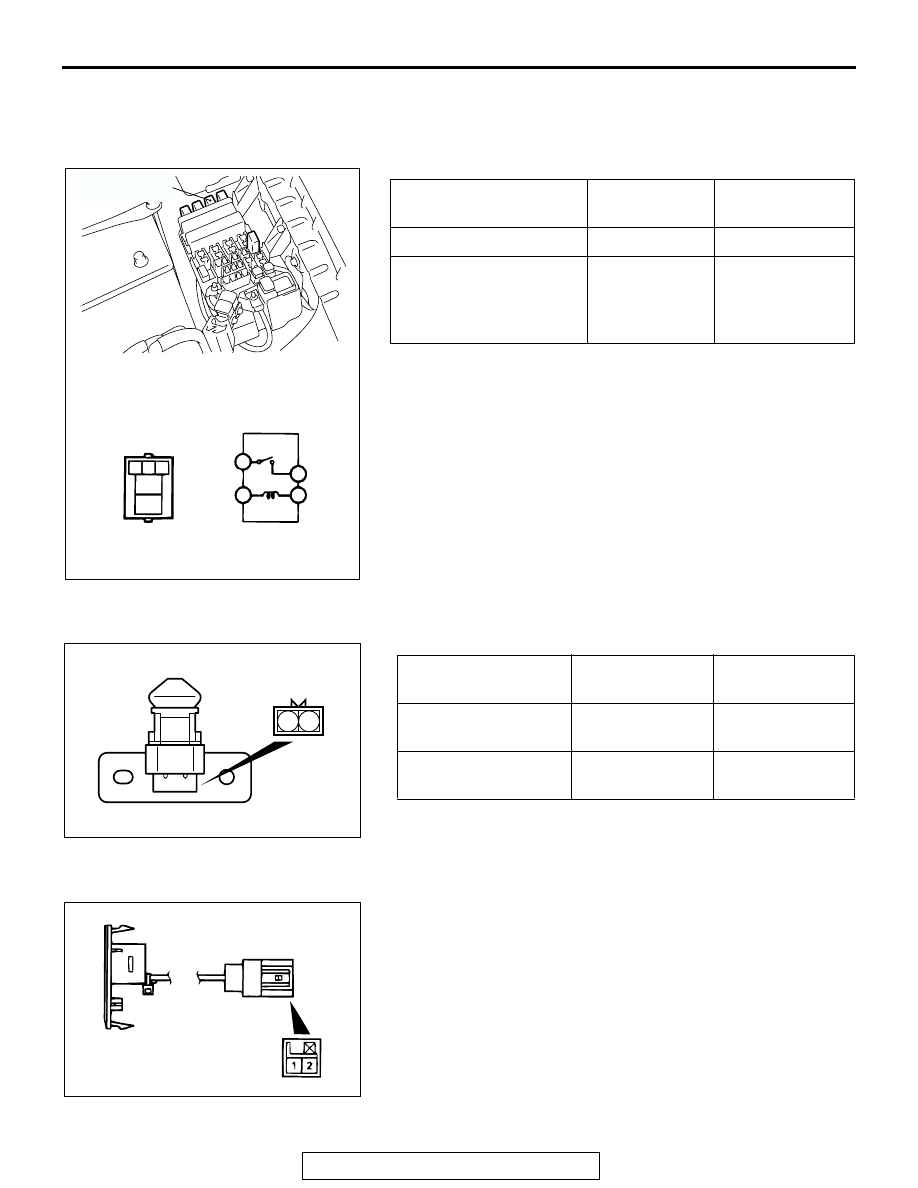

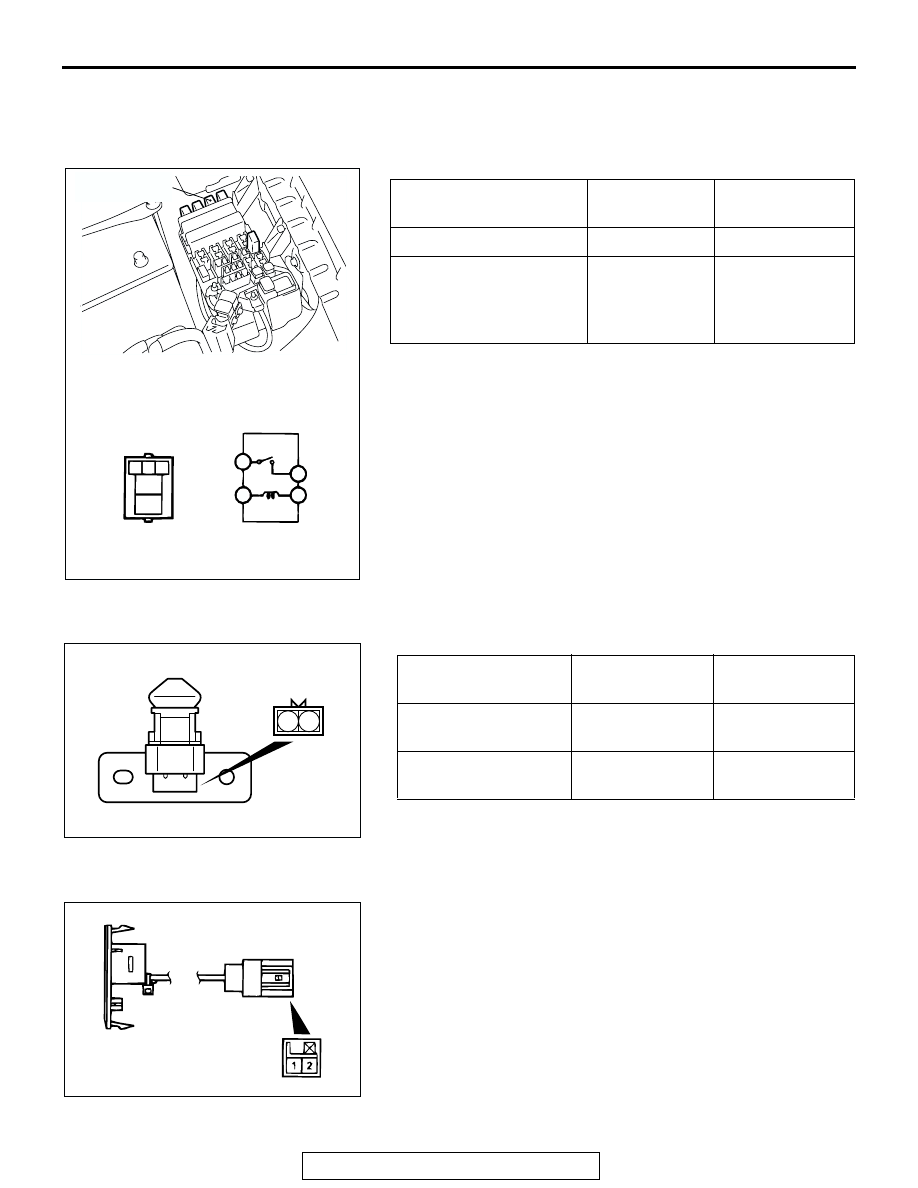

INSPECTION

M1547001100110

THEFT-ALARM HORN RELAY CONTINUITY
CHECK

HOOD SWITCH CONTINUITY CHECK

SECURITY INDICATOR LIGHT CHECK

Connect the positive battery terminal to security indicator light
terminal No. 2, and connect the negative battery terminal to
security indicator light No.1. Then, confirm that the security
indicator light illuminates.

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

1

− Negative battery

terminals

3

− Positive battery

terminals

4

− 5

Less than 2 ohms

ACX01471

1 2 3

4

5

1

3

4

5

ACX01819

1

4

5

3

THEFT-ALARM
HORN RELAY

AD

BATTERY VOLTAGE TESTER

CONNECTION

SPECIFIED
CONDITION

Hood switch not
depressed

1

− 2

Less than 2 ohms

Hood switch
depressed

1

− 2

Open circuit

1

2

AC000839 AB

AC000840 AB
