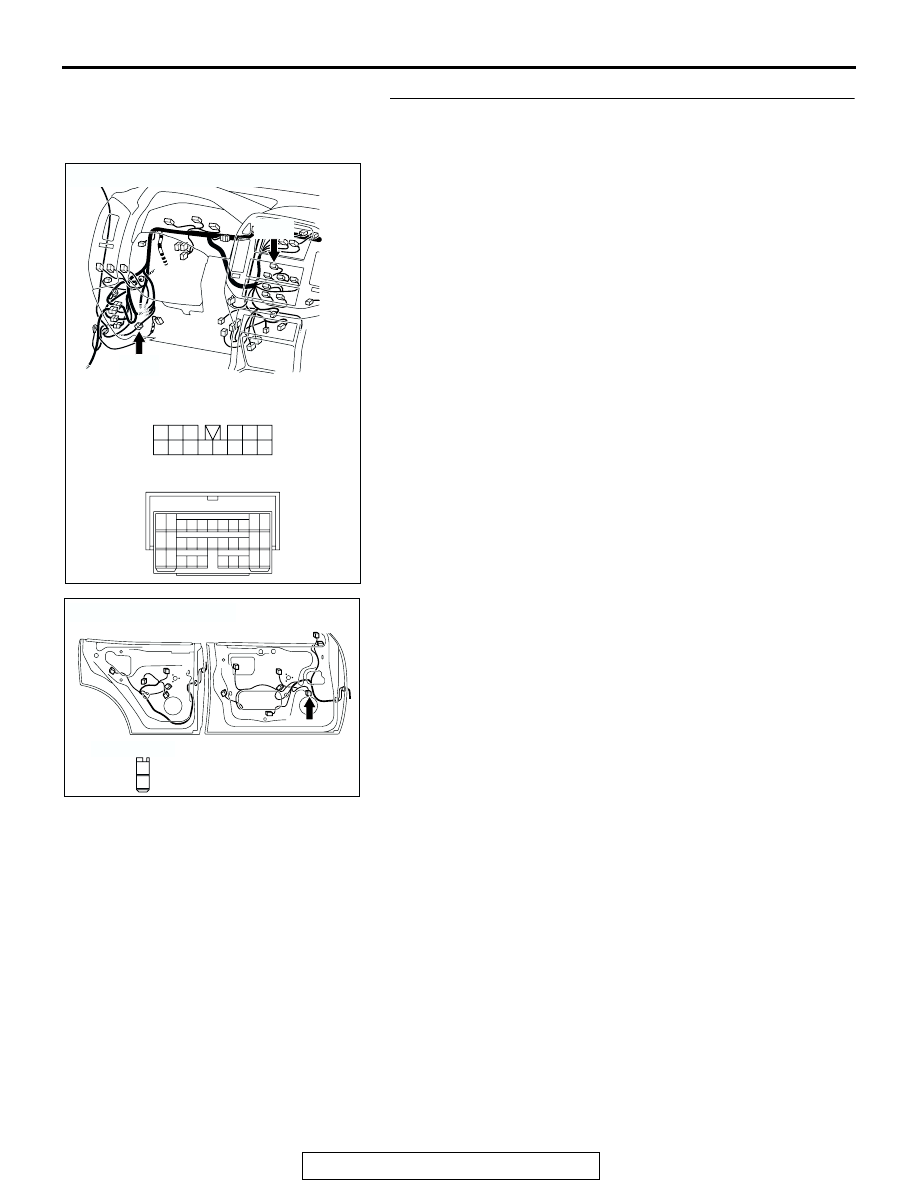

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-153

STEP 21. Check the wiring harness between front door
speaker (LH) connector H-08 (terminals 1 and 2) and radio
and CD player connector D-06 (terminals 5 and 13).

NOTE: Also check intermediate connector D-25. If intermediate
connector D-25 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door speaker (LH)

connector H-08 (terminals 1 and 2) and radio and CD
player connector D-06 (terminals 5 and 13) in good
condition?
YES :
Repair or replace the radio and CD player. The front

door speaker (LH) should sound.

NO :  Repair the wiring harness. The front door speaker

(LH) should sound.

AC204188

CONNECTORS : D-06, D-25

D-06

D-06

D-25

BJ

D-25

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

AC204180

CONNECTOR :  H-08

AJ

HARNESS SIDE

2

1

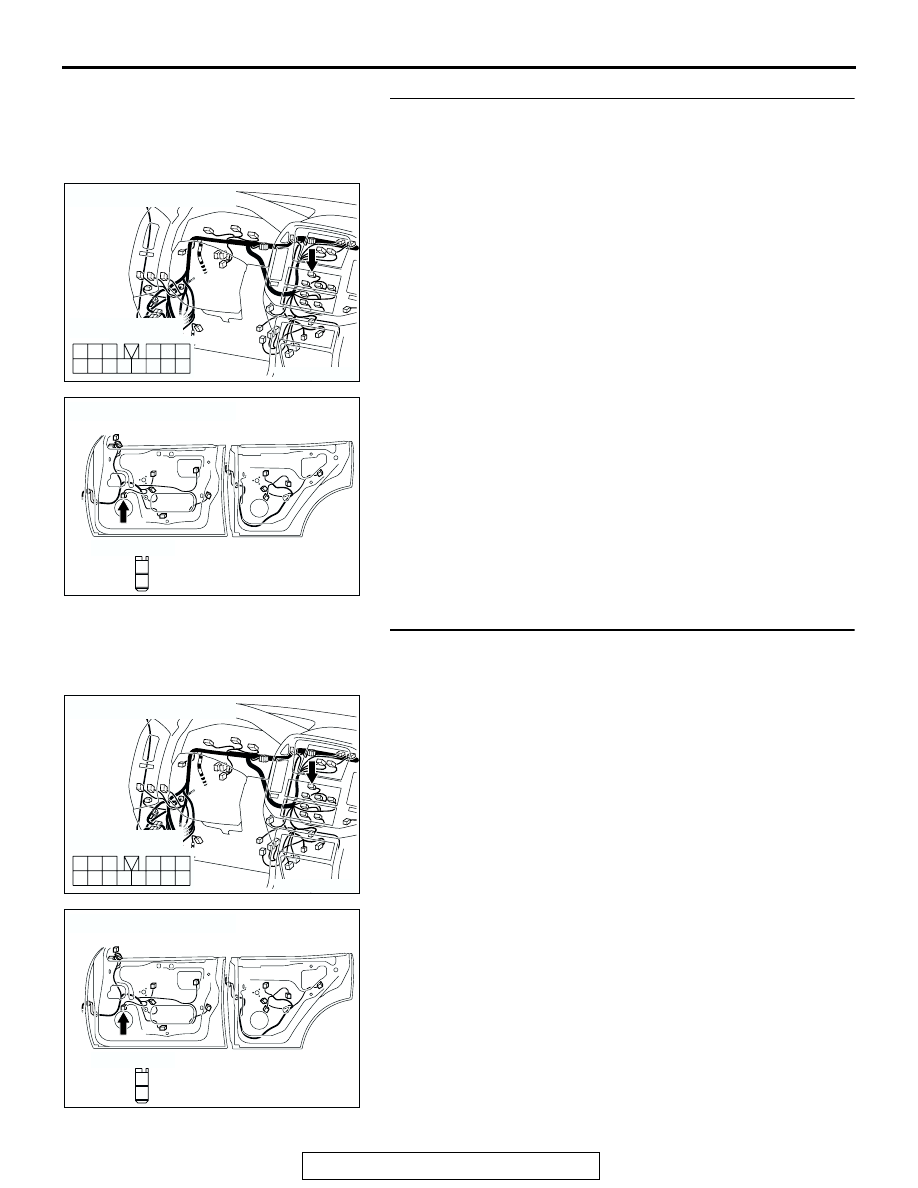

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-154

STEP 22. Check front door speaker (RH) connector H-26
and radio and CD player connector D-06 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are harness connectors H-26 and D-06 in good

condition?
YES :
Go to Step 23.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

The front door speaker (RH) should sound.

STEP 23. Check the wiring harness between front door
speaker (RH) connector H-26 (terminals 1 and 2) and radio
and CD player connector D-06 (terminals 6 and 14).

AC204170

CONNECTOR : D-06

CS

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204181

CONNECTOR :  H-26

AJ

HARNESS SIDE

2

1

AC204170

CONNECTOR : D-06

CS

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204181

CONNECTOR :  H-26

AJ

HARNESS SIDE

2

1

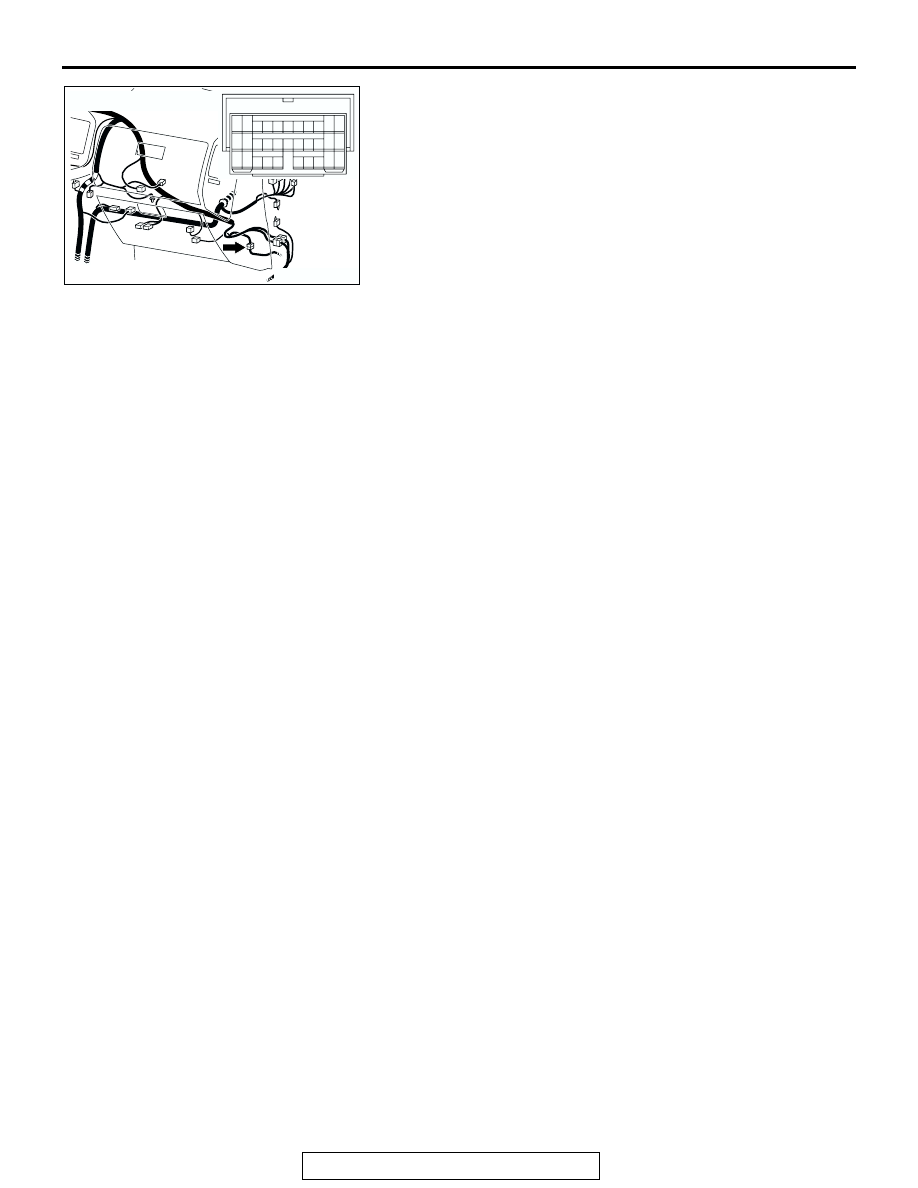

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-155

NOTE: Also check intermediate connector D-15. If intermediate
connector D-15 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door speaker (RH)

connector H-26 (terminals 1 and 2) and radio and CD
player connector D-06 (terminals 6 and 14) in good
condition?
YES :
Repair or replace the radio and CD player. The front

door speaker (RH) should sound.

NO :  Repair the wiring harness. The front door speaker

(RH) should sound.

AC204171

CONNECTOR : D-15

AB

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-156

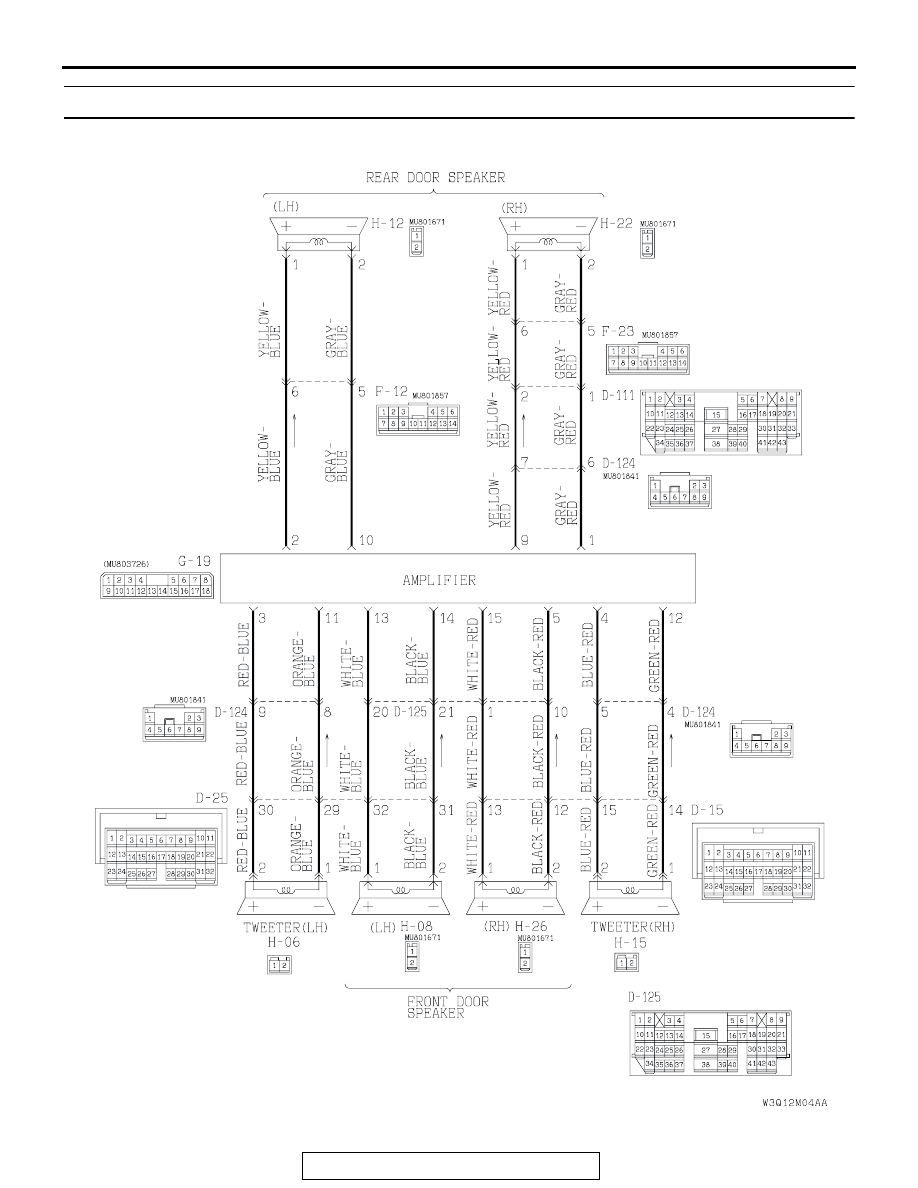

INSPECTION PROCEDURE 4: No Sound from One Speaker. <vehicles with amplifier>
