SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-109

NOTE: Also check junction block connector D-217 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector D-217 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q:  Is the wiring harness between side step light-ECU

connector D-137 (terminal 3) and ETACS-ECU connector
D-222 (terminal 4) in good condition?
YES : Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the side step light illuminate normally.

 STEP 5. Check side step light-ECU connector D-137 and
ETACS-ECU connector D-222 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:  Is side step light-ECU connector D-137 and ETACS-ECU

connector D-222 in good condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the side step light illuminate

normally.

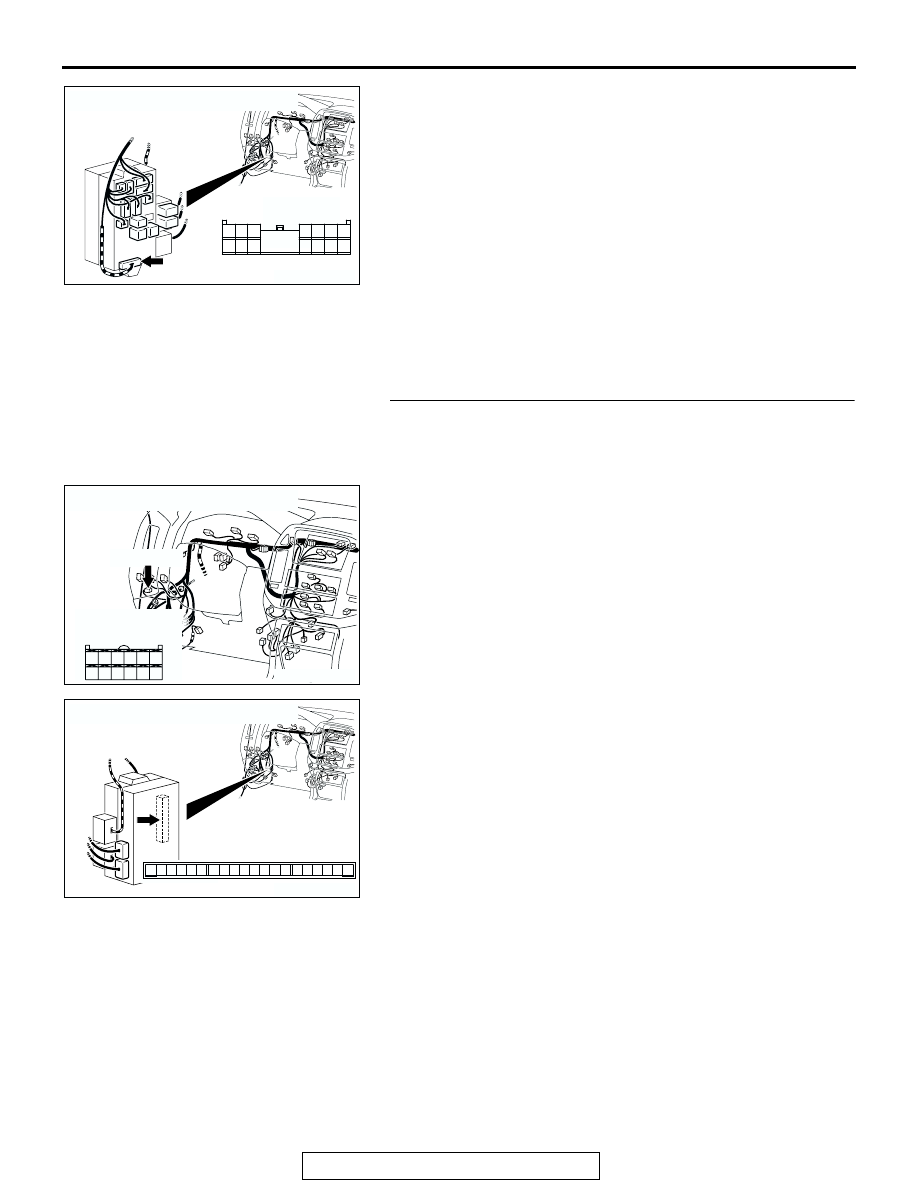

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217

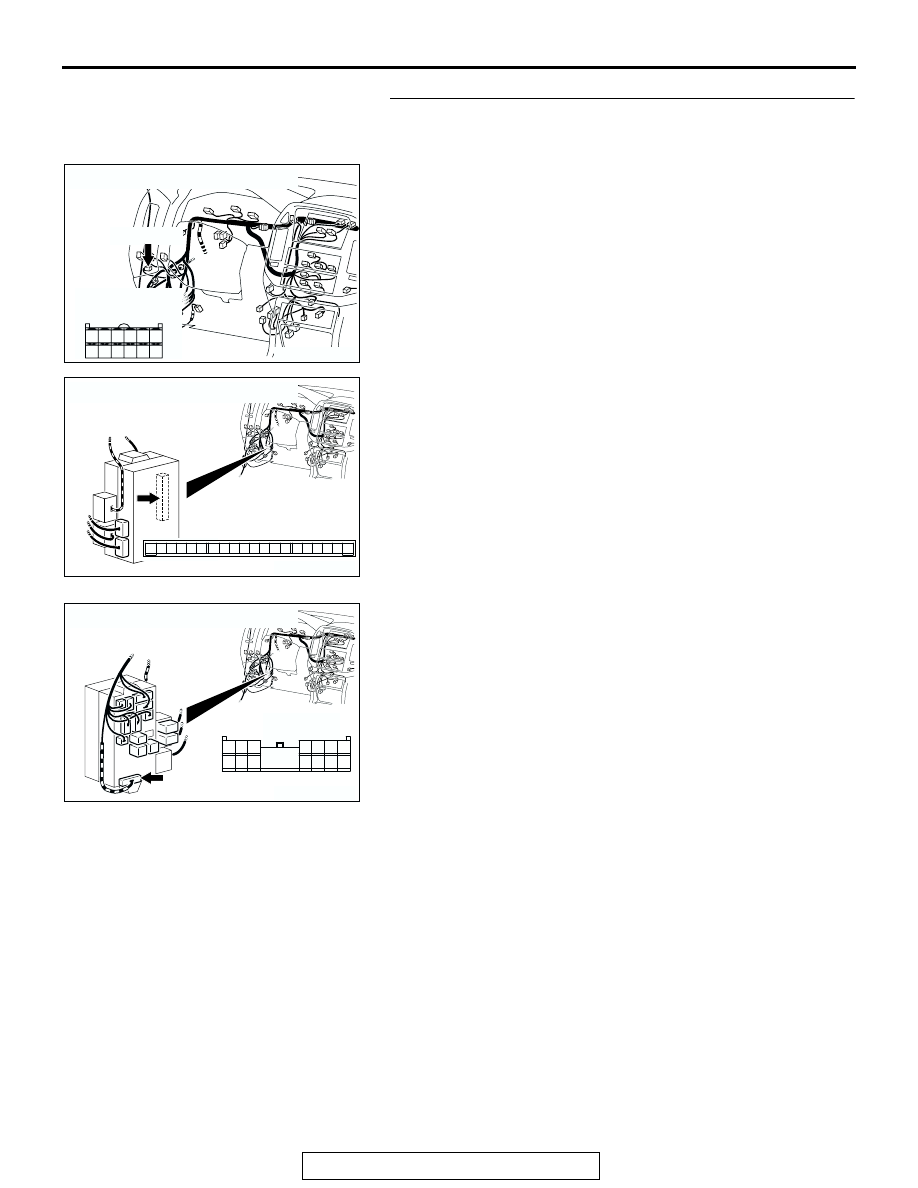

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-110

 STEP 6. Check the wiring harness between side step
light-ECU connector D-137 (terminal 8) and ETACS-ECU
connector D-222 (terminal 19).

NOTE: Also check junction block connector D-217 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector D-217 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q:  Is the wiring harness between side step light-ECU

connector D-137 (terminal 8) and ETACS-ECU connector
D-222 (terminal 19) in good condition?
YES : Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the side step light illuminate normally.

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-111

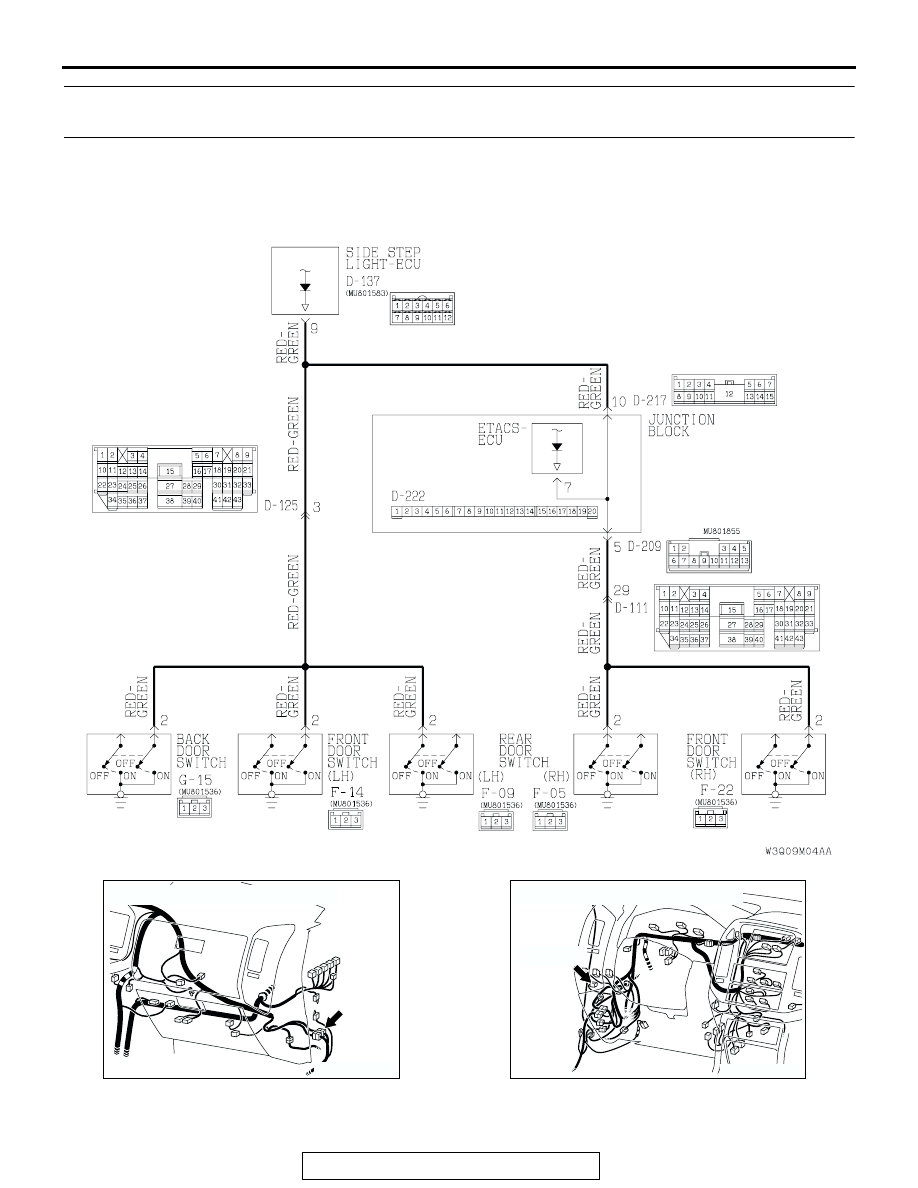

INSPECTION PROCEDURE 4: The Side Step Light do not Illuminate Normally when Either Door is
Opened or Closed.

Side Step Light-ECU Circuit

AC204171

CONNECTOR : D-111

AG

AC204170

CONNECTOR : D-137

AX

D-137(GR)

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-112

.

TECHNICAL DESCRIPTION (COMMENT)
If side step light do not illuminate normally, the input
circuit from the door switch or the side step light-ECU
may be defective.

.

TROUBLESHOOTING HINTS

• The front, rear or back door switch may be defec-

tive

• The side step light-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Verify the door switch.

If the dome light switch are moved to the "door interlock posi-
tion", the dome light should illuminate when either door is
opened.
Q: Do the dome light illuminate normally?

YES : Go to Step 2.
NO :  Refer to GROUP 54B, Inspection Procedure M-1 "The

dome light do not illuminate or go out normally

P.54B-428

."

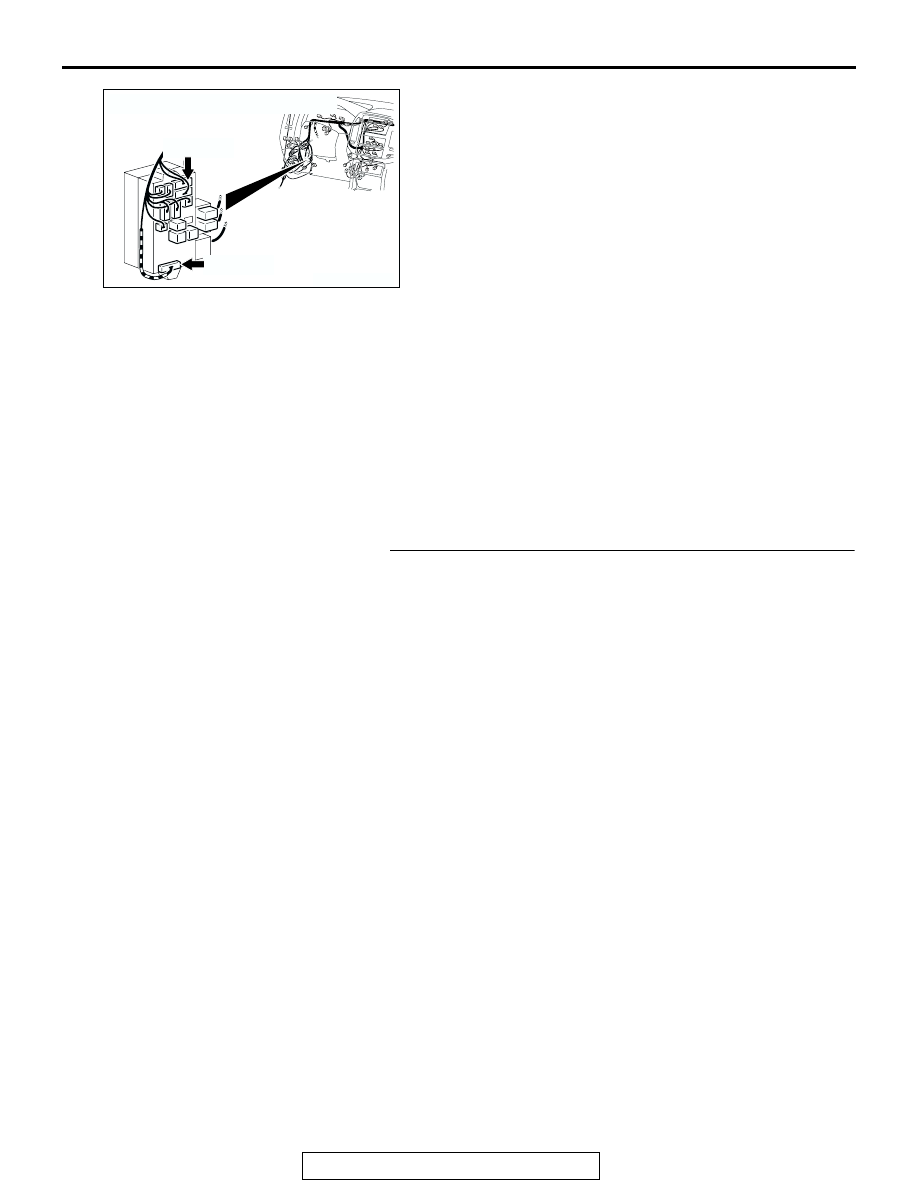

AC204173

CONNECTORS : D-209, 217

AK

D-209

D-217
