DRIVE SHAFT ASSEMBLY
TSB Revision
REAR AXLE
27-23
CAUTION
Do not mix old and new or different types of grease, as a
special grease is used in the joint.
2. Fill the inside of BJ and BJ boot with specified grease.
NOTE: The grease in the repair kit should be divided in half
for use, respectively, at the joint and inside the boot.
Specified grease: Repair kit grease
Used amount: 245
± 10 g (8.7 ± 0.3 oz) [inside joint: 135
± 5 g (4.8 ± 0.1 oz), inside boot: 110 ± 5 g (3.9 ± 0.2 oz)]
CAUTION
In order to fill the specified amount of air inside the BJ
boot, keep the bent angle of the drive shaft to 0 degree
angle during the operation.
3. Tighten the boot band.
.
>>B<< DOJ CAGE/DOJ INNER RACE INSTALLATION
1. Install DOJ cage to the drive shaft and put it aside to BJ
assembly side.
2. Align the mating mark of DOJ inner race with that of the
shaft.
3. Tap the inner race with even force to press-fit into the bump
of the shaft with special tool MB990939.
.
>>C<< DOJ OUTER RACE INSTALLATION
CAUTION
The drive shaft joint use special grease. Do not mix old
and new or different types of grease.

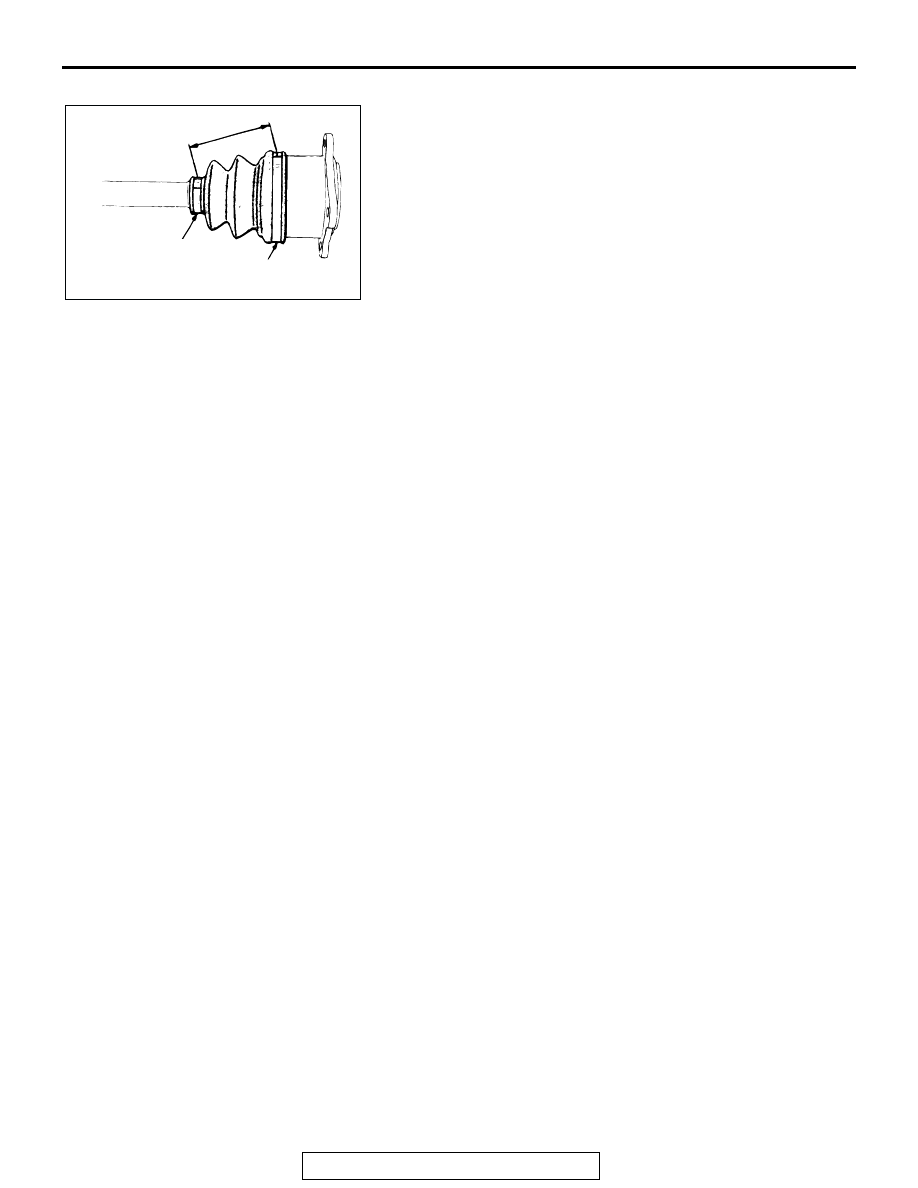

Fill the inside of the DOJ outer race and DOJ boot with the
specified grease.
Specified grease: Repair kit grease
Used amount: 295
± 10 g (10.5 ± 0.3 oz) [inside joint:
185
± 5 g (6.5 ± 0.2 oz), inside boot: 110 ± 5 g (3.9 ± 0.2
oz)]
.
ACX01096
ACX01097AB
MB990939
MATING MARK
ACX02369
