Mitsubishi Montero (2004+). Manual - part 461

DIFFERENTIAL CARRIER AND FREE WHEELING CLUTCH

TSB Revision

FRONT AXLE

26-49

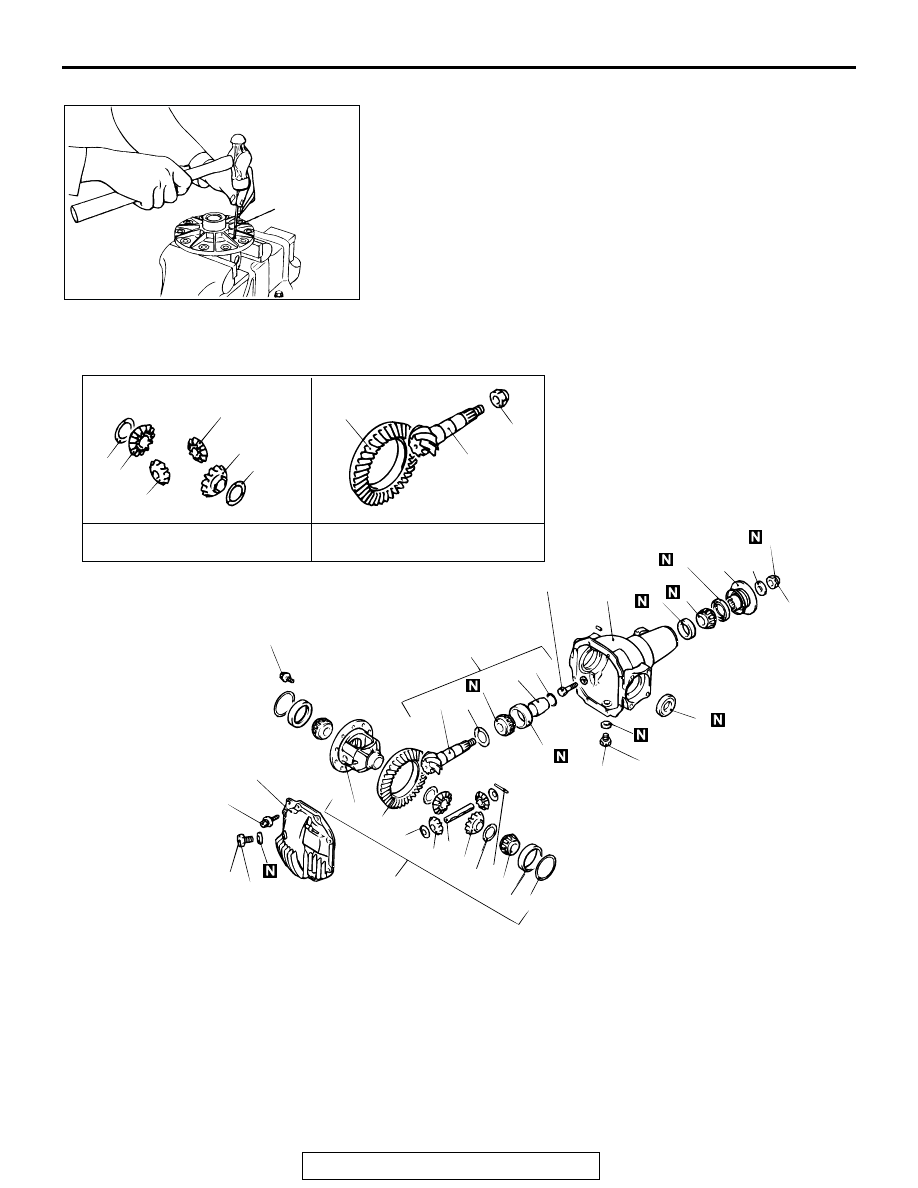

<<J>> LOCK PIN REMOVAL
Drive out the lock pin with a punch.

ASSEMBLY

M1262002500151

ACX01048AB

PUNCH

AC204225AB

83

± 5 N

·

m

62

± 3 ft-lb

18

± 3 N

·

m

13

± 2 ft-lb

50

± 10 N

·

m

37

± 7 ft-lb

216

± 29 N

·

m

159

± 22 ft-lb

65

± 5 N

·

m

48

± 4 ft-lb

59

± 5 N

·

m *

44

± 3 ft-lb *

28

30

27

16

23

19

20 21

17

18 22

24

25 26

5 6

7

8

9

10

29

2

1

4

11

12

14

13

15

23

5

15

17

17

18

18

20

20

3

DIFFERENTIAL GEAR SET

FINAL DRIVE GEAR SET





ASSEMBLY

STEPS





1. DIFFERENTIAL

CARRIER



>>A<<

2. OIL

SEAL



>>B<<

3. DRIVE PINION FRONT BEARING

OUTER RACE



>>C<<

4.  DRIVE PINION REAR BEARING

OUTER RACE



>>D<<

•

PINION HEIGHT ADJUSTMENT





5. DRIVE

PINION





6.  DRIVE PINION FRONT SHIM (FOR

PINION HEIGHT ADJUSTMENT)





7.  DRIVE PINION FRONT BEARING

INNER RACE





8.  DRIVE PINION SPACER



>>E<<

•

DRIVE PINION TURNING TORQUE
ADJUSTMENT





9.  DRIVE PINION REAR SHIM (FOR

TURNING TORQUE ADJUSTMENT)





10.  DRIVE PINION ASSEMBLY





ASSEMBLY

STEPS

(Continued)

DIFFERENTIAL CARRIER AND FREE WHEELING CLUTCH

TSB Revision

FRONT AXLE

26-50

NOTE: Specified torque with asterisks means that it
is covered with oil.

Required Special Tools:

• MB990031 or MB990699: Drive Pinion Oil Seal

Installer

• MB990326: Preload Socket

• MB990685: Torque Wrench

• MB990802: Bearing Installer

• MB990819: Drive Pinion Gauge Assembly

• MB990934: Installation Adapter

• MB990936: Installation Adapter

• MB990938: Bar

• MB990939: Brass Bar

• MB991170: Cylinder Gauge

• MB990850: End Yoke Holder

• MB990813: Tap





11.  DRIVE PINION REAR BEARING INNER

RACE





12. OIL SEAL





13. COMPANION FLANGE





14. WASHER





15. SELF-LOCKING NUT





16. DIFFERENTIAL CASE



>>F<<

•

DIFFERENTIAL GEAR BACKLASH
ADJUSTMENT





17.  SIDE GEAR SPACER





18. SIDE GEAR





19. PINION WASHER





20. PINION GEAR





21. PINION SHAFT



>>G<<

22. LOCK PIN



>>H<<

23. DRIVE GEAR



>>I<<

24.  SIDE BEARING INNER RACE





25.  SIDE BEARING OUTER RACE



>>J<<

•

DRIVE GEAR BACKLASH
ADJUSTMENT





26.  SIDE BEARING SPACER





27.  DIFFERENTIAL CASE ASSEMBLY





ASSEMBLY

STEPS

(Continued)





28. COVER





29. DRAIN PLUG





30. FILLER PLUG





ASSEMBLY

STEPS

(Continued)

DIFFERENTIAL CARRIER AND FREE WHEELING CLUTCH

TSB Revision

FRONT AXLE

26-51

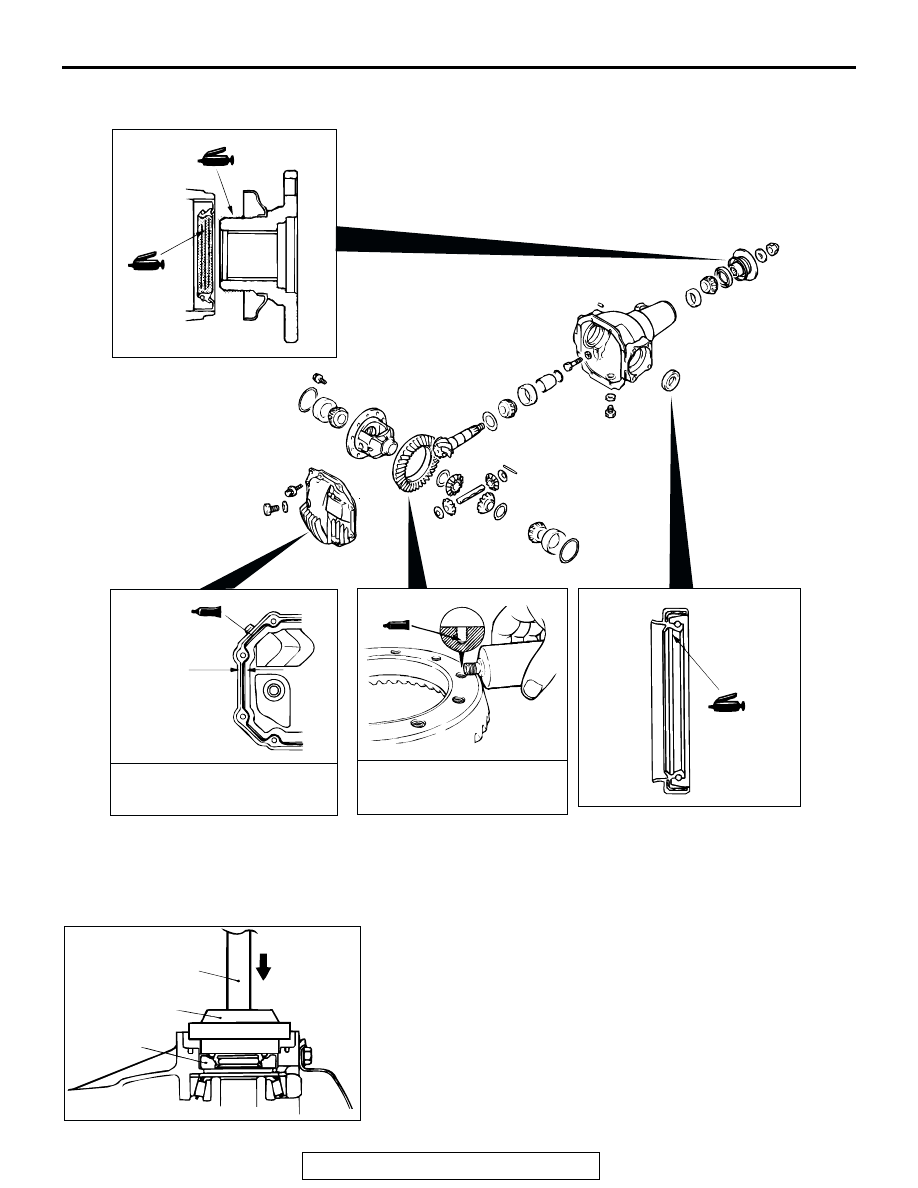

LUBRICATION, SEALING AND ADHESIVE POINTS

ASSEMBLY SERVICE POINTS

.

>>A<< OIL SEAL INSTALLATION
Use special tools MB990938 and MB990934 to insert the oil
seal, and then apply a thin coat of multipurpose grease to the
lip of the oil seal.

AC102455

(APPLY ALL
AROUND LIP)

φ 2 - 3 mm

φ 0.08 - 0.12 in

AB

(APPLY ALL
AROUND
LIP)

SEALANT:

     3M

TM

 AAD PART NO.8672, 8679,

     8678, 8661, 8663 OR EQUIVALENT

ADHESIVE:

      3M

TM

 AAD PART NO.8730,

      8731 OR EQUIVALENT

ACX01051AB

OIL SEAL

MB990938

MB990934

DIFFERENTIAL CARRIER AND FREE WHEELING CLUTCH

TSB Revision

FRONT AXLE

26-52

.

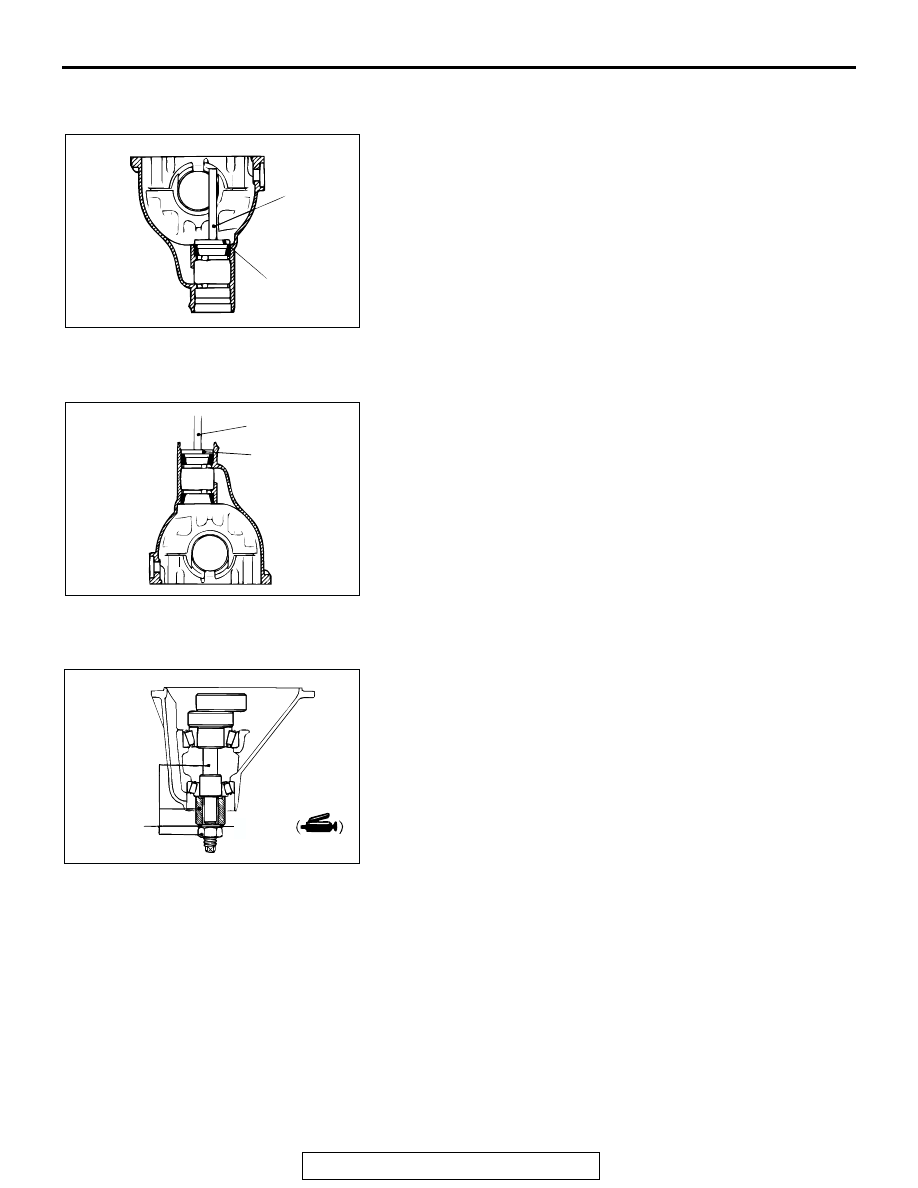

>>B<< DRIVE PINION FRONT BEARING OUTER RACE
INSTALLATION
Use special tools MB990938 and MB990936 to press-fit the
drive pinion front bearing outer races into the gear carrier.

.

>>C<< DRIVE PINION REAR BEARING OUTER RACE
INSTALLATION
Use special tools MB990938 and MB990934 to press-fit the
drive pinion rear bearing outer races into the gear carrier.

.

>>D<< PINION HEIGHT ADJUSTMENT
Adjust the drive pinion height by the following procedure.
1. Apply multipurpose grease to the washer of the special tool.
2. Install the special tool, drive pinion front and rear bearing

inner races to the gear carrier.

ACX01052AB

MB990938

MB990936

ACX01053 AB

MB990938

MB990934

ACX01054 AB

MB990819

WASHER
