SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-13

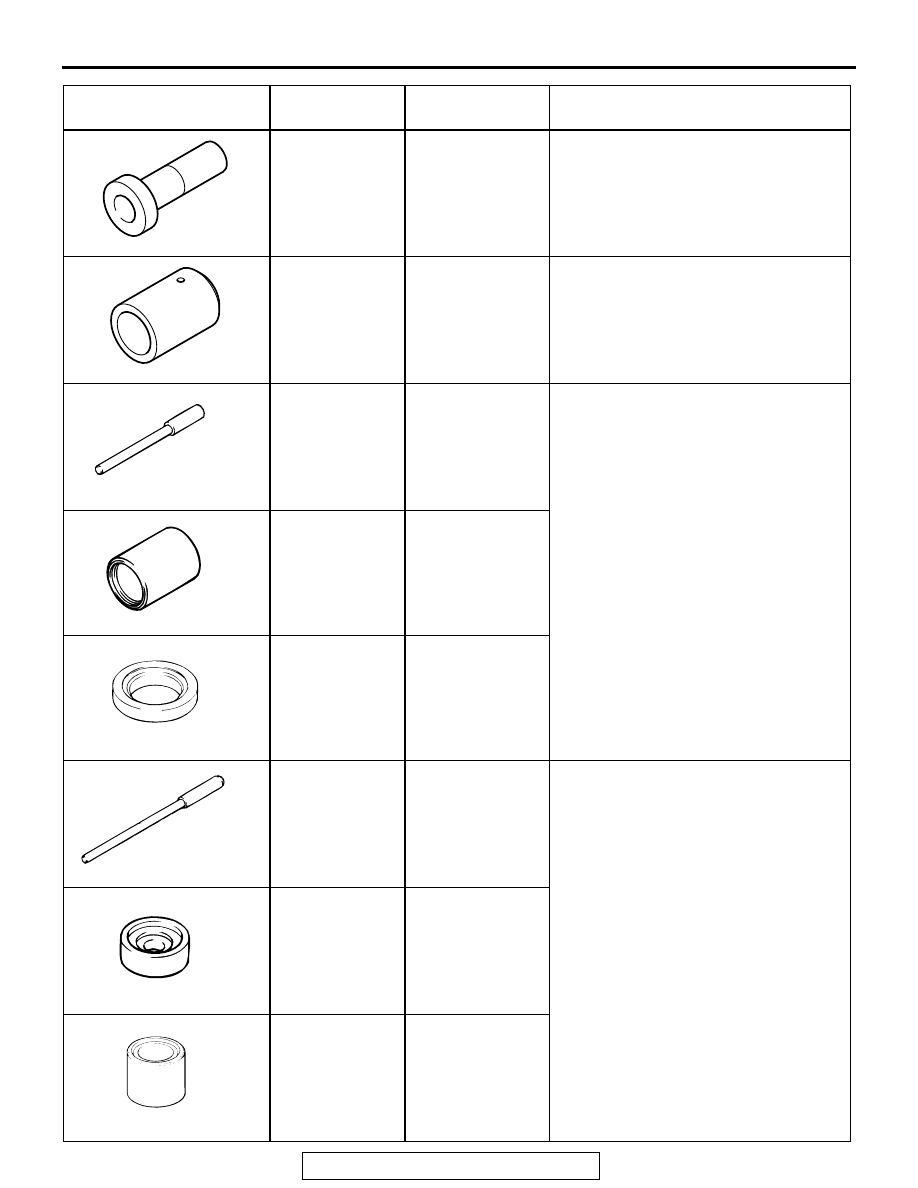

MD999547
Oil seal installer

Removal of front differential mount
insulator <Front side, Rear side (LH)>

MD999570
Crankshaft front
oil seal insulator

Removal of front differential mount
insulator <Rear side (RH)>

MB990947
Lower arm
bushing arbor

MB990947

Press fitting of front differential mount
insulator <Front side, Rear side (LH)>

MB990847
Rear suspension
bushing remover
and installer
base

MB990847

MB990981
Mount bushing
remover and
installer

MB991318
Lower arm
bushing arbor

Press fitting of front differential mount
insulator <Rear side (RH)>

MB991183
Bushing arbor

MB990843
Draglink bushing
remover and
installer

TOOLS

TOOL NUMBER
AND NAME

SUPERSESSION APPLICATION

MB990947

MB990847

MB990981

MB991318

MB991183

MB990843

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-14

ON-VEHICLE SERVICE

WHEEL BEARING PLAY CHECK

M1261001100094

1. Remove caliper assembly and suspend it with wire to

prevent it from falling.

2. Remove brake disc from hub.

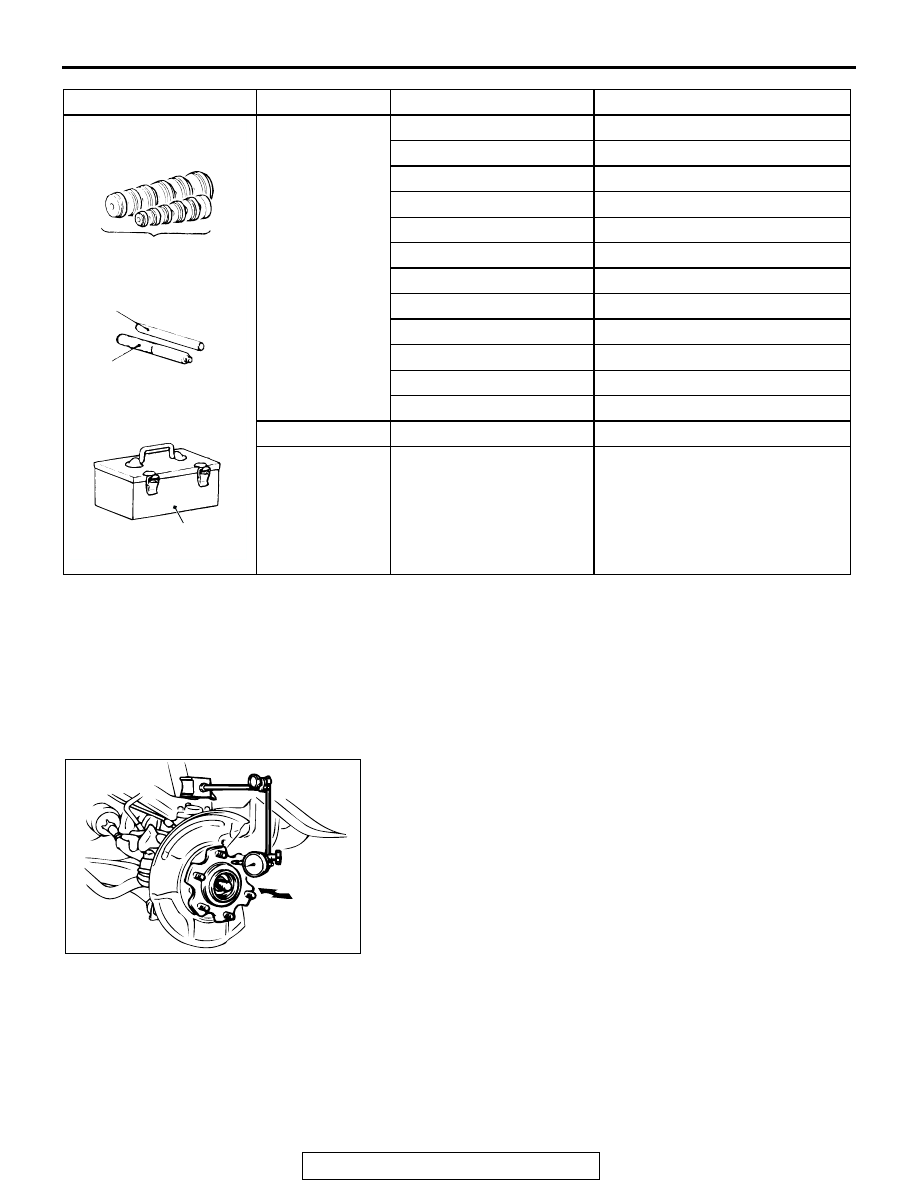

3. Set dial gauge as shown in the diagram and move hub in the

axis to measure backlash.

Limit: 0 mm (0 inch)

4. If the play exceeds the limit value, disassemble hub knuckle

to check each component. If the front hub assembly bearing
is faulty, replace the front hub assembly.

FRONT AXLE TOTAL BACKLASH CHECK

M1261001300087

When the ignition switch is in "LOCK" (OFF) position, the front
wheel comes to a stop after turning the propeller shaft by hand
due to the force applied to front wheel actuator. Inspect the
vehicle as follows:
1. Turn the ignition switch to "LOCK" (OFF) position, and then

put the transfer shift lever to the "2H" position.

TOOL

TYPE

TOOL NUMBER

O D mm (in)

A

MB990926

39.0 (1.54)

MB990927

45.0 (1.77)

MB990928

49.5 (1.95)

MB990929

51.0 (2.00)

MB990930

54.0 (2.13)

MB990931

57.0 (2.24)

MB990932

61.0 (2.40)

MB990933

63.5 (2.50)

MB990934

67.5 (2.66)

MB990935

71.5 (2.81)

MB990936

75.5 (2.97)

MB990937

79.0 (3.11)

B

MB990938

-

C

MB990939

-

ACX02372

A

B

C

BRASS BAR

BAR (SNAP-IN TYPE)

TOOL BOX

MB990925

AB

INSTALL ADAPTER

ACX00961AB

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-15

CAUTION

Do not jack up the vehicle.

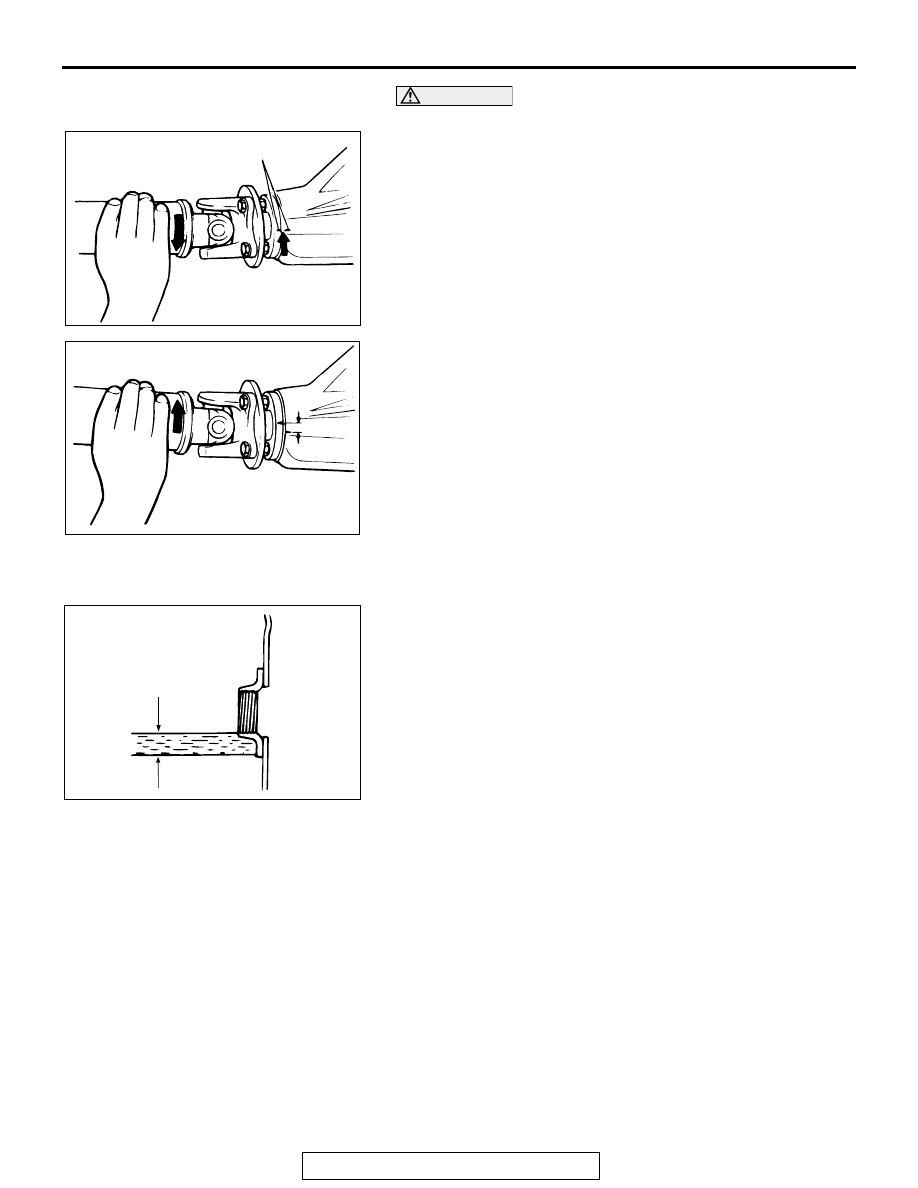

2. Turn the propeller shaft until a click is heard.
3. Turn the companion flange clockwise until all play is

eliminated, and then align the mating mark on the dust cover
with the mating mark on the differential carrier.

4. Turn the companion flange counterclockwise until all play is

eliminated and measure the distance through which the
mating marks moved.

Limit: 11 mm (0.4 inch)

5. If the amount of movement exceeds the limit value, check

the following.

• Final drive gear backlash

• Differential gear backlash

• Play in the serrations and splines of the side gears, drive

shaft, and drive flange

FRONT AXLE GEAR OIL LEVEL CHECK

M1262000900089

Remove the filler plug and check the gear oil level. Check that
the gear oil level is not more than 8 mm (0.3 inch) below the
bottom of the filler plug hole.

Specified gear oil: Hypoid gear oil API classification
GL-5 or higher

Above

23°C(10°F): SAE 90, 85W-90, 80W-90

From

34 to 23°C(30 to 10°F): SAE 80W, 80W-90

Below

34°C(30°F): SAE 75W

Quantity: 1.15 dm

3

 (1.22 quart)

DIFFERENTIAL CARRIER OIL SEAL
REPLACEMENT

M1262001000056

Required Special Tools:

• MB990590: Rear Axle Shaft Oil Seal Remover

• MB990934: Bearing and Oil Seal Installer Set

• MB990938: Bearing and Oil Seal Installer Set

1. Remove the drive shaft <LH> (Refer to

P.26-24

).

ACX00962 AB

MATING MARKS

ACX00964 AB

AC000439

UPPER LIMIT

LOWER LIMIT

AB

8 mm (0.3 in)

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-16

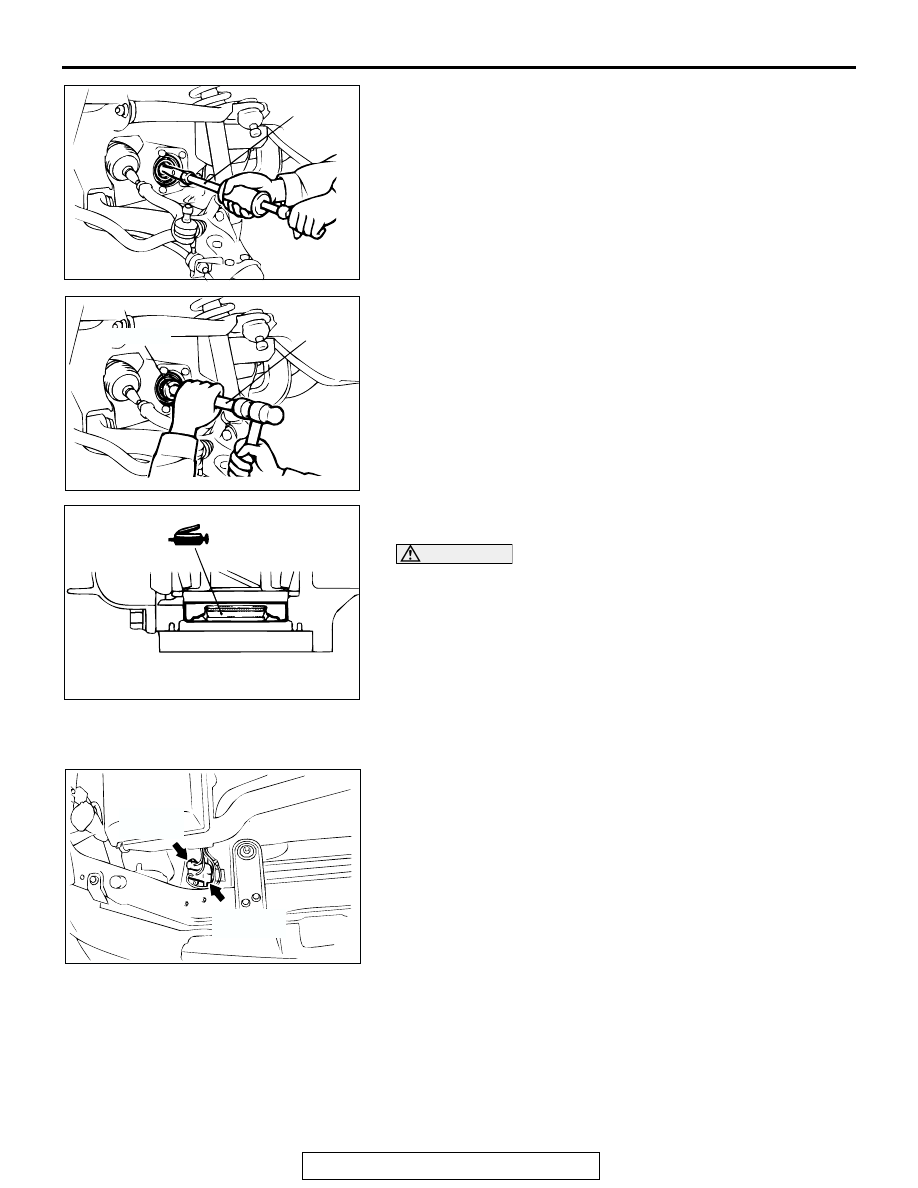

2. Remove the oil seal with special tools.

3. Install new oil seal with the special tools.

4. Apply multipurpose grease to the oil seal to lip before

installing the drive shaft <LH> (Refer to

P.26-24

).

CAUTION

• Be careful not damage the lip of oil seal.
• Replace the circlip attached to the spline of <LH> DOJ

side of driveshaft with a new one.

SOLENOID VALVE OPERATION CHECK

M1261001500070

1. Remove the vacuum hoses (blue stripe, yellow stripe) from

the solenoid valves.

2. Disconnect the harness connectors.

ACX00965 AB

MB990590

ACX00966AB

MB990938

MB990934

ACX00967AB

ACX00968 AB

SOLENOID
VALVE B

SOLENOID
VALVE A
