AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-23

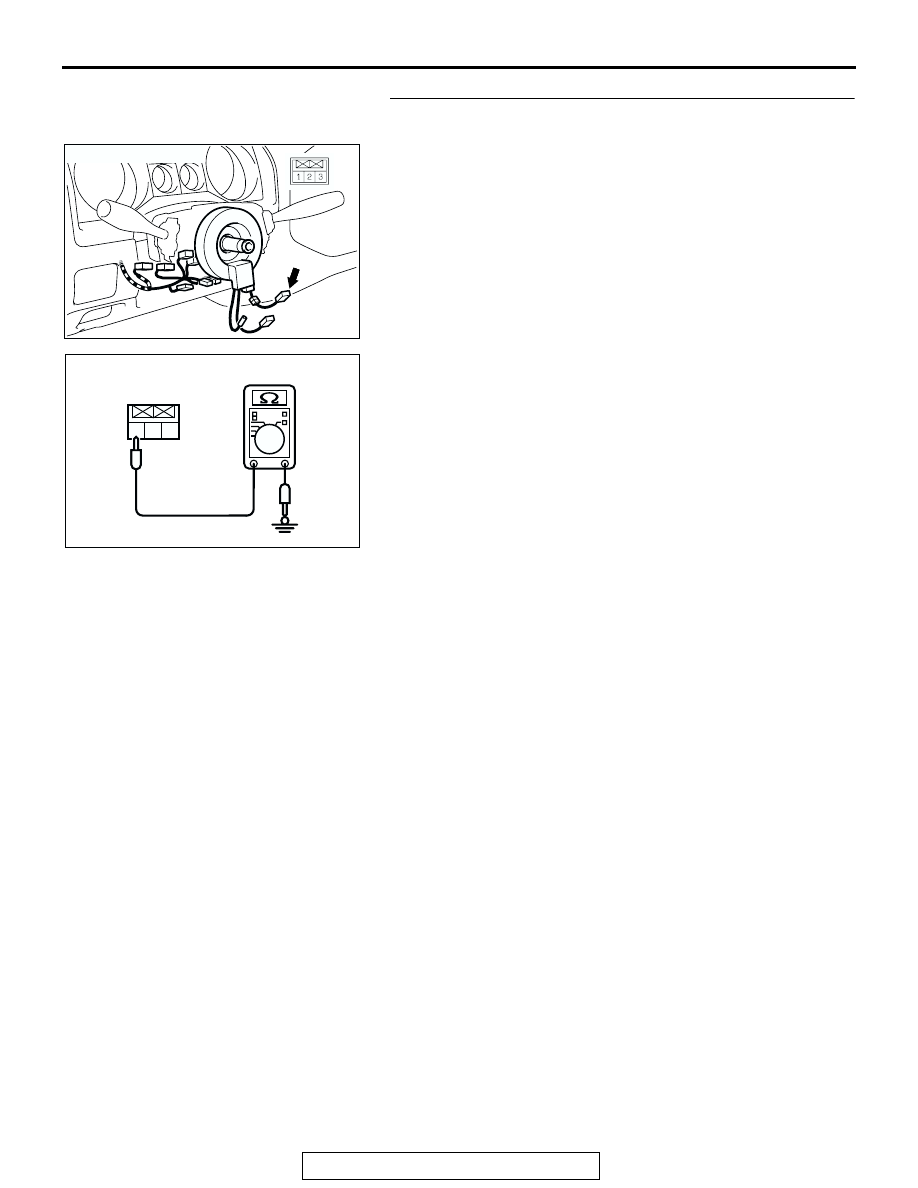

STEP 9. Check the resistance of the ground circuit at
auto-cruise control switch connector D-227.
(1) Disconnect auto-cruise control switch connector D-227 and

measure at the harness side.

(2) Check the resistance between terminal 3 and ground.

• The resistance should measure less than 2 ohms.

Q: Is the resistance less than 2 ohms?

YES : Go to Step 5.
NO :  Go to Step 10.

AC205038AB

D-227

CONNECTOR: D-227

1

2

3

AC205054 AB

D-227 HARNESS
CONNECTOR:
COMPONENT SIDE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-24

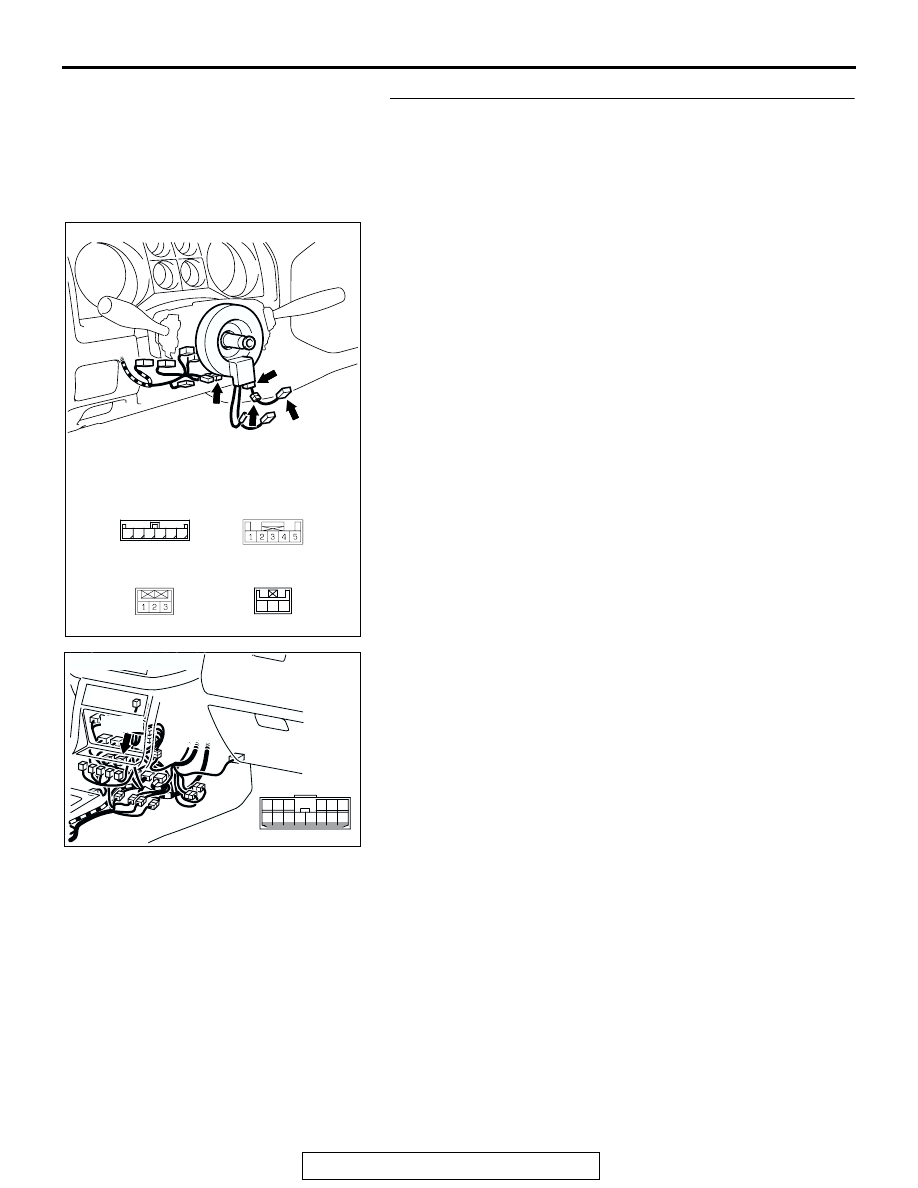

STEP 10. Check auto-cruise control switch connector
D-227, intermediate connector D-230, clock spring
connector D-226, clock spring connector D-205,
intermediate connector E-110 and PCM connector D-136
for looser, corroded or damaged terminals, or terminals
pushed back in the connector.

1 2 3

5

4

6

AC205037

2

1

3

CONNECTORS: D-205, D-226, D-227, D-230

D-227

D-226

D-205(B)

D-227

D-226

D-205

D-230(B)

D-230

AB

AC205045

6

1

7

2

9

8

10

3

5

12

11

4

1314

E-110

CONNECTOR: E-110

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-25

Q: Are the connectors and terminals in good condition?

YES : Go to Step 11.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC205040

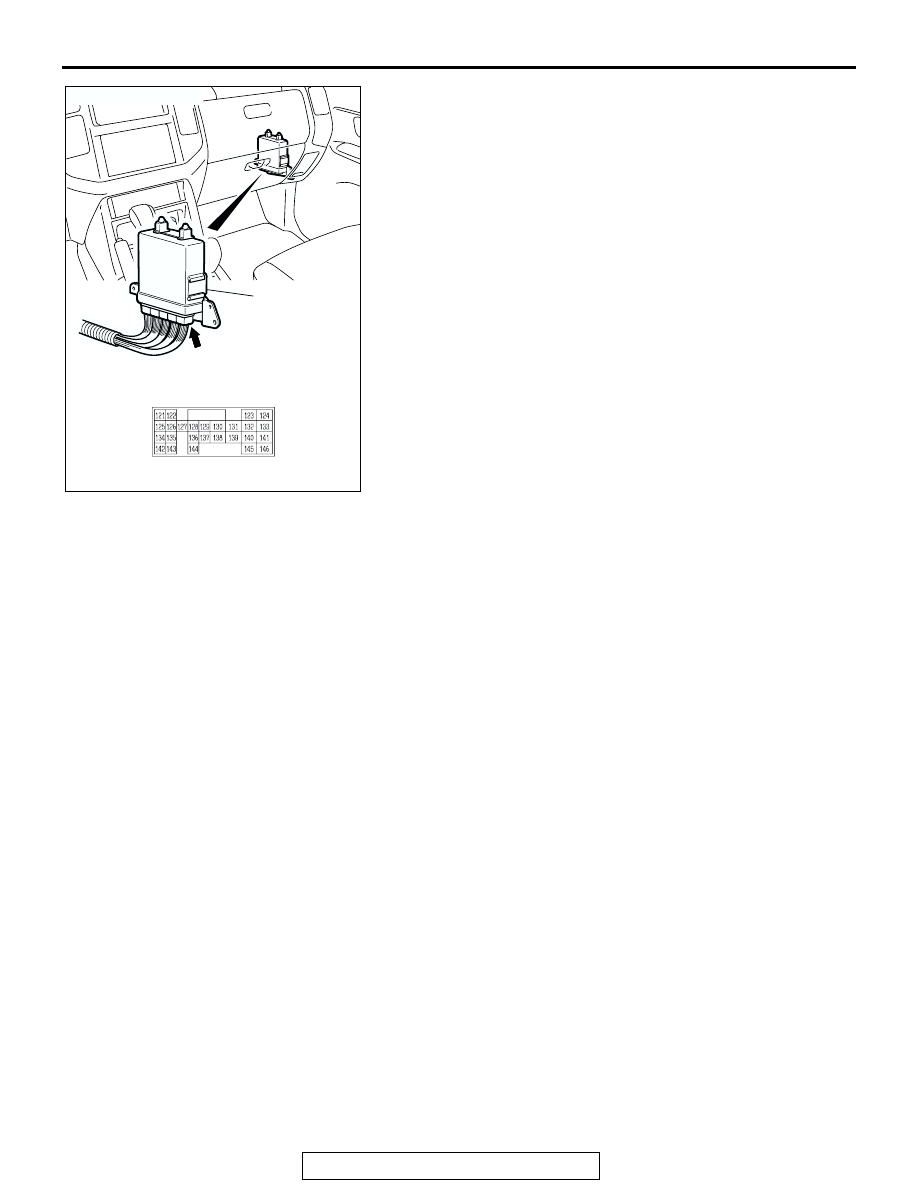

CONNECTOR: D-136

PCM

AB

D-136(GR)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-26

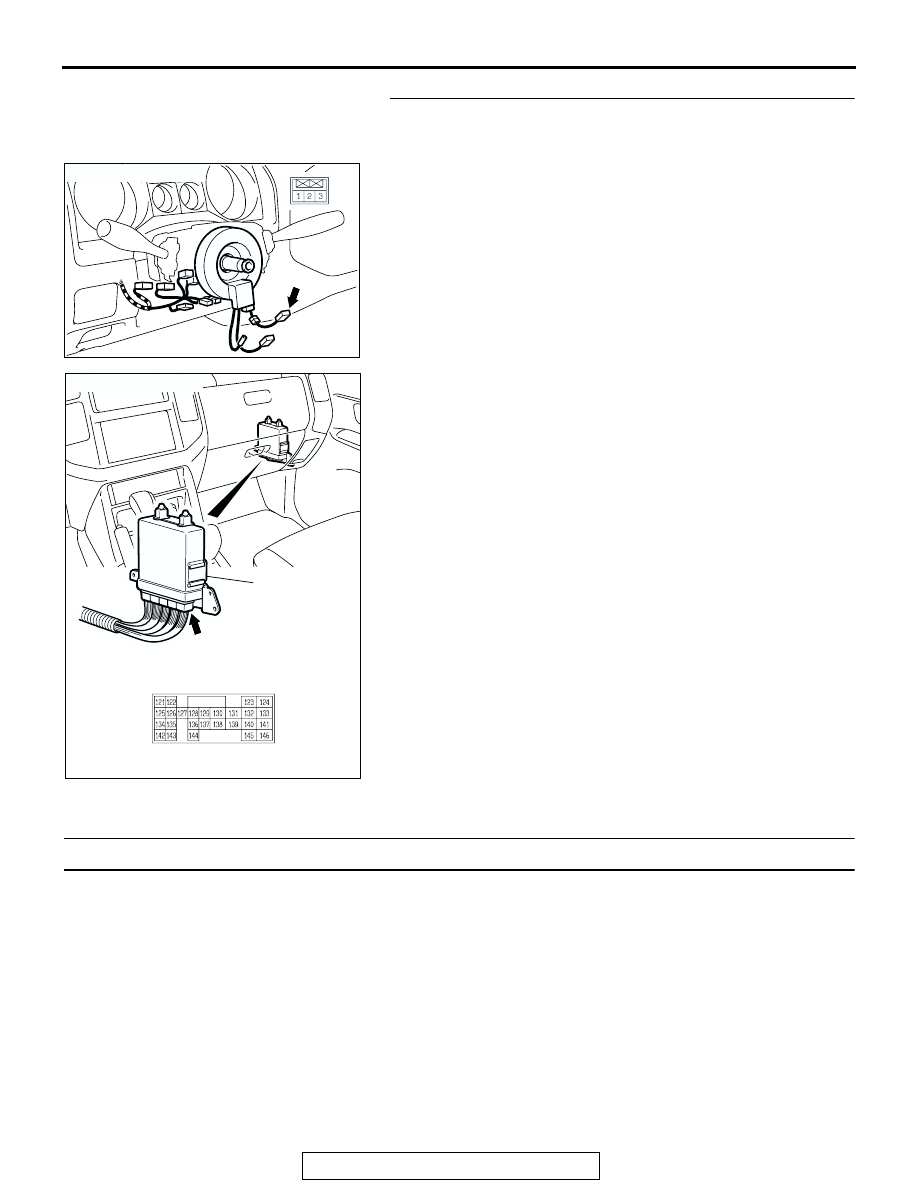

STEP 11. Check the harness for damage between
auto-cruise control switch connector D-227 terminal 3 and
PCM connector D-136 terminal 146.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

DTC 21: Cancel Latch Signal System

.

DTC SET CONDITIONS
The PCM communicates cancellation retention infor-
mation between the two microprocessors. This DTC
is set when cancellation retention information con-
tains inconsistency.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)
Malfunction of the PCM.

DIAGNOSIS

.

Replace the PCM. (Refer to

P.17-58

.) Check that diagnostic

trouble code 21 is not set.
