IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-43

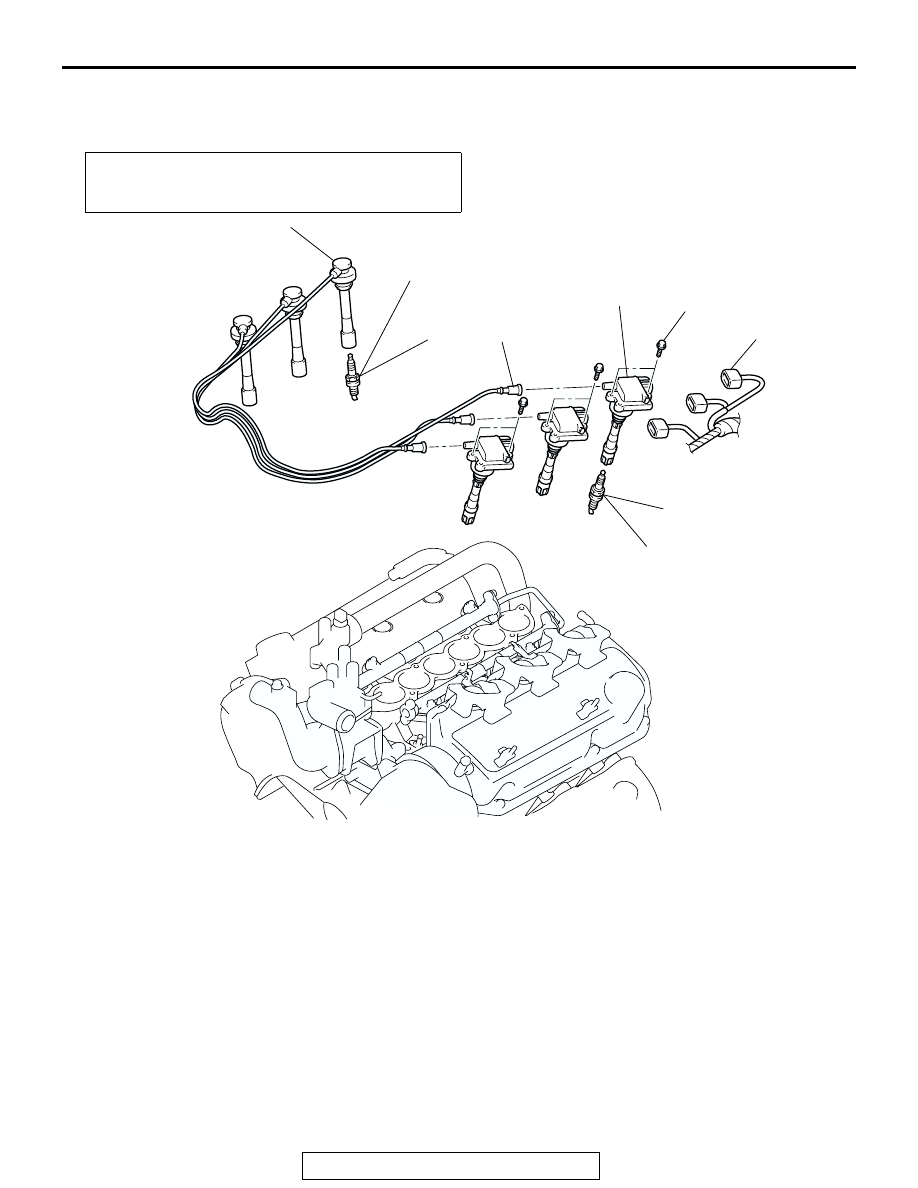

IGNITION COIL

REMOVAL AND INSTALLATION

M1163004000307

Pre-removal and Post-installation Operation
• Air Cleaner Removal and Installation (Refer to GROUP

15, Air Cleaner

P.15-7

.)

AC204093

25 ± 5 N·m
18 ± 4 ft-lb

1

2

3

5

4

25 ± 5 N·m
18 ± 4 ft-lb

5

10 ± 2 N·m
89 ± 17 in-lb

AB

REMOVAL STEPS

1.

IGNITION COIL CONNECTOR

2.

SPARK PLUG CABLE
CONNECTION

3.

IGNITION COIL ASSEMBLY

•

INTAKE MANIFOLD PLENUM
(REFER TO GROUP 15, INTAKE
MANIFOLD

P.15-7

.)

4.

SPARK PLUG CABLE

5.

SPARK PLUG

REMOVAL STEPS (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-44

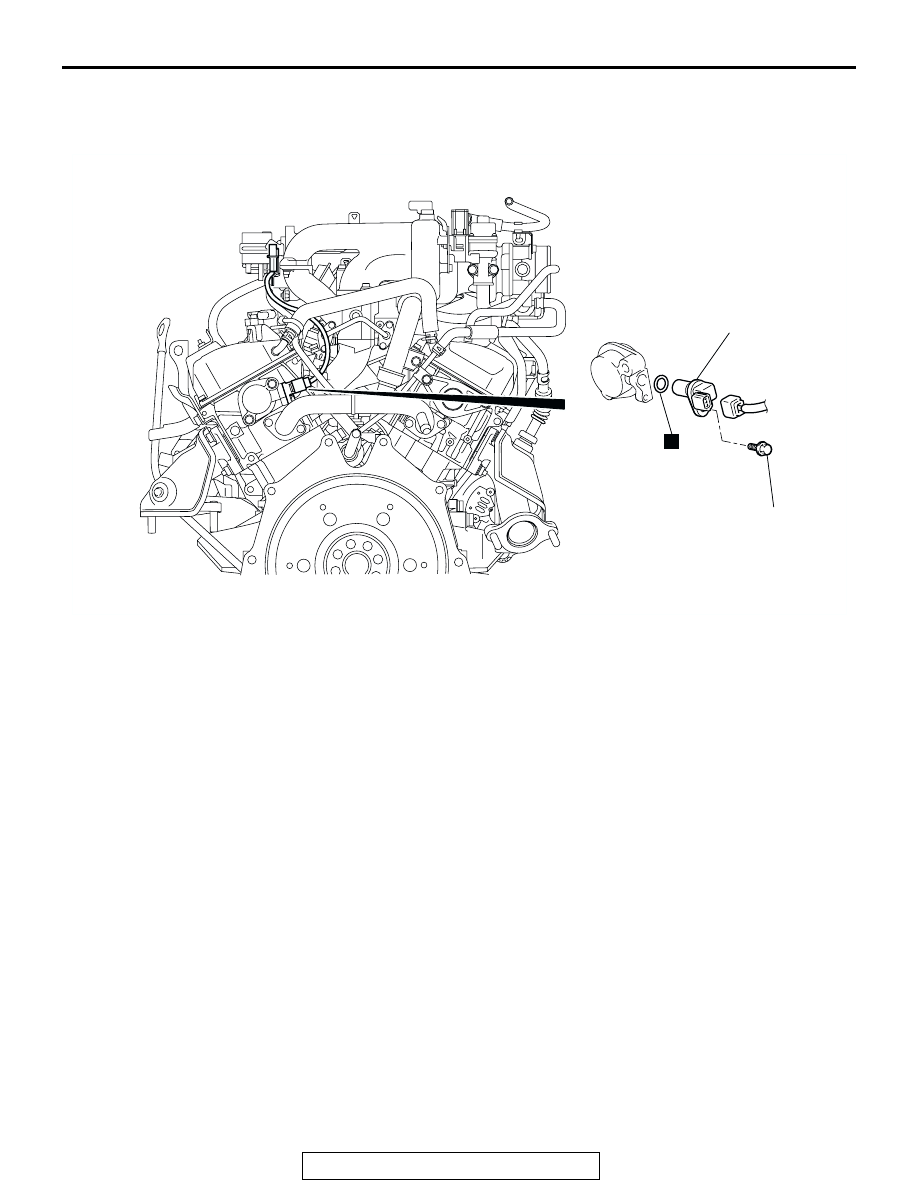

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003400346

AC204096AB

11 ± 1 N·m
98 ± 8 in-lb

CAMSHAFT POSITION
SENSOR

N

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-45

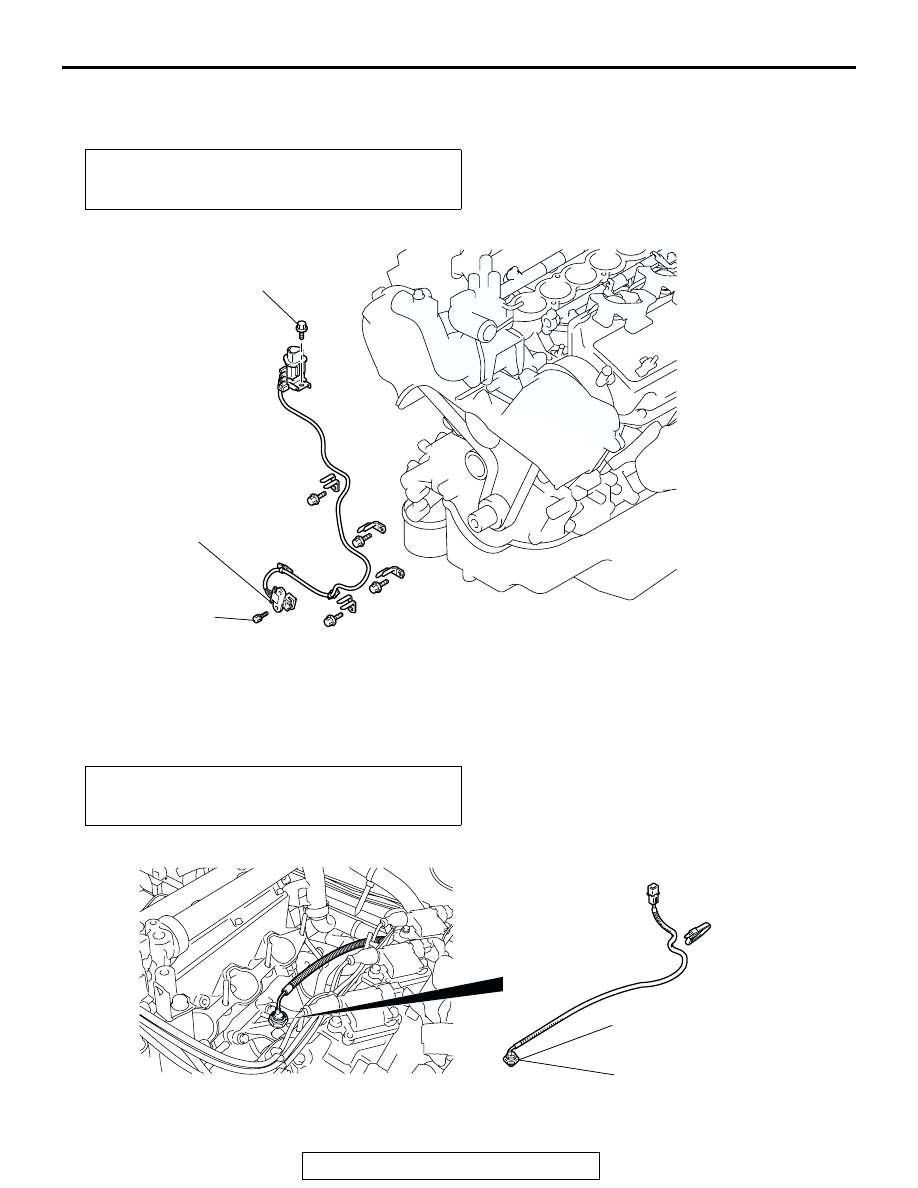

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003500332

KNOCK SENSOR

REMOVAL AND INSTALLATION

M1163002800620

Pre-removal and Post-installation Operation
• Timing Belt Lower Cover Removal and Installation (Refer

to GROUP 11A, Timing Belt

P.11A-36

.)

AC204073

CRANKSHAFT POSITION
SENSOR

10 ± 2 N·m
89 ± 17 in-lb

8.5 ± 0.5 N·m
76 ± 4 in-lb

AB

Pre-removal and Post-installation Operation
• Intake Manifold Removal and Installation (Refer to

GROUP 15, Intake Manifold

P.15-7

.)

AC204095

1

23 ± 2 N·m
17 ± 1 ft-lb

AB

<<A>>

>>A<< 1. KNOCK SENSOR

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-46

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

.

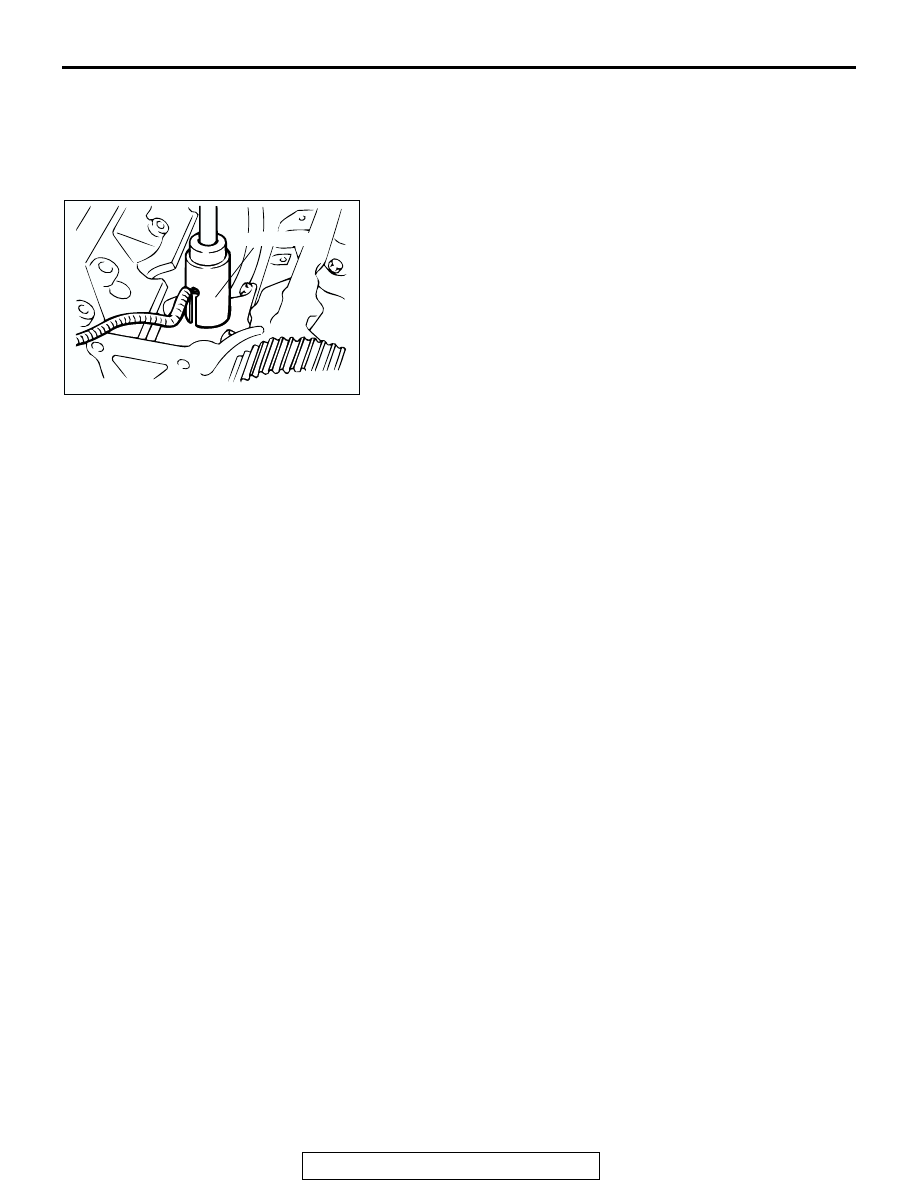

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

ACX02082AB

MD998773
