MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-915

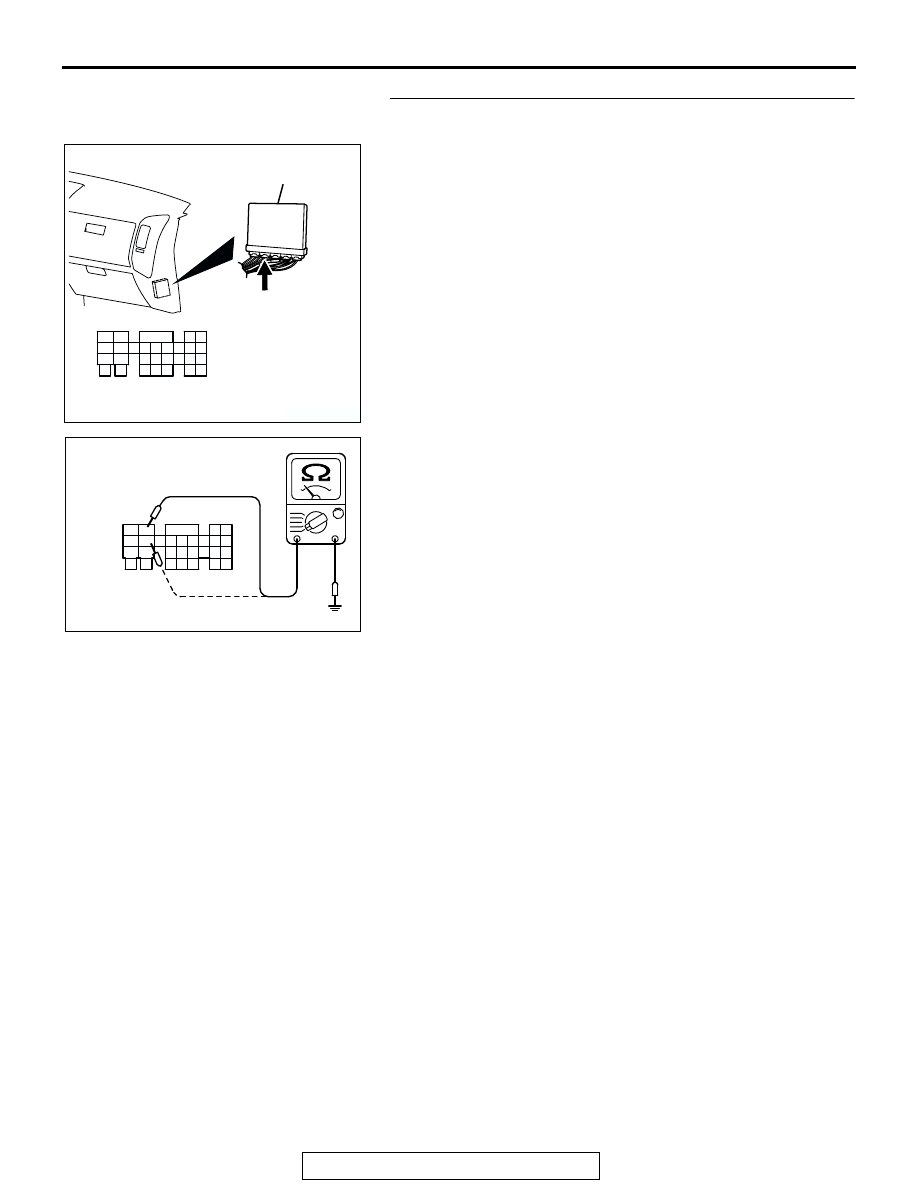

STEP 7. Check the continuity at PCM harness side
connector D-133.
(1) Disconnect the connector D-133 and measure at the

harness side.

(2) Check for the continuity between terminal No. 33, No. 42

and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 8.
NO :  Check harness connector D-14 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector D-14 is

in good condition, repair an open circuit or harness
damage between PCM connector D-133 (terminal No.
33, No. 42) and ground. Then confirm that the
malfunction symptom is eliminated.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AK201377

D-133 HARNESS

CONNECTOR:

COMPONENT SIDE

AK201377AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-916

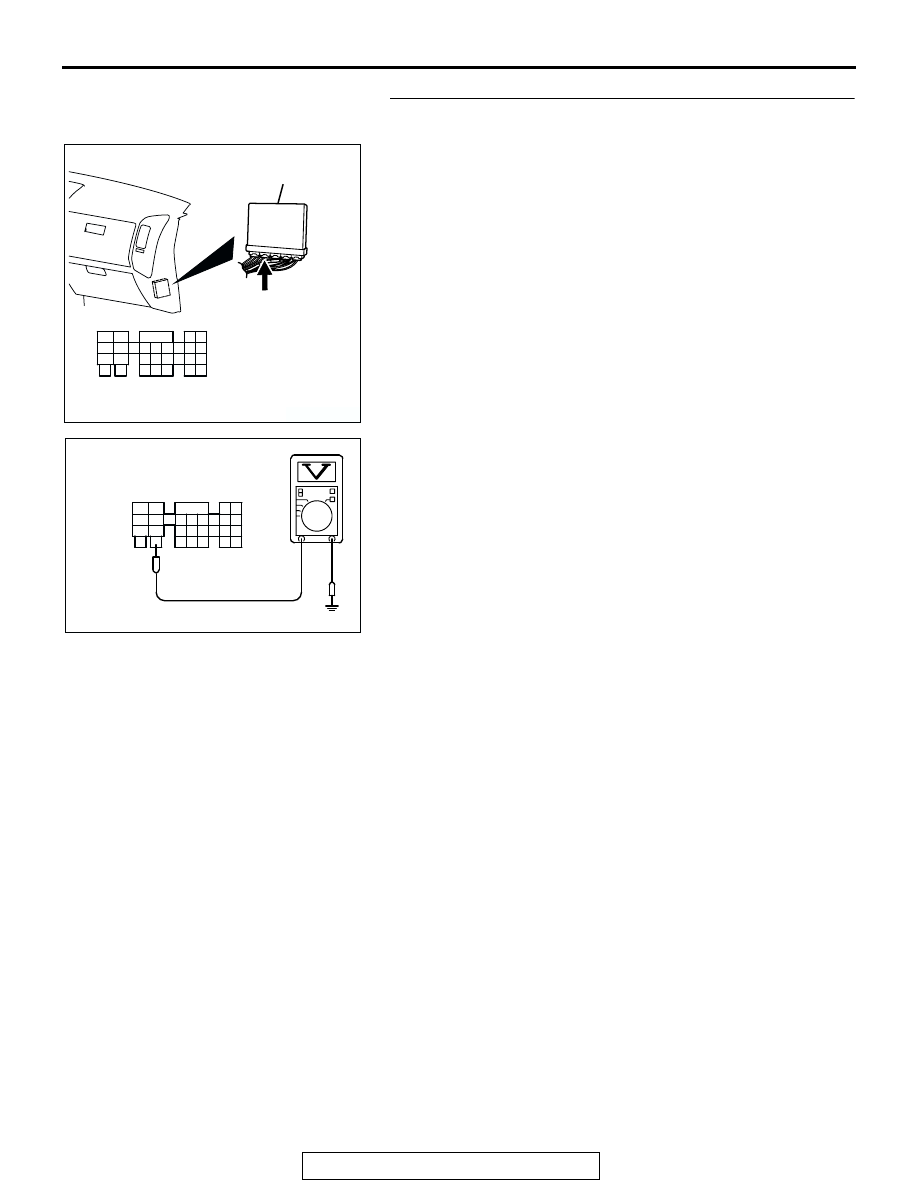

STEP 8. Measure the power supply voltage at PCM harness
side connector D-133.
(1) Disconnect the connector D-133 and measure at the

harness side.

(2) Measure the voltage between terminal No.57 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 9.
NO :  Repair an open circuit between MFI relay connector

B-22X (terminal No. 4) and PCM connector D-133
(terminal No. 57). Then confirm that the malfunction
symptom is eliminated.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

AK201378

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

D-133 HARNESS
CONNECTOR:
COMPONENT SIDE

AK201378AB

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-917

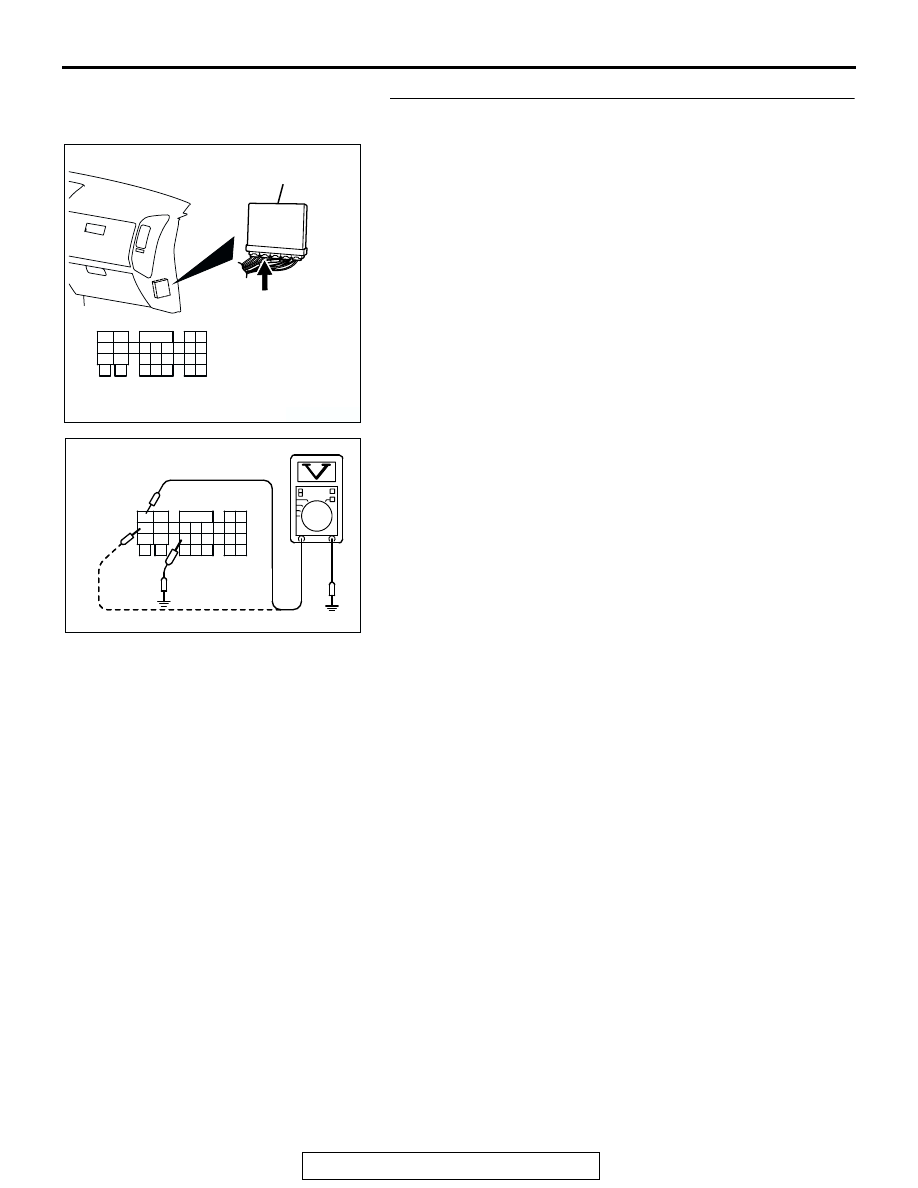

STEP 9. Measure the power supply voltage at PCM harness
side connector D-133.
(1) Disconnect the connector D-133 and measure at the

harness side.

(2) Using a jumper wire, connect terminal No. 57 to ground.

(3) Measure the voltage between terminal No. 34, No. 43 and

ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Replace the PCM. Then confirm that the malfunction

symptom is eliminated.

NO :  Check harness connector D-116 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector D-116

is in good condition, repair an open circuit between
MFI relay connector B-22X (terminal No. 1) and PCM
connector D-133 (terminal No. 34, No. 43). Then
confirm that the malfunction symptom is eliminated.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

AK201379

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

D-133 HARNESS CONNECTOR:
COMPONENT SIDE

AK201379AB

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-918

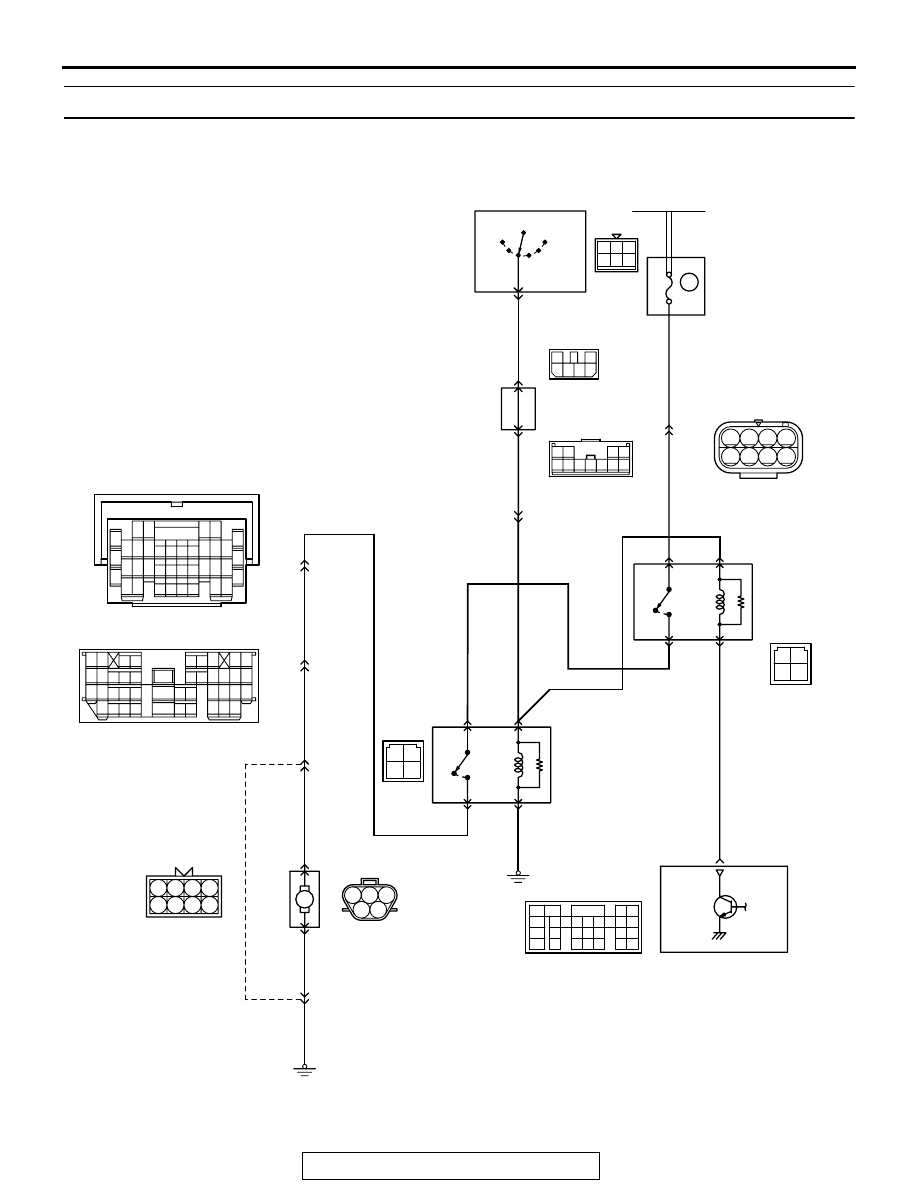

INSPECTION PROCEDURE 29: Fuel pump system.

M

BLUE-

BLA

CK

AK201158

BLA

C

K

BLA

C

K

B

LA

CK-BLUE

B

LA

CK-BLUE

BLUE-GREEN

BLA

C

K

BLUE-

BLA

CK

RED-

WHITE

BLUE-

BLA

CK

BLA

C

K-BLUE

BLA

CK-BLUE

BLA

CK-BLUE

BLA

CK-BLUE

BLA

CK-BLUE

3 4

1 2

B-24X

3 4

1 2

B-19X

FUEL PUMP
RELAY 2

FUEL PUMP
RELAY 1

POWERTRAIN
CONTROL
MODULE (PCM)

4

1

5

17

2

3

16

4

3

4 5

1 2 3

G-04

(MU802058)

8

R

IG2

ST

LOCK

ACC

IG1

2

IGNITION
SWITCH-IG

5

2

4

17

1

12 13 14

18

30

41

34

3

16

10

6 7

19

31

42

20

32

43

21

33

25

24

26

36

35

37

29

28

15

27

38

8 9

39 40

11

2

22

5

23

D-111

38

4

3

5

4

2

1

3

4 5 6

1 2

D-204

3

2

4 5 6

1

D-208

MU801331

9

6

10

17

18

29

2

3 4

7 8

19 20

30 31

12

11

24

33 34 35

21

32

27

26

36 37

28

38

25

13

15

14

16

23

22

1

5

E-111

E-111

E-111

7

9

1

3

6

11

2

4

8

5

10

D-221

(MU801866)

A-05

(MU802749)

8

7

6

5

1 2 3 4

F-07

MU802609

FUEL
PUMP

Fuel Pump Circuit

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

D-132

(MU803802)

FUSIBLE
LINK(1)

6

20A

RELAY
BOX

1

2 3

5

6 7

4

8
